191157 Hollow Screw | Genuine Volvo Penta Part

🔧 Product Description

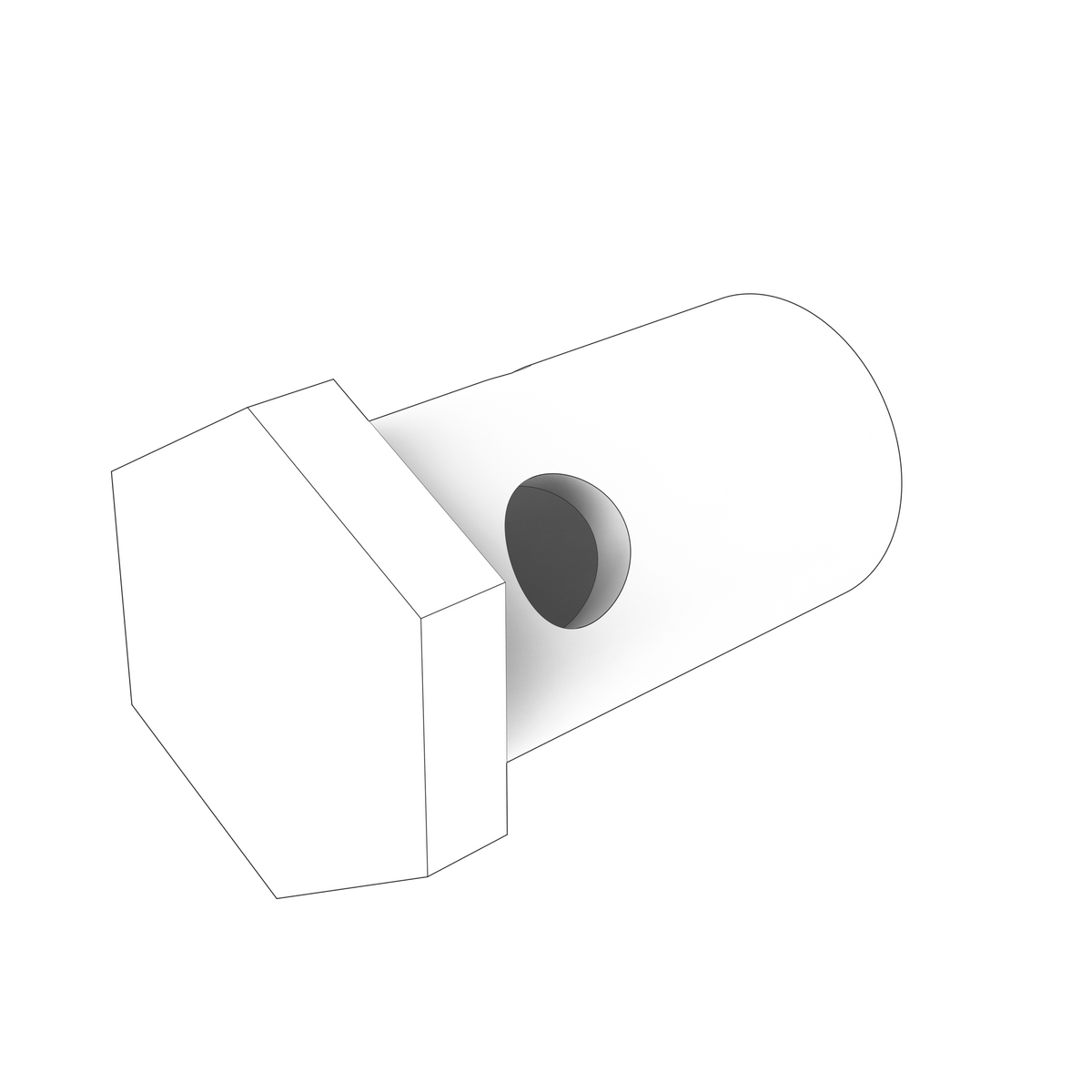

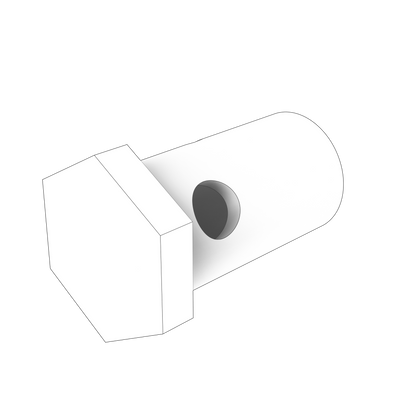

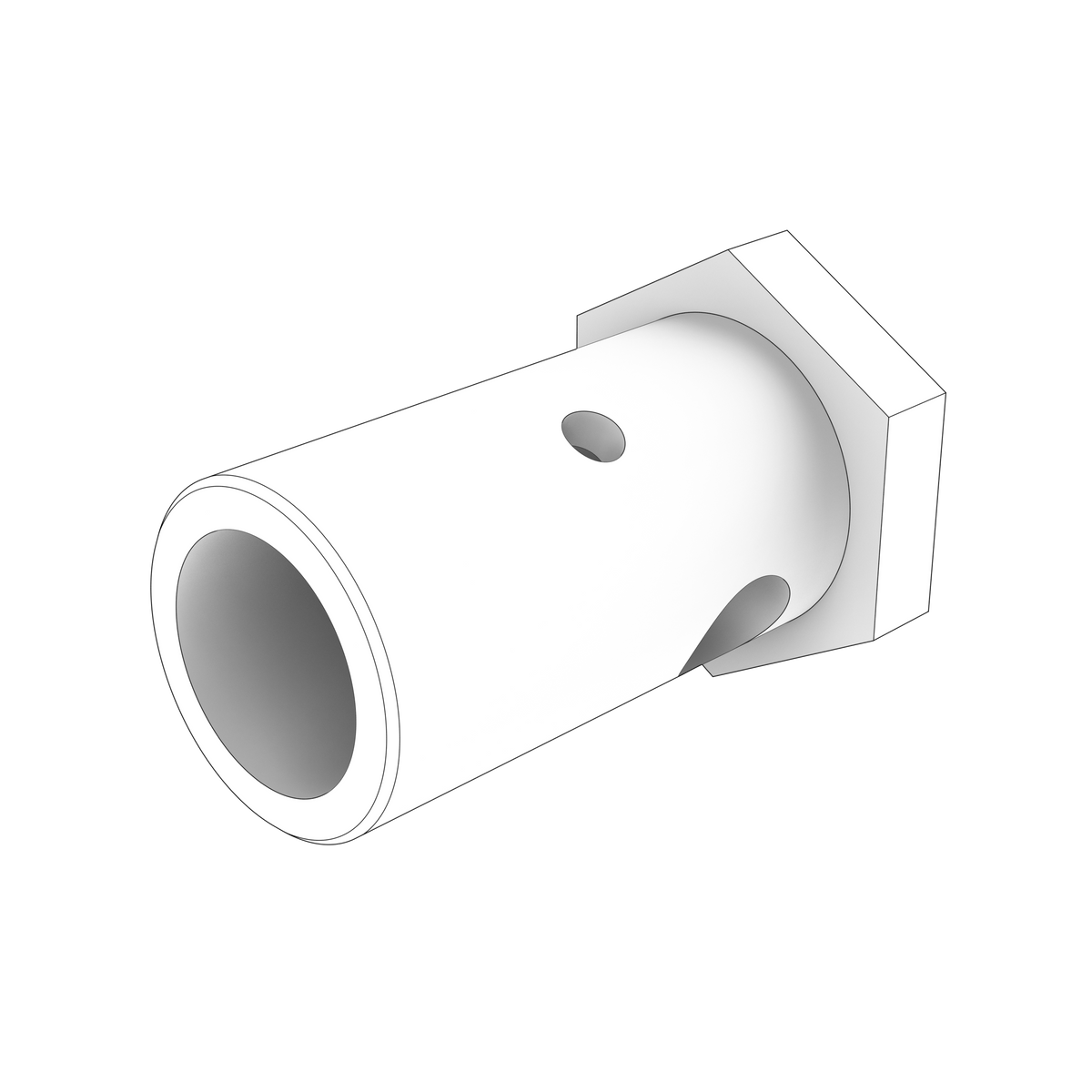

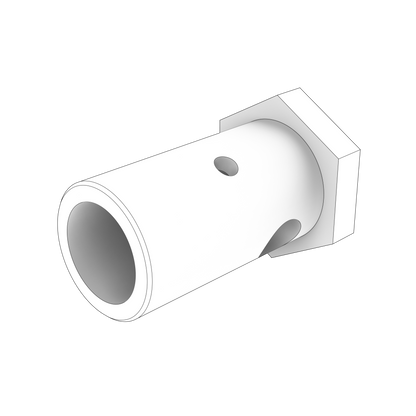

This genuine Volvo Penta hollow screw is a cross-drilled hollow screw designed to clamp a banjo fitting while carrying fluid through the joint used in the banjo-type engine fluid-line connection. It is manufactured to the original Volvo Penta dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it clamps a banjo fitting while transferring fluid through the internal passage. Selection must be confirmed by OEM part number 191157, the exact engine or product model, serial number and installed configuration.

🚤 Compatibility

• Engine Family: D, TAD, TD, AQD, TMD, TWD, TAMD, THAMD

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM hollow screw
• OEM part number 191157
• Clean the bore and cross-drillings, renew both sealing washers, align the banjo without stress and tighten to the specified torque.
• Quantity varies by assembly, most commonly two
• Also supersedes Volvo part number 3587616

🔌 Function

Clamps a banjo fitting while transferring fluid through the internal passage. Clean the bore and cross-drillings, renew both sealing washers, align the banjo without stress and tighten to the specified torque.

⚠️ Common Signs of Failure

• Fluid leakage around the banjo sealing washers
• Restricted flow from blocked internal drillings
• Damaged threads, stretched shank or cracked head
• Air entry, pressure loss or poor fuel/oil delivery
• Repeated loosening or distorted banjo sealing faces

🛠️ Service Notes

• Check the through-passage is clear and clean before fitting; a blocked hollow screw starves whatever it feeds
• Always fit new sealing washers, one each side of the union where the original had them, and never reuse a crushed washer
• Hold the fitting or pipe end against turning as you tighten, so the line is not twisted and the union is not pulled out of position
• Tighten to the figure in the workshop manual for your engine — these seal by crushing the washer, not by force, and over-tightening splits the head or shears the shank
• Bring the system up to working pressure and check for weeps before closing the space up

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 191157 → Supersedes 947576

OEM / Related Numbers

• 23380410 earlier number superseded by this part
• 947576 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TAMD122A, TAMD122A/C, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70D, AQD70C
• Volvo Penta D11C3-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP
• Volvo Penta TAMD70B, TAMD70E, TAMD70C, TAMD70D
• Volvo Penta D13C4-B MP, D13C5-B MP, D13C8-B MP
• Volvo Penta TAD1640-42GE-B, TAD1640GE, TAD1640VE-B
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
• Volvo Penta TAMD60A, TAMD60B, TAMD60C
• Volvo Penta D9A2L MH, D9A2M MP
• Volvo Penta TAD120BHC, TAD120CHC
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TD100CHC, TD100CRC
• Volvo Penta TD120BHC, TD120BRC
• Volvo Penta TD121CHC, TD121CRC
• Volvo Penta TD70CHC, TD70CRC
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TMD40A, TMD40B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta AQD40A
• Volvo Penta TAD1180-83VE
• Volvo Penta TAD121CHC
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TAMD103A
• Volvo Penta TAMD120B
• Volvo Penta TAMD121D
• Volvo Penta TD40A
• Volvo Penta TMD100C
• Volvo Penta TMD102A
• Volvo Penta TMD120B
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TWD1643GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1744GE
