19120-88L01 Suzuki Throttle Lever | Genuine Used Part

🔧 Product Description

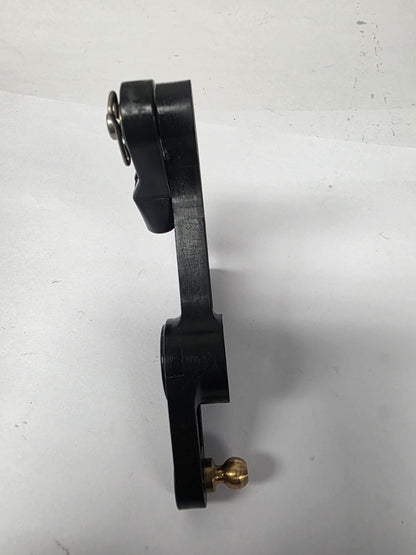

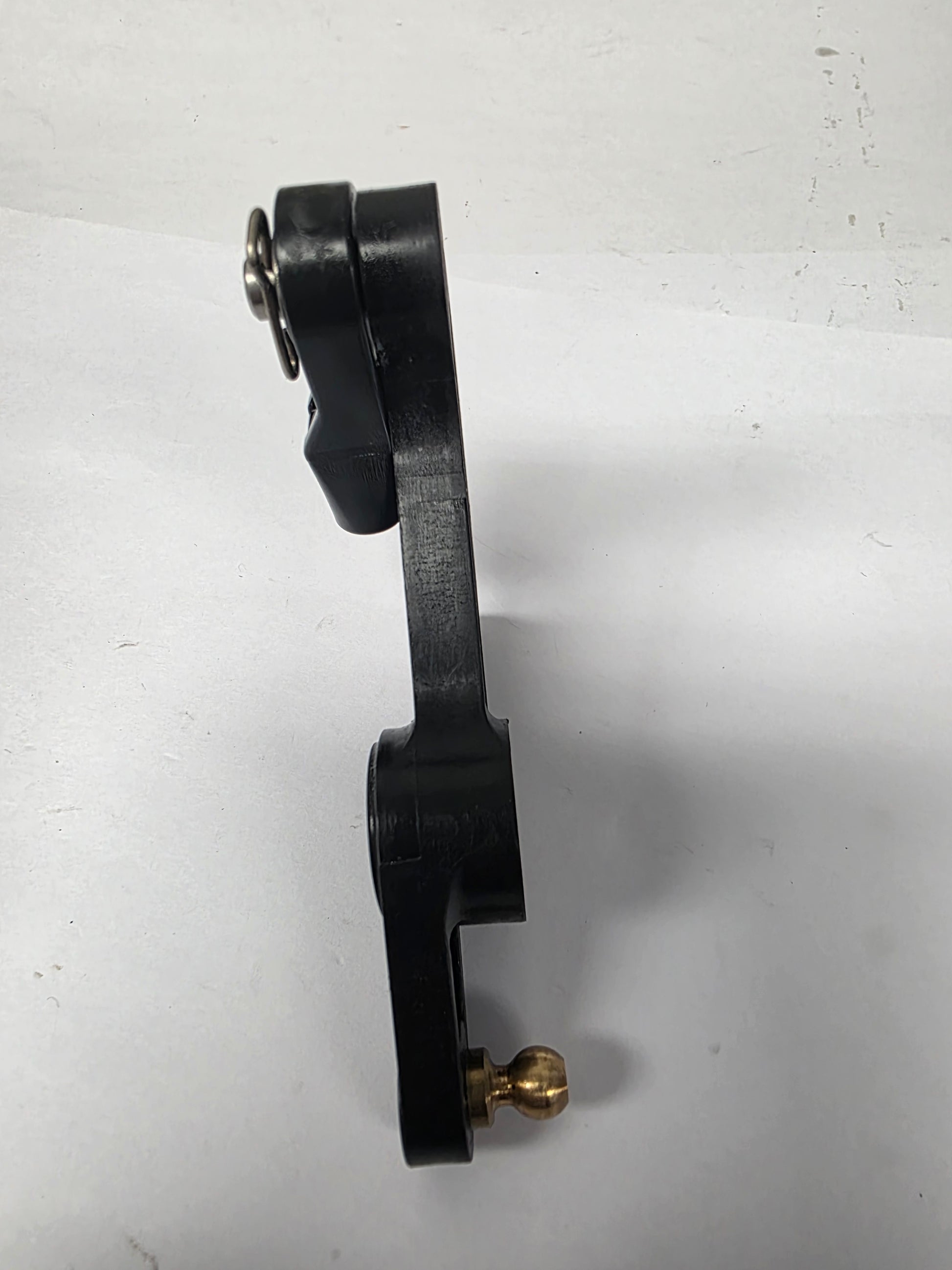

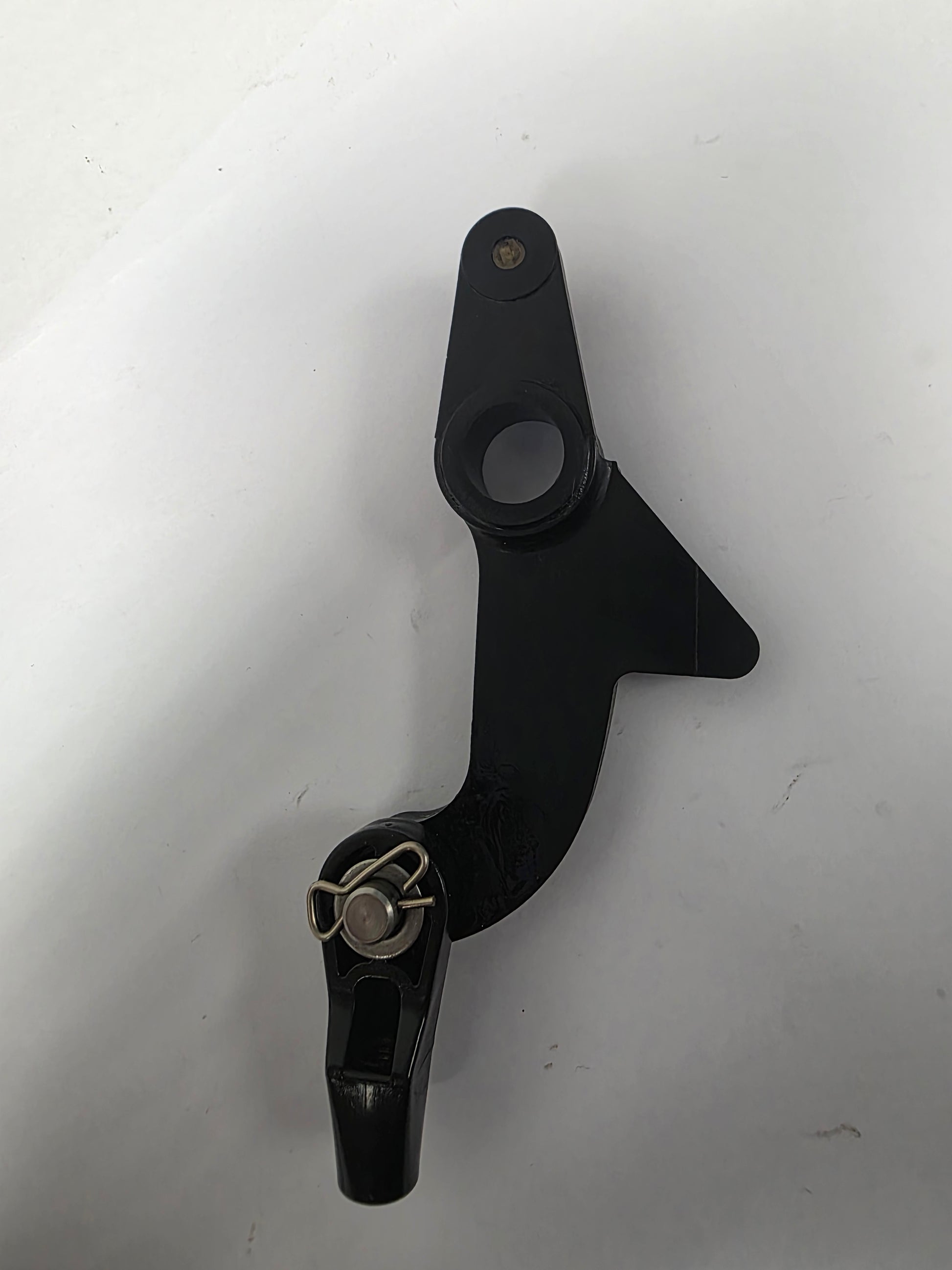

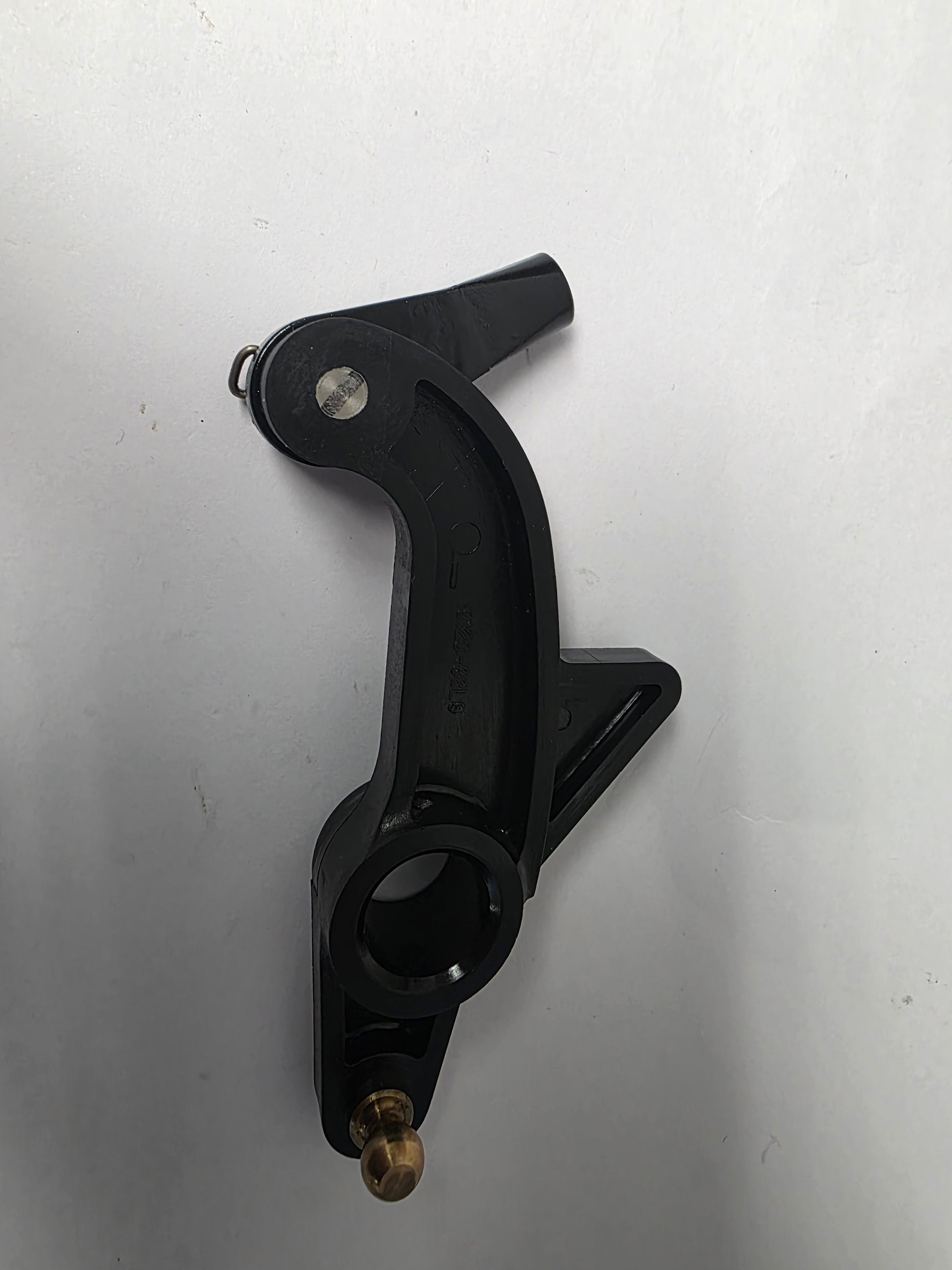

Genuine Suzuki DF40A-DF60A Throttle Lever - Part Number: 19120-88L01

A genuine Suzuki throttle lever for selected DF40A, DF50A and DF60A EFI four-stroke outboards.

The lever pivots within the throttle-body linkage and transfers motion to throttle rod 13510-88L00. Part number 19120-88L12 is a related tiller or application-specific lever and should not be assumed interchangeable.

⚙️ Key Features

• Genuine Suzuki throttle lever
• Correct part number 19120-88L01
• Used with the 88L throttle rod and connector
• Factory lever ratio provides correct throttle travel
• Designed for Suzuki 941cc inline-three engines
• Suitable for documented remote-control linkage assemblies

🚤 Compatibility

Documented on

• Suzuki DF40A
• Suzuki DF50A
• Suzuki DF50AV
• Suzuki DF60A
• Suzuki DF60AV
• Selected remote-control models using the 19120-88L01 lever
• HP Range: 40HP - 60HP
• Engine Type: Suzuki 941cc inline-three EFI four-stroke outboard
• Fitment Requirement: Confirm remote or tiller configuration

🔌 Function

The lever rotates when the control linkage moves and transfers that movement through the throttle rod to the throttle-body shaft.

⚠️ Common Signs of Failure

• Lever pivot has excessive play
• Engine does not reach full throttle
• Lever is bent or cracked
• Rod connector repeatedly comes loose
• Throttle return is slow or inconsistent

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 19120-88L01 current documented throttle-lever reference
• 19120-88L12 related application-specific lever, not a confirmed direct replacement

OEM / Related Numbers

• 19120-88L01
• 19120-88L12 related lever
• 13510-88L00 throttle rod
• 19131-95502 rod connector
• 09140-05005 related nut
• 09160-06047 related washer

Aftermarket / Verified Equivalents

• Specialist used Suzuki 19120-88L01 lever
• Used complete DF40A-DF60A throttle-body linkage
• No verified direct aftermarket lever equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Inspect pivot and rod-connection surfaces before installation
