1920 Dunbier A1330 Mackay Trojan 6 Stud Hub and 275 x 11mm Cast Iron Rotor 2.2t | Marine Trailer Part

1920 Dunbier A1330 Mackay Trojan 6 Stud Hub and 275 x 11mm Cast Iron Rotor 2.2t | Marine Trailer Part

$511.50 AUD
$511.50 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

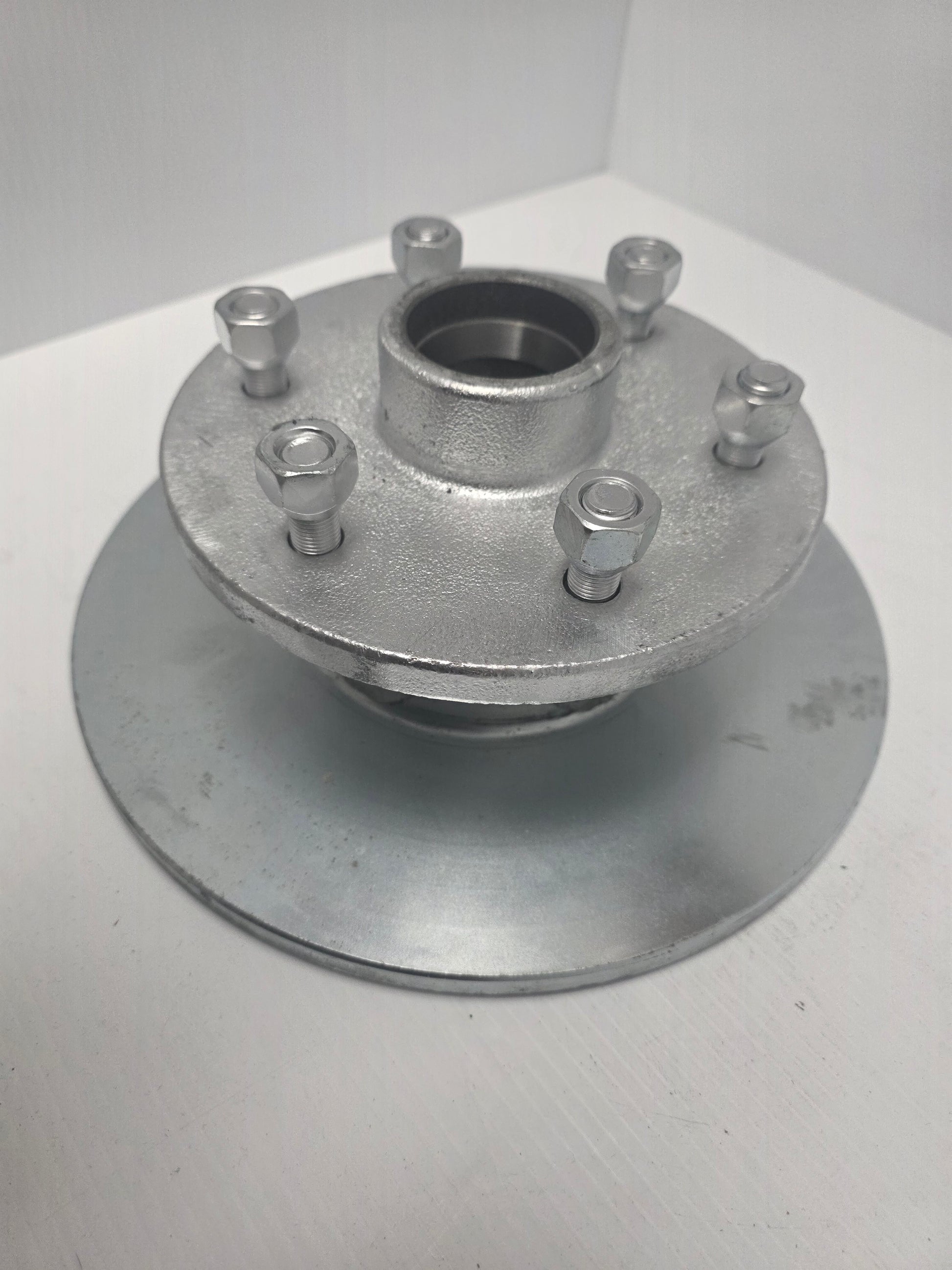

Dunbier Trojan Six-Stud Hub with 275 × 11mm Cast-Iron Rotor – 2.2T – Part Number: 1920

A complete galvanised or stainless/cast rotor hub assembly for Trojan 65mm square hydraulic disc axles. The integrated wheel hub and brake rotor provides the wheel-stud pattern, tapered-bearing seats and braking surface required for the specified Dunbier axle family.

⚙️ Key Features

  • Integrated wheel hub and disc-brake rotor
  • Marine-trailer corrosion-resistant construction appropriate to the listed finish
  • Supplied with matching bearing set where stated
  • Wheel studs installed in the specified pattern
  • Direct service replacement for the matching Dunbier/Mackay axle family

📏 Specifications

  • Wheel pattern: Trojan/LandCruiser-style six stud
  • Rotor: 275 × 11mm cast iron
  • Bearings: Trojan LM44649/10 and LM48548/10 family
  • Seal: Trojan two-part seal 1719
  • Axle-family rating/application: 2.2-tonne Trojan axle family

🔄 Cross Reference & Related Parts

  • Dunbier: 1920
  • Mackay: A1330
  • Cast-iron 11mm caliper: Dunbier 1926 / Mackay H3029
  • Replacement rotor only: Dunbier 1922

🚤 Trailer Compatibility & Application

  • Suits Trojan 65mm square hydraulic disc axles
  • Confirm bearing family, spindle dimensions, caliper rotor width and wheel stud pattern
  • Hub assemblies are supplied per wheel unless otherwise stated

🔌 Function

Carries the trailer wheel on the axle bearings and provides the rotating friction disc for the brake caliper.

⚠️ Common Signs of Failure

  • Rotor is below minimum thickness, deeply scored or heat cracked
  • Wheel studs are loose, stretched or damaged
  • Bearing races are pitted or spin in the hub
  • Sealing surface is corroded
  • Hub runs hot, noisy or develops excessive end float

🛠️ Installation & Safety

  • Pack and install bearings correctly
  • Use the matching seal and a new axle split pin
  • Adjust bearing preload before fitting the dust cap or protector
  • Torque wheel nuts in stages to the wheel specification
  • Bed new pads and rotors according to the brake manufacturer's procedure

📦 Condition

  • Genuine Dunbier Marine Products trailer component
  • Brand new

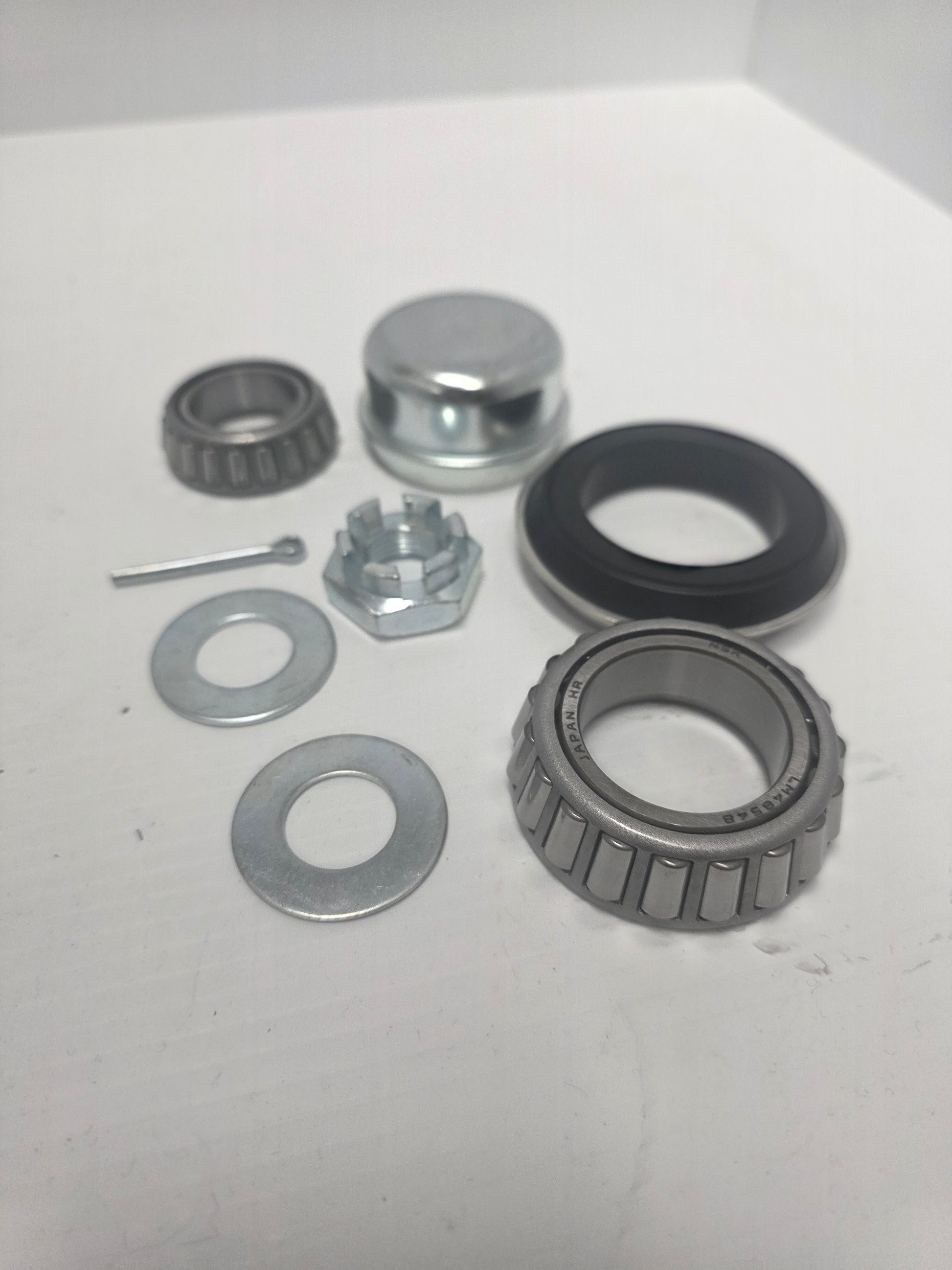

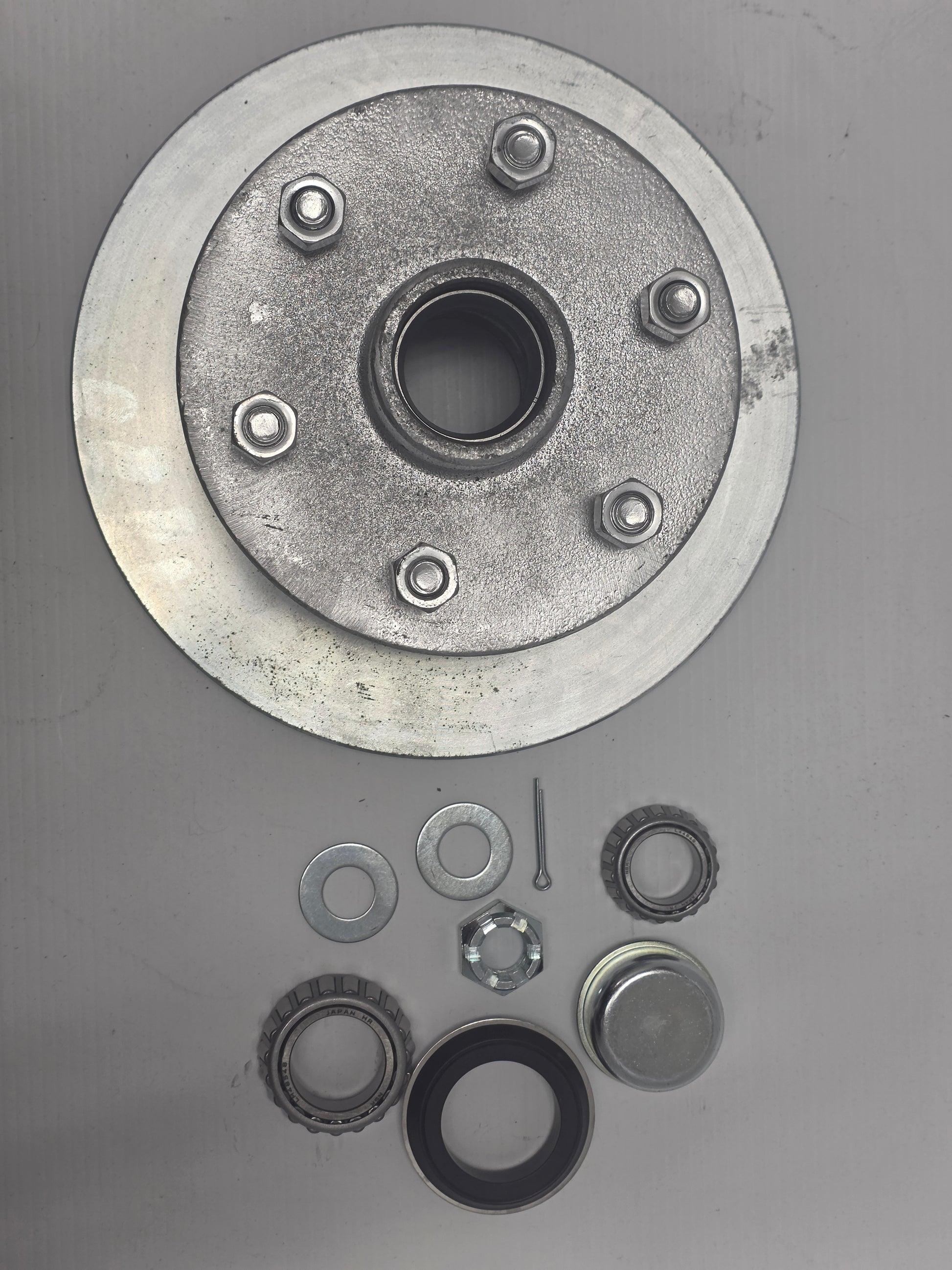

  • Supplied as one complete hub-and-rotor assembly with bearings and seal where specified
  • Supplied in original or equivalent packaging
