192212 Expansion Plug | Genuine Volvo Penta Part

🔧 Product Description

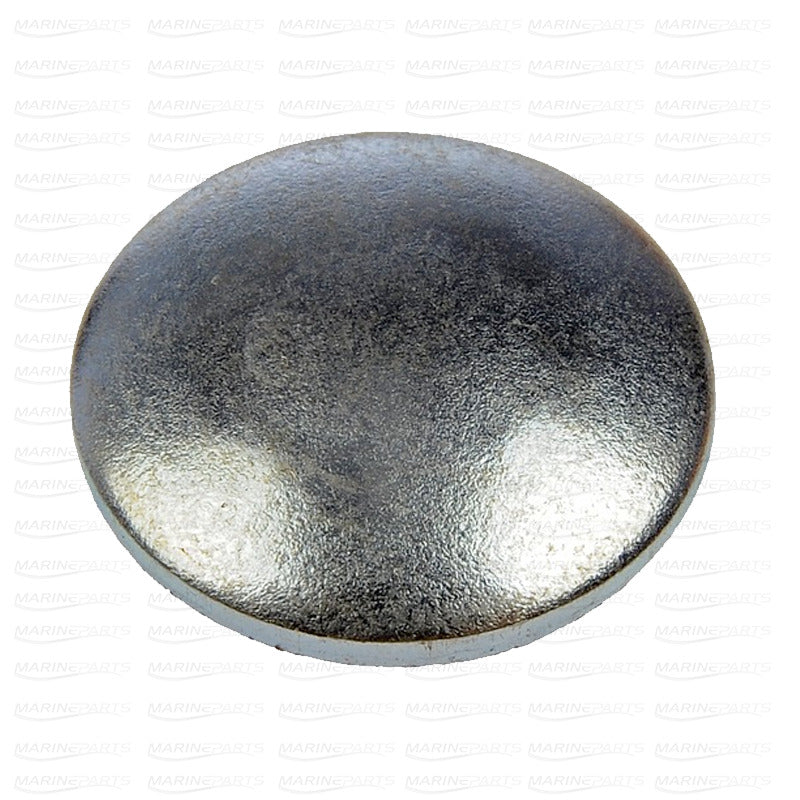

This genuine Volvo Penta expansion plug is a formed core plug designed to seal the specified cylinder-block casting aperture used in the cylinder-block and cooling-jacket core plug. It is manufactured to the original Volvo Penta dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. Nominal diameter: 45 mm. In service, it seals the 45 mm casting aperture in the cylinder block or cooling jacket. Selection must be confirmed by OEM part number 192212, the exact engine or product model, serial number and installed configuration.

🚤 Compatibility

• Engine Family: AQ, BB, MD, B, MB, AQD

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM expansion plug
• OEM part number 192212
• Nominal diameter: 45 mm.
• Clean and inspect the bore, apply the specified sealant and drive the plug squarely to the correct depth.

🔌 Function

Seals the 45 mm casting aperture in the cylinder block or cooling jacket. Clean and inspect the bore, apply the specified sealant and drive the plug squarely to the correct depth.

⚠️ Common Signs of Failure

• Coolant seepage or rust staining around the plug
• Perforation from internal or external corrosion
• Plug movement or partial release from the bore
• Coolant loss and engine overheating
• Repeat leakage caused by a pitted or oversized block aperture

🛠️ Service Notes

• Clean the bore out to bare, sound metal and check it for corrosion, pitting or a raised lip — a plug will not seal in a wasted or scored bore, and that bore may need attention first
• Fit the plug square to the bore and drive it evenly with a tool or socket that bears on the correct part of the plug, to the depth the manual specifies; driven in cocked or too deep it will leak
• Seal it with a sealant of the type specified for that joint, not with a silicone or rubbery compound, which is slippery and lets a plug creep out under pressure
• With an expanding rubber type, seat it fully, then tighten the centre nut to expand it against the bore and check it again after the first heat cycle
• Fill, pressure-test or run the system and check the plug for weeping before closing up access, since many of these sit where you cannot see them once the engine is back together

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 192212 → Supersedes 463904

OEM / Related Numbers

• 463904 related reference

Aftermarket / Verified Equivalents

• Orbitrade: 11904
• Sierra: 18-4247

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
• Volvo Penta AQ170B, AQ170C, AQ170A
• Volvo Penta BB115A, BB115B, BB115C
• Volvo Penta BB170B, BB170C, BB170A
• Volvo Penta MB20A, MB20B, MB20C
• Volvo Penta AQ115A, AQ115B
• Volvo Penta AQD21A, AQD21B
• Volvo Penta MD21B, MD21A
• Volvo Penta 100S, 110S
• Volvo Penta AQ165A
• Volvo Penta B20
• Volvo Penta BB165A
