19295-ZY3-000 Honda Relief Valve Cover (R) | Genuine Used Part

🔧 Product Description

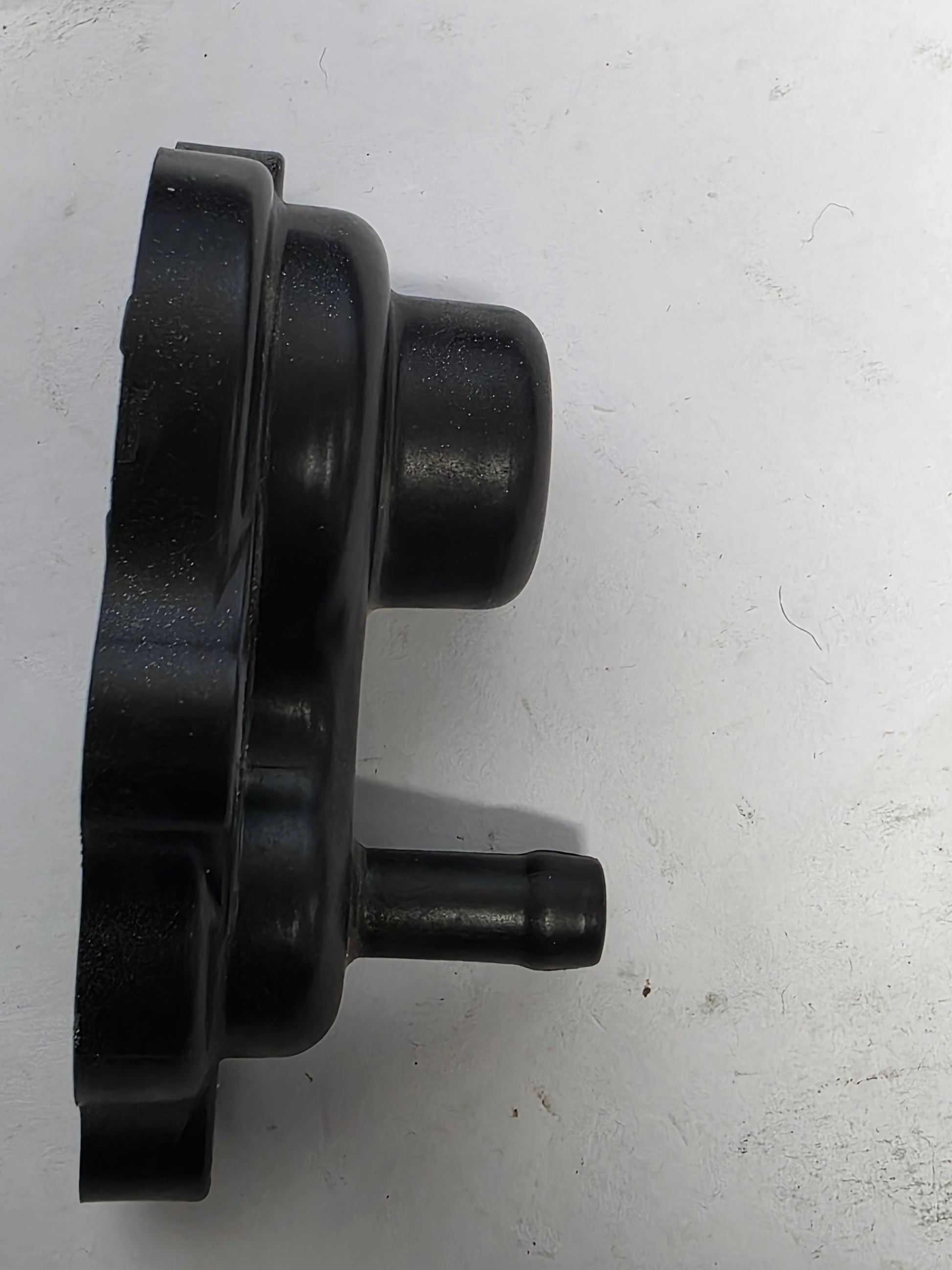

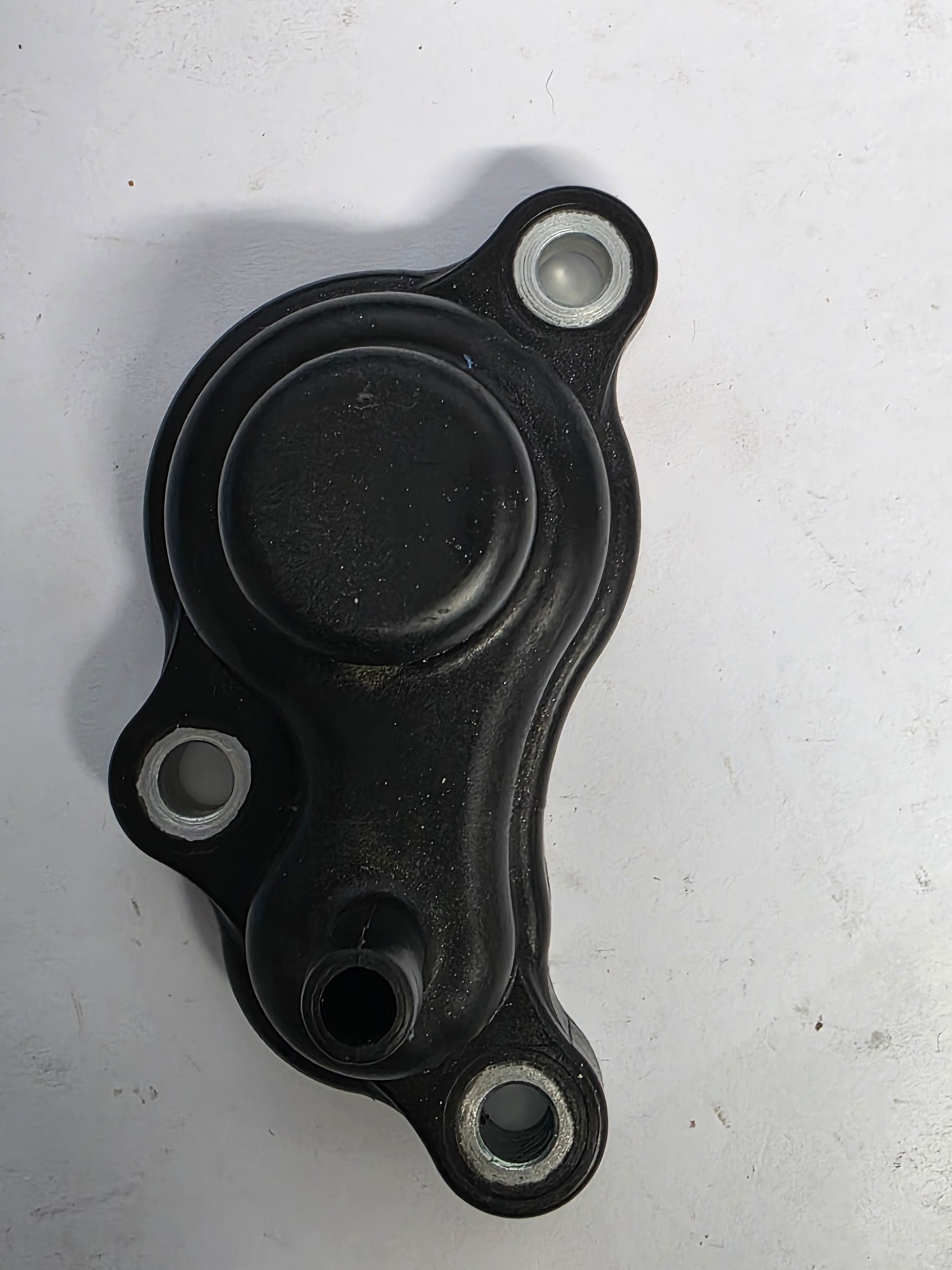

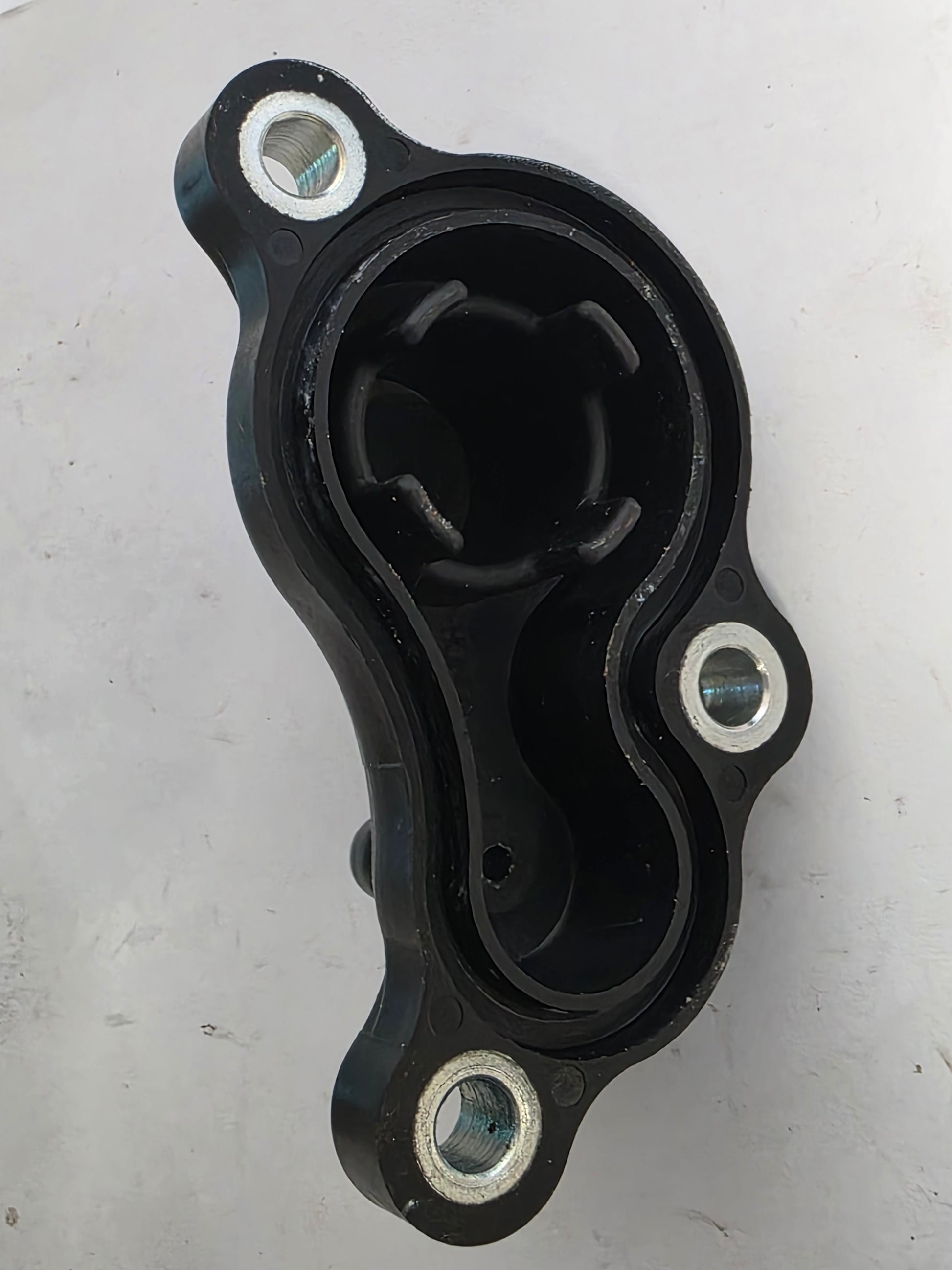

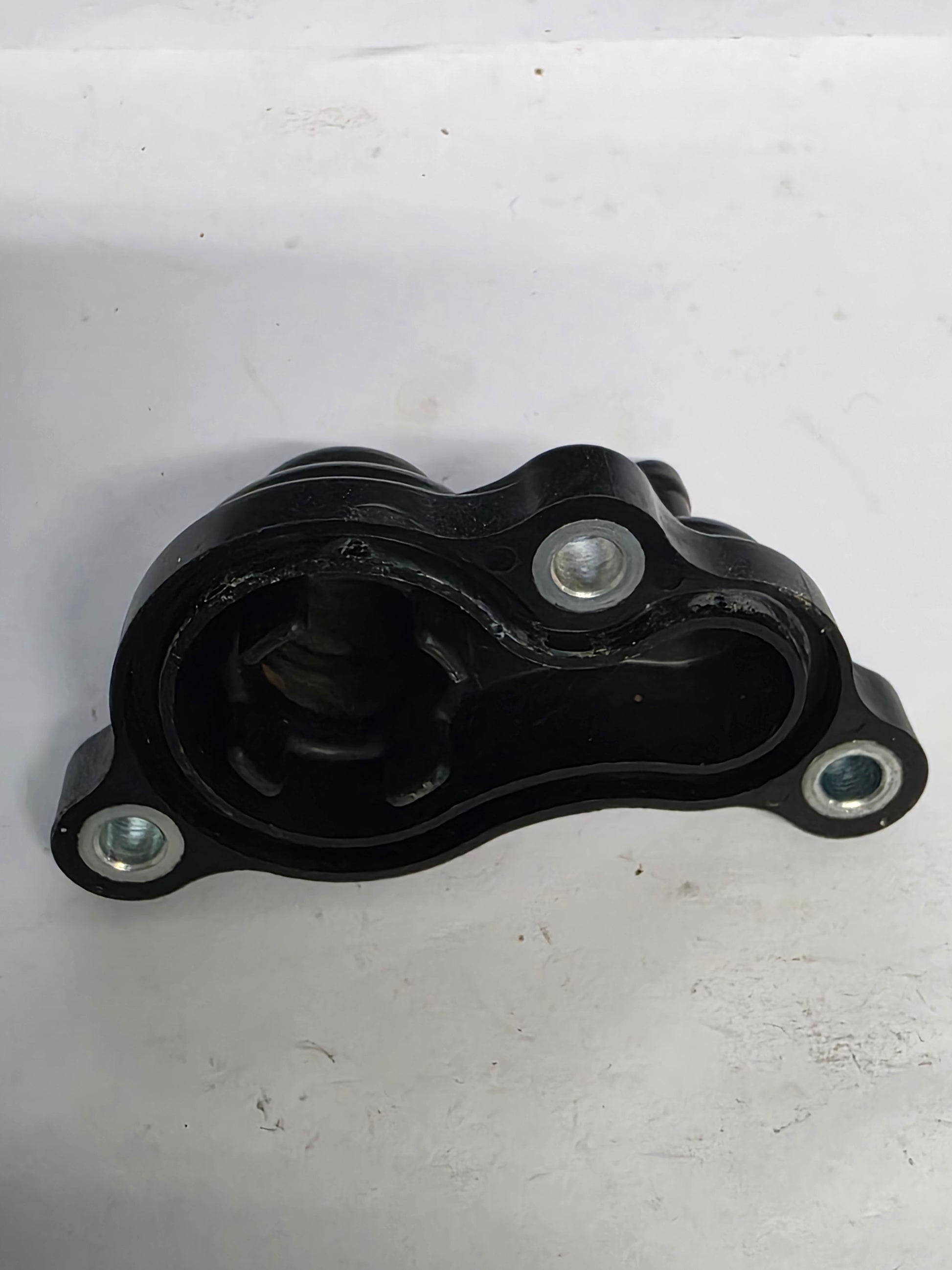

Genuine Honda Right Cooling Relief Valve Cover - Part Number: 19295-ZY3-000

A genuine Honda right-hand relief-valve cover for selected BF200, BF225 and BF250 V6 four-stroke outboards.

The cover retains the right-side cooling-system relief valve, spring and spacer within the mount-case assembly.

⚙️ Key Features

• Genuine Honda right relief-valve cover
• Correct part number 19295-ZY3-000
• Retains the valve, spring and spacer
• Designed for Honda V6 mount-case cooling systems
• Uses a separate cover gasket

🚤 Compatibility

Commonly used on

• Honda V6 mount-case pressure-relief assemblies

Typically suits

• Engine models:
• Honda BF200A
• Honda BF225A
• Honda BF225D
• Honda BF250D
• Matching standard- and counter-rotation V6 mount cases
• HP Range: 200HP - 250HP
• Engine Type: Honda V6 EFI four-stroke outboard
• Year Range: Approximately 2002 onward

🔌 Function

The cover encloses and retains the relief valve and spring. When cooling pressure rises, the valve moves against the spring and allows excess water to bypass through the mount-case passage.

⚠️ Common Signs of Failure

• Water leaks around the cover gasket
• Cover is cracked or corroded
• Mounting ears are damaged
• Internal corrosion restricts valve movement
• Cooling pressure becomes unstable because the cover does not seal

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 19295-ZY3-000 current right-cover reference

OEM / Related Numbers

• 19295-ZY3-000 right cover
• 19294-ZY3-000ZB right spacer
• 19291-ZW5-000 relief valve
• 19292-ZW5-000 relief-valve spring
• 19296-ZY3-000 cover gasket
• 19297-ZW5-000 valve gasket
• 19297-ZY3-000 left relief-valve cover

Aftermarket / Verified Equivalents

• Aftermarket relief-valve gasket sets
• No direct aftermarket cover equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
