🔧 Product Description

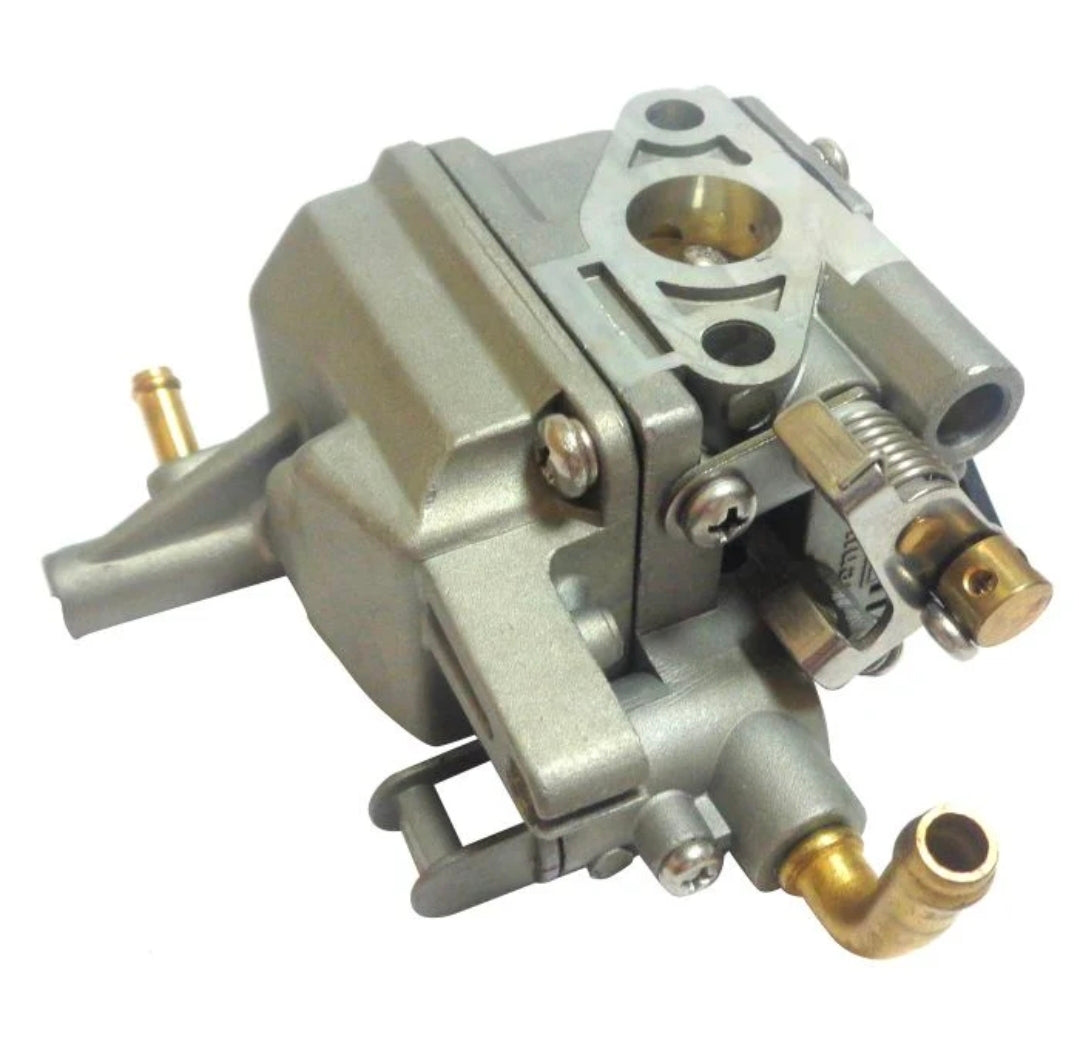

Aftermarket Parsun F2.5/F2.6 carburettor assembly - Replacement Part Number: 2.6-04000200

A complete replacement carburettor for Parsun F2.5 and F2.6 four-stroke outboards, including the F2.6BM engine family. The full Parsun reference is normally written F2.6-04000200, while aftermarket catalogues also use 2.6-04000200 and PAF2.6-04000200. The same carburettor pattern cross-references to Yamaha 69M-series F2.5 carburettors and Sierra 18-34604, providing several validated replacement options.

⚙️ Key Features

• Complete aftermarket carburettor assembly

• Designed for Parsun 2.5HP and 2.6HP four-stroke engines

• Cross-references to Yamaha 69M-series and Sierra service numbers

• Suitable for matching Parsun, Yamaha and HDX small-outboard platforms

• Restores starting, idle stability, throttle response and fuel control

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• F2.6-04000200 (full Parsun model-prefixed reference)

• 2.6-04000200 (short-form catalogue reference)

• PAF2.6-04000200 (aftermarket catalogue reference)

OEM / Related Numbers:

• F2.6-04000200

• 2.6-04000200

• PAF2.6-04000200

• PAF2604000200

• Yamaha 69M-14301-00

• Yamaha 69M-14301-10

• Yamaha 69M-14301-11

• Yamaha 69M-14301-12

• Yamaha 69M-14301-20

• Yamaha 69M-14301-21

• Yamaha 69M-14301-22

Aftermarket / Verified Equivalents:

• Recmar: PAF2.6-04000200

• Sierra: 18-34604

• RCR: F2.6-04000200

• JLM Marine: 69M-14301-10 replacement

• FridayParts: 69M-14301-21 / 69M-14301-22 replacement

🚤 Compatibility

Commonly used on:

• Parsun, Yamaha and HDX small four-stroke outboards using the matching carburettor pattern

Typically suits:

• Engine models:

• Parsun F2.5

• Parsun F2.6

• Parsun F2.6BM

• Yamaha F2.5A

• Yamaha F2.5BM

• HDX 2.5HP and 2.6HP four-stroke derivatives using F2.6-04000200

• HP Range: 2.5HP - 2.6HP

• Engine Type: Carburetted four-stroke single-cylinder outboard

• Year Range: Approximately 2003 onward for the documented Yamaha/Parsun carburettor family

🔌 Function

The carburettor meters fuel and air for starting, idle and normal running of the small four-stroke engine. Clean internal passages and correct float operation are especially important because the very small pilot and main circuits are easily restricted by stale fuel or contamination.

Common signs of failure:

• Hard starting or failure to start after storage

• Engine only runs with choke applied

• Unstable idle or repeated low-speed stalling

• Hesitation or reduced power when accelerating

• Lean surging or intake backfire

• Fuel leakage, flooding or rich running from float-system faults

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
