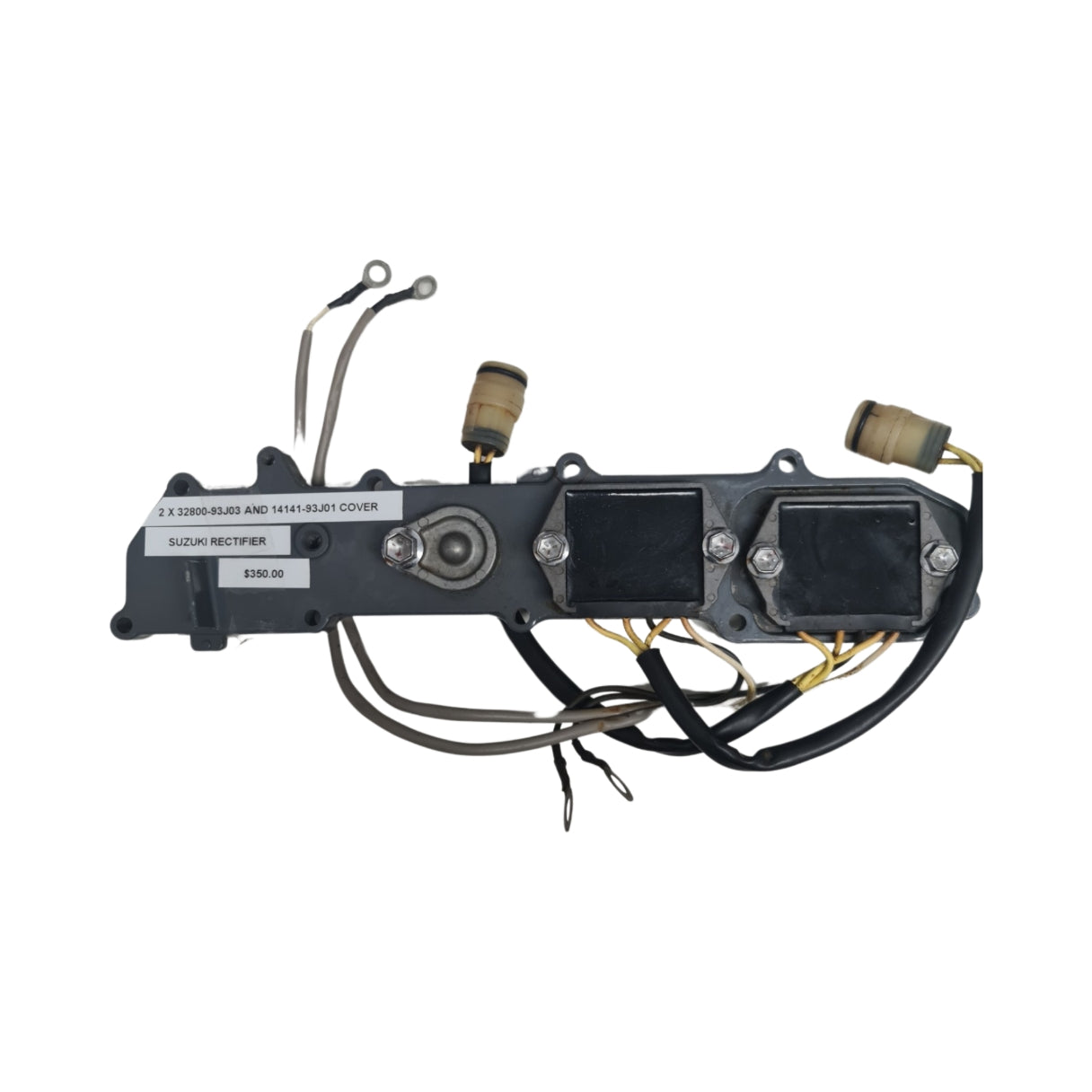

Genuine Suzuki Rectifier / Regulator Set with Covers - Part Numbers: 32800-93J03 and 14141-93J01
A genuine Suzuki rectifier / regulator and cover set for selected large-horsepower Suzuki four-stroke outboards. The rectifier / regulator converts stator AC output into regulated DC charging voltage for the battery and engine electrical system, while the cover protects and secures the charging components.
⚙️ Key Features
- Genuine Suzuki rectifier / regulator components
- Includes two 32800-93J03 rectifier / regulator units
- Includes 14141-93J01 cover components
- Commonly used on Suzuki V6 DF200, DF225 and DF250 charging systems
- Requires stator, battery and charging-voltage testing before replacement
🚤 Compatibility
Commonly used on
- Suzuki V6 four-stroke outboard charging systems
Typically suits
- Engine models:
- Suzuki DF200 V6 four-stroke charging-system applications using 32800-93J03
- Suzuki DF225 V6 four-stroke charging-system applications using 32800-93J03
- Suzuki DF250 V6 four-stroke charging-system applications using 32800-93J03
- Suzuki DF300 V6 four-stroke charging-system family applications where the serial-numbered diagram specifies 32800-93J03
- Suzuki DF200 / DF225 / DF250 2004-2017 rectifier-regulator replacement applications using 32800-93J03
- Suzuki V6 charging assemblies using cover reference 14141-93J01
- HP Range: commonly 200HP - 300HP where specified
- Engine Type: Suzuki V6 four-stroke outboard
- Year Range: Approximately 2004 - 2017 for DF200 / DF225 / DF250 32800-93J03 applications
- System Type: Charging-system rectifier / voltage regulator and cover
- Fitment Note: Confirm exact model, serial number, regulator connector layout and cover style before fitting.
🔌 Function
The rectifier / regulator converts AC current from the stator into controlled DC voltage to charge the battery and power the engine electrical system. The cover protects the rectifier / regulator assembly in the engine installation.
⚠️ Common Signs of Failure
- Battery not charging
- Overcharging or high battery voltage
- Tachometer or charging warning faults
- Blown charging-system fuse
- Hot, melted or discoloured regulator casing
- Repeated battery failure
- Charging voltage unstable after stator and battery testing
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 32800-93J03 current / listed Suzuki rectifier & regulator reference
- 14141-93J01 current / listed Suzuki cover reference
OEM / Related Numbers
- 32800-93J03
- 3280093J03
- 32800-93J03-000
- 32800-93J03-0000
- 14141-93J01
- 1414193J01
- 14141-93J01-000
- 14141-93J01-0000
- Related Suzuki V6 charging-system rectifier family reference
- Related Suzuki V6 rectifier cover reference
Aftermarket / Verified Equivalents
- Aftermarket replacement rectifier / regulator units for Suzuki 32800-93J03 applications
- No aftermarket equivalent confirmed for 14141-93J01 cover component
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
