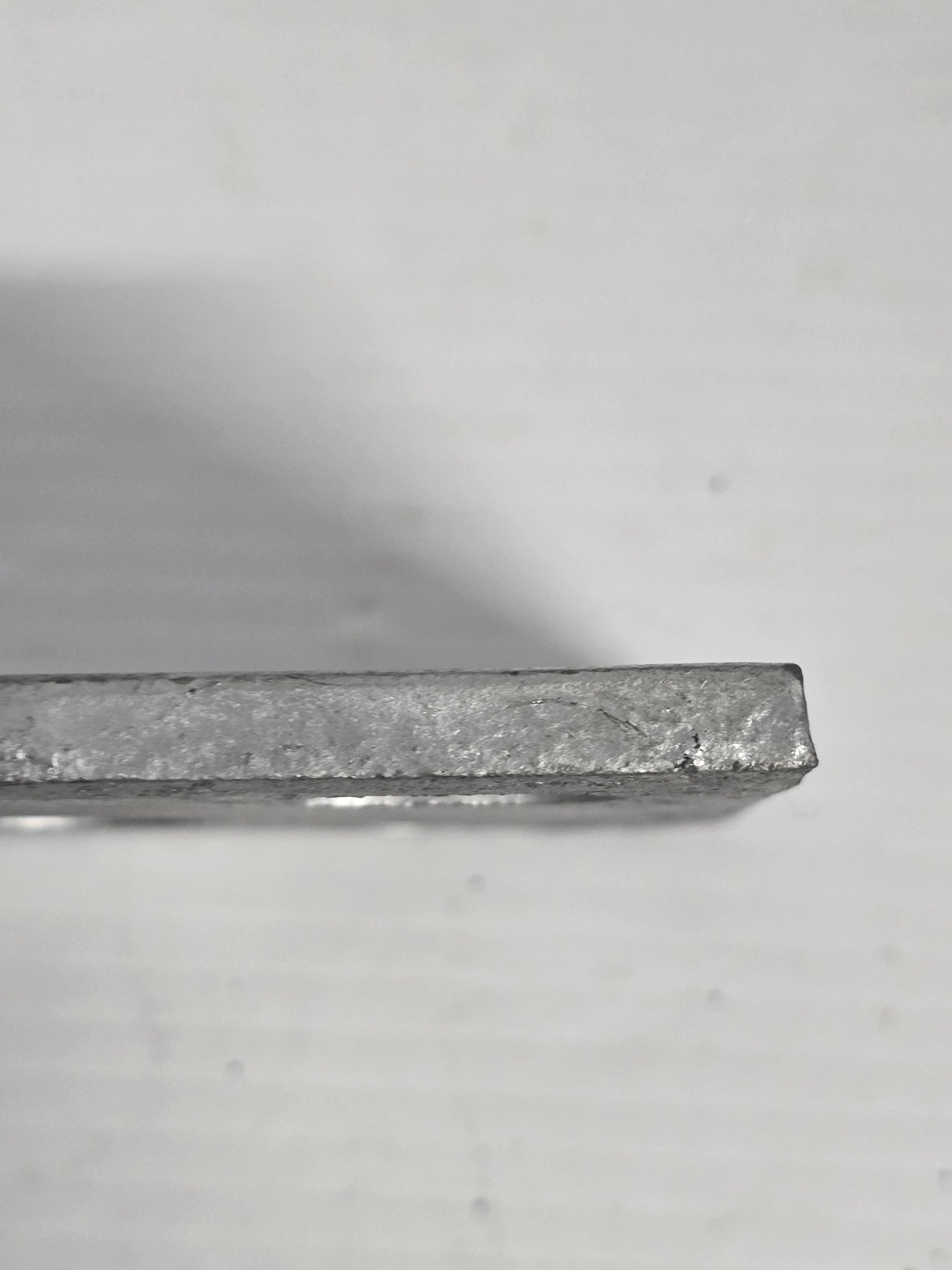

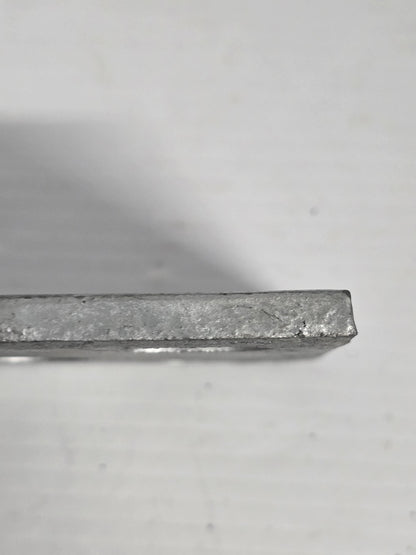

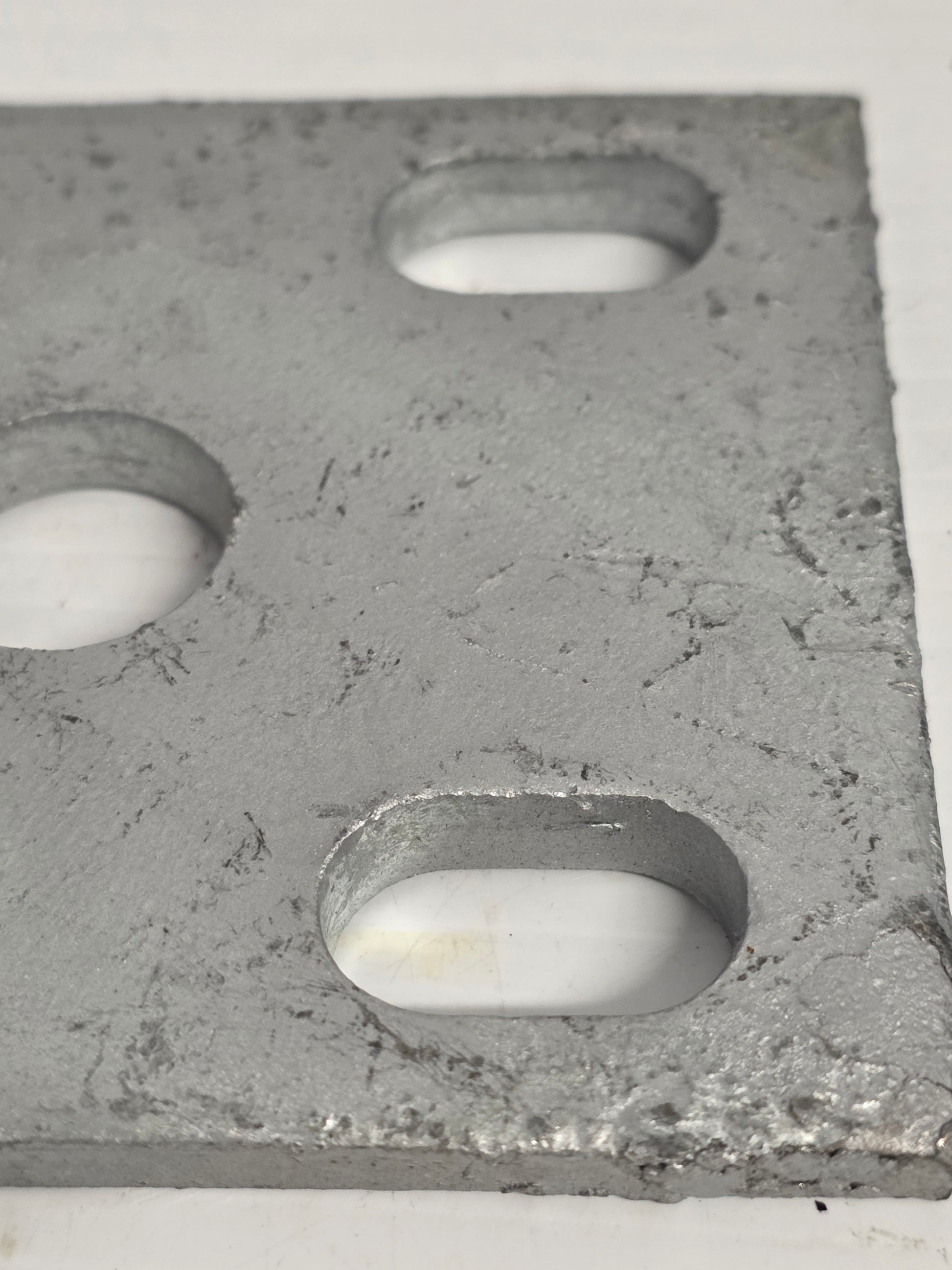

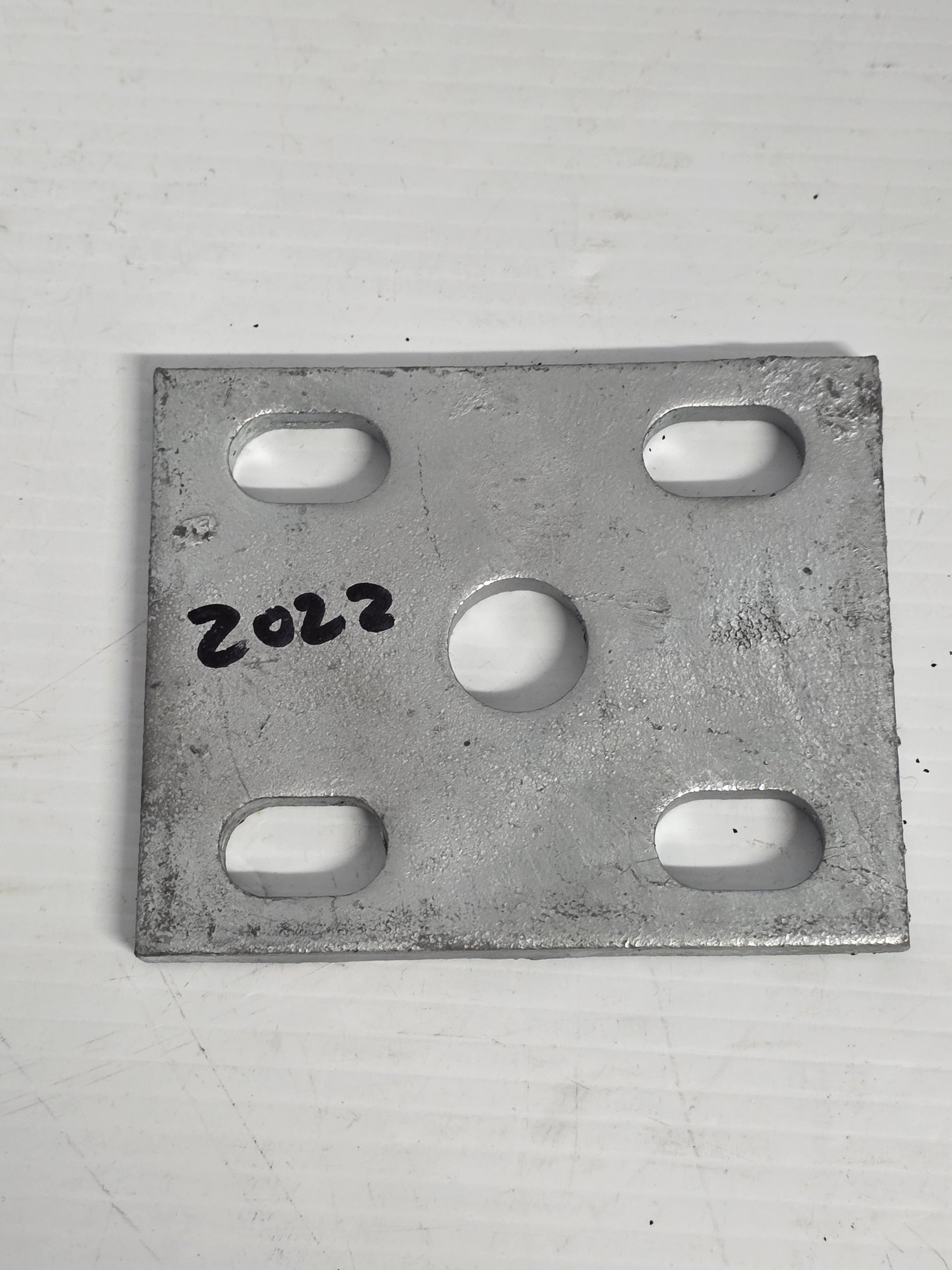

Dunbier Large Galvanised Fish Plate for 60mm Load-Share Springs – Part Number: 2022
A heavy galvanised lower spring plate for 60mm-wide Dunbier load-share suspension. It clamps the spring pack and axle assembly using 45–52mm-wide U-bolts and is sized larger than the standard 45mm slipper-spring plate.
⚙️ Key Features
- Heavy-duty galvanised construction
- Suits 60mm-wide load-share springs
- Designed for 45–52mm-wide U-bolts
- Four-hole axle-clamping plate
- Used on high-capacity tandem suspension
📏 Specifications
- Spring width application: 60mm
- U-bolt application: 45–52mm-wide U-bolts
- Mackay reference: A1685G
- Hole spacing must match the selected U-bolts
🔄 Cross Reference & Related Parts
- Dunbier: 2022
- Mackay: A1685G
- Standard 45mm spring plate: Dunbier 2020
- Load-share springs: Dunbier 2008 and 2012
🚤 Trailer Compatibility & Application
- Suits compatible Dunbier 60mm load-share suspension
- Choose 2022 or 2023 according to the axle and U-bolt dimensions
- Not interchangeable with the standard 45mm plate
🔌 Function
Distributes U-bolt clamping load across the heavy load-share spring pack and secures the axle to the suspension.
⚠️ Common Signs of Failure
- Plate bends or cracks
- Bolt holes elongate
- U-bolts no longer seat squarely
- Axle moves on the spring
- Deep corrosion reduces plate thickness
🛠️ Installation & Safety
- Use new U-bolts and locking nuts
- Align the axle and spring centre before tightening
- Torque progressively and evenly
- Verify plate does not contact moving suspension parts
- Re-torque after initial loaded travel
📦 Condition
- Brand new Dunbier Marine Products trailer component
- Supplied as one large galvanised spring fish plate
- Supplied in original or equivalent packaging
