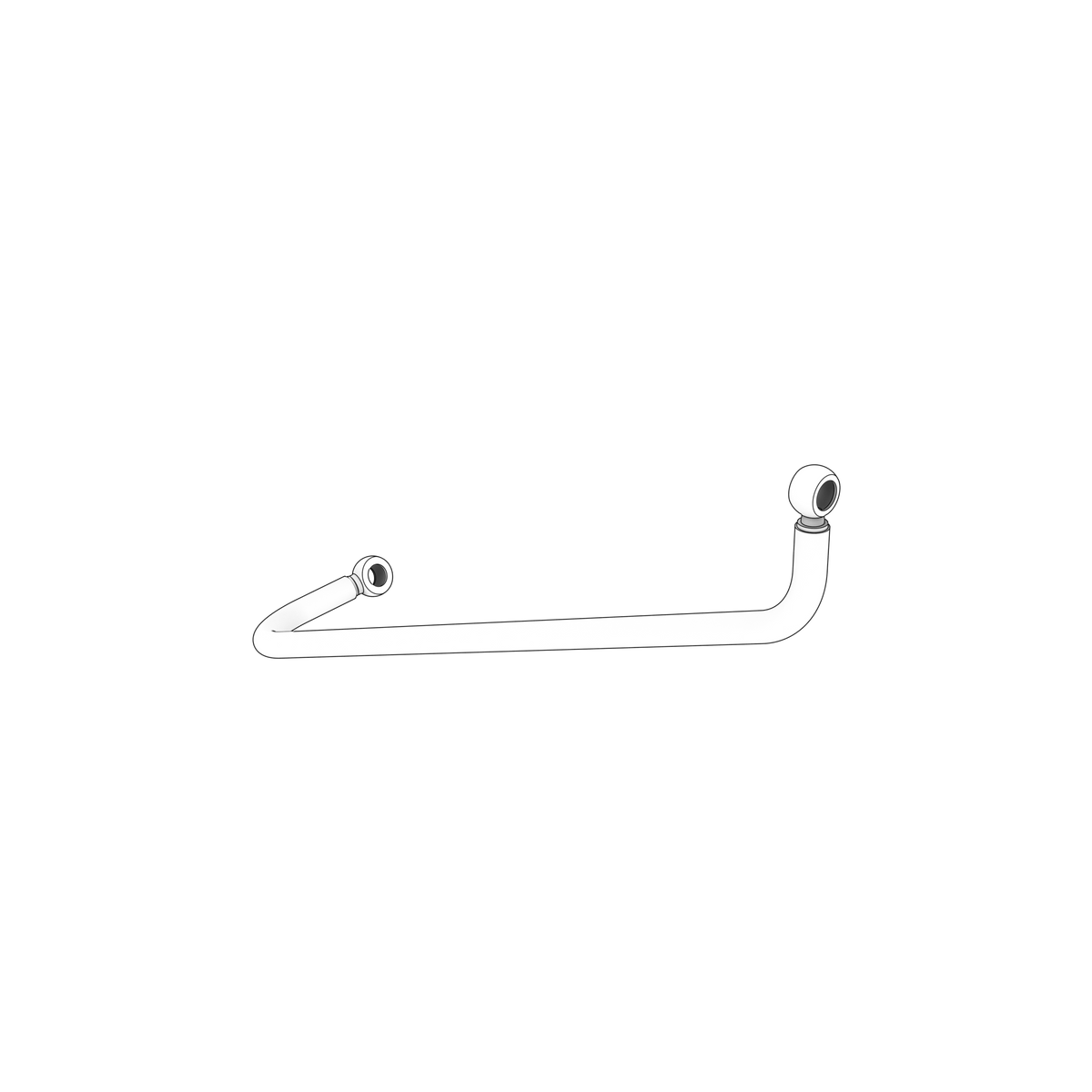

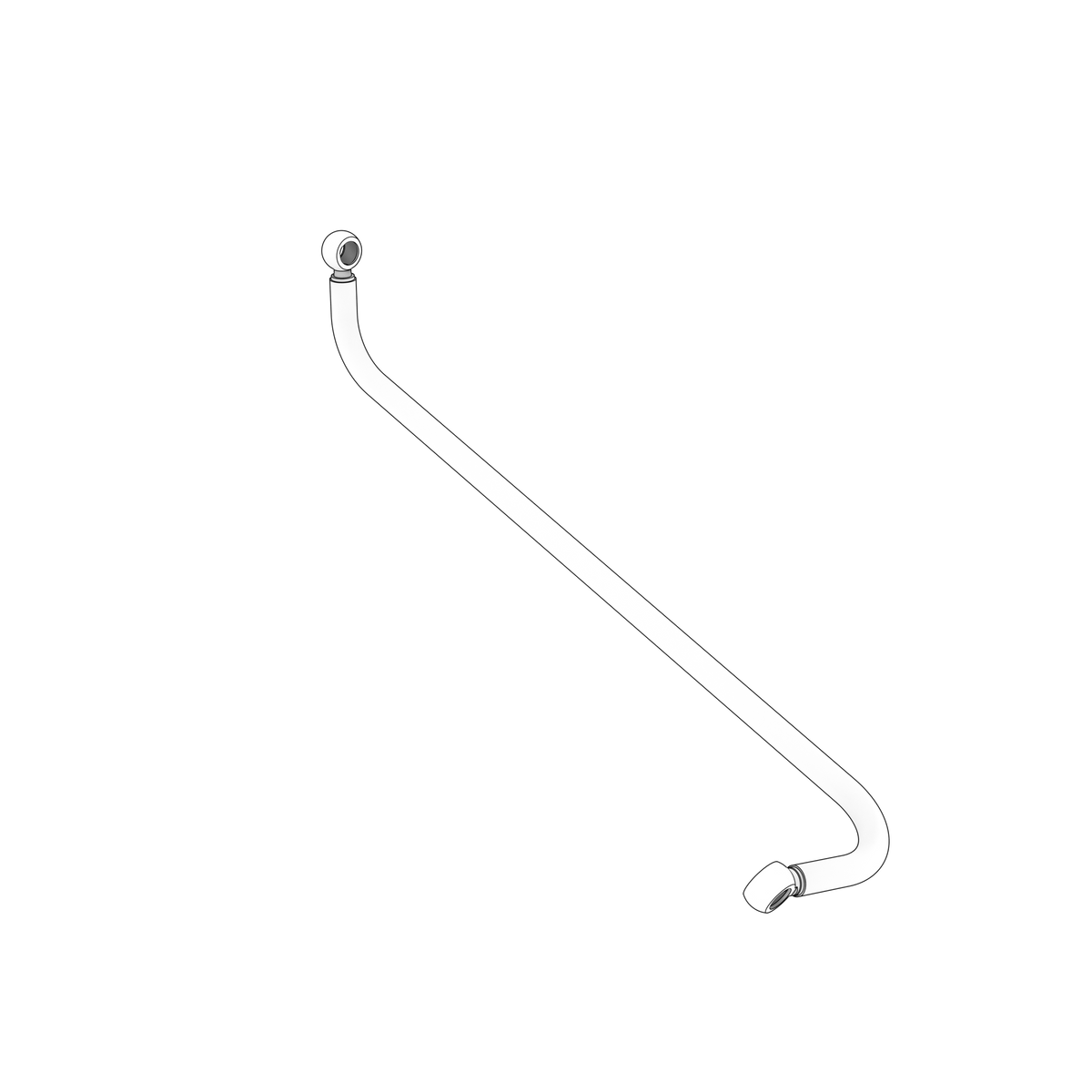

20440256 Fuel Pipe | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta rigid fuel pipe used in the TAD940GE low-pressure fuel and fuel-cooler circuit. It routes diesel between the return, overflow-valve and fuel-cooler components.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD943VE
• Volvo Penta TAD952VE
• Volvo Penta TAD951VE
• Volvo Penta TAD950VE
• Volvo Penta TAD940GE
• Volvo Penta TAD940VE
• Volvo Penta TAD941VE
• Volvo Penta TAD941GE
• Volvo Penta TAD942VE

• Engine Family: TAD

⚙️ Key Features

• Factory-formed low-pressure diesel pipe
• Confirmed in the TAD940GE fuel system
• Used with fuel cooler 20562394
• Works with overflow valve 20450468 and connector 20440261
• Requires clean sealing surfaces and correct support
• Engine type: Volvo Penta 9-litre industrial diesel

🔌 Function

Transfers low-pressure supply or return diesel through the fuel-cooling circuit.

⚠️ Common Signs of Failure

• Air entering the fuel circuit
• Pipe fatigue crack
• Restricted fuel return
• Fuel-temperature or pressure problems

🛠️ Service Notes

• Work clean: cap or plug every open union and injector as soon as it is disconnected, and fit the new pipe straight from its packaging — dirt introduced at a fuel joint is the most common cause of trouble afterwards
• Offer the pipe up so it lines up on both unions without strain, and never bend, twist or reshape a pipe to make it fit; a pipe that has been sprung into place fatigues and cracks in service
• High-pressure delivery pipes are treated as single-use in workshop practice — the union faces seal by deforming, so refit new pipes rather than reusing them, and tighten to the figure and sequence in the workshop manual for your engine
• Refit all original support clips and brackets in their proper positions so the pipe cannot chafe or vibrate against surrounding parts
• Bleed the system, then check the joints for leaks with the engine running and again once warm — never search for a diesel leak by hand, since fuel at injection pressure will penetrate skin

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 20562394 - fuel radiator / cooler
• 20450468 - overflow valve
• 20440261 - connector
• 20852765 - sealing ring
• 3838376 - related fuel pipes
• 3838377 - related fuel pipes
• 3838378 - related fuel pipes

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
