20544196 Elbow Nipple | Genuine Volvo Penta Part

🔧 Product Description

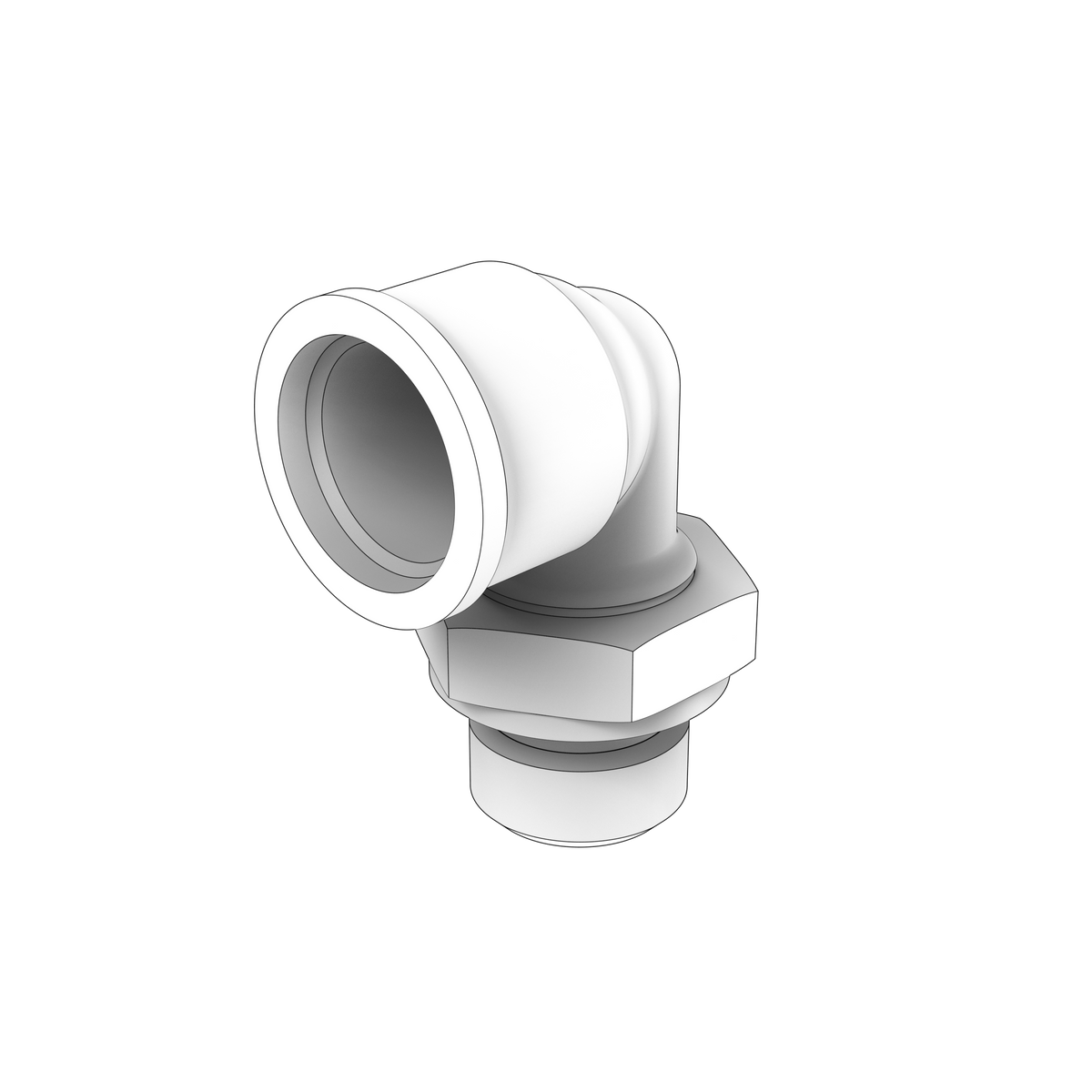

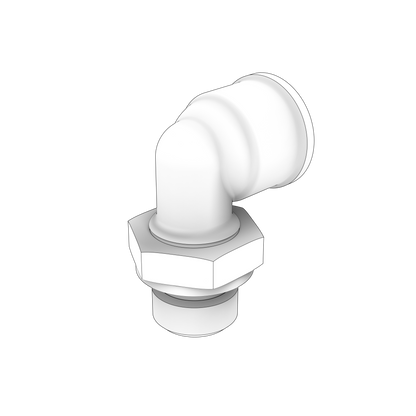

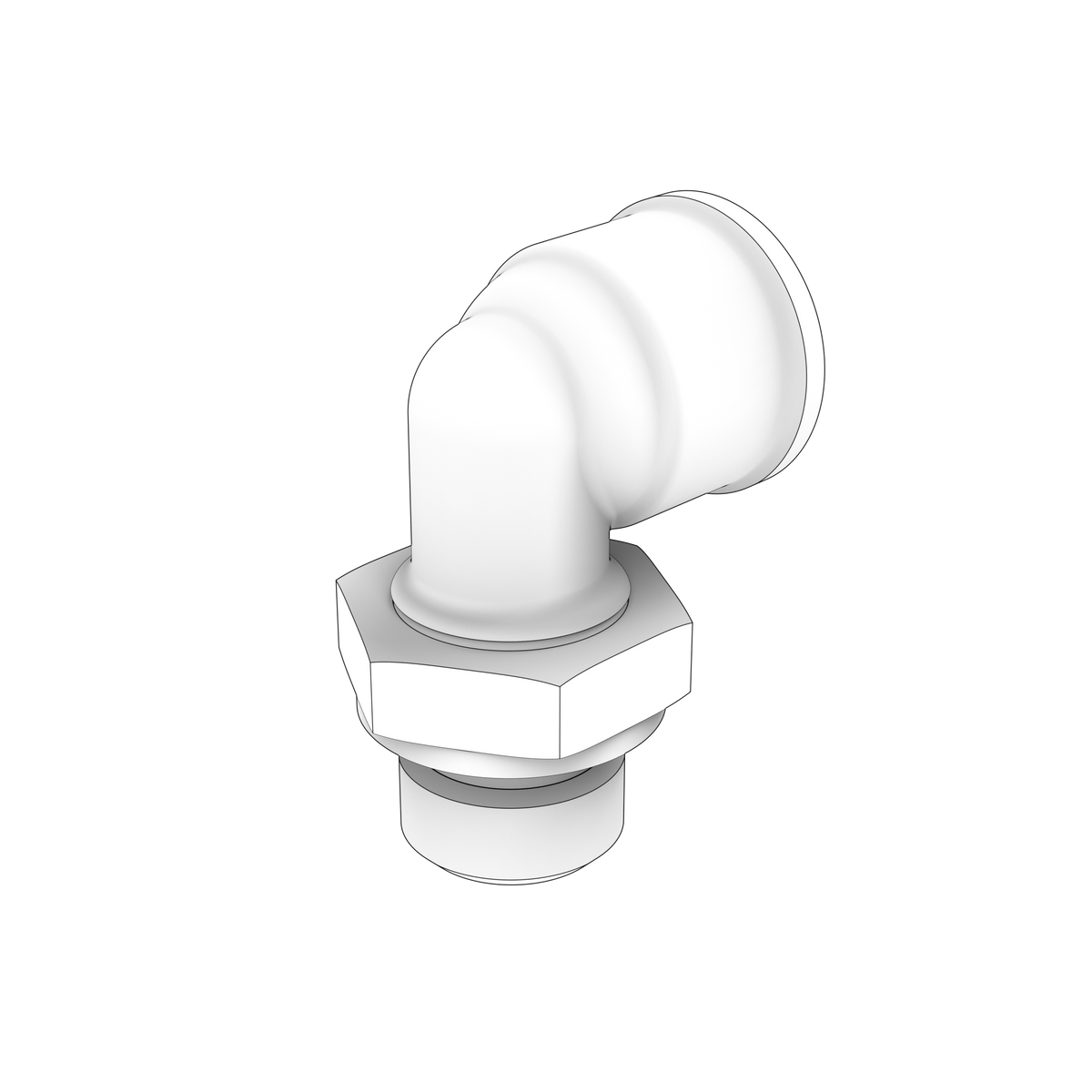

This genuine Volvo Penta elbow nipple is an OEM service component used in the Inlet / Exhaust Elbow Nipple. It is manufactured to the original Volvo Penta dimensional, material and interface requirements for the documented Volvo Penta 16-litre TWD16 generator diesel application. Technical identification: Elbow nipple providing a 90-degree pipe/hose connection at the specified housing. In service, it routes the specified fluid or pressure signal between matched components without leakage, restriction, vibration damage or incorrect connection geometry. Selection must be confirmed by OEM part number 20544196, the exact model/product number, serial number and installed assembly configuration.

🚤 Compatibility

Typically suits:

• Volvo Penta TWD1643GE

• Engine Family: TWD

⚙️ Key Features

• Genuine Volvo Penta OEM elbow nipple
• OEM part number 20544196
• Technical distinction: Elbow nipple providing a 90-degree pipe/hose connection at the specified housing

🔌 Function

Routes the specified fluid or pressure signal between matched components without leakage, restriction, vibration damage or incorrect connection geometry. Install without twist or preload, renew the specified seals/clamps, preserve the original routing and pressure- or leak-test the circuit after assembly.

⚠️ Common Signs of Failure

• Visible fluid leakage, dampness or staining along the line or connection
• Cracking, chafing, corrosion or impact damage
• Restricted flow caused by deposits, deformation or internal collapse
• Vibration fretting or failed support at clamps and mounting points

🛠️ Service Notes

• Clean both threads and check the sealing face or cone is unmarked before the fitting goes anywhere near the engine
• Seal the joint the way that thread is designed to be sealed — sealing washer, O-ring or thread sealant on a tapered thread — and renew the soft parts rather than reusing them
• Aim the elbow so the hose or pipe leaves it in a natural line, and hold that alignment while tightening; twisting the hose round afterwards to correct the angle loads the joint
• Do not over-tighten to cure a weep, particularly into aluminium or cast housings — strip the joint, find out why it leaked and reseal it properly
• Support the hose or pipe so it is not left hanging on the fitting and passing its vibration into the joint

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
