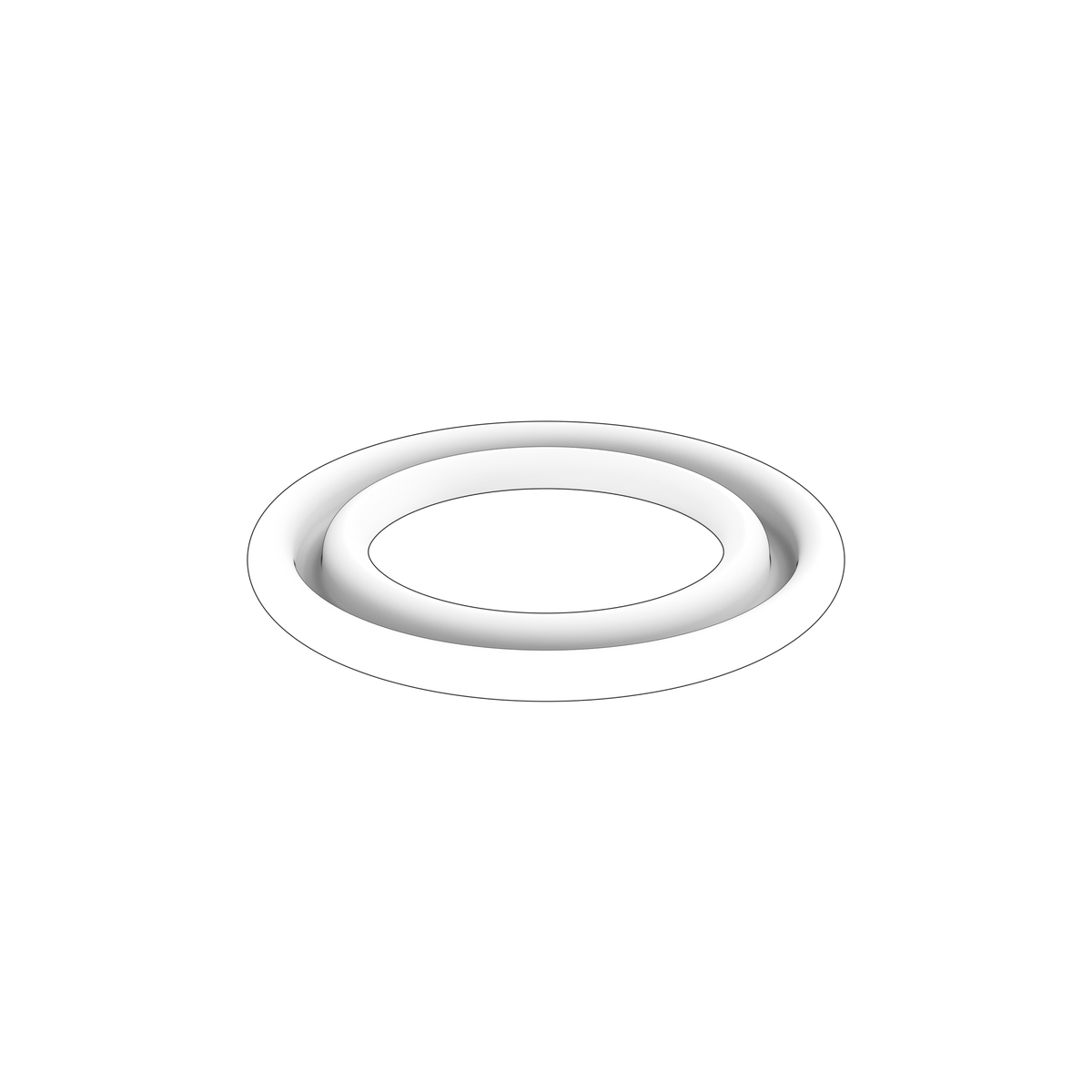

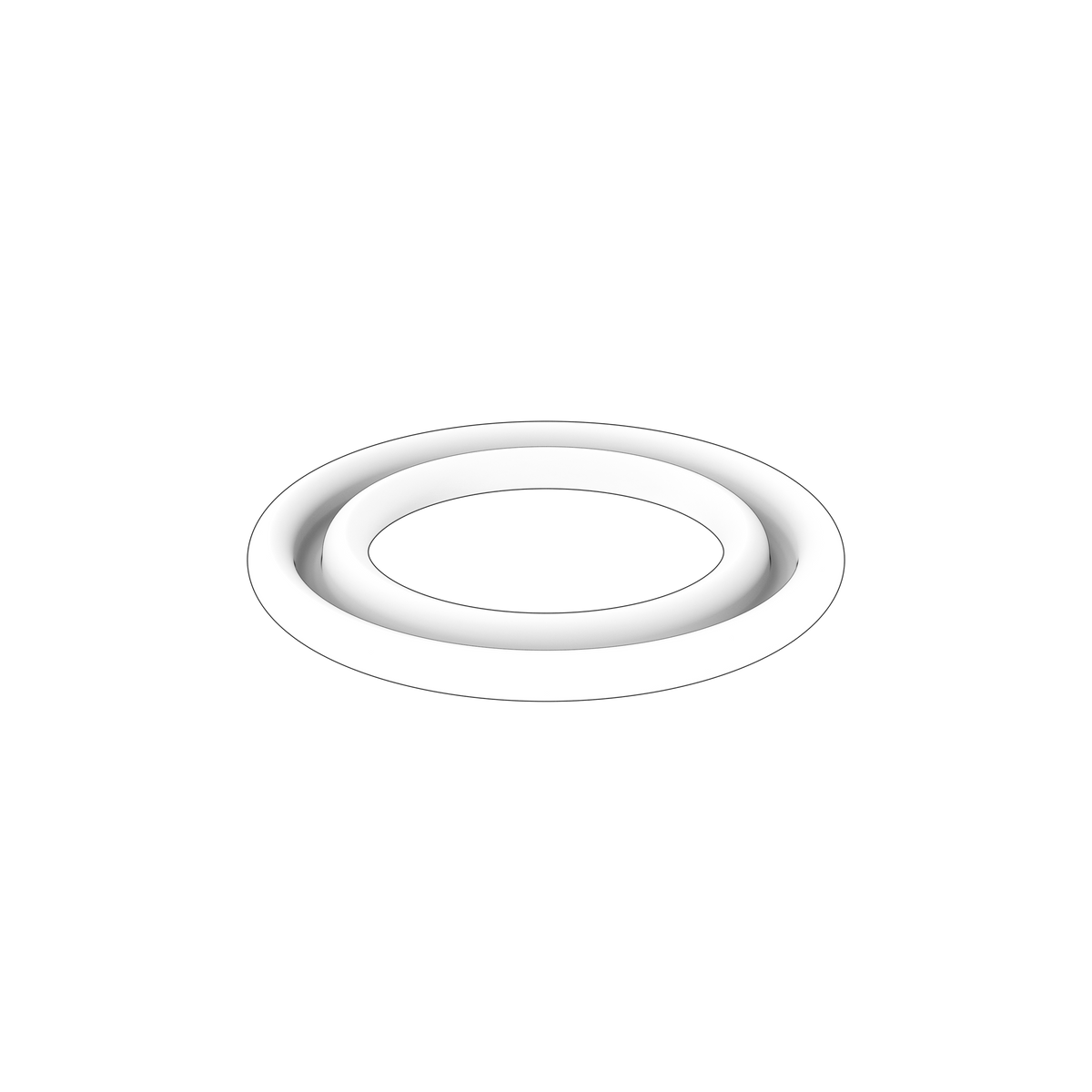

20551483 Sealing Ring | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta sealing ring is an OEM service component used in the Oil-Cooler Sealing Ring. It is manufactured to the original Volvo Penta dimensional, material and interface requirements for the documented Volvo Penta D9/TAD13 lubrication systems application. Technical identification: Sealing ring for the specified shaft, pipe or housing joint. In service, it creates a controlled seal between mating surfaces so fluid, gas, pressure or contaminants cannot pass across the joint. Selection must be confirmed by OEM part number 20551483, the exact model/product number, serial number and installed assembly configuration.

🚤 Compatibility

• Engine Family: D, TAD, TWD

Full model list at the end of this description.

⚙️ Key Features

• OEM part number 20551483
• Technical distinction: Sealing ring for the specified shaft, pipe or housing joint
• Quantity varies by assembly, most commonly two

🔌 Function

Creates a controlled seal between mating surfaces so fluid, gas, pressure or contaminants cannot pass across the joint. Clean and inspect both sealing surfaces, renew the seal whenever the joint is opened, avoid twisting or cutting and tighten the joint evenly to specification.

⚠️ Common Signs of Failure

• Visible oil, coolant, fuel or air leakage at the sealed joint
• Loss of pressure, vacuum or fluid level in the connected system
• Contamination passing across the seal or entering the assembly
• Seal hardened, cut, swollen, flattened or displaced
• Repeat leakage caused by a damaged groove, shaft or mating face

🛠️ Service Notes

• Always fit a new sealing ring rather than reusing the old one — a ring that has been compressed once has taken a set and will not seal reliably a second time
• Clean the groove or seat and check it for scoring, corrosion and old sealant before fitting; a mark across the sealing face will leak however good the ring is
• Ease the ring into place without stretching, twisting or dragging it over sharp edges or threads, and check it is seated squarely all the way round before closing the joint
• Do not add sealant or jointing compound unless the workshop manual for your engine calls for it, and tighten the joint or union to the figure given in that manual
• Check the joint for weeping once the engine has been run up to temperature and allowed to cool, as many sealing rings only show a leak after a heat cycle

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 20551483 → Supersedes 1677516

OEM / Related Numbers

• 1677516 earlier number superseded by this part
• 20523738 oil-cooler cover

Other-Brand OEM Numbers

• Elring: 390.190
• Elring: 390.191

Aftermarket / Verified Equivalents

• Vaden Original: 0103 207
• febi Bilstein: 100941
• AJUSA: 01151600
• Trucktec Automotive: 03.18.043
• Sampa: 032.171
• DT Spare Parts: 2.11406
• Auger: 71890
• DSS: 201388
• SRP: 51483-SR

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C2-A MG, D13C1-A MG
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP, D11A-C (IPS), D11B1-A MP
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta TAD1640-42GE-B, TAD1640GE, TAD1640VE-B, TAD1640-42VE-C
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1342VE, TAD1342GE
• Volvo Penta TAD1343VE, TAD1343GE
• Volvo Penta TAD1345GE, TAD1345VE
• Volvo Penta TAD1350GE, TAD1350VE
• Volvo Penta TAD1351GE, TAD1351-53VE
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TAD940GE, TAD940VE
• Volvo Penta TAD941VE, TAD941GE
• Volvo Penta TWD1683GE-B, TWD1683VE
• Volvo Penta TAD1140-42VE
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1180-83VE
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1346GE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1353GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TAD942VE
• Volvo Penta TAD943VE
• Volvo Penta TAD950VE
• Volvo Penta TAD951VE
• Volvo Penta TAD952VE
• Volvo Penta TWD1240VE
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
