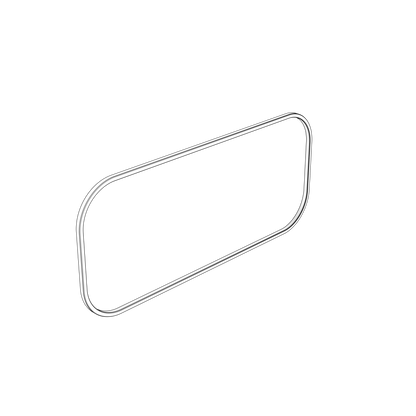

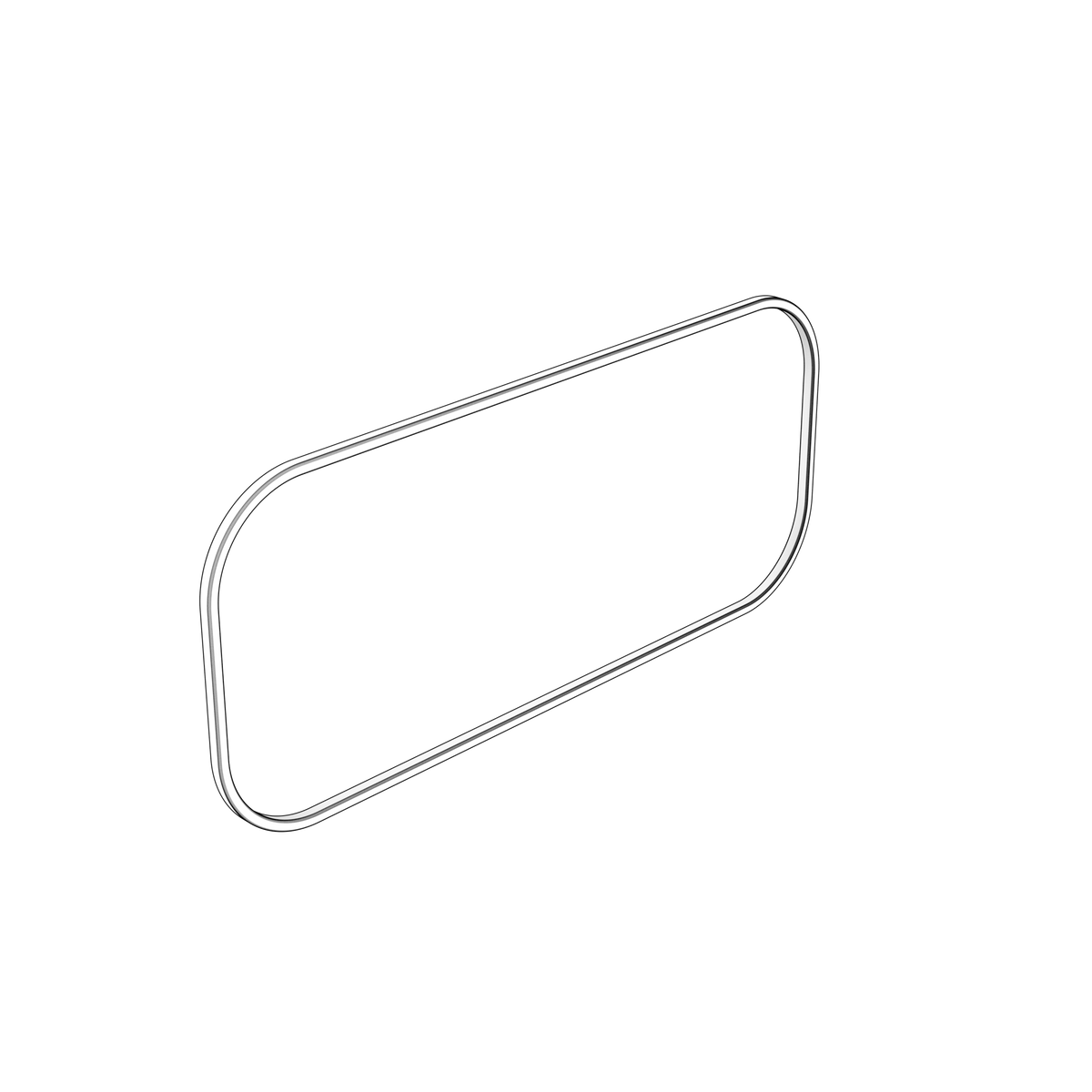

20591544 Gasket | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta gasket used in the engine sealing joint. It is supplied as an individual service component under part number 20591544 and is intended to restore the original fit, sealing, alignment, retention or operating function of the specified assembly. This listing supplies the named component only; adjoining parts are serviced separately.

🚤 Compatibility

• Engine Family: TAMD, TWD, TID, TD, TAD

Full model list at the end of this description.

⚙️ Key Features

• Gasket, 0.018 kg
• Supersedes 421121
• Listed for 30 applications across TAMD, TWD, TID, TD and TAD engines
• 2 used per assembly

🔌 Function

Seals the mating faces against leakage of air, exhaust gas, oil, fuel or coolant.

⚠️ Common Signs of Failure

• Leakage develops at the joint
• The gasket is split, brittle or compressed
• Staining appears around the mating face
• Pressure or vacuum is lost

🛠️ Service Notes

• Fit a new gasket every time the joint is disturbed — a gasket takes a permanent set once it has been torqued and will not seal reliably a second time
• Scrape both faces back to clean bare metal, keeping the blade at a shallow angle so it lifts the old material without gouging the surface, and use a plastic scraper on aluminium castings
• Check the faces for flatness, cracks and corrosion pitting, and make sure no old gasket, carbon or hardened sealant is left in the corners or around the bolt holes
• Fit the gasket dry unless the workshop manual for your engine calls for a sealant, and then only the type it specifies — surplus sealant squeezes out into oil, coolant and fuel passages
• Draw the fasteners down progressively in the sequence and to the torque given in the manual for your engine, and recheck after the first heat cycle where the manual asks for it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 20591544 → Supersedes 421121

OEM / Related Numbers

• 421121 earlier number superseded by this part
• 20591537 - Related Spacer
• 20590582 - Related D5/D7 Mechanical Governor
• 20590572 - Related Control
• 20590571 - Related Control
• 20590566 - Related Control
• 20590563 - Related Control
• 20700657 - Related 2300 rpm governor
• 20700675 - Related 1500 rpm control
• 20590556 - Documented 1800 rpm control reference

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta TAD730G, TAD730V
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TD610G, TD610V
• Volvo Penta TWD610G, TWD610V
• Volvo Penta TWD710G, TWD710V
• Volvo Penta TWD740GE, TWD740VE
• Volvo Penta TAD740GE
• Volvo Penta TAD741GE
• Volvo Penta TAMD75P-A
• Volvo Penta TD630VE
• Volvo Penta TD640VE
• Volvo Penta TD71A
• Volvo Penta TD710G
• Volvo Penta TD730VE
• Volvo Penta TID71A
• Volvo Penta TWD630VE
• Volvo Penta TWD731VE
