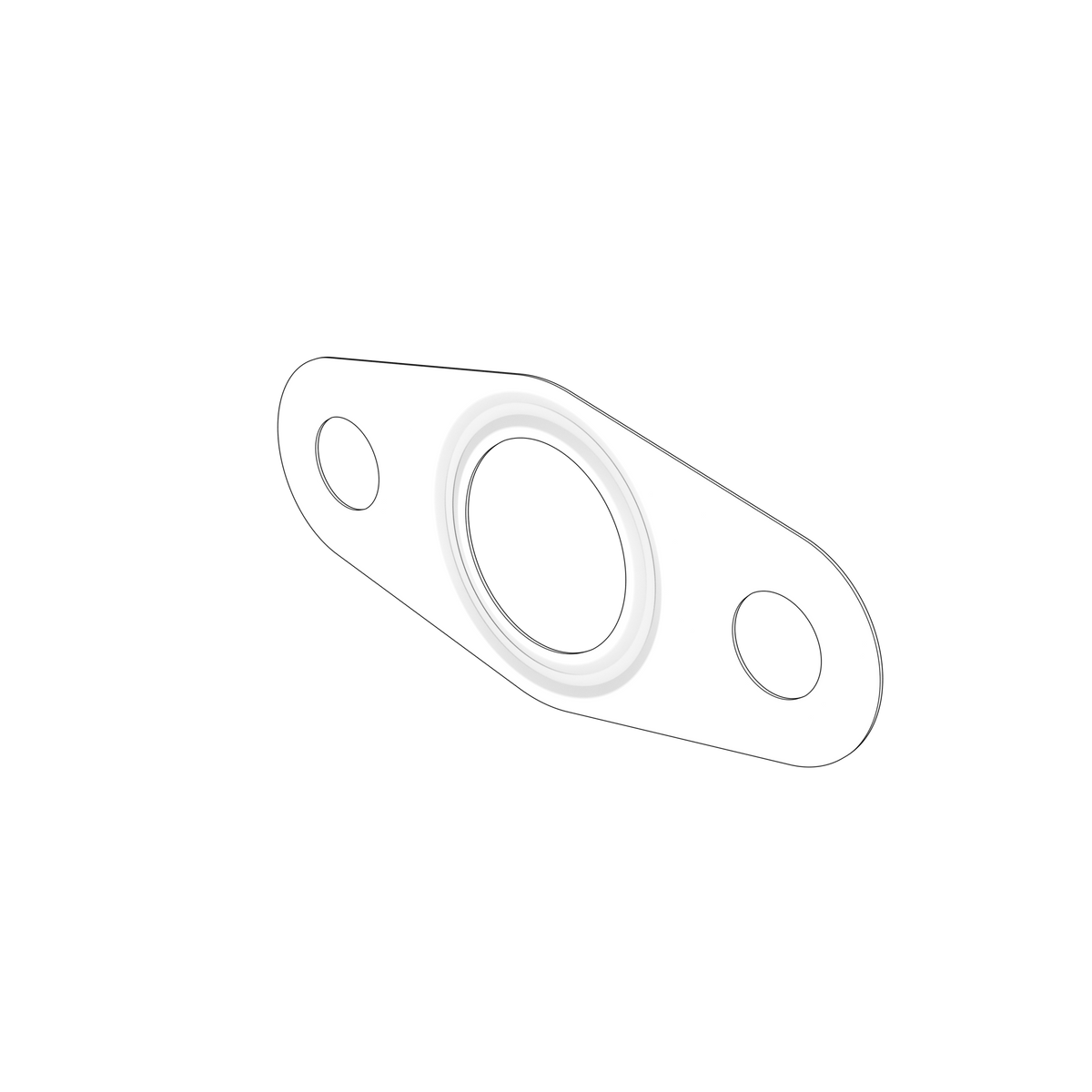

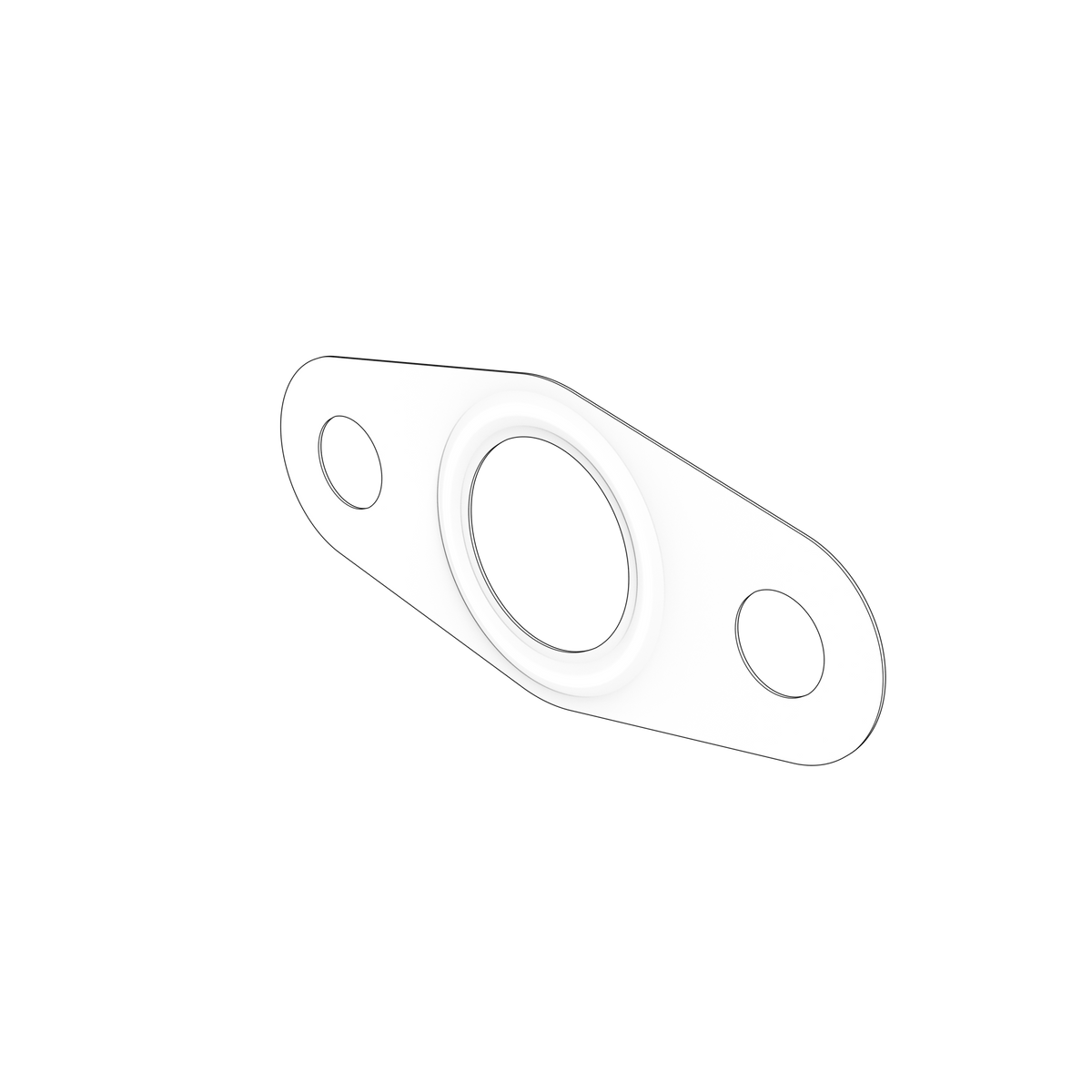

20707685 Plane Gasket | Genuine Volvo Penta Part

🔧 Product Description

A genuine flat gasket used in documented Volvo Penta turbocharger and inlet/exhaust assemblies. It seals a rigid turbocharger, manifold, flange or oil-line joint and must match the exact mating-face geometry.

🚤 Compatibility

Typically suits:

• Volvo Penta D8A2-A MP
• Volvo Penta D8A5-A MH
• Volvo Penta D8A6-A MH
• Volvo Penta D8A5-A MG
• Volvo Penta D8A6-A MG
• Volvo Penta D6-440I-G
• Volvo Penta D6-480I-G
• Volvo Penta D8A4-A MP
• Volvo Penta D8A1-A MP
• Volvo Penta D6-440I-WJ-G
• Volvo Penta D6-480I-WJ-G
• Volvo Penta D6-440D-G
• Volvo Penta D6-480D-G
• Volvo Penta D6-400A-G
• Volvo Penta D6-440A-G
• Volvo Penta TAD1170-72VE
• Volvo Penta D8A3-A MP
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1140-42VE
• Volvo Penta D6-480A-G

• Engine Family: D, TAD
• HP Range: 400-480 HP

⚙️ Key Features

• Documented in D8A1-A MP and TAD1342GE turbocharger installations
• Cut profile aligns with the assigned flange and flow passages
• Material is selected for heat, oil and exhaust-system exposure
• Provides controlled compression without intruding into the flow path
• Mating faces must be clean, flat and free from old gasket material
• Single-use replacement is recommended whenever the joint is opened

🔌 Function

Seals the specified turbocharger or manifold joint against oil, air or exhaust leakage.

⚠️ Common Signs of Failure

• Oil, boost air or exhaust gas leaks from the joint
• Soot or oil staining appears around the flange
• The gasket is burnt, split or eroded
• Fastener loosening damages the sealing surface
• Replacement is required whenever the joint is dismantled

🛠️ Service Notes

• Always fit a new gasket, and take the old one off completely without scoring the joint faces — a plastic scraper and a residue-free solvent on aluminium, never an abrasive disc or a steel blade
• Check both faces for flatness, corrosion pitting and pulled threads before assembly; a gasket cannot bridge a distorted or damaged joint face
• Fit dry unless the procedure for your engine specifically calls for sealant — sealant on a gasket designed to run dry acts as a lubricant and lets the gasket creep out under clamping load
• Locate the gasket on its dowels or bolts and check every port, passage and bolt hole lines up before anything is tightened
• Draw the fasteners down in stages, evenly and from the centre outwards, to the figure in the workshop manual for your engine
• Handle the gasket flat and unfolded — a crease or a nicked edge becomes a leak path

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 20707685 → Supersedes 860105

OEM / Related Numbers

• 860105 earlier number superseded by this part
• 3801727 - Related D8A1-A MP turbocharger references
• 22800936 - Related D8A1-A MP turbocharger references
• 3801235 - Related TAD1342GE turbocharger references
• 20784537 - Related turbocharger gaskets
• 22715610 - Related turbocharger gaskets
• 23086086 - Related turbocharger gaskets
• 3886331 - Related oil-pressure pipes
• 23547787 - Related oil-pressure pipes
• 3886333 - Related oil-return pipe
• 20711293 - Related turbocharger tube
• 1542778 - Related V-clamp
• 20592787 - Related hose clamp

Aftermarket / Verified Equivalents

• PAI Industries: 831055
• VTP: 6210032

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
