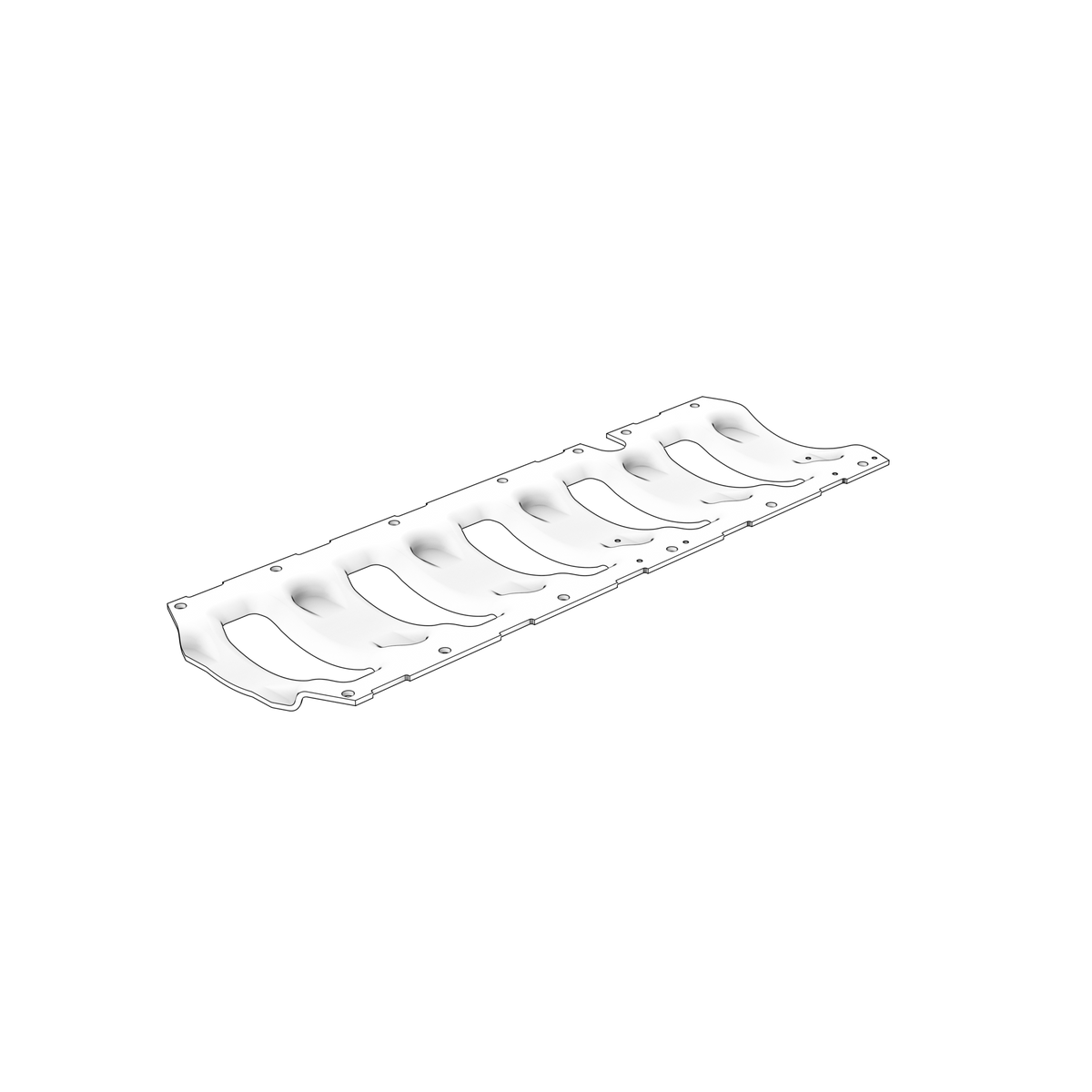

20722628 Frame | Genuine Volvo Penta Part

🔧 Product Description

Structural lower frame used with the TAD1640GE-B, TAD1641GE-B and TAD1642GE-B cylinder-block assembly. It reinforces and supports the lower engine structure and helps maintain crankshaft and main-bearing alignment.

🚤 Compatibility

• Engine Family: TAD, D, TWD
• Year Range: Approximately 2000s-2010s

Full model list at the end of this description.

⚙️ Key Features

• OEM-machined structural frame for the TAD16 GE-B engine family
• Supports cylinder-block rigidity and main-bearing alignment
• Designed for high combustion and crankshaft loading
• Uses original guide sleeves, locating pins and flange screws
• Requires clean mating faces and the specified tightening sequence
• Engine type: 16.1 L six-cylinder turbocharged generator diesel

🔌 Function

Adds rigidity to the lower cylinder block and provides accurately located support around the crankshaft/main-bearing structure.

⚠️ Common Signs of Failure

• Cracks, fretting or distortion around main-bearing or mounting areas
• Main-bearing misalignment or abnormal crankshaft wear
• Oil leakage at the block-to-frame joint
• Loose frame fasteners or damaged locating sleeves
• Abnormal lower-engine vibration or recurring bearing distress

🛠️ Service Notes

• A frame is a structural member — check the surrounding mounts, fasteners and mating faces for corrosion, cracking and elongated holes before refitting
• Offer it up and get everything aligned with the fasteners finger-tight before final tightening, so nothing the frame carries is pulled into strain
• Fit every fastener the frame is designed to take and tighten to the figures in the workshop manual for your engine
• Protect the fitting faces against corrosion where dissimilar metals meet, and refit any rubber mounts, pads or insulating strips
• Recheck the fasteners for tightness after the first period in service, since a frame carries vibration loads continuously

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 20722628 → Supersedes 20464397

OEM / Related Numbers

• 20464397 earlier number superseded by this part
• 23407484 cylinder-block assembly
• 8131967; 8131145; 417588 guide sleeves
• 21344781 and 984816 flange screws
• 950588 locating pin
• 24426721; 8131937; 20562189 block plugs

Aftermarket / Verified Equivalents

• SRP: F-22628

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta TAD1640-42GE-B, TAD1640GE, TAD1640VE-B, TAD1640-42VE-C
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1683VE
• Volvo Penta TWD1744GE
