20755169 V-Clamp | Genuine Volvo Penta Part

🔧 Product Description

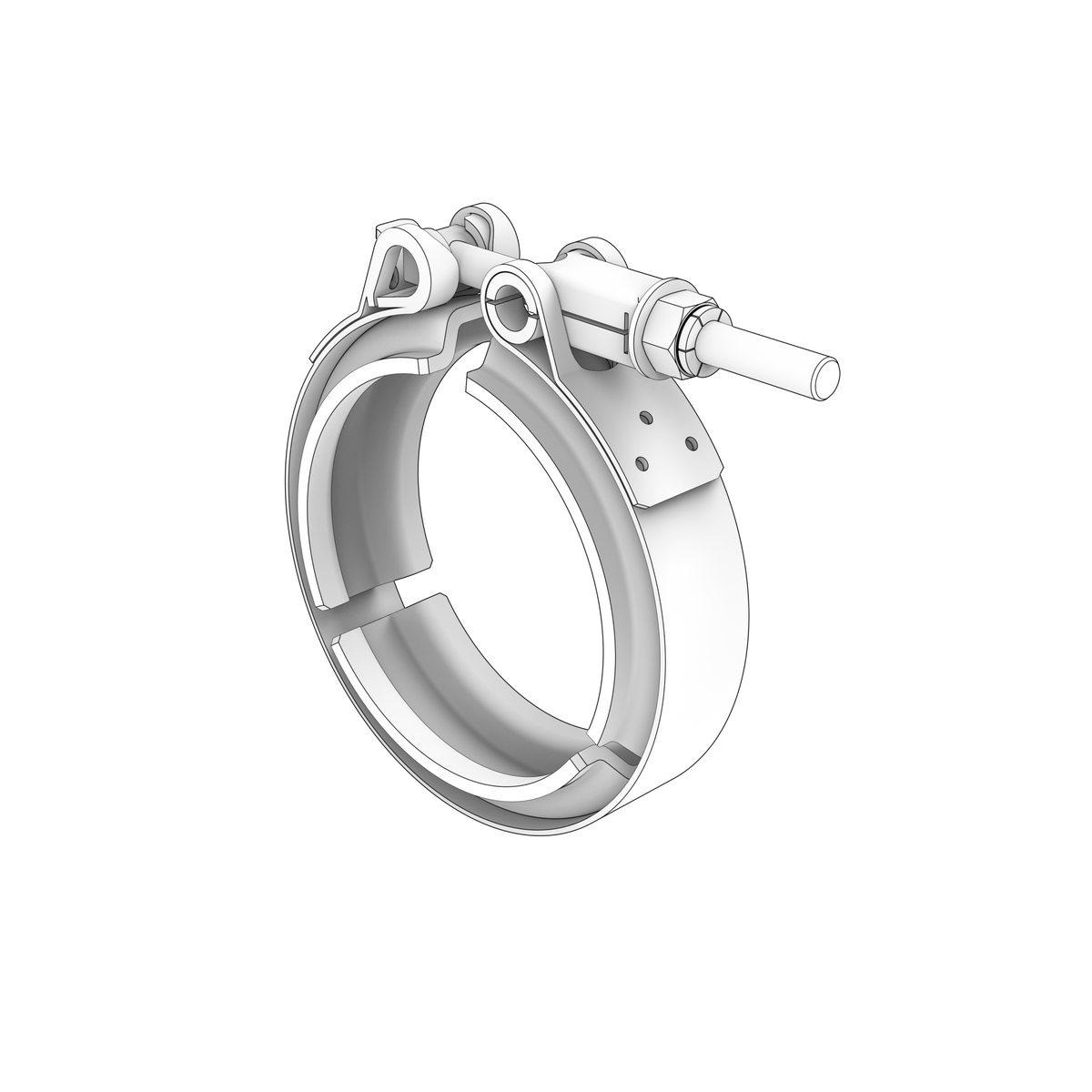

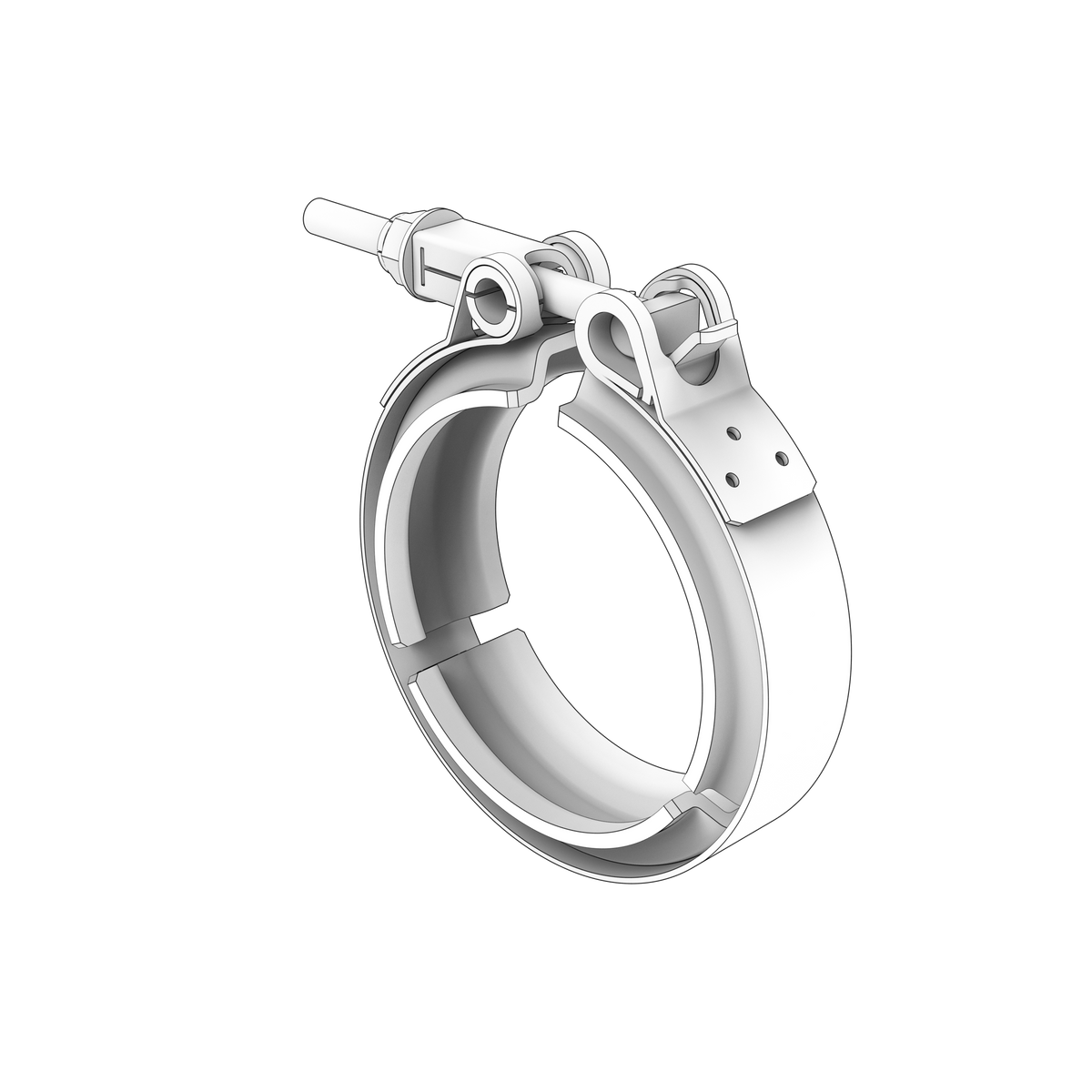

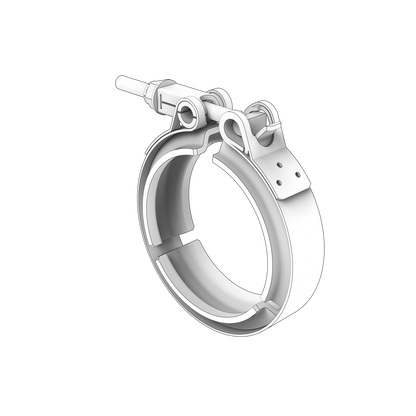

Brand-new genuine Volvo Penta V-band clamp for selected D13 marine and TWD16 industrial exhaust/turbocharger joints. It applies even circumferential clamping force to the matching flanges and must be installed on clean, correctly seated faces with the specified gasket and tightening procedure.

🚤 Compatibility

• Engine Family: D, TWD

Full model list at the end of this description.

⚙️ Key Features

• Genuine heavy-duty V-band clamp
• Even 360-degree flange clamping
• Designed for high-temperature exhaust service
• Correct profile for the original turbo/exhaust flanges
• Clamp only; gasket, studs and pipework are separate
• Engine type: Volvo Penta D13 marine and 16-litre industrial diesel
• 2 used per assembly

🔌 Function

Secures the mating turbocharger or exhaust-pipe flanges and maintains a gas-tight joint under heat cycles, vibration and boost/exhaust pressure.

⚠️ Common Signs of Failure

• Soot marks or exhaust leakage at the joint
• Whistling or ticking noise under load
• Clamp loosening after heat cycling
• Cracks, distortion or damaged T-bolt threads
• Mis-seated flanges or repeated gasket failure

🛠️ Service Notes

• Bring the two flanges squarely together before the clamp goes on — a V-clamp centres and holds a joint but cannot pull a misaligned pipe into line
• Seat the clamp evenly round the flanges and nip it up lightly, then tap around the circumference with a soft mallet so the band settles and the flanges centre before final tightening
• Tighten in stages to the figure in the workshop manual for your engine and no further; the clamp is meant to pinch the flanges while still allowing for expansion and vibration, and overtightening distorts the band or the flanges
• Renew the clamp if the band is stretched, cracked or corroded, or if the bolt, nut or trunnion is damaged — a fatigued clamp can let the joint go completely
• Recheck the clamp after the first run up to working temperature, and again at the next service

🔄 Supersession & Cross Reference

OEM / Related Numbers

• Associated exhaust gasket 20784537

Other-Brand OEM Numbers

• VOE20755169

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-K MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C5-A MP, D13C8-B MP
• Volvo Penta TWD1683GE-B, TWD1683VE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1744GE
