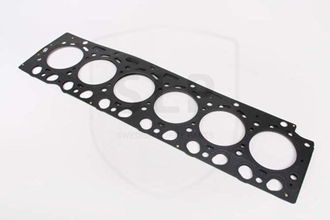

20798183 Cylinder Head Gasket | Genuine Volvo Penta Part

🔧 Product Description

OEM sealing component used in the graded multi-layer-steel cylinder-head sealing system. It restores the specified fluid-, air- or gas-tight interface when the adjoining parts are serviced. Application note: One-hole thickness grade. Select only after measuring piston protrusion and following the Volvo Penta workshop table.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD620VE
• Volvo Penta TAD660VE

• Engine Family: TAD
• HP Range: Approximately 260 HP
• Year Range: Approximately late 1990s-2010s

⚙️ Key Features

• Multi-layer-steel construction for high cylinder pressure
• Graded thickness identified by holes or dots
• Seals combustion, coolant and lubricating-oil passages
• Must be selected from measured piston protrusion
• Cylinder-head and block surfaces must be checked before installation
• Engine type: Four- and six-cylinder turbocharged/common-rail diesel
• TH=1.25mm / TH=1.26mm (Volvo assembly listing)

🔌 Function

Seals the joint between cylinder head and block, containing combustion pressure in each bore while keeping the coolant and lubricating-oil passages separate from each other and from the outside of the engine.

⚠️ Common Signs of Failure

• Coolant loss, overheating or repeated cooling-system pressurisation
• Low compression, hard starting or cylinder misfire
• External leakage at the cylinder-head joint

🛠️ Service Notes

• This is the one-hole grade, listed at 1.26 mm thick; the two-hole 20798186 and the three-hole 20798191 are the thicker grades in the same family, so count the identification holes on the gasket you remove and confirm the choice against measured piston protrusion
• It replaces the earlier 20795927 in this grade
• Check the head and block faces for flatness and cleanliness before fitting - a graded gasket cannot compensate for a distorted or damaged face

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 20798183 → Supersedes 20795927 → Supersedes 24426690 → Supersedes 20522328 → Supersedes 20459843

OEM / Related Numbers

• 20795927 earlier number superseded by this part
• 24426690 earlier number superseded by this part
• 20522328 earlier number superseded by this part
• 20459843 earlier number superseded by this part
• 21055823 cylinder head
• 20459855 valve-stem seal
• 20459851 valve spring
• 20840747 spring disc
• 20459857 valve cotter
• 20840772 lock ring
• 20840807 thrust washer
• 20459852 valve seat
• 21026535 inlet valve

OEM Reman Alternatives

• 3801233 exchange cylinder head

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
