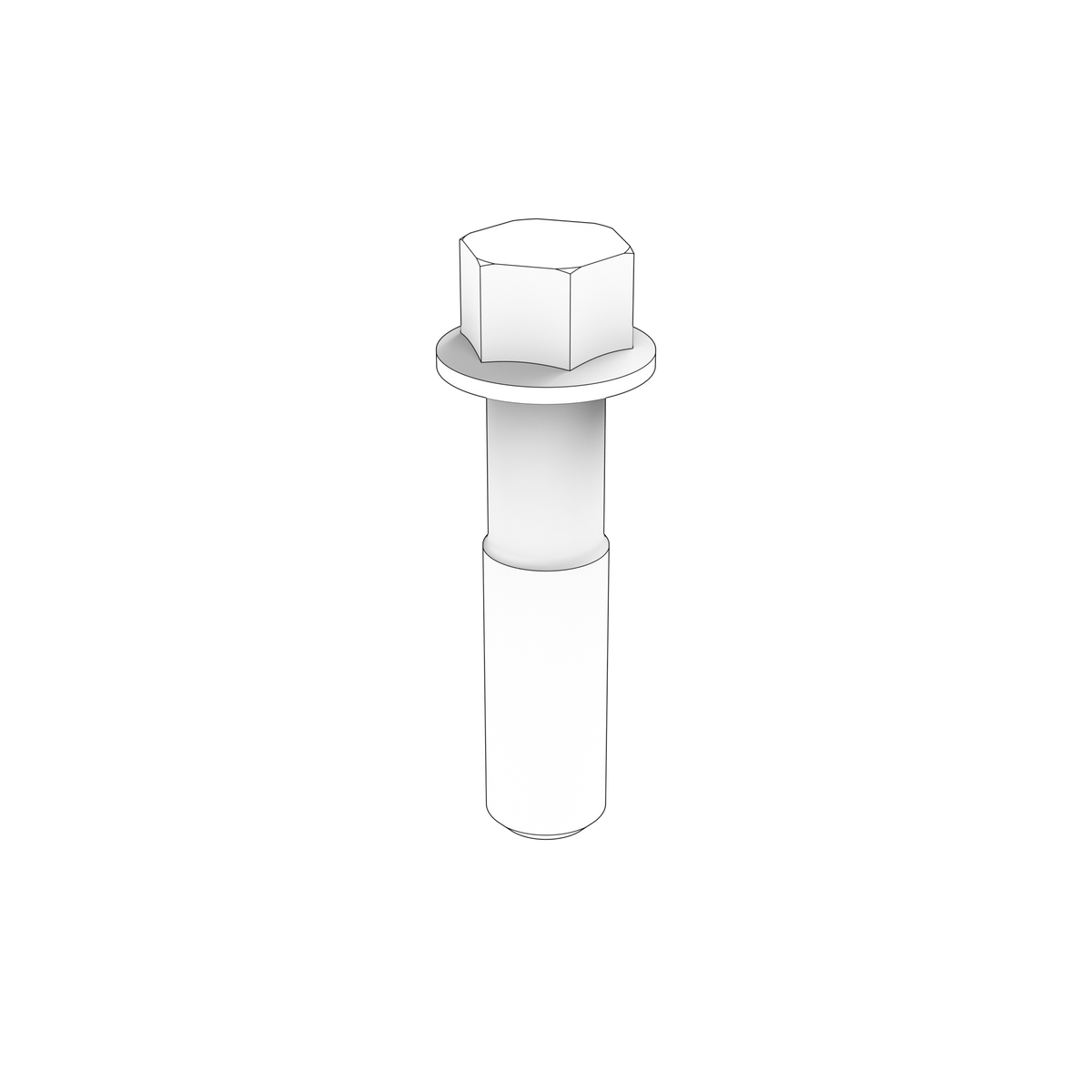

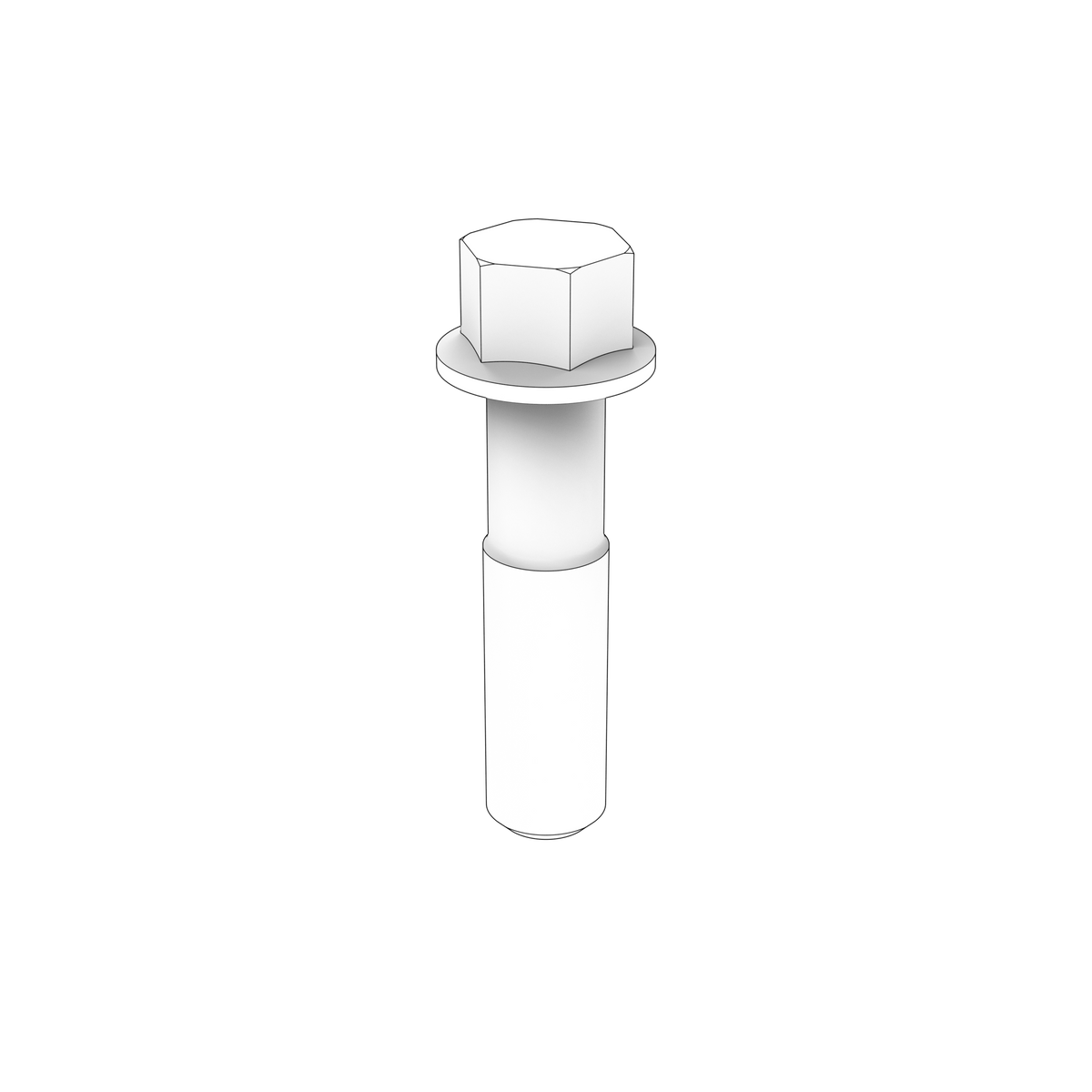

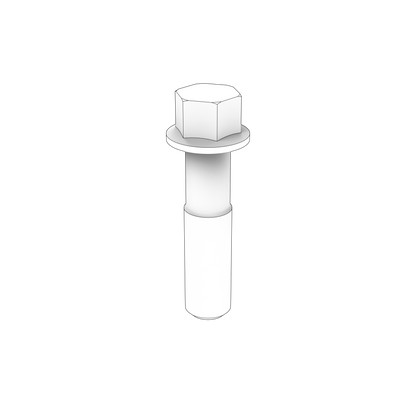

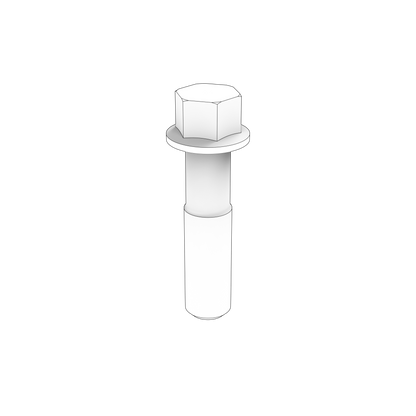

21015266 Flange Screw | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta flange screw produced to the specified thread, length, strength and seating geometry for use in the Volvo Penta D9A2A timing-gear plate and idler assembly. Using the exact fastener preserves clamp load, alignment and clearance within the original assembly.

🚤 Compatibility

• Engine Family: TAD, D, TWD

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta fastening component
• Correct thread, length and strength specification
• Factory head or seating geometry
• Supports the designed clamp load and alignment
• Single fastener; mating parts and washers are separate unless stated
• Engine type: Volvo Penta 9-litre inline six-cylinder diesel
• Quantity varies by assembly, most commonly six

🔌 Function

Locates or secures the specified component with the designed preload, spacing or pivot relationship.

⚠️ Common Signs of Failure

• Damaged, stretched or crossed threads
• Corrosion, galling or seized installation
• Rounded drive or damaged head
• Incorrect length causing interference or insufficient engagement

🛠️ Service Notes

• The integral flange spreads the load and forms the bearing face, so do not add a separate washer unless the workshop manual for your engine specifically calls for one
• Clean the threads and the seating face before fitting — grit, paint or old sealant under the flange gives a false torque reading and the joint will slacken off in service
• Where the flange is serrated it must bear directly on clean metal to grip; discard any screw with a deformed flange or damaged serrations rather than reusing it
• Tighten to the torque and sequence given in the workshop manual for your engine, and treat the screw as single-use where the manual specifies an angle-tightened or stretch fastener
• Check the thread in the receiving component at the same time; a pulled or corroded thread will not hold a new screw however carefully it is torqued

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21015266 → Supersedes 20477171

OEM / Related Numbers

• 20477171 earlier number superseded by this part
• Timing gear plate 3886444
• Camshaft idler 8148100
• Hub 20520535

Other-Brand OEM Numbers

• VOE21015266

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP, D11A-C (IPS), D11B1-A MP
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta TAD1640-42GE-B, TAD1640GE, TAD1640VE-B, TAD1640-42VE-C
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TAD940GE, TAD940VE
• Volvo Penta TAD941VE, TAD941GE
• Volvo Penta TAD1140-42VE
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1180-83VE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TAD942VE
• Volvo Penta TAD943VE
• Volvo Penta TAD950VE
• Volvo Penta TAD951VE
• Volvo Penta TAD952VE
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1683VE
