21106105 Housing | Genuine Volvo Penta Part

🔧 Product Description

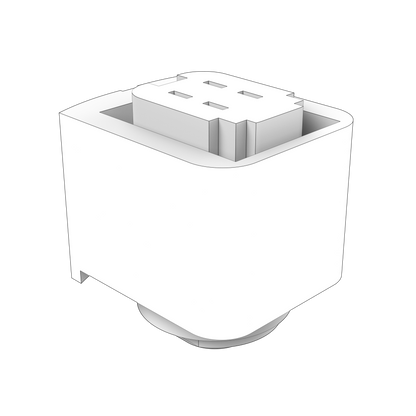

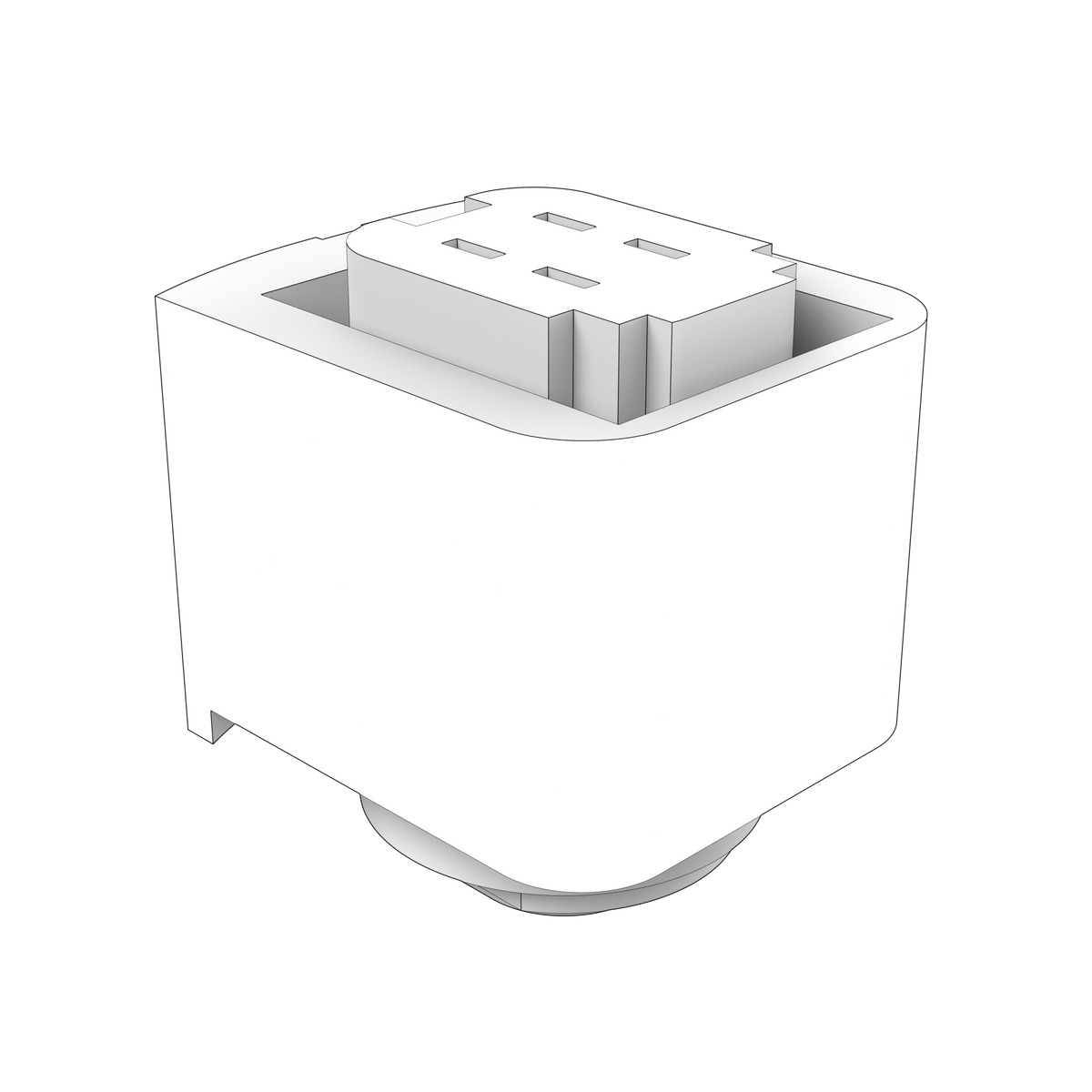

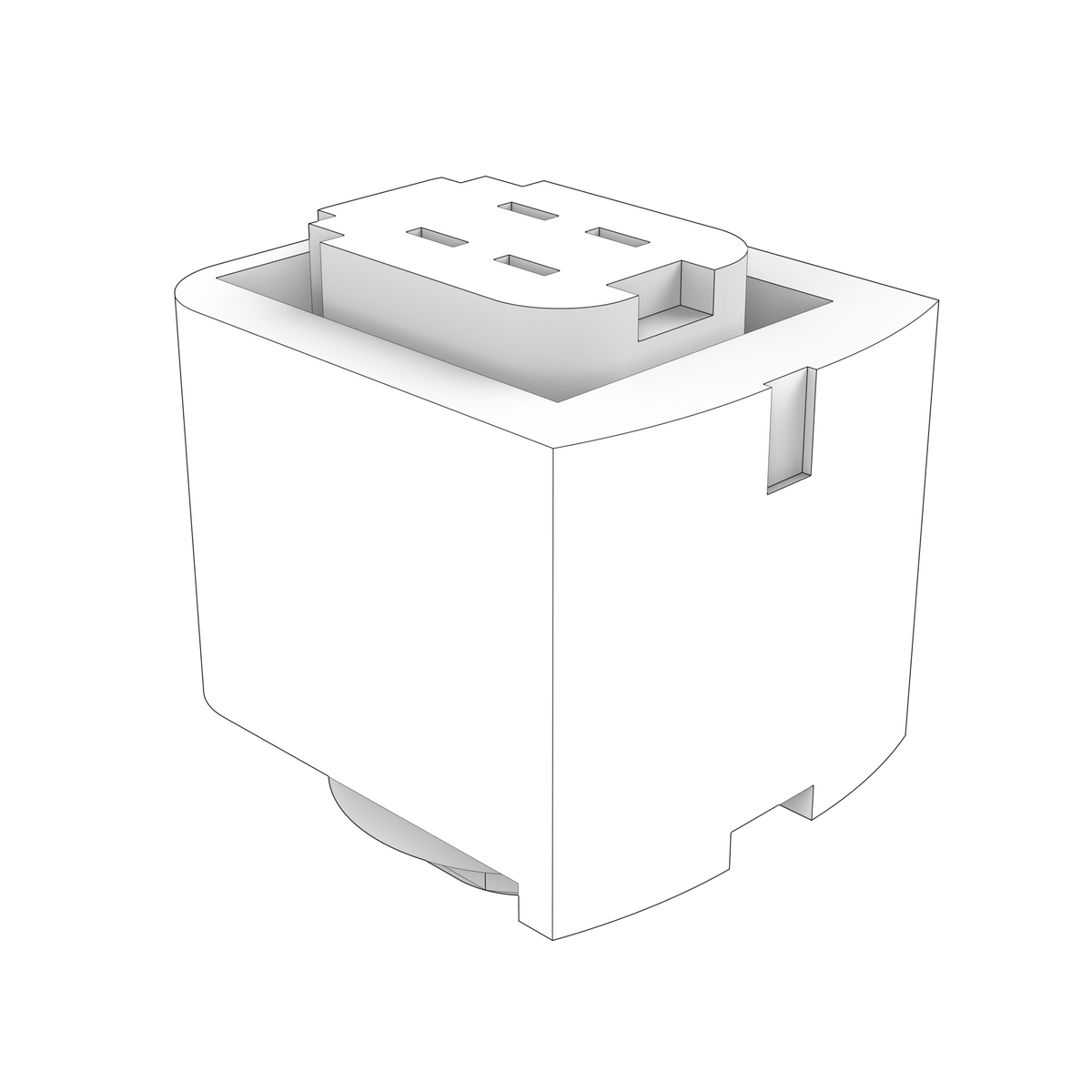

A genuine Volvo Penta electrical connector housing used in engine cable-and-fuse installations. On D6-300A-G and TAD580-TAD583VE systems it forms part of the sealed connector hardware associated with the engine harness, sensors, relay/fuse equipment or installation interface. It is not a structural engine housing; its purpose is to locate and protect electrical terminals.

🚤 Compatibility

• Engine Family: TAD, D
• HP Range: 300-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Corrected application context: electrical connector housing
• Accepts the specified terminal or connector insert used by the engine harness
• Keys the connector to prevent incorrect mating
• Provides strain relief and environmental protection around the terminals
• Must be assembled with the correct seals, terminal locks and wiring-harness branch
• Engine type: Electronically controlled marine or industrial diesel electrical system
• Quantity varies by assembly, most commonly one

🔌 Function

Holds and aligns electrical terminals, maintains connector polarity and protects the connection from moisture, vibration and accidental short circuits.

⚠️ Common Signs of Failure

• Loose terminals backing out of the connector
• Moisture or corrosion inside the housing
• Broken locking tab allowing the connector to separate
• Intermittent sensor, relay or power-circuit faults
• Heat damage caused by a high-resistance terminal connection

🛠️ Service Notes

• Isolate the batteries first, and note which way the housing sits and how the harness runs into it before anything is disturbed
• Move terminals across one at a time into the same cavity positions, releasing each locking tab with a proper extraction tool rather than pulling on the wire
• Check every terminal clicks fully home and locks before the housing is closed; a terminal that is not seated will back out under vibration
• Make sure all seals, grommets and blanking plugs are present and undamaged, and leave unused cavities plugged so the housing keeps water out
• Support and route the harness so nothing hangs on the housing, and check the connection is dry after the first run

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• VOE21106105

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-480A-G
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A1-A MP, D8A2-A MP, D8A3-A MP, D8A4-A MP
• Volvo Penta TAD840GE-B
• Volvo Penta TAD841-43GE
• Volvo Penta TAD851-53GE
