21106504 Hose | Genuine Volvo Penta Part

🔧 Product Description

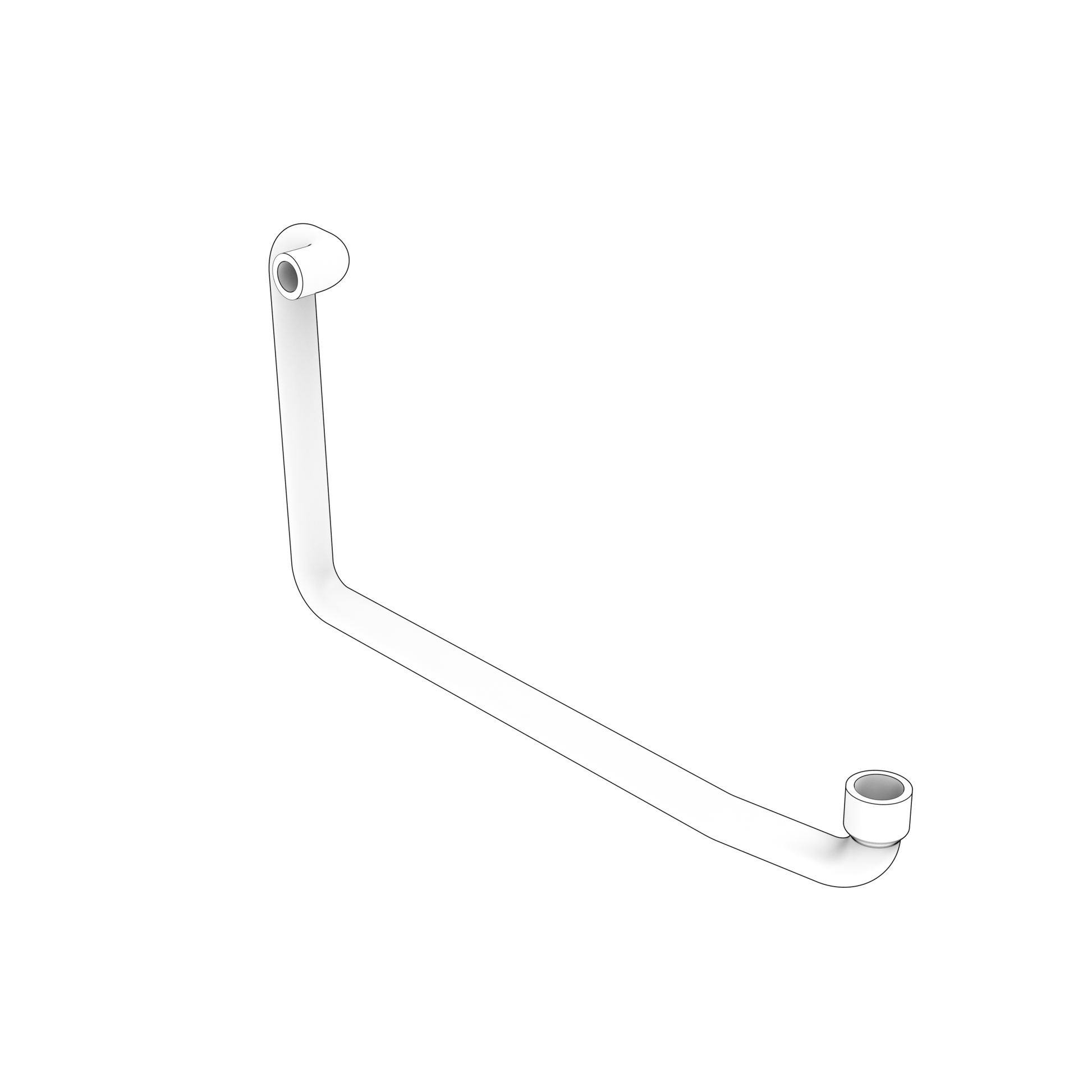

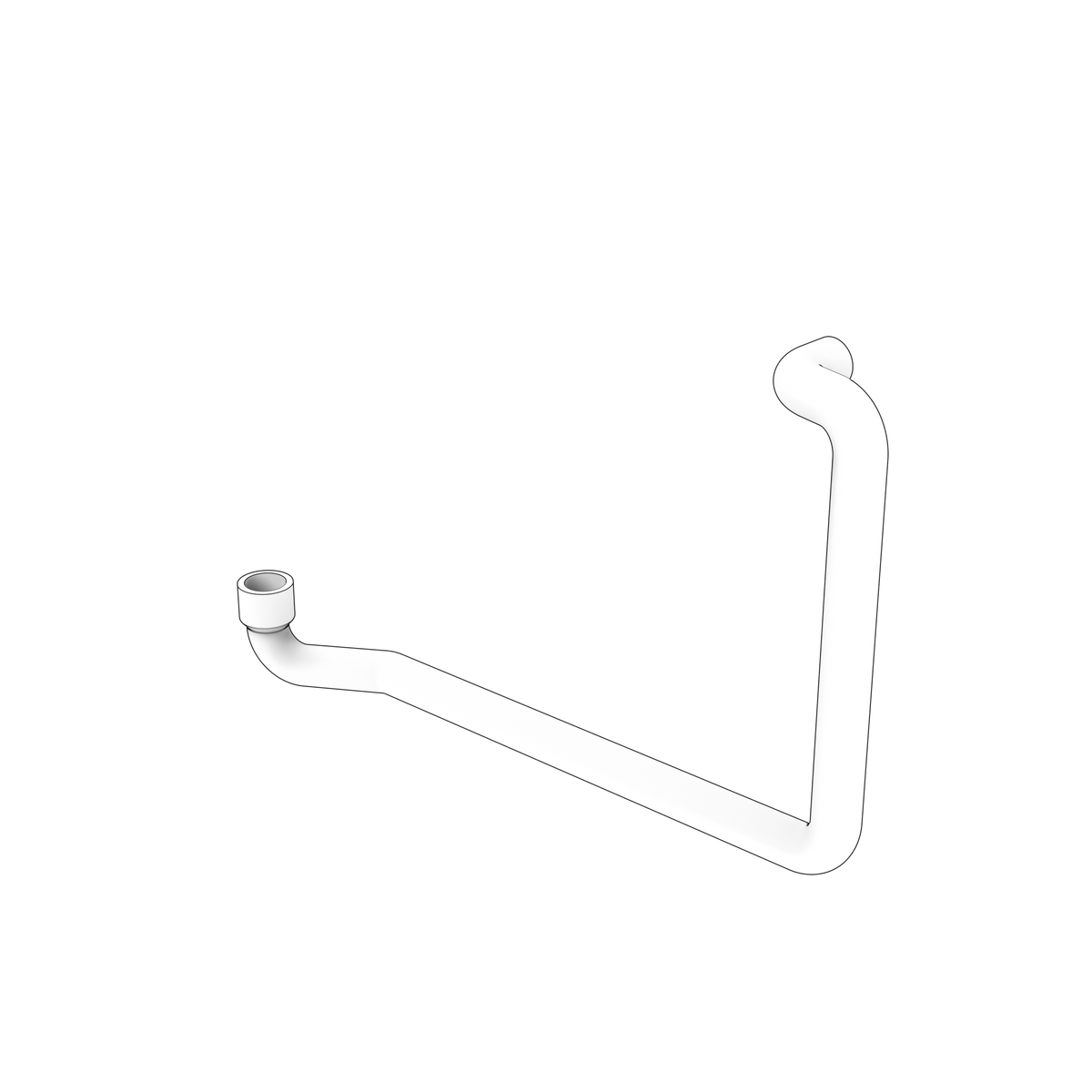

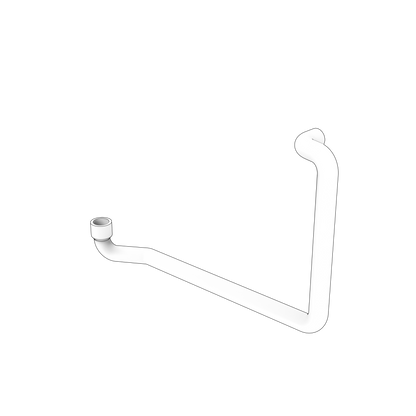

A genuine Volvo Penta formed seawater hose used in the thermostat-housing-to-exhaust cooling system of V8-270, V8-300 and V8-320 C/CE gasoline engines. This is the longer companion branch in the cooling-hose group and uses its own clamp size and connection orientation. Correct routing prevents contact with hot exhaust components and avoids restricting raw-water flow.

🚤 Compatibility

• Engine Family: V
• HP Range: 225-320 HP

Full model list at the end of this description.

⚙️ Key Features

• Position-specific raw-water hose for the V8 exhaust-cooling circuit
• Long moulded profile maintains the required routing around engine components
• Reinforced marine hose resists suction collapse and temperature cycling
• Uses the specified clamp sizes at unequal or application-specific end connections
• Must not be substituted with companion hose 21106502 or 21106506
• Engine type: Volvo Penta V8 gasoline marine engine seawater-cooling system

🔌 Function

Carries seawater through its assigned exhaust-cooling branch, helping control exhaust-manifold and elbow temperature.

⚠️ Common Signs of Failure

• Water leakage or salt staining
• Hose wall blistering or heat-hardening
• Internal delamination restricting water flow
• Abrasion against an exhaust or fuel-system component
• Overheated exhaust elbow or reduced water discharge

🛠️ Service Notes

• Fit hoses only to clean, sound spigots — take off old rubber, scale and corrosion, and renew the spigot or pipe if it is pitted, because no clamp will seal a rough sealing face
• Push the hose fully home so the clamp sits behind the bead or barb rather than over the end of the spigot, and fit new clamps whenever a hose is renewed
• Let the hose follow its natural bend with no kinks and no tension on either connection, clear of hot surfaces and moving parts, with chafe protection wherever it passes a bracket, edge or bulkhead
• Use the correct grade of hose for the duty, and clamp to the standard the installation demands — twin clamps are normal practice on seawater and fuel connections below the waterline
• Refill, vent and run the engine, then check every joint hot and cold and recheck the clamps after the first running period as the hose beds down

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21106502 - companion hoses
• 21106506 - companion hoses
• 21106508 - companion hoses
• 21114718 - companion hoses
• 3589553 - thermostat housing
• 3863444 - hose clamp used at the specified connection
• 3863439 - additional clamp references in the hose group
• 3863441 - additional clamp references in the hose group

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GiCE-300-M, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiC-300-P, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-J, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J
• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-C-A, V8-320-CE-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-C-A, V8-270-CE-A
