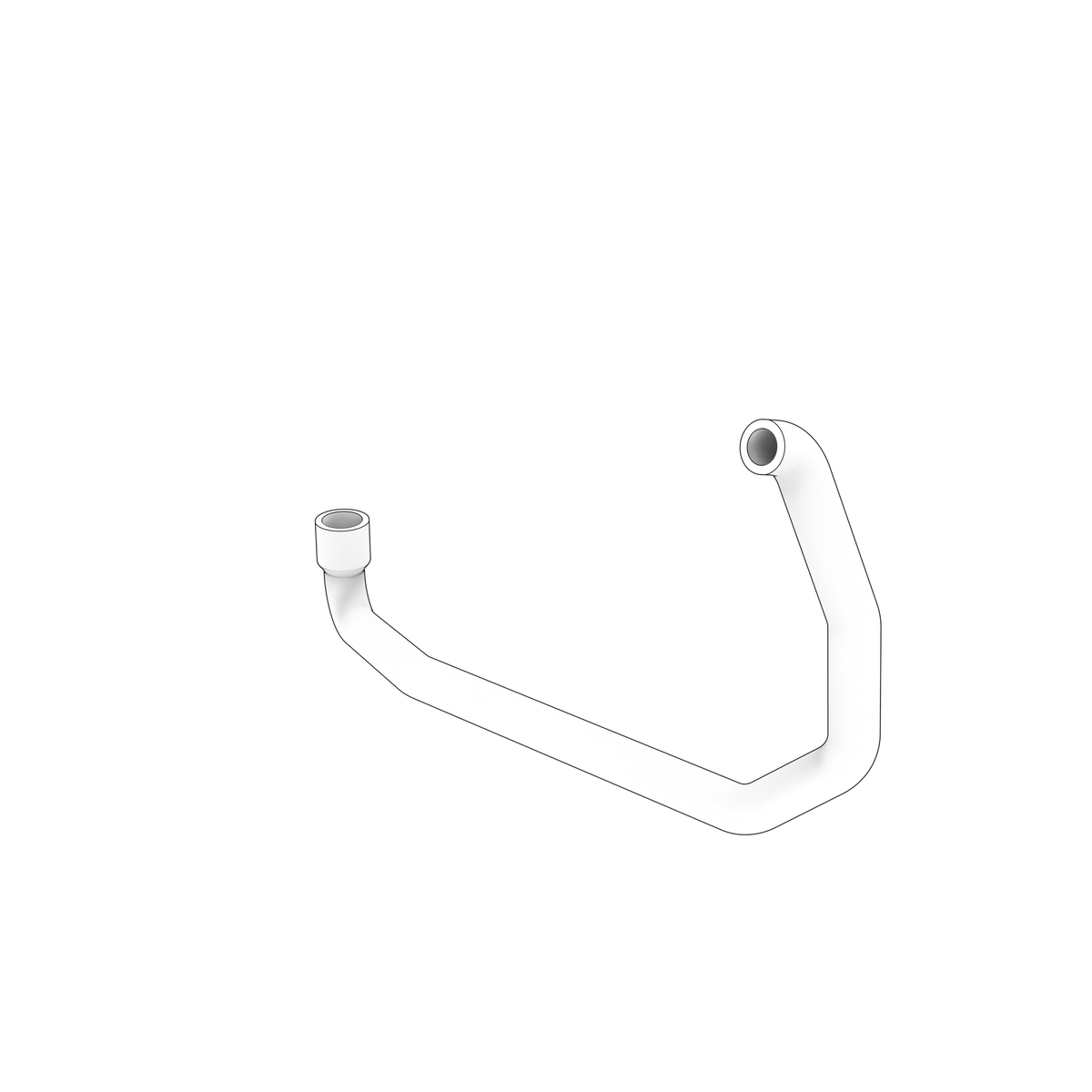

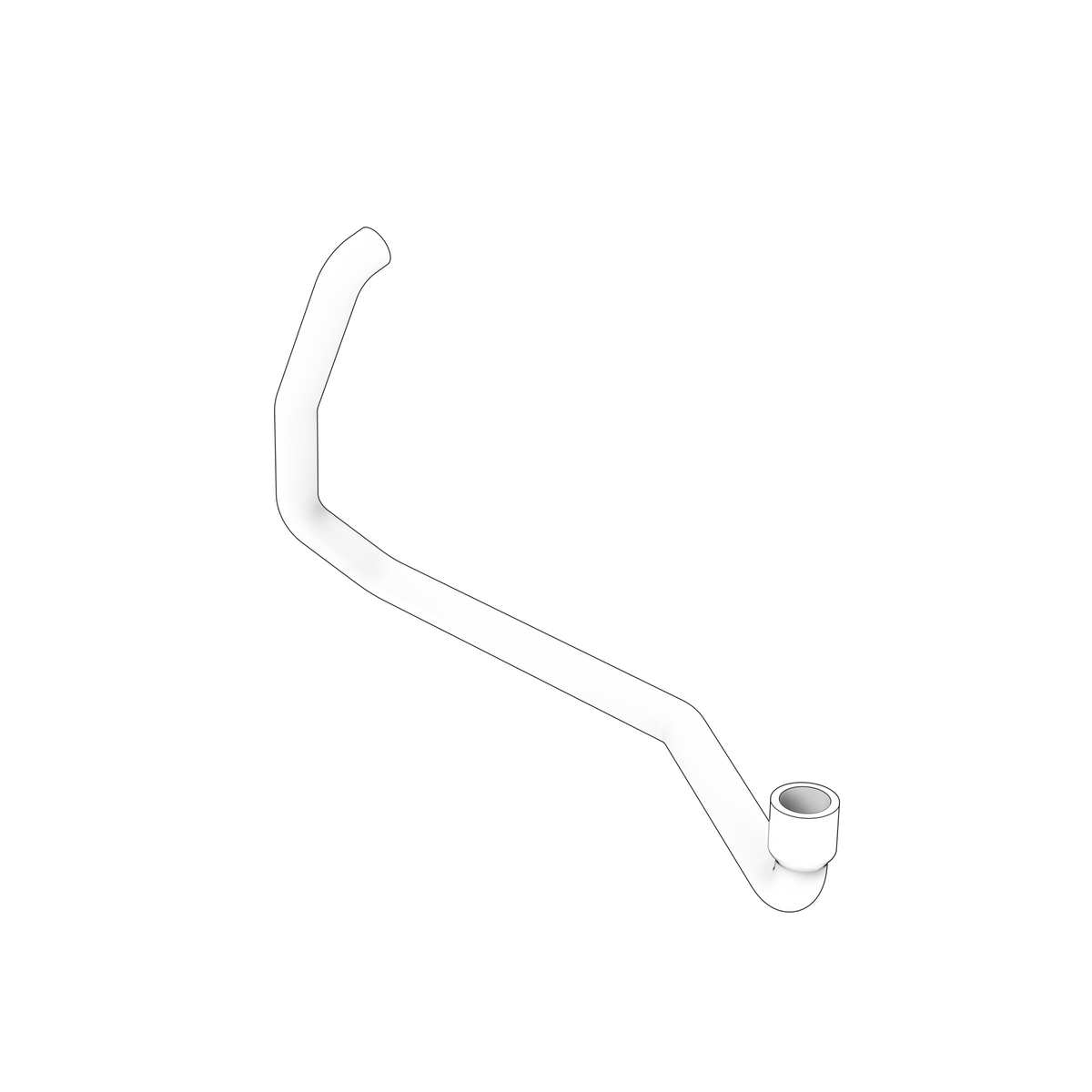

21106508 Hose | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta moulded cooling hose used in the catalyst-engine circulation-pump and exhaust-thermostat circuit. Its formed bends connect the thermostat distribution plumbing without kinking and maintain coolant flow to the port and starboard exhaust-thermostat housings.

🚤 Compatibility

• Engine Family: V
• HP Range: 225-320 HP

Full model list at the end of this description.

⚙️ Key Features

• Moulded hose for the catalyst exhaust-thermostat circuit
• Correct bends for the 5.0-litre V8 installation
• Works with adapter 3595495 and the adjoining thermostat hoses
• Coolant- and heat-resistant marine rubber
• Hose only; clamps, adapters and thermostat housings are separate
• Engine type: Volvo Penta 5.0-litre V8 catalyst marine gasoline engine

🔌 Function

Carries engine coolant through the exhaust-thermostat branch so both exhaust banks reach and retain the designed operating temperature.

⚠️ Common Signs of Failure

• Coolant leakage or staining at the hose ends
• Soft, swollen or cracked hose wall
• Kinked hose reducing thermostat flow
• Uneven exhaust-bank temperature
• Overheating or catalyst-temperature faults

🛠️ Service Notes

• Fit hoses only to clean, sound spigots — take off old rubber, scale and corrosion, and renew the spigot or pipe if it is pitted, because no clamp will seal a rough sealing face
• Push the hose fully home so the clamp sits behind the bead or barb rather than over the end of the spigot, and fit new clamps whenever a hose is renewed
• Let the hose follow its natural bend with no kinks and no tension on either connection, clear of hot surfaces and moving parts, with chafe protection wherever it passes a bracket, edge or bulkhead
• Use the correct grade of hose for the duty, and clamp to the standard the installation demands — twin clamps are normal practice on seawater and fuel connections below the waterline
• Refill, vent and run the engine, then check every joint hot and cold and recheck the clamps after the first running period as the hose beds down

🔄 Supersession & Cross Reference

OEM / Related Numbers

• Adapter 3595495
• Thermostat housings 40005486 and 40005487

Other-Brand OEM Numbers

• VOE21106508

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GiCE-300-M, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiC-300-P, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-J, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J
• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-C-A, V8-320-CE-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-C-A, V8-270-CE-A
