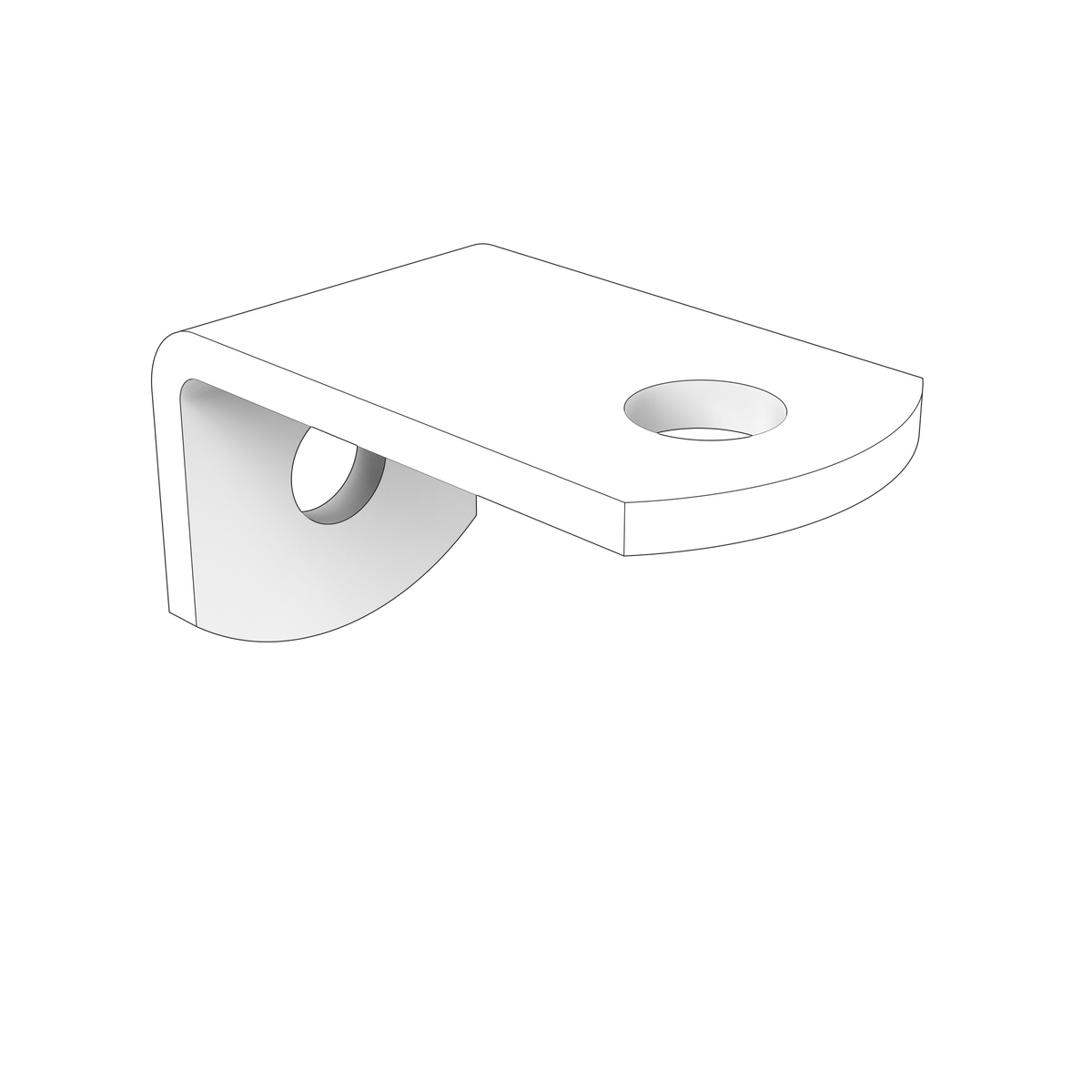

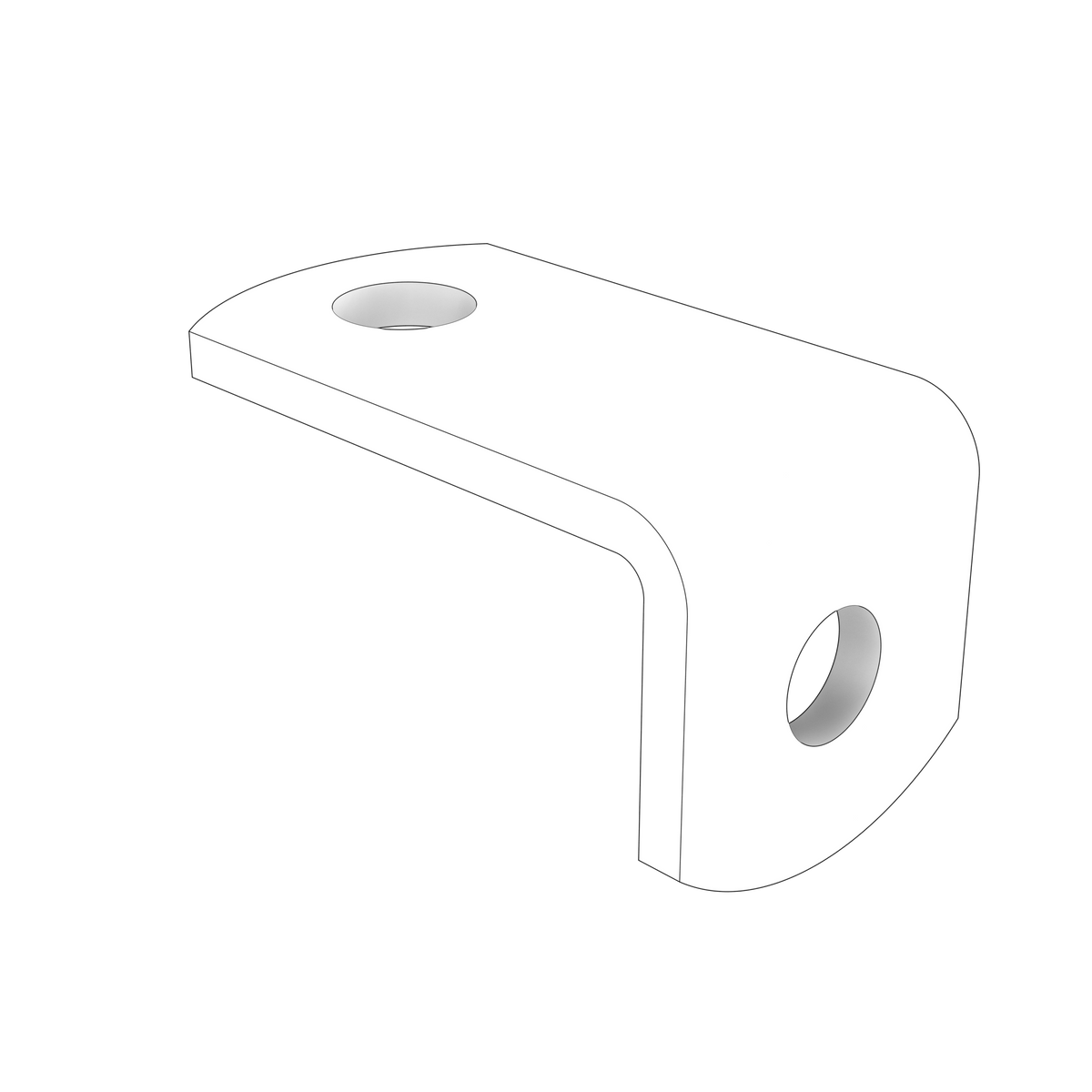

21107541 Bracket | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta support bracket for the fuel-cooler assembly on D4 and D6 marine engines. It carries the cooler and adjoining fuel/coolant plumbing at the designed height and angle, preventing hose load and vibration from reaching the cooler connections.

🚤 Compatibility

• Engine Family: D
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Dedicated mounting bracket for the fuel cooler
• Maintains correct cooler and hose alignment
• Reduces vibration stress at the fuel connections
• Corrosion-resistant marine finish
• Bracket only; cooler, hoses and fasteners are separate
• Engine type: Volvo Penta D4 and D6 common-rail marine diesel

🔌 Function

Supports and locates the fuel cooler so the connected hoses remain aligned and free from vibration fatigue.

⚠️ Common Signs of Failure

• Cooler movement at idle
• Cracks around bracket bolt holes
• Fuel or coolant hose chafing
• Misaligned cooler connections
• Corrosion or loose mounting hardware

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21107541 → Supersedes 3583819

OEM / Related Numbers

• 3583819 earlier number superseded by this part

Other-Brand OEM Numbers

• VOE21107541

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F
