21107717 Engine Bracket | Genuine Volvo Penta Part

🔧 Product Description

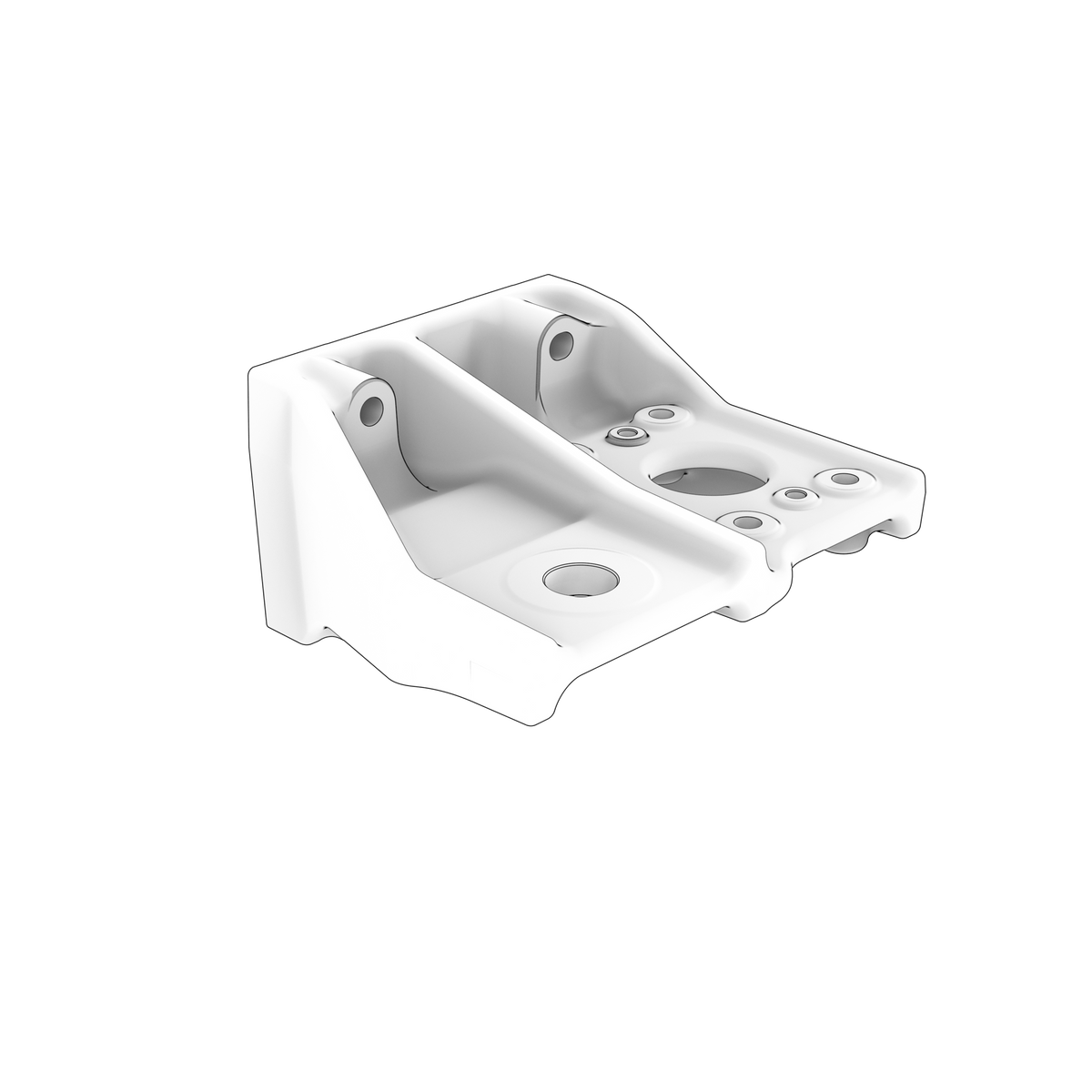

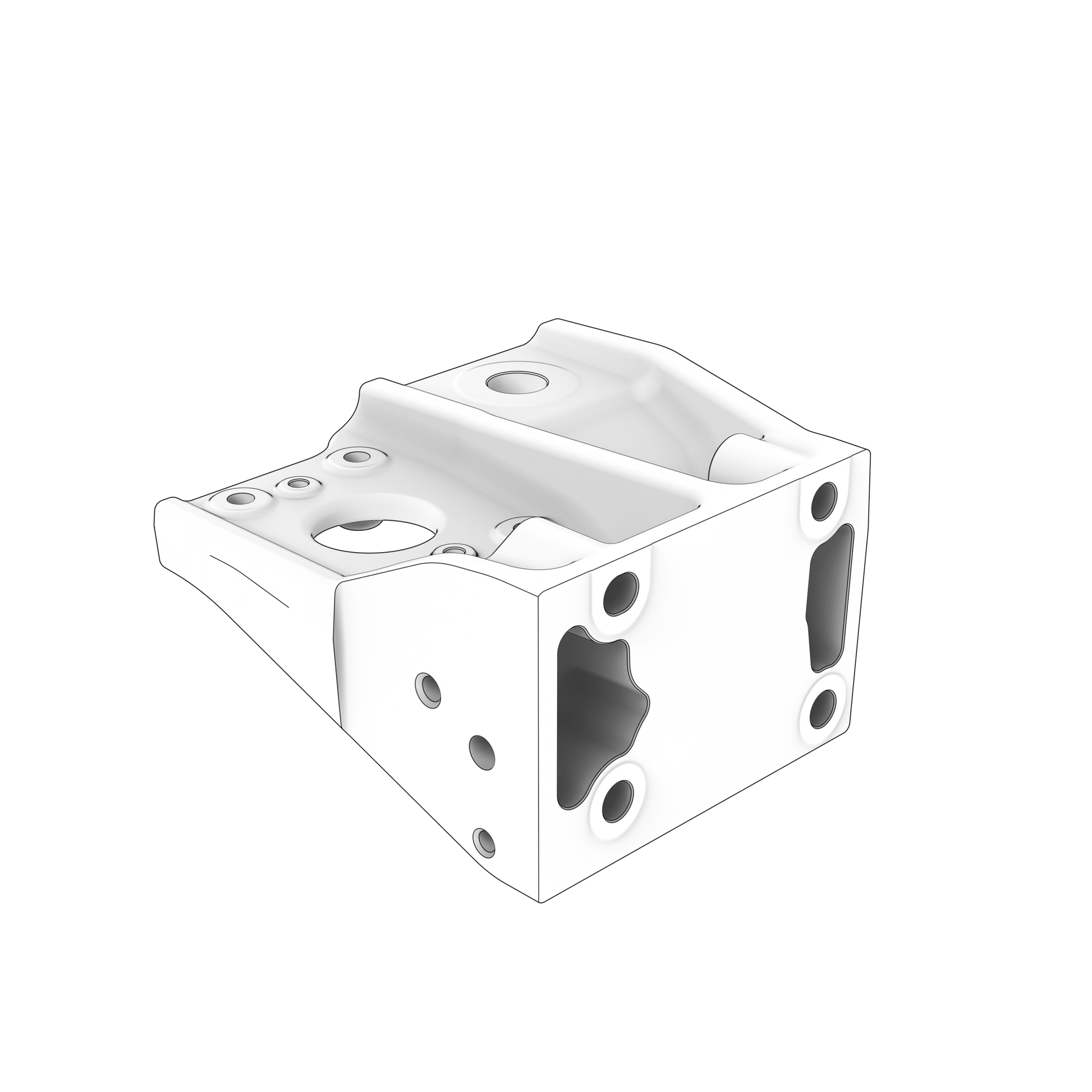

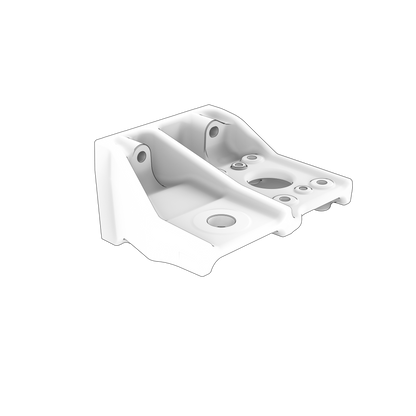

Brand-new genuine Volvo Penta right-hand engine mounting bracket for D3 D-generation marine engines. The bracket bolts to the engine and carries the right-side flexible mounting element; it is paired with the separate left-hand bracket assembly.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Right-hand mounting position
• Factory offset for D3 installation geometry
• Machined mounting pad for the flexible mount
• Counterpart to left-hand bracket 21750952 / 22769792
• Bracket only; flexible mount and bolts are separate
• Engine type: Volvo Penta D3 five-cylinder marine diesel

🔌 Function

Supports the right side of the engine and maintains the alignment needed for the drive, shaft or transmission connection.

⚠️ Common Signs of Failure

• Engine mount position changing
• Excess vibration or driveline misalignment
• Loose or corroded bracket fasteners

🛠️ Service Notes

• Start all the fasteners by hand and get the bracket sitting flat on clean mating faces before tightening anything, so nothing is pulled into strain
• Renew self-locking nuts, lock washers and thread-locking compound where the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Inspect the bracket for cracks around the holes and weld lines before fitting, and do not attempt to straighten or weld a distorted engine bracket back into service
• Where the bracket forms part of the engine mounting, recheck engine alignment and shaft or drive coupling alignment after the work, following the procedure for your installation
• Renew any flexible mount, bush or shim pack that is disturbed and found perished, corroded or crushed

🔄 Supersession & Cross Reference

OEM / Related Numbers

• Left-hand bracket 21750952
• Later left-hand bracket 22769792

Other-Brand OEM Numbers

• VOE21107717

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
