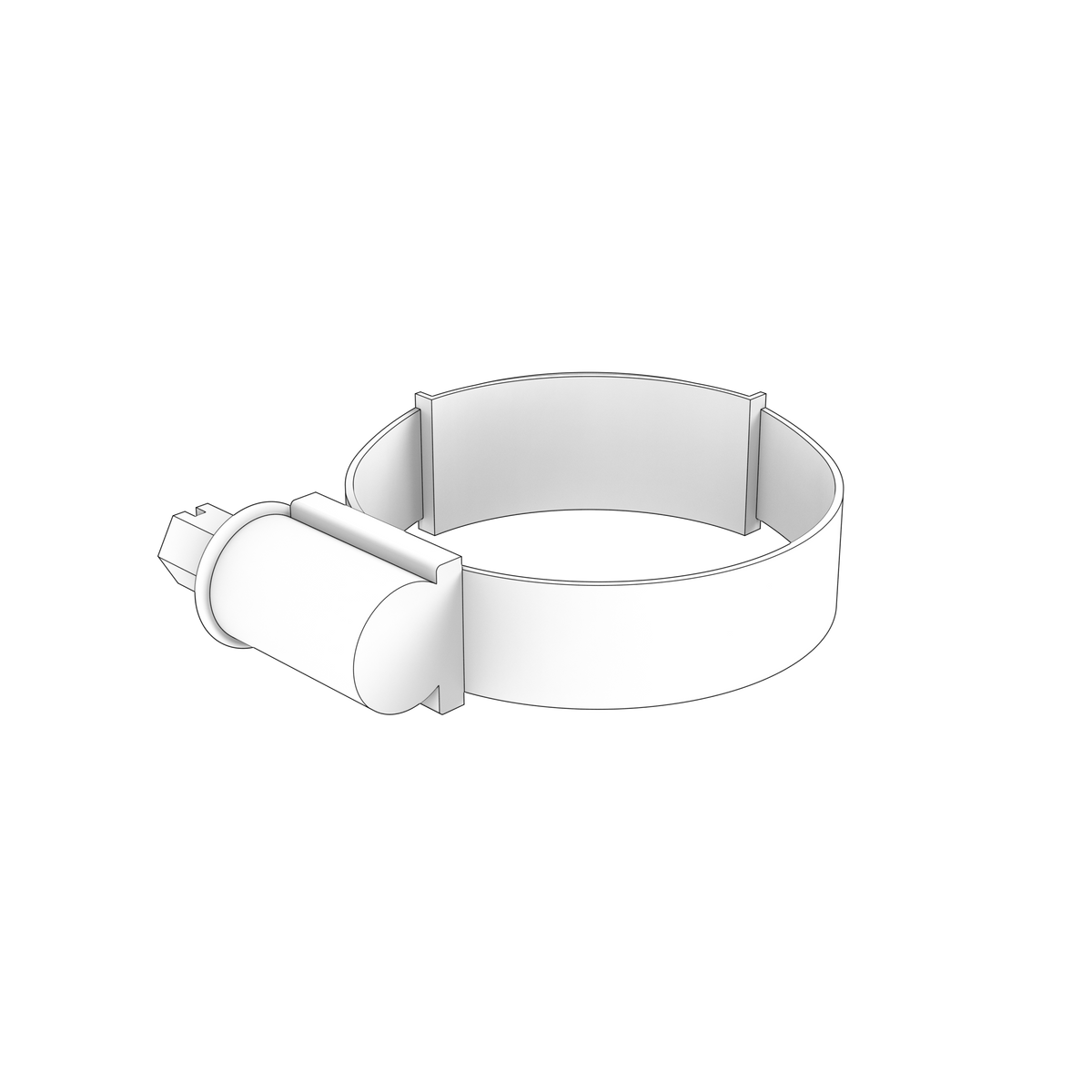

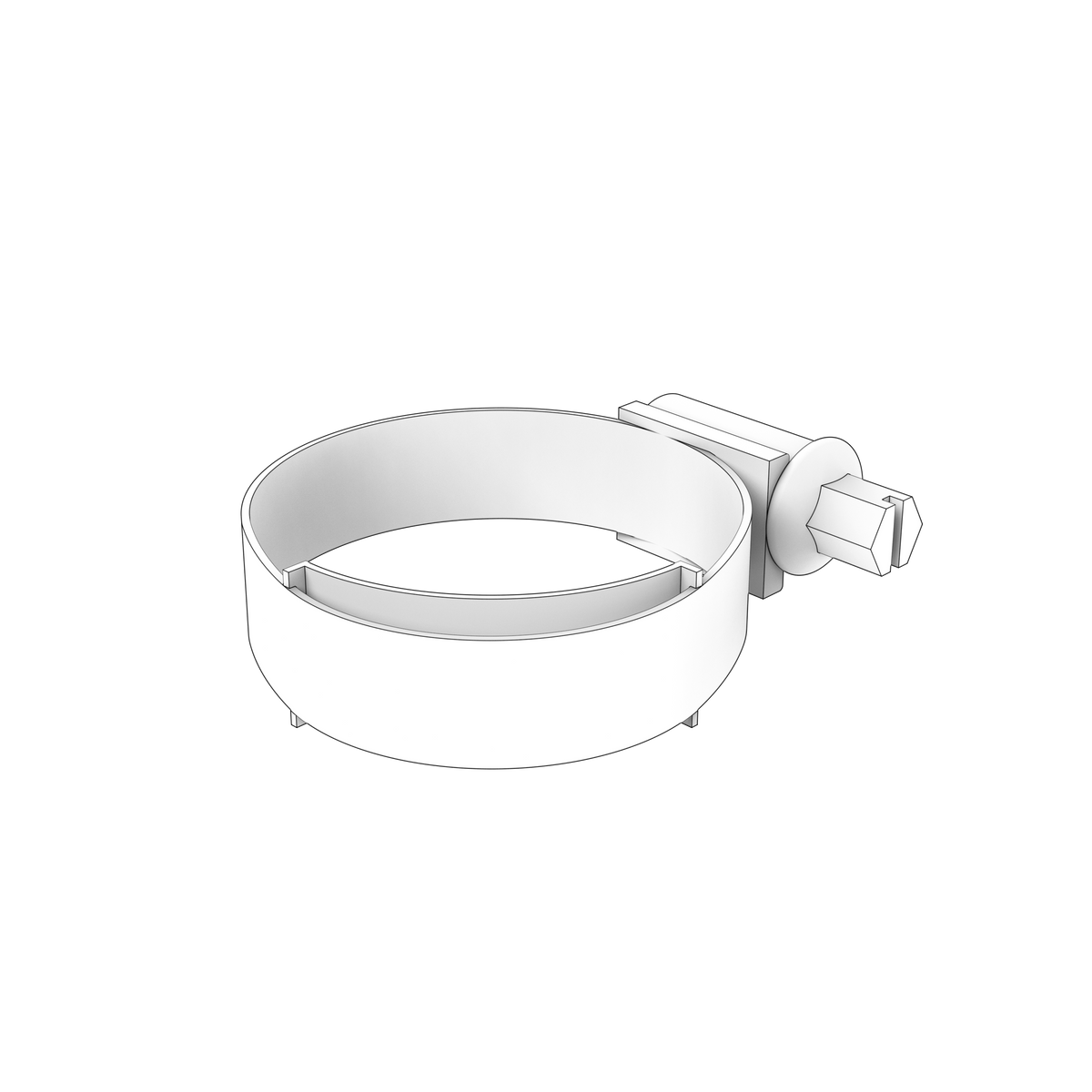

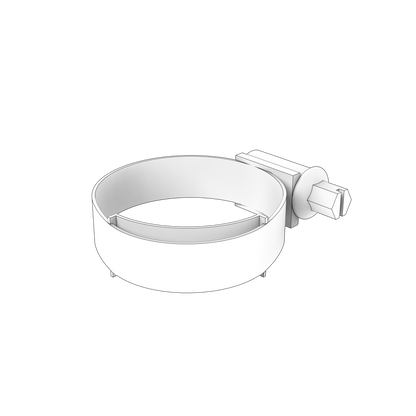

21109868 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta hose clamp used on the D3-B charge-air cooler hose and pipe connection. The clamp secures the boosted-air joint between hose 847385 and charge-air pipe 3886206.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Clamp for the D3-B charge-air cooler joint
• Correct diameter and band profile for hose 847385
• Maintains sealing pressure under turbo boost
• Resists vibration and heat cycling
• One clamp supplied
• Engine type: Volvo Penta D3 five-cylinder turbocharged marine diesel
• 2 used per assembly

🔌 Function

Clamps the charge-air hose to its pipe so pressurised intake air cannot escape between the turbocharger and engine.

⚠️ Common Signs of Failure

• Boost leak or hissing under load
• Oil mist around the joint
• Clamp screw stripped or corroded
• Hose movement or partial separation
• Loss of power from charge-air leakage

🛠️ Service Notes

• Match the clamp to the hose outside diameter so the band closes well within its working range rather than at the very end of its travel
• Position it over the spigot behind the bead or barb, with the screw where a driver or spanner can still reach it once everything is refitted
• Tighten to seal, not to crush — an over-tightened worm-drive clamp cuts into soft hose and starts the leak you were trying to stop
• Renew clamps when a hose is changed rather than reusing them, and keep band, housing and screw all marine-grade stainless so the clamp does not corrode against itself
• Where two clamps are fitted to one connection, stagger the screw heads and recheck both after the first running period

🔄 Supersession & Cross Reference

OEM / Related Numbers

• Hose 847385
• Charge-air pipe 3886206

Other-Brand OEM Numbers

• VOE21109868

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-B, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-130I-B, D3-160I-B, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
