21116456 Oil Cooler Kit | Genuine Volvo Penta Part
21116456 Oil Cooler Kit | Genuine Volvo Penta Part
Couldn't load pickup availability
In stock — Australian warehouse
Typically reaches our store in 3–5 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description

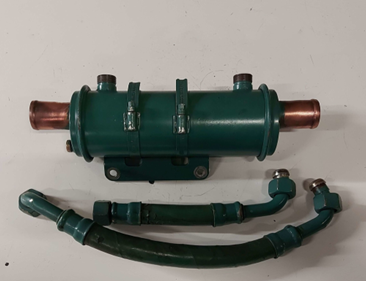

A genuine Volvo Penta complete oil-cooler installation kit for selected HS25A and HS45A marine transmissions. It includes the cooler, hose, fittings, mounting bracket, clamp and hardware required to add or renew the gearbox cooling circuit. The cooler itself is a copper-nickel shell-and-tube unit of approximately 3 inch body diameter and 9 inch bundle length, with 1 1/4 inch water connections and 1/2 inch NPT oil ports.
🚤 Compatibility
Typically suits:
- Volvo Penta D3-110I-C
- Volvo Penta D3-130I-C
- Volvo Penta D2-55F
- Volvo Penta D2-50F
- Volvo Penta D2-75F
- Volvo Penta D2-60F
- Volvo Penta D3-110I-G
- Volvo Penta D3-110I-H
- Volvo Penta D3-160I-C
- Volvo Penta D3-190I-C
- Volvo Penta HS45A
- Volvo Penta HS45A-B
- Volvo Penta HS25A
- Volvo Penta HS25A-B
- Volvo Penta HS25
- Engine Family: D, HS
- HP Range: 50-190 HP
- Year Range: Approximately 2000s onward
⚙️ Key Features
- Genuine Volvo Penta complete transmission cooler kit
- Copper-nickel shell-and-tube cooler, approximately 3 in body by 9 in bundle
- 1 1/4 in water connections and 1/2 in NPT oil ports
- 2.443 kg
- Nine individually numbered components
- Correct hose, fittings and support bracket
- Used on HS25A and HS45A families
- Suitable for new installation or complete replacement
- Engine type: Volvo Penta / ZF-Hurth marine reverse gear
📋 Kit Contents
- 1 x oil cooler - Volvo Penta 21112814
- 1 x hose - Volvo Penta 21148614
- 1 x nipple - Volvo Penta 941750
- 1 x nipple - Volvo Penta 963959
- 1 x clamp - Volvo Penta 21149056
- 1 x hexagon screw - Volvo Penta 970948
- 1 x hexagon nut - Volvo Penta 971071
- 1 x gasket - Volvo Penta 947623
- 1 x bracket - Volvo Penta 21148613
🔌 Function
The cooler transfers heat from transmission oil to the engine raw-water circuit, maintaining oil viscosity and protecting clutches, bearings and seals.
⚠️ Common Signs of Failure
- Transmission oil temperature is excessive
- Cooler leaks oil or seawater
- Oil becomes contaminated with water
- Hose or fittings are corroded
🛠️ Service Notes
- If only the heat exchanger has failed and the hoses and bracket are sound, cooler element 21112814 at 1.286 kg is the part on its own
- Pressure-test both the oil and water sides before commissioning the circuit
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 21116456 → Supersedes 872626
OEM / Related Numbers
- 872626 earlier number superseded by this part
- 21112814 related reference
- 21148614 related reference
- 941750 related reference
- 963959 related reference
- 21149056 related reference
- 970948 related reference
- 971071 related reference
- 947623 related reference
- 21148613 related reference
Aftermarket / Verified Equivalents
- Lenco: 872626 transmission cooler replacement - cooler only, not a complete kit
- Mr Cool: MRC872626
- Lenco: 872626-7
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
