21122605 Cable | Genuine Volvo Penta Part

🔧 Product Description

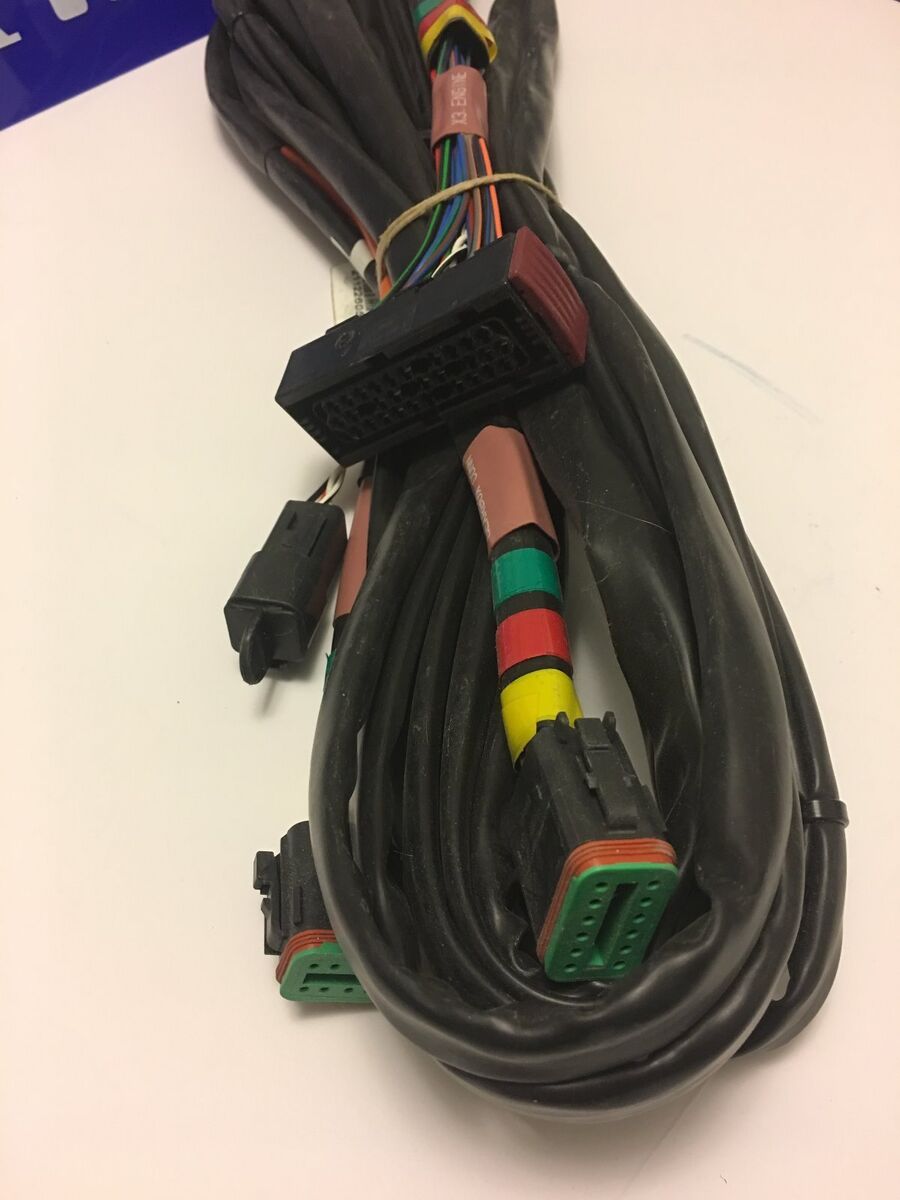

Genuine 5.0-metre Engine-to-PCU cable used across selected Volvo Penta EVC marine propulsion systems. It carries power, control and communication signals through the original sealed connector arrangement.

🚤 Compatibility

• Engine Family: D
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Engine-to-PCU cable
• Length: 5.0 metres
• Factory-moulded EVC connectors
• Broad documented D4, D6, D9, D11, D12, D13 and D16 application list
• Fitment controlled by EVC generation and cable routing

🔌 Function

The cable links the engine electrical system with the PCU and carries network, command and power signals.

⚠️ Common Signs of Failure

• EVC communication alarms
• Intermittent engine or transmission control
• No PCU power or communication
• Corroded or wet connector pins
• Cable damage at clamps or bends
• Fault changes when the harness is moved

🛠️ Service Notes

• Isolate the battery before disconnecting or reconnecting anything, and make sure connectors are clean, dry and fully latched before switching the system back on
• Route the new cable along the original path and secure it with the original clips, ties and stand-offs; unsupported cable chafes through wherever it touches a bracket, hose or edge
• Keep the run clear of the exhaust and turbocharger, away from moving parts and sharp edges, and use a grommet or gland wherever it passes through a panel or bulkhead
• Protect the connections against damp — a properly seated and sealed connector survives an engine bilge atmosphere far better than a taped joint
• Replace a damaged cable rather than patching it; where a repair is unavoidable use a crimped and sealed joint, never solder as the only mechanical connection

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21122605 → Supersedes 3801224 → Supersedes 3808580

OEM / Related Numbers

• 3801224 earlier number superseded by this part
• 3808580 earlier number superseded by this part
• 21122603 - Related 3.0 m version

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-350A-A, D6-350A-B, D6-370D-B, D6-330D-B, D6-370D-A, D6-310I-B, D6-280I-B, D6-280I-A, D6-310I-A, D6-310D-B, D6-370I-A, D6-370I-B, D6-330I-B, D6-310A-B, D6-310A-A, D6-280A-A, D6-280A-B, D6-435D-A, D6-435I-A, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260D-B, D4-260I-A, D4-260I-B, D4-300A-A, D4-300D-A, D4-300I-A, D4-210A-A, D4-210A-B, D4-225A-B, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MH, D12D-E MP, D12D-F MP
• Volvo Penta D9A2J, D9A2G, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2A, D9A2C, D9A2E
• Volvo Penta D13B-H MP, D13B-G MP, D13B-E MH, D13B-E MH (FE), D13B-B MP, D13B-D MP, D13B-C MP, D13C1-A MH
• Volvo Penta D11A-A, D11A-B, D11A-C, D11A-D MP
• Volvo Penta D16C-A MH, D16C-B MH
