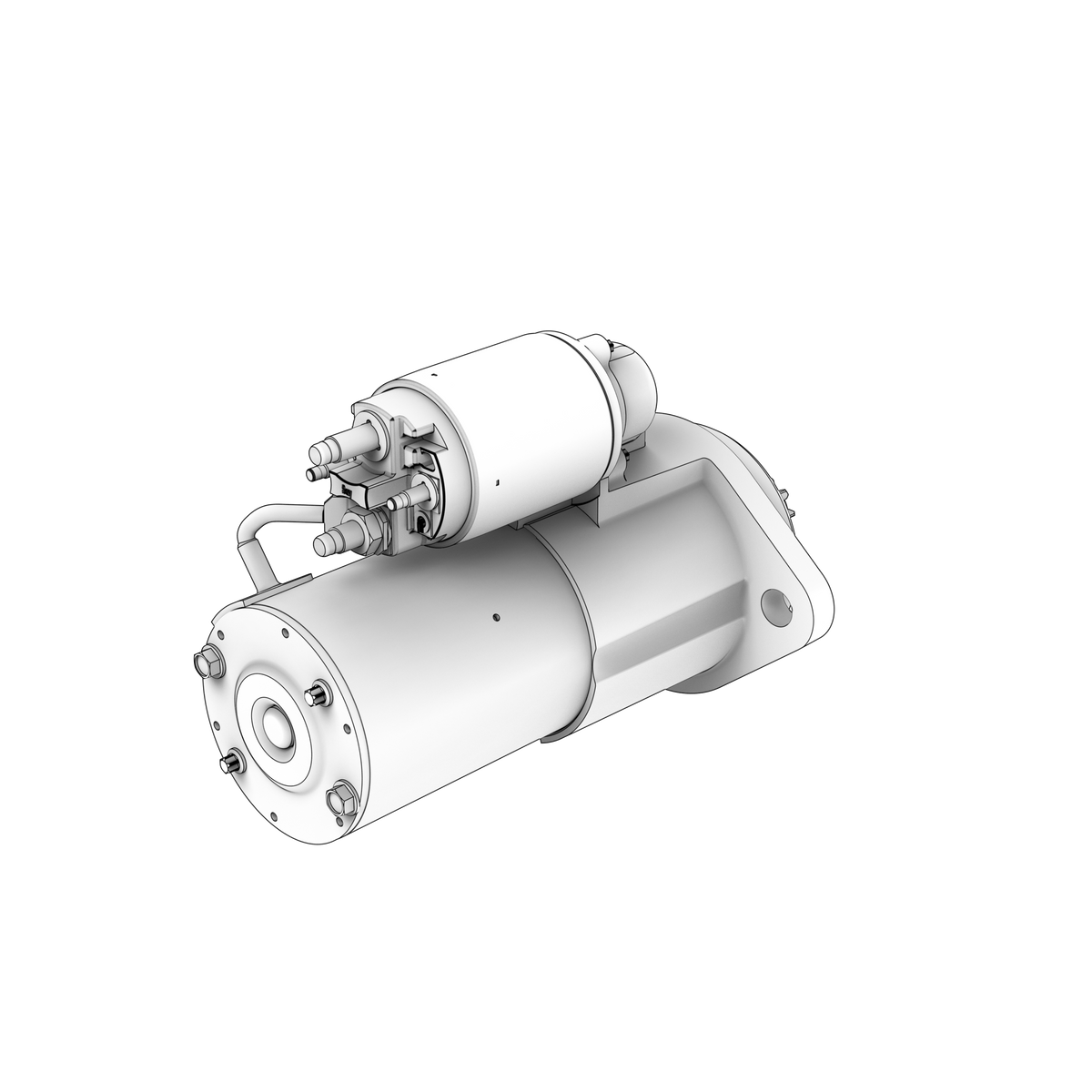

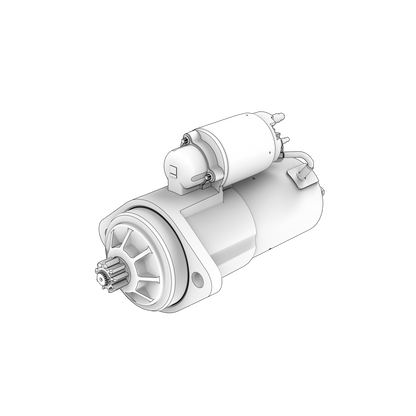

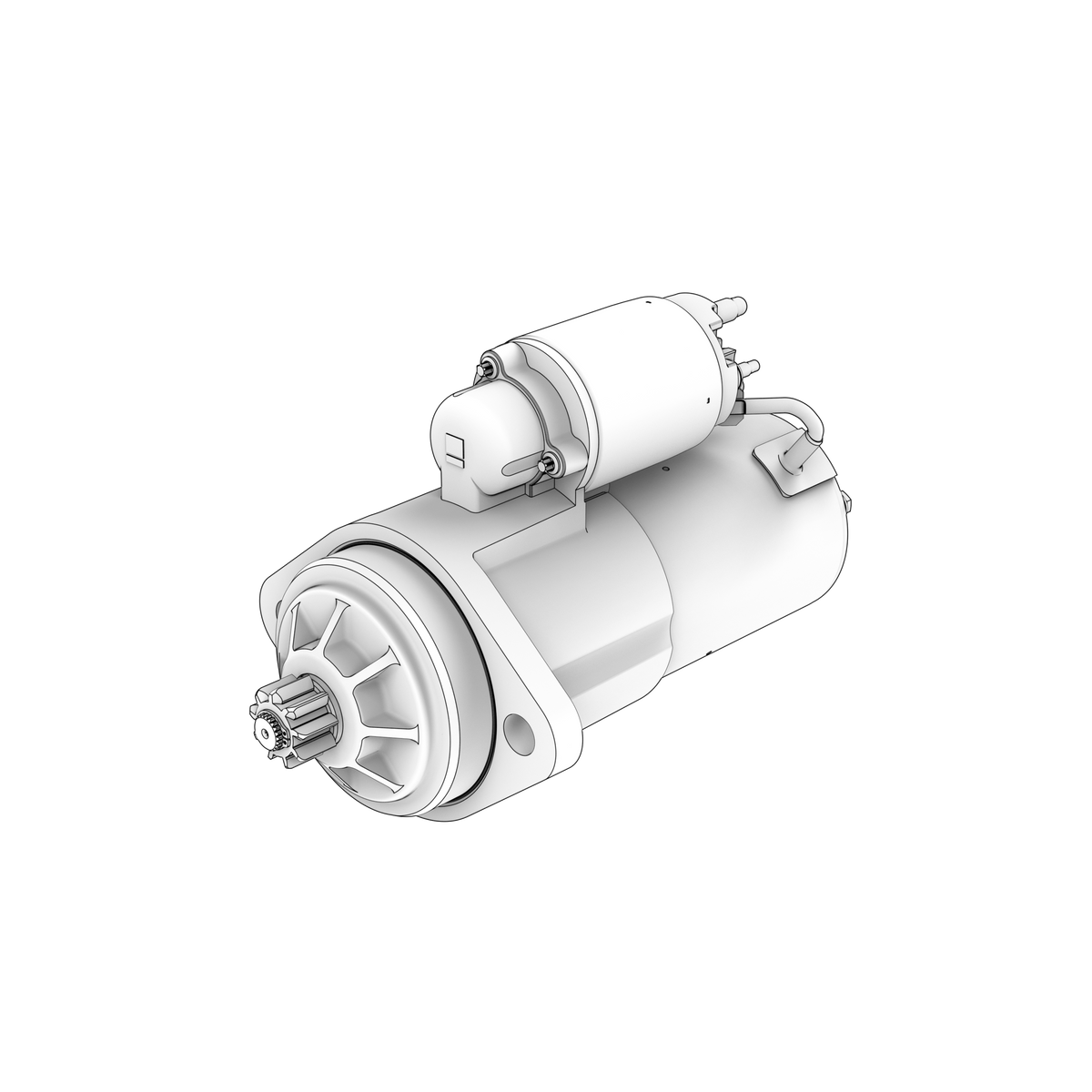

21129980 Starter Motor | Genuine Volvo Penta Part

21129980 Starter Motor | Genuine Volvo Penta Part

$1,505.87 AUD
$1,505.87 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

A flange-mounted permanent-magnet reduction starter for GM-based Volvo Penta gasoline engines. The compact high-torque unit uses an integrated solenoid and overrunning pinion to engage the flywheel ring gear during cranking.

⚙️ Key Features

  • Flange-mounted marine starter; offset-bolt starter 3885317 is a different configuration
  • Permanent-magnet gear-reduction design
  • Marine ignition-protected construction
  • Integrated solenoid and overrunning drive
  • Engine type: GM-based Volvo Penta gasoline marine engine
  • Also supersedes Volvo part number 3857921

🔌 Function

Converts battery power into high-torque rotation of the flywheel so the gasoline engine reaches starting speed.

⚠️ Common Signs of Failure

  • Loose fit or loss of alignment
  • Leakage or chafing at adjoining parts

🛠️ Service Notes

  • Disconnect the batteries before touching starter cables, and label the main and control connections as they come off
  • Inspect the ring gear teeth before fitting a new motor; a chipped or worn ring gear will ruin the new pinion
  • Mount the motor square on clean faces with whatever shims the installation uses, so pinion engagement matches what the workshop manual for your engine specifies — never leave shims out to make it fit
  • Clean the main and earth terminals back to bright metal, tighten to the specified figure and refit the insulating boots; a great many failed starters are really voltage drop in the cables and earth path
  • Crank with the engine unable to start first, listening for clean engagement and release, then feel the terminals for heat after several attempts

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 21129980 → Supersedes 3862985 → Supersedes 3803147

OEM / Related Numbers

  • 3862985 earlier number superseded by this part
  • 855334 earlier number superseded by this part
  • 3803147 earlier number superseded by this part
  • 841377 related reference
  • Indmar 573001
  • PCM/Crusader RA122009
  • 3885317 - offset-bolt mounting alternative, not interchangeable without checking the block

Other-Brand OEM Numbers

  • Mercury/MerCruiser 50-808011A05 / 808011A4 / 808011A3 / 17251A4
  • AC Delco 8000186 / 9000888

Aftermarket / Verified Equivalents

  • ARCO Marine: 30459
  • ProTorque: PH140-0022
  • Recmar: REC50-808011A05
  • Lester 6793
  • API Marine: PH140-0022

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
