21132189 Feed Pump | Genuine Volvo Penta Part

21132189 Feed Pump | Genuine Volvo Penta Part

$360.78 AUD
$360.78 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

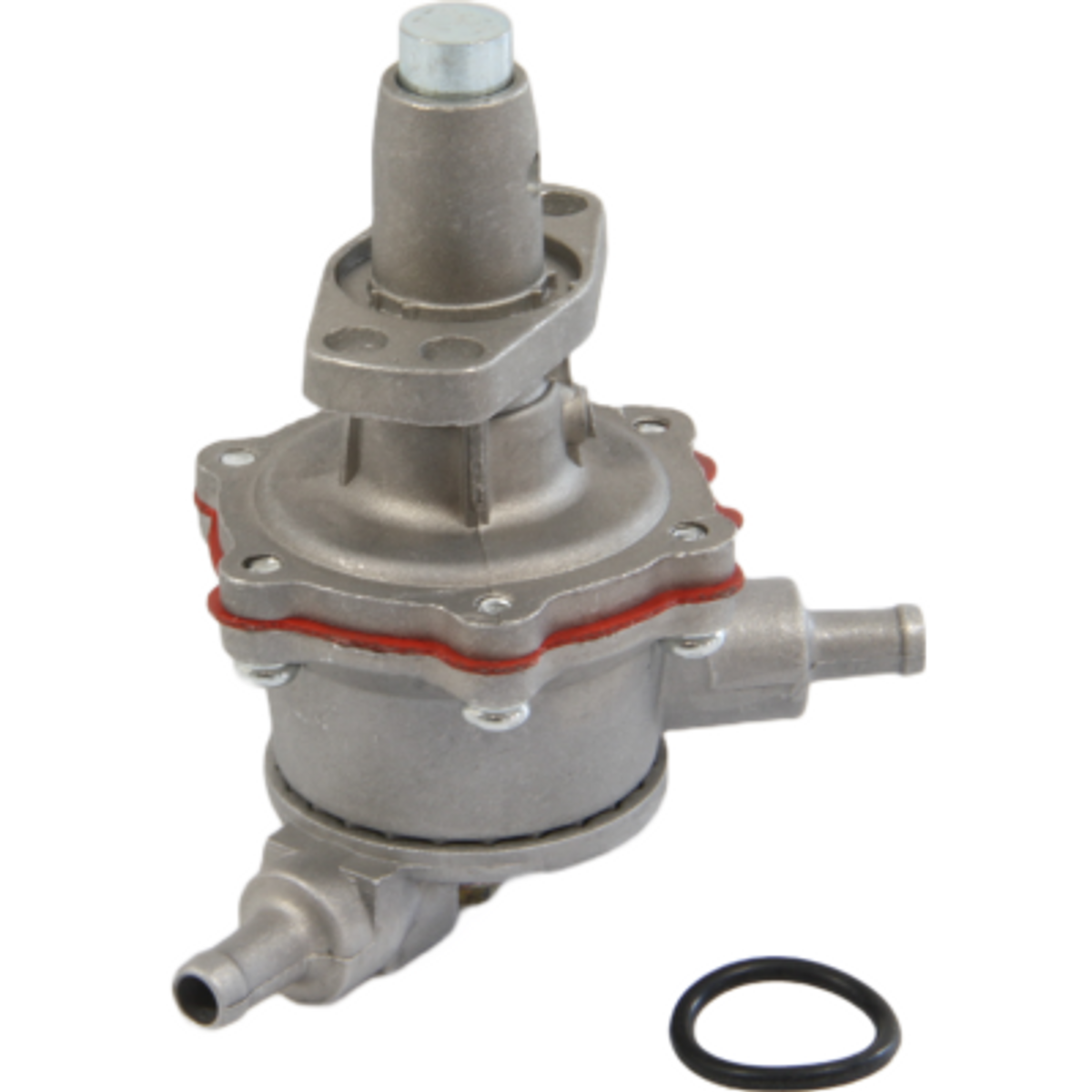

A mechanical diaphragm-type low-pressure fuel feed pump for D1 and D2 compact diesels. The engine-driven lever draws fuel from the tank and supplies the filter and injection equipment at a stable priming pressure.

🚤 Compatibility

Typically suits:

  • Volvo Penta D2-40
  • Volvo Penta D2-40B
  • Volvo Penta D2-40F
  • Volvo Penta D2-55F
  • Volvo Penta D2-50F
  • Volvo Penta D2-75F
  • Volvo Penta D2-60F
  • Volvo Penta D1-30
  • Volvo Penta D1-30B
  • Volvo Penta D1-30F
  • Volvo Penta D1-13
  • Volvo Penta D1-13B
  • Volvo Penta D1-13F
  • Volvo Penta D1-20
  • Volvo Penta D1-20B
  • Volvo Penta D1-20F
  • Engine Family: D
  • HP Range: 13-75 HP

⚙️ Key Features

  • Mechanical engine-driven feed pump
  • Suitable for D1-13 through D2-75 families
  • Current replacement for 3584126
  • Compact sealed pump body
  • Mounting O-ring 3589332 is ordered separately where required
  • Engine type: Compact Volvo Penta D1/D2 marine diesel

🔌 Function

Lifts diesel fuel from the tank, maintains low-pressure supply to the injection system and provides manual priming where fitted.

⚠️ Common Signs of Failure

  • Hard starting or loss of fuel prime
  • Low delivery pressure or flow
  • External fuel or oil leakage
  • Unstable running under load
  • Internal wear, noise or contamination

🛠️ Service Notes

  • Work clean: cap the pipes and plug the ports as soon as they are open, and fit new sealing washers, gaskets or O-rings on every fuel joint you break
  • Find out what killed the old pump before fitting a new one — dirty fuel, a collapsed or blocked suction line or a restricted filter will finish the new pump the same way
  • Fit the pump the right way round for flow direction, and reassemble any drive lever, cam follower or gasket stack exactly as it came apart
  • Prime and bleed the fuel system in the order set out for your engine before cranking, and never run the pump dry
  • With the engine running, check every joint for weeping fuel and check the fuel supply pressure against the figure in the workshop manual for your engine

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 21132189 → Supersedes 3584126

OEM / Related Numbers

  • 3584126 earlier number superseded by this part
  • 3589332 - mounting O-ring

Aftermarket / Verified Equivalents

  • Recmar: REC21132189
  • Orbitrade: replacement feed pump for 21132189 / 3584126

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
