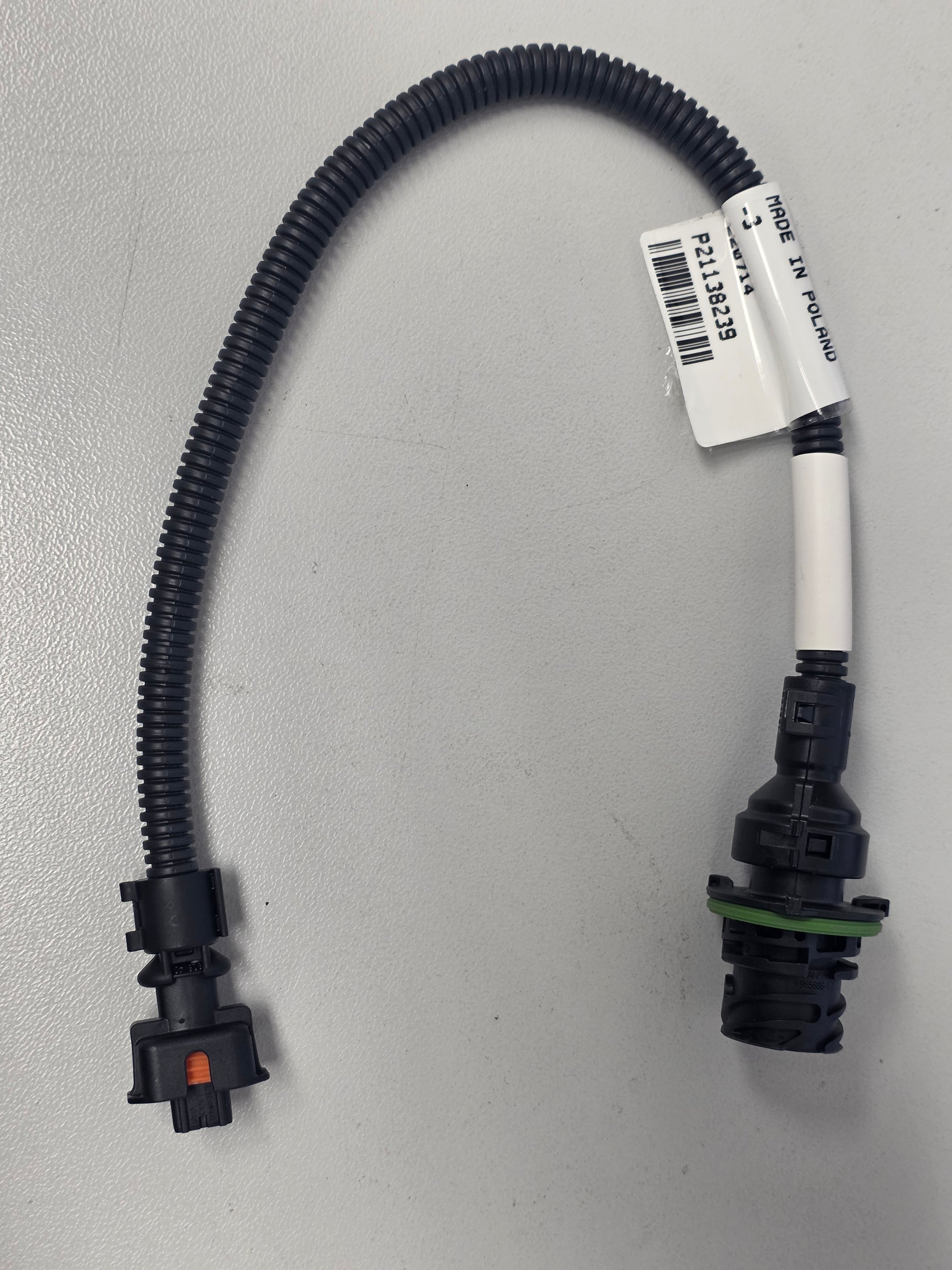

21138239 Wiring Harness | Genuine Volvo Penta Part

🔧 Product Description

A configuration-specific wiring harness for the d13 electronically controlled marine diesel electrical system. It distributes power, ground and sensor/actuator signals through sealed branches whose length and connector population match the engine dataset and installed options.

🚤 Compatibility

• Engine Family: D
• HP Range: 13-435 HP

Full model list at the end of this description.

⚙️ Key Features

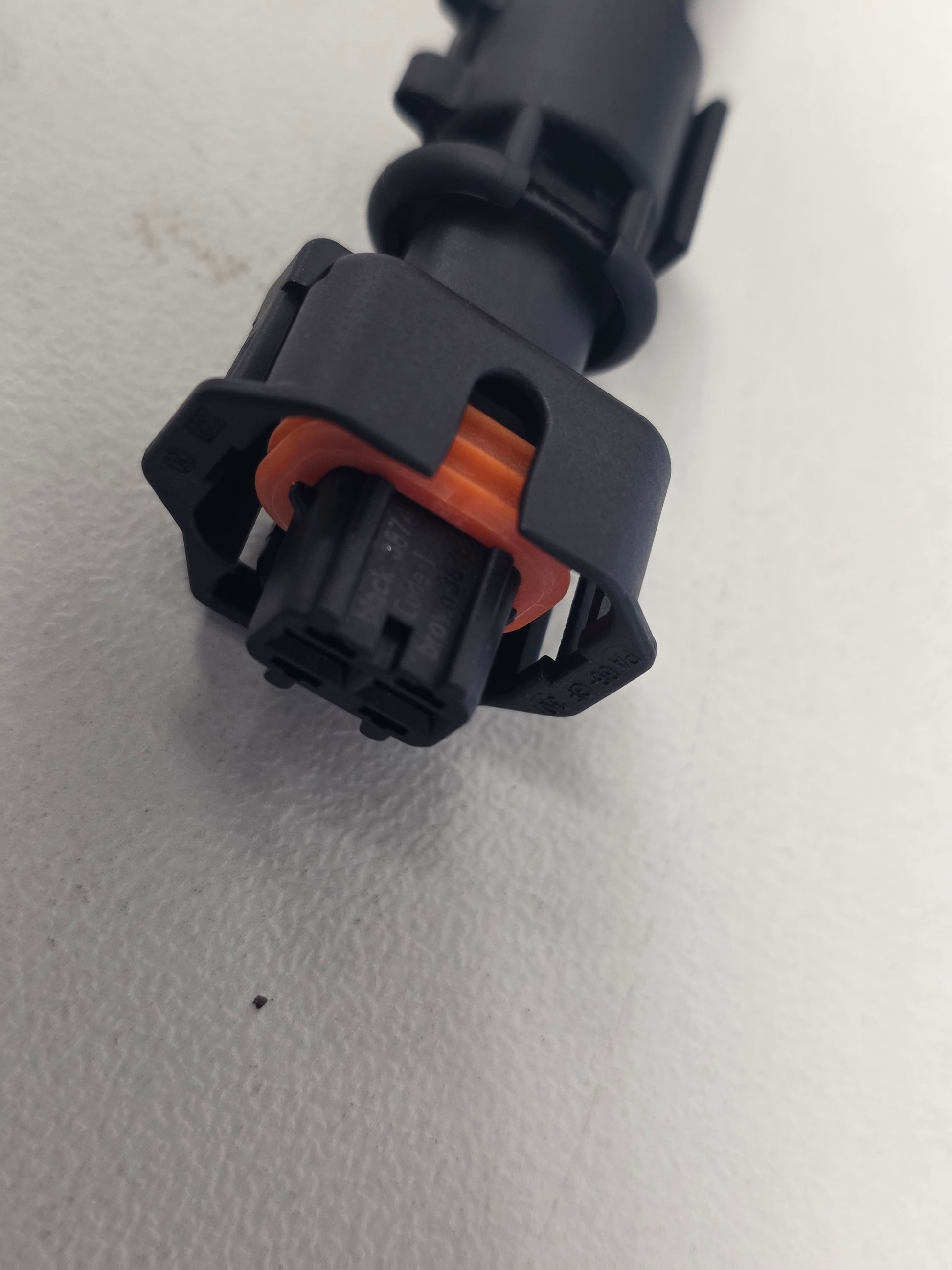

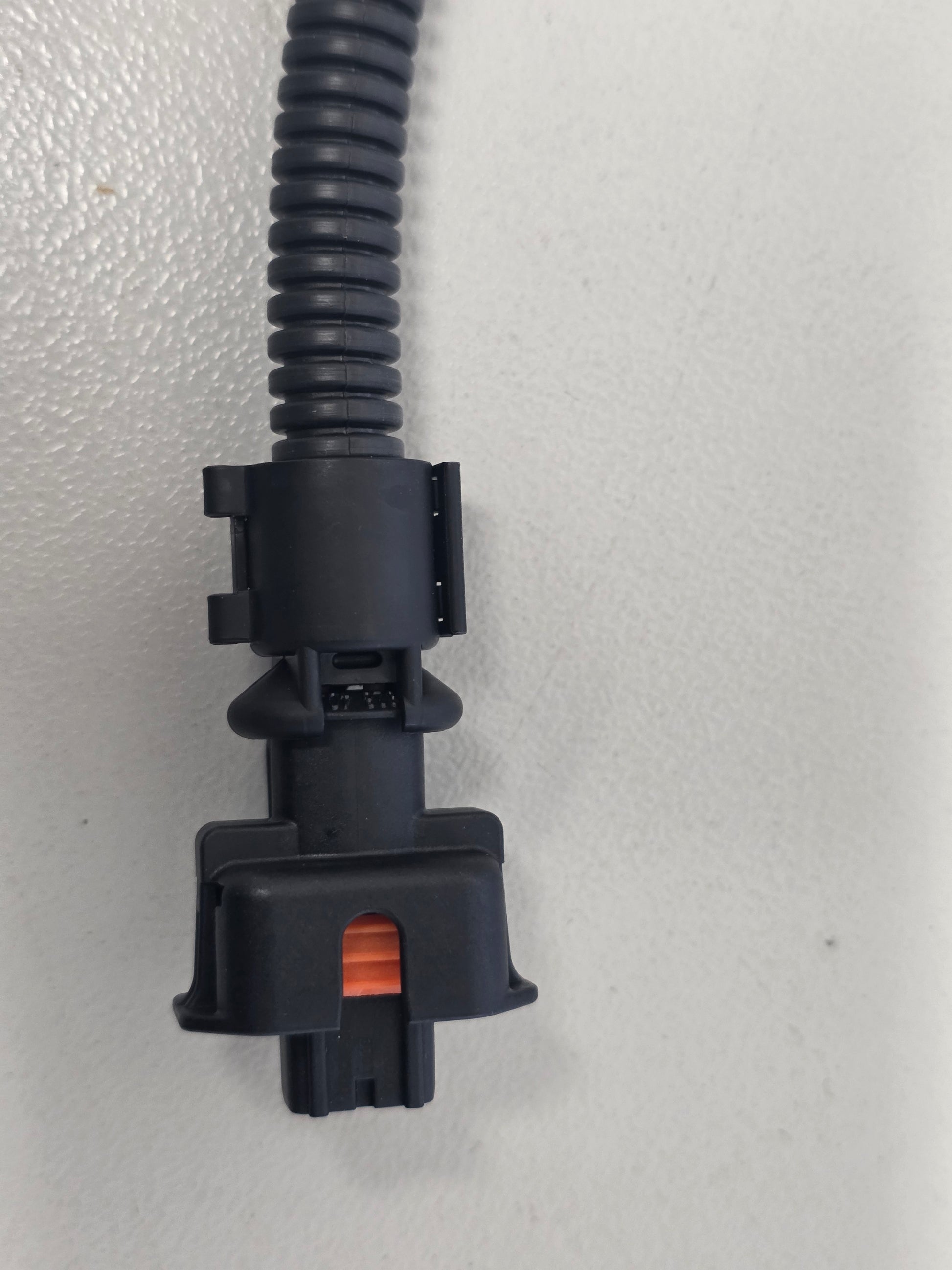

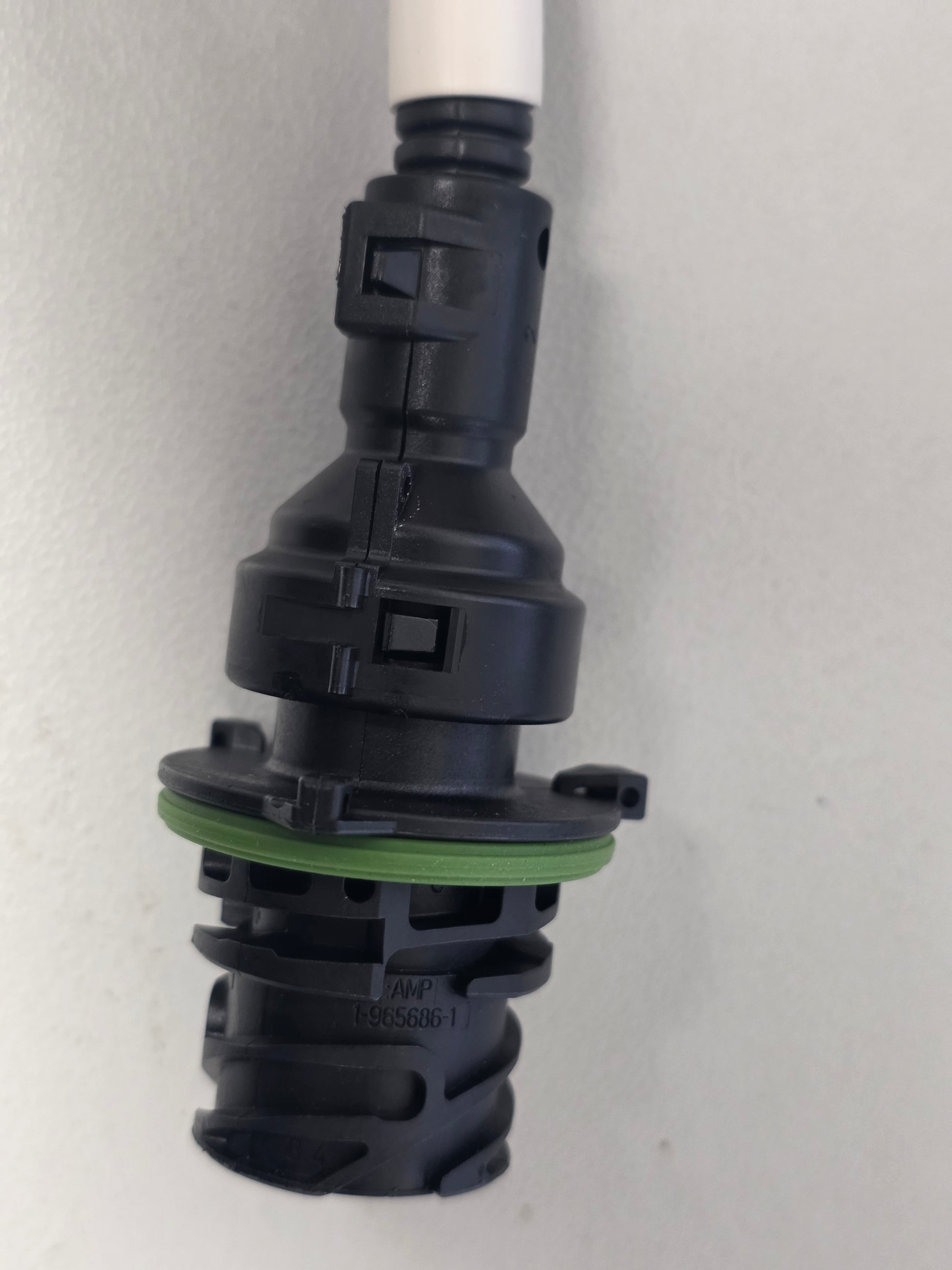

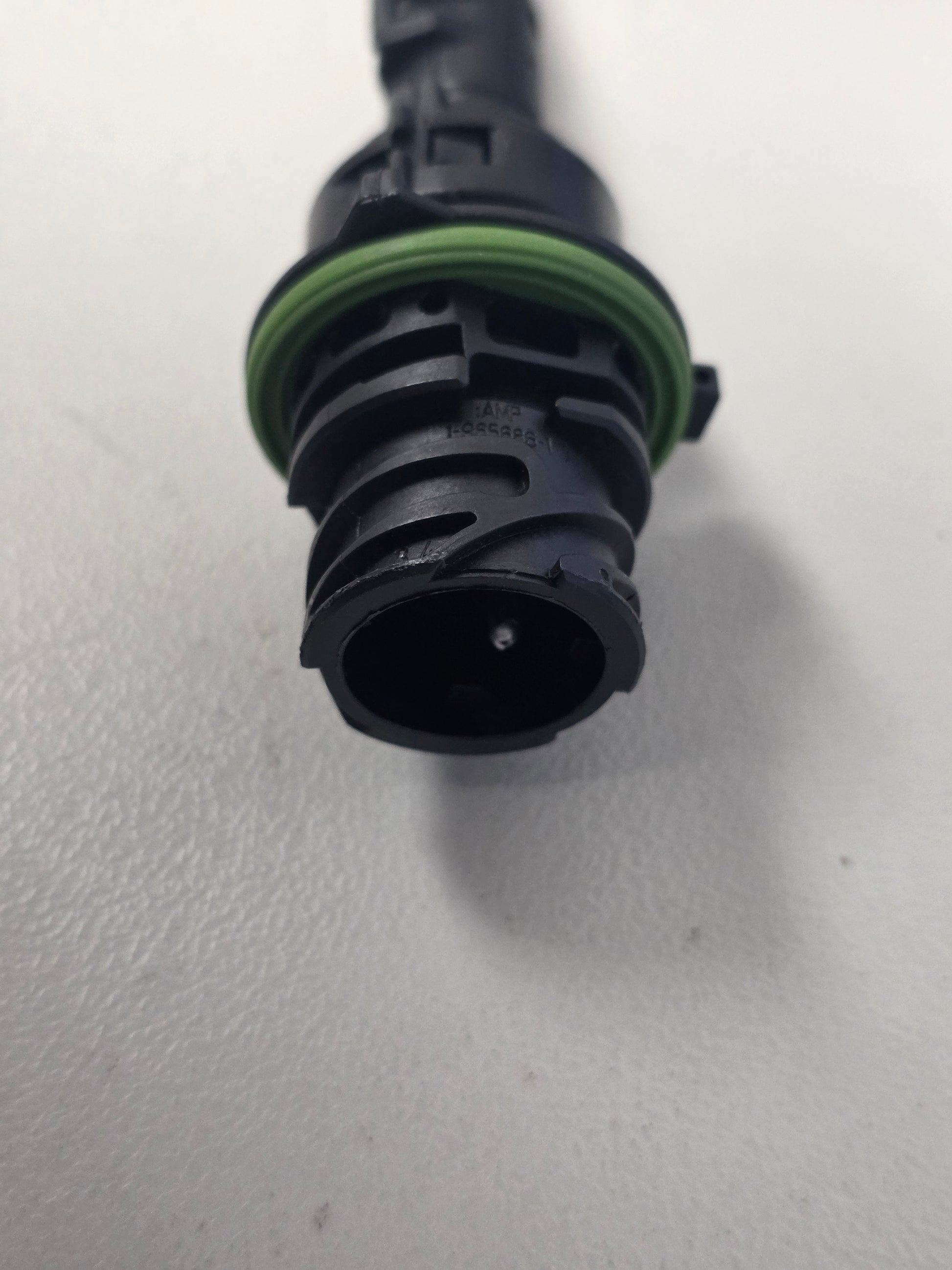

• Sealed application-specific connectors
• Branch lengths follow the original engine routing
• Conductor sizes match circuit load
• Integrated shielding or twisted pairs where required
• Harness generation, ECU dataset and engine serial number must match
• Engine type: D13 electronically controlled marine diesel electrical system
• Also supersedes Volvo part numbers 3583725, 3583873 and 3818550

🔌 Function

Connects the ECU, sensors, actuators and installation interfaces while protecting low-voltage signals from heat, oil, moisture and vibration.

⚠️ Common Signs of Failure

• Signal dropping out on one circuit while everything else works normally
• Fault codes that follow the connector rather than the component
• Insulation rubbed shiny or split at a routing point
• Corrosion visible in the connector when unplugged
• Terminal backed out of its housing, or a broken lock, found on strip-down

🛠️ Service Notes

• This part replaces 21138559, 21140575 and 3587360, previously catalogued under flywheel housing and sensor kit names, so verify the connector population against the installation
• Check the mating component connector for pushed-back or spread terminals at the same time

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21138239 → Supersedes 21138559 → Supersedes 3583872

OEM / Related Numbers

• 21140575 earlier number superseded by this part
• 3587360 earlier number superseded by this part
• 21138559 earlier number superseded by this part
• 3842801 earlier number superseded by this part
• 3583872 earlier number superseded by this part
• 20513343 - cam/flywheel speed sensor used by related harnesses
• 21109100 - sensor-kit references used by serial-controlled versions

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
