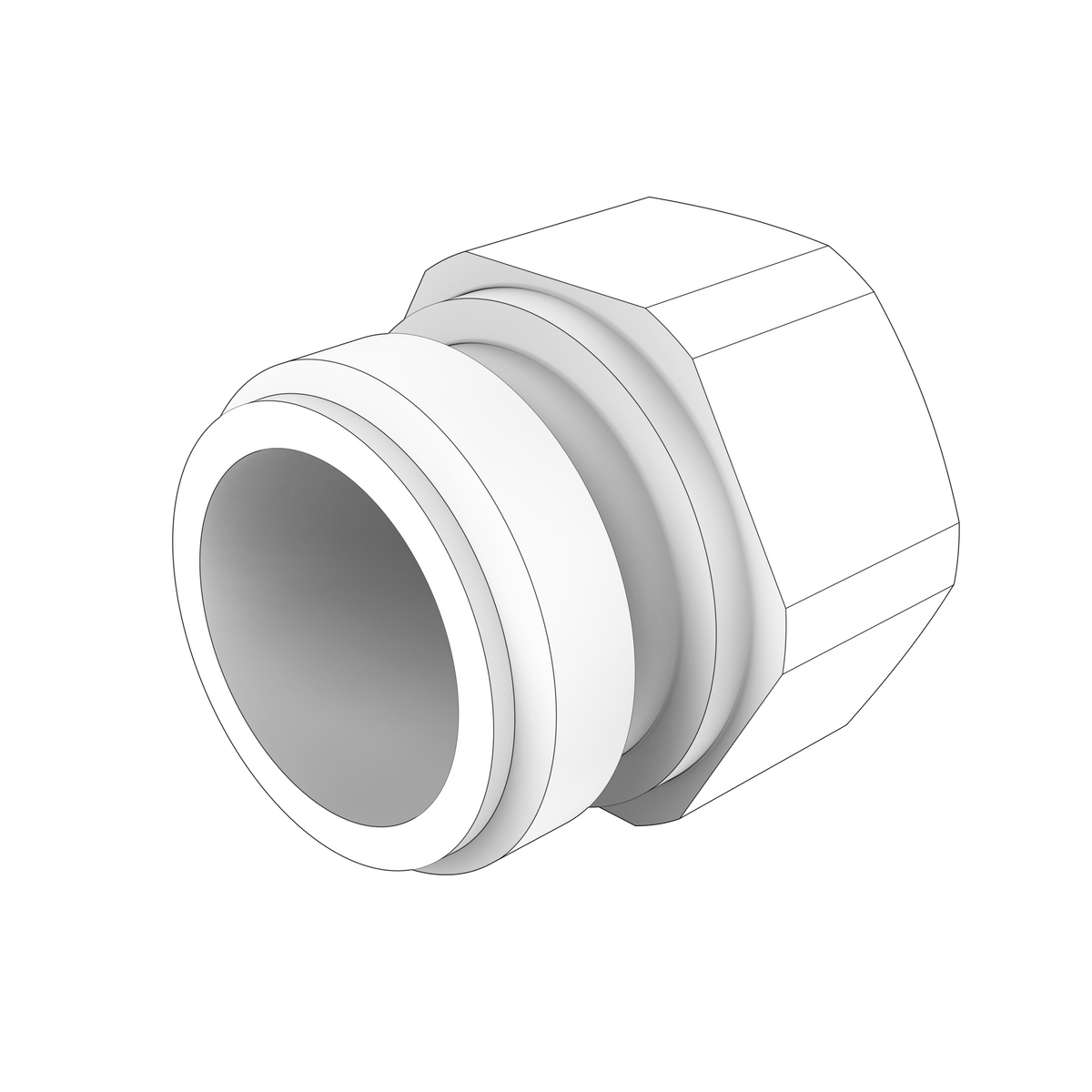

21140340 Nipple | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta machined nipple used in the fuel-filter housing and low-pressure fuel plumbing on D8, D9 and D13 engine installations. The fitting provides the specified threaded or banjo connection and internal bore for clean diesel transfer.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Machined fuel-system connection fitting
• Correct thread, shoulder and internal flow diameter
• Used at the original fuel-filter housing connection
• Diesel-compatible material and sealing face
• Nipple only; hose, hollow screw and sealing rings are separate
• Engine type: Volvo Penta inline six-cylinder marine diesel

🔌 Function

Connects the specified fuel line to the filter housing while preserving a sealed, unrestricted diesel passage.

⚠️ Common Signs of Failure

• Diesel seepage at the fitting
• Damaged or crossed threads
• Restricted flow from contamination
• Repeated sealing-ring failure from a damaged seat

🛠️ Service Notes

• Check the bore is clear before fitting — a nipple is often the feed point or restriction for a circuit, and debris left in it will starve whatever it supplies
• On tapered threads use the paste or liquid sealant specified for the fluid concerned, applied a few threads back from the open end; avoid thread tape on fuel and oil lines, where a shed shred travels downstream into filters, pumps and injectors
• Where the nipple seals on a face or against a washer rather than on its thread, fit a new sealing washer instead of curing a weep by overtightening
• Tighten to the figure in the workshop manual for your engine — these are small fittings in castings and are easily stripped, or the surrounding boss cracked
• Support the pipe or hose so it meets the nipple square and without side load, then check the joint at working pressure and temperature

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• VOE21140340

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C4-B MH, D13C1-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C8-B MP, D13C9-A MP
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-C, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-C (IPS), D11B1-A MP
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta D12D-A MG, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG
