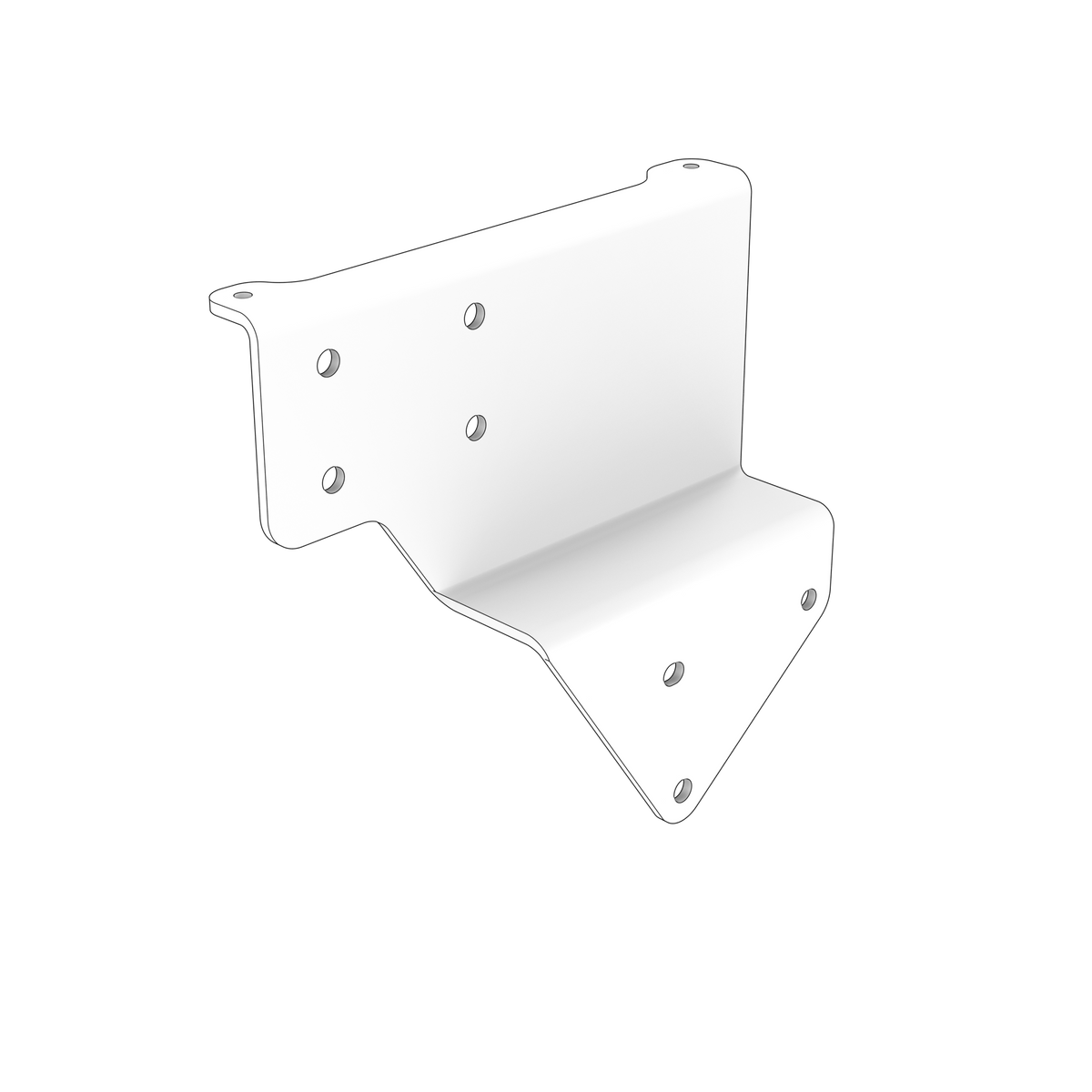

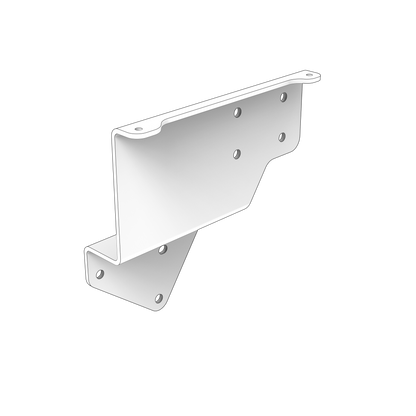

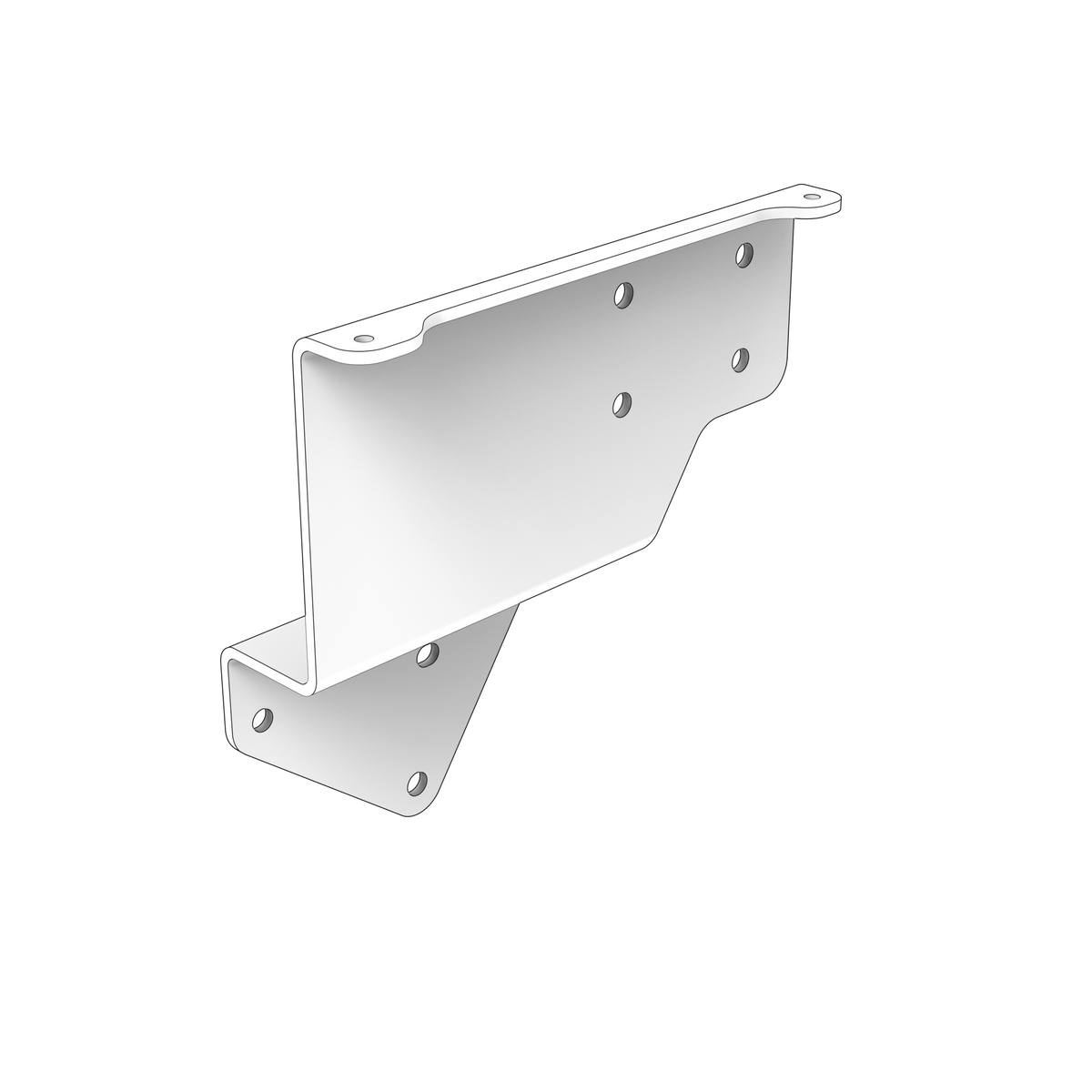

21142689 Bracket | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta mounting bracket for the coolant expansion tank on A- to C-generation D3 marine engines. The bracket supports the tank at the required height for deaeration and maintains clearance from the engine and drive components.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Dedicated expansion-tank support for early D3 engines
• Maintains correct tank height and hose routing
• Used with expansion tank 21666983 / 22356962
• Bracket only; tank, level sensor and hoses are separate
• Engine type: Volvo Penta D3 five-cylinder marine diesel

🔌 Function

Supports the expansion tank so trapped air can separate from the coolant and the level sensor remains correctly positioned.

⚠️ Common Signs of Failure

• Tank movement or vibration
• Cracks around bracket holes
• Coolant hose chafing
• Incorrect tank height causing poor deaeration
• Corrosion or loose fasteners

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM / Related Numbers

• Expansion tank 21666983 / 22356962
• Coolant level guard 3547710

Other-Brand OEM Numbers

• VOE21142689

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-B, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-130I-B, D3-160I-B, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
