21147616 Connecting Pipe | Genuine Volvo Penta Part

🔧 Product Description

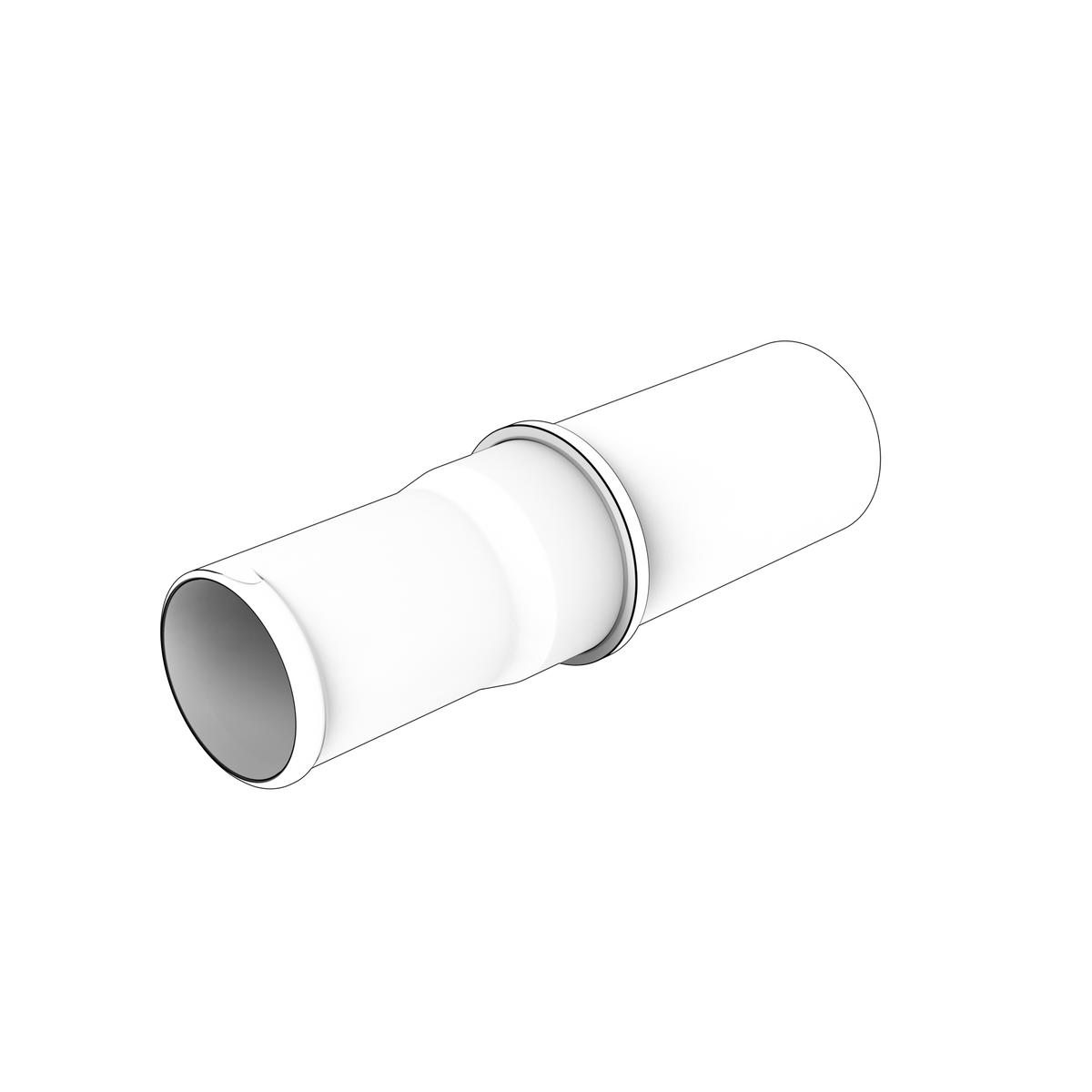

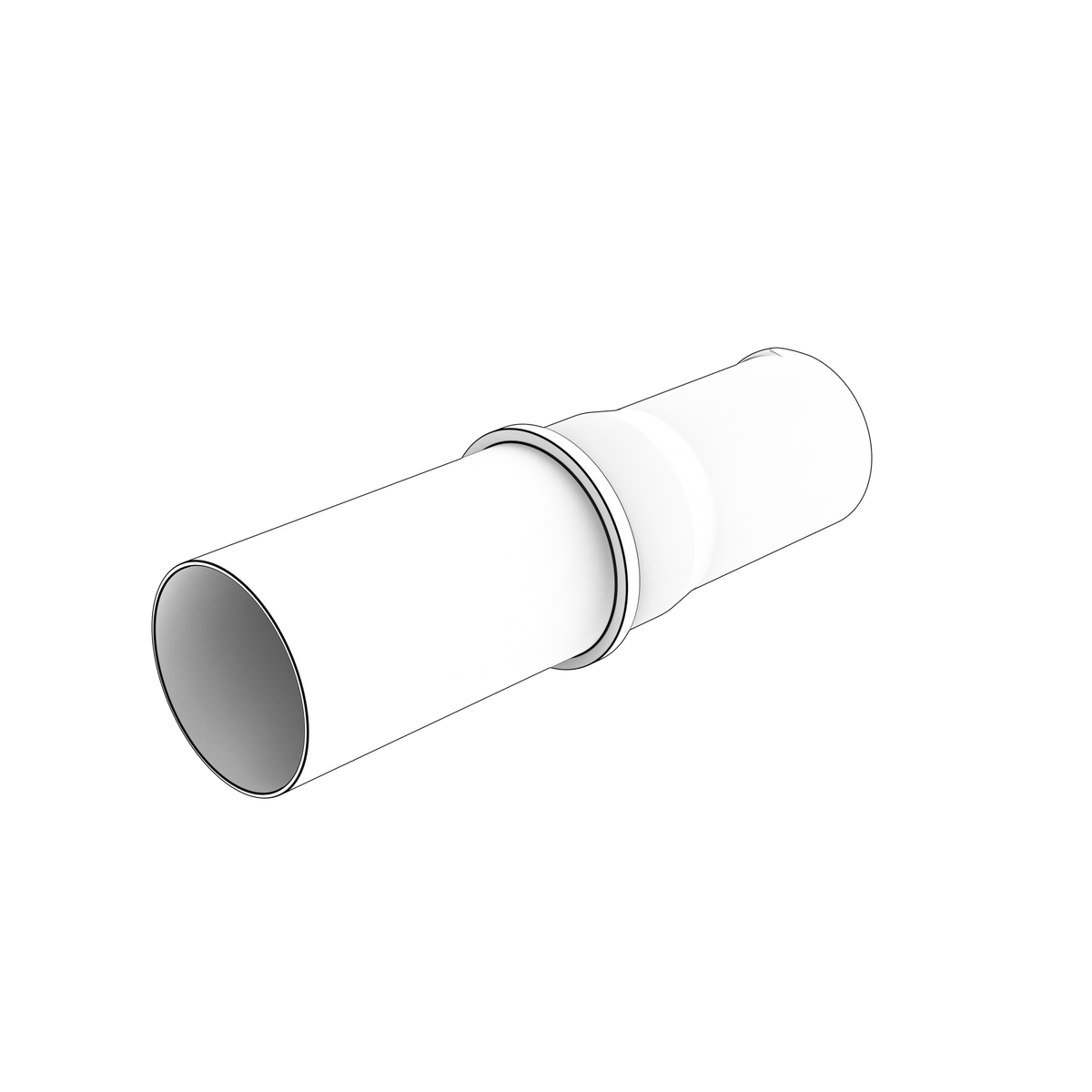

Genuine Volvo Penta 125 mm Seawater-Strainer Connecting Pipe - Part Number: 21147616

Genuine Volvo Penta 125 mm connection pipe used with the original 32 mm seawater strainer assembly on specified 31- and 41-series marine diesel installations. The formed pipe connects the strainer housing to the adjoining seawater circuit while preserving the correct hose alignment and service clearance.

⚙️ Key Features

• Genuine Volvo Penta 125 mm seawater-strainer connection pipe

• Length designation: L=125 mm

• Used with the original 32 mm seawater filter / strainer housing

• Replaces earlier Volvo Penta pipe reference 838582

• Different length from 80 mm connection pipe 21147617

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 21147616 → Supersedes 838582

• 838582 (earlier 125 mm connection-pipe reference)

OEM / Related Numbers:

• 21219698 - original 32 mm seawater filter assembly

• 21655254 - later complete heavy-duty seawater filter replacement; not a direct pipe substitute

• 845337 - filter housing

• 845317 - filter cover

• 22396396 - pressure plate

• 838977 - cover seal

• 858081 - strainer insert

• 845960 - mounting bracket

• 845354 - sealing rings

• 847017 / 21212198 - pipe retainers

• 21147617 - companion 80 mm connecting pipe

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Volvo Penta 31- and 41-series marine raw-water strainer installations using the original 32 mm filter housing

Typically suits:

• Engine / drive models:

• AD31L-A

• AD31P-A

• AD41L-A

• AD41P-A

• D41L-A

• TAMD31L-A

• TAMD31M-A

• TAMD31P-A

• TAMD31S-A

• TAMD41H-A

• TAMD41H-B

• TAMD41L-A

• TAMD41M-A

• TAMD41P-A

• TMD31L-A

• TMD41L-A

• HP Range: Engine model dependent; approximately 100 hp - 200 hp across the listed 31/41-series applications

• Engine Type: Volvo Penta inline four- and six-cylinder turbocharged marine diesel with seawater cooling

• Year Range: Late 1980s through 2000s, controlled by exact engine specification and strainer arrangement

• Model / Serial Note: Confirm that the installation retains the original 32 mm seawater strainer and requires the 125 mm pipe. Do not substitute the 80 mm 21147617 pipe.

🔌 Function

Transfers raw seawater between the strainer housing and the adjoining cooling connection while maintaining the factory hose path.

Common signs of failure:

• Coolant leakage or dried coolant staining

• Cracking, corrosion, swelling or distortion

• Restricted coolant flow or trapped air

• Engine temperature running above or below specification

• Repeated seal, hose or clamp failure caused by poor alignment

📦 Condition

• Genuine Volvo Penta part

• Brand new

• Supplied in original or equivalent packaging
