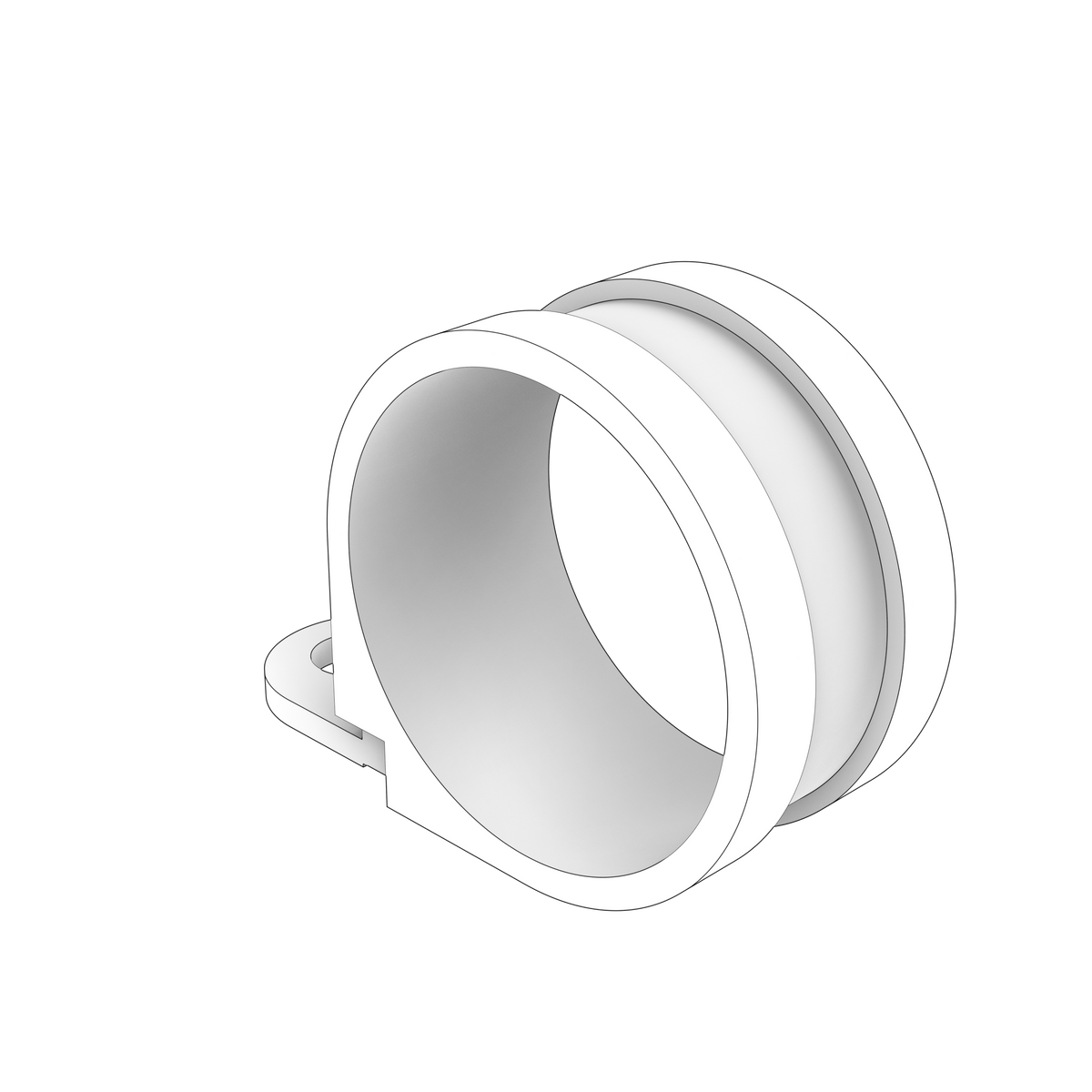

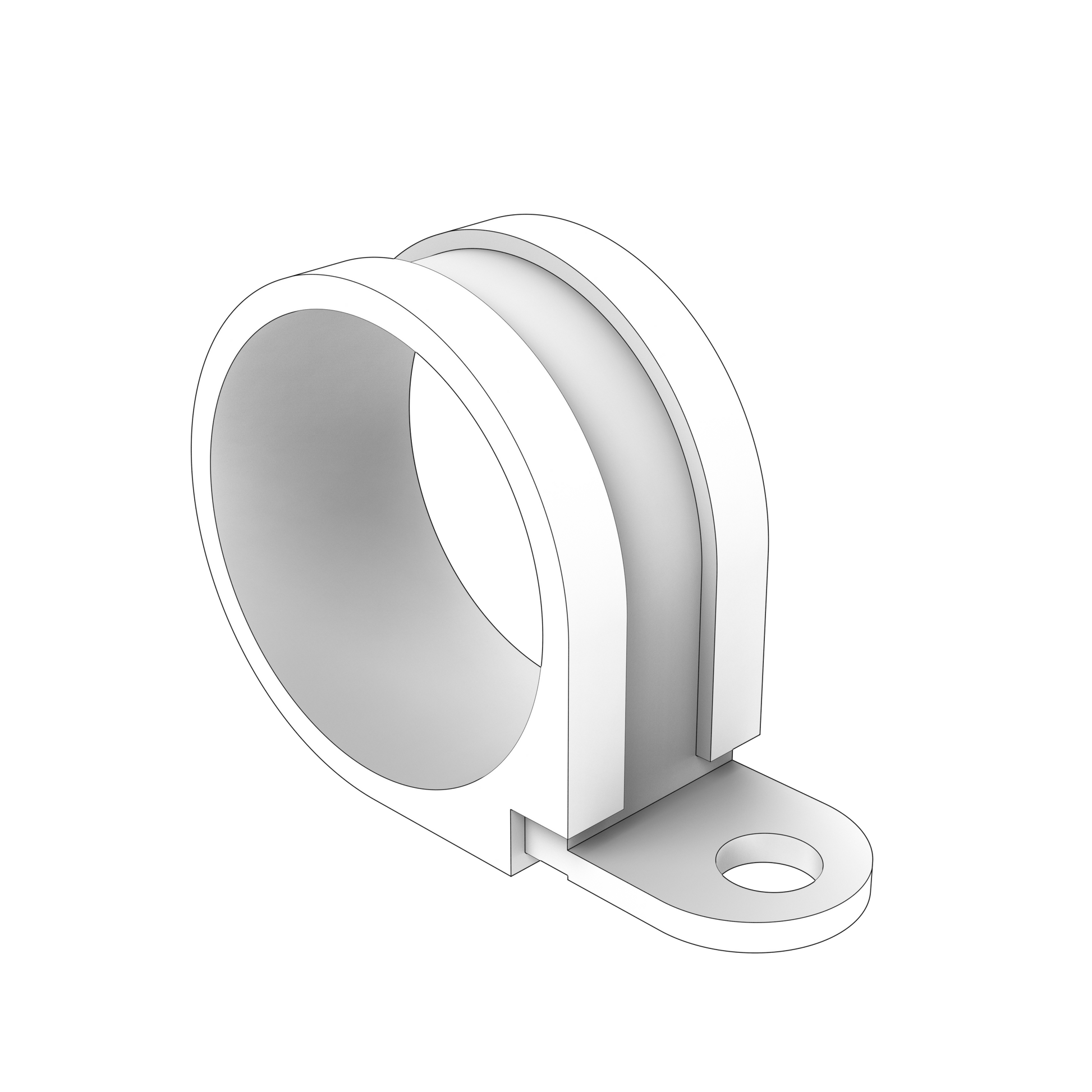

21149056 Clamp | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta clamp used to secure connecting hoses 21148614 in the oil-cooler circuit of compatible HS hydraulic reverse gears. Two clamps are used in the applicable connection and the clamp must be positioned behind the hose bead or fitting land.

🚤 Compatibility

Typically suits:

• Volvo Penta D3-110I-C
• Volvo Penta D3-130I-C
• Volvo Penta D3-160I-C
• Volvo Penta D3-190I-C
• Volvo Penta HS45A-B
• Volvo Penta HS25A-B

• Engine Family: D, HS
• HP Range: 110-190 HP

⚙️ Key Features

• Genuine Volvo Penta reverse-gear oil-cooler clamp
• Two clamps used with the applicable hose connection
• Matched to hose 21148614
• Used across specified HS25, HS45, HS63 and HS80 arrangements
• Correct clamp position and tightening are essential to prevent oil loss
• Engine type: Marine hydraulic reverse gear / transmission

🔌 Function

Applies uniform clamping force around the oil-cooler hose to retain it on the nipple and maintain a leak-free transmission-oil circuit.

⚠️ Common Signs of Failure

• Transmission-oil seepage at the hose end
• Clamp corrosion, cracking or stripped adjustment mechanism
• Hose movement or blow-off under pressure
• Uneven clamp loading that cuts or distorts the hose
• Loss of transmission oil and elevated gear temperature

🛠️ Service Notes

• Fit a new clamp rather than reusing one that has been distorted, stretched or corroded; a band that has been drawn down onto a hose once rarely grips evenly again
• Use the correct size and type for the joint — an over-large clamp will not draw down evenly and can cut into a soft hose instead of gripping it
• Position the clamp fully over the spigot or pipe bead, clear of the hose end, and tighten only until the joint is secure; over-tightening crushes hoses, pipes and cable insulation
• Set the screw or head where you can reach it for later checks, and make sure the clamp is not resting anywhere it will chafe a neighbouring hose or harness
• Re-check tightness after the first run up to temperature, as hoses relax and settle once they have been heated

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21148614 - connecting hoses; two used
• 21116456 - oil-cooler kit
• 21112814 - oil cooler
• 941750 - nipples
• 963959 - nipples
• 947623 - sealing gaskets
• 970948 - screw
• 971071 - nut

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
