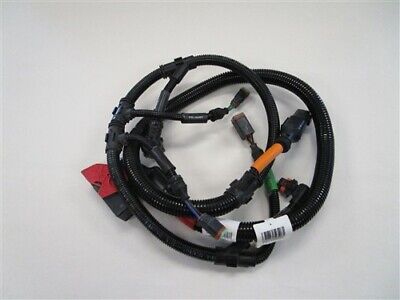

21159044 Wiring Harness | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta 0.9 metre transmission cable harness for IPS 350-600 installations using EVC-C2 diesel controls. The harness links the IPS transmission / drive electronics into the EVC network and is the shortest harness in the documented length family.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 260-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta IPS EVC-C2 transmission cable harness
• Length: approximately 0.9 m / 3 ft
• Used on IPS 350-600 diesel propulsion installations
• Part of a length family extending from 0.9 m to 3.5 m
• Connector keying, cable length and EVC generation control fitment
• Engine type: Volvo Penta IPS marine diesel with Electronic Vessel Control C2

🔌 Function

Carries power, data and control signals between the IPS transmission / drive and the EVC-C2 propulsion network.

⚠️ Common Signs of Failure

• Loss of drive or transmission control at the helm
• EVC faults appearing when the harness is disturbed
• Corroded or green pins inside the connector
• Outer sheath chafed where the cable passes a bulkhead or bracket
• Broken conductor or water ingress found inside the moulded connector on strip-down

🛠️ Service Notes

• This is the shortest harness in the documented length family, so measure the run before ordering rather than assuming the length
• Check the mating connectors at both ends for corrosion and spread terminals before replacing the cable

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21260204 - 1.3 m / 4.3 ft harness
• 21260205 - 1.7 m / 5.6 ft harness
• 21260206 - 2.2 m / 7.2 ft harness
• 21260207 - 2.6 m / 8.5 ft harness
• 21260208 - 3.1 m / 10.2 ft harness
• 21186592 - IPS EVC-C2 diesel wiring harness reference in later drive parts listings
• 21196573 - EVC-C2 diesel jackshaft harness reference
• 21493361 - later length-specific IPS harness references
• 21493366 - later length-specific IPS harness references
• 21493367 - later length-specific IPS harness references
• 21493368 - later length-specific IPS harness references
• 21493369 - later length-specific IPS harness references
• 21493370 - later length-specific IPS harness references

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta IPS-A, IPS-B, IPS-C, IPS-D, IPS-E, IPS-F
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
