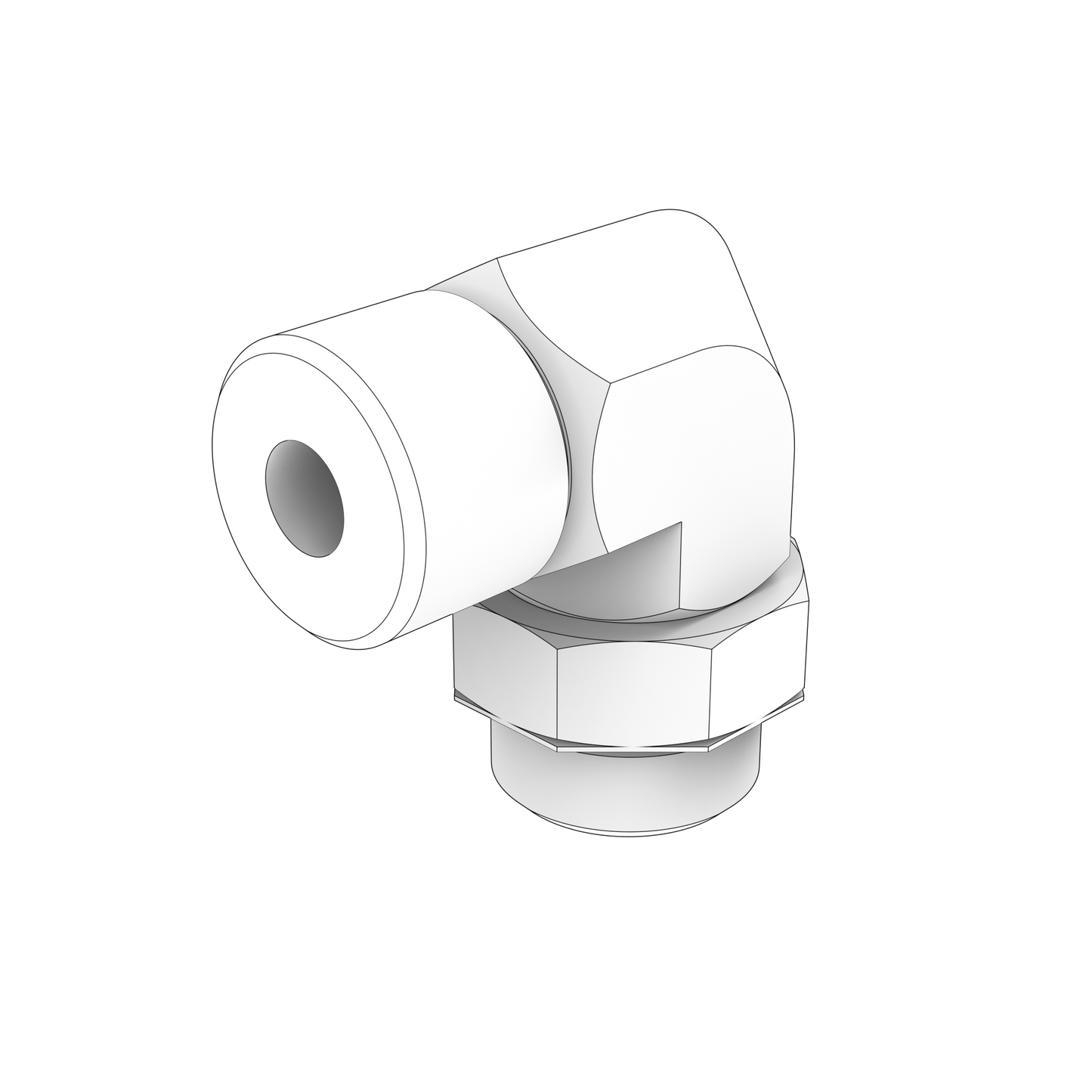

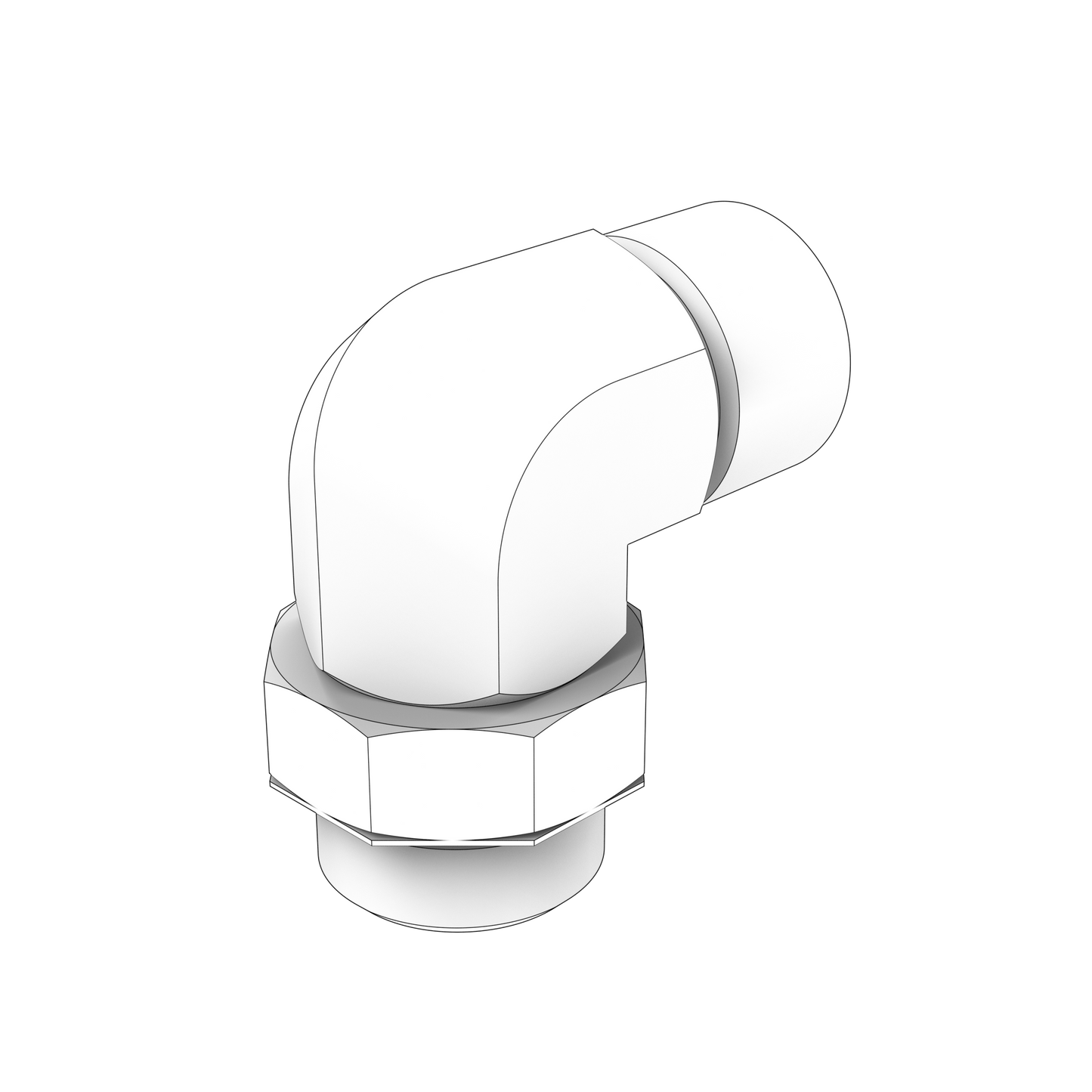

21164611 Elbow Nipple | Genuine Volvo Penta Part

🔧 Product Description

A pressure-rated 90-degree nipple in the D5A-B TA pneumatic starting system. It changes hose direction at the air starter/control valve without reducing the internal passage or side-loading the hose fitting.

🚤 Compatibility

• Engine Family: D, MD

Full model list at the end of this description.

⚙️ Key Features

• 90-degree compressed-air fitting
• Starting-air pressure-rated construction
• Correct thread and bore for the original valve/hose
• Maintains hose clearance around the starter
• Uses the specified gasket or thread-sealing method
• Engine type: D5A industrial diesel pneumatic starting system

🔌 Function

Provides a sealed right-angle connection between the pneumatic starter, control valve and air hose.

⚠️ Common Signs of Failure

• Air hissing from the joint when the starting system is pressurised
• Slow or weak cranking as starting air is lost at the fitting
• Thread or sealing face damaged, so the joint will not seal
• Hose being side-loaded or kinked where the elbow has moved
• Cracked body or corroded internal passage found on removal

🛠️ Service Notes

• Use the specified gasket or thread sealing method rather than tape, which can shed into the air circuit
• Nipple 21165583 is the straight equivalent in the same circuit, so select by the routing the installation needs

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 3587138 - air starter
• 3829869 - control valve
• 3829999 - hose
• 21165583 - companion nipples
• 21165586 - companion nipples
• 21165655 - companion nipples
• 21165591 - connection flange
• 948700 - O-ring

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C2-A MG, D13C1-A MG, D13C8-B MP
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-TA
• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta D9A2A, D9A2C
• Volvo Penta MD2010, MD2010B
