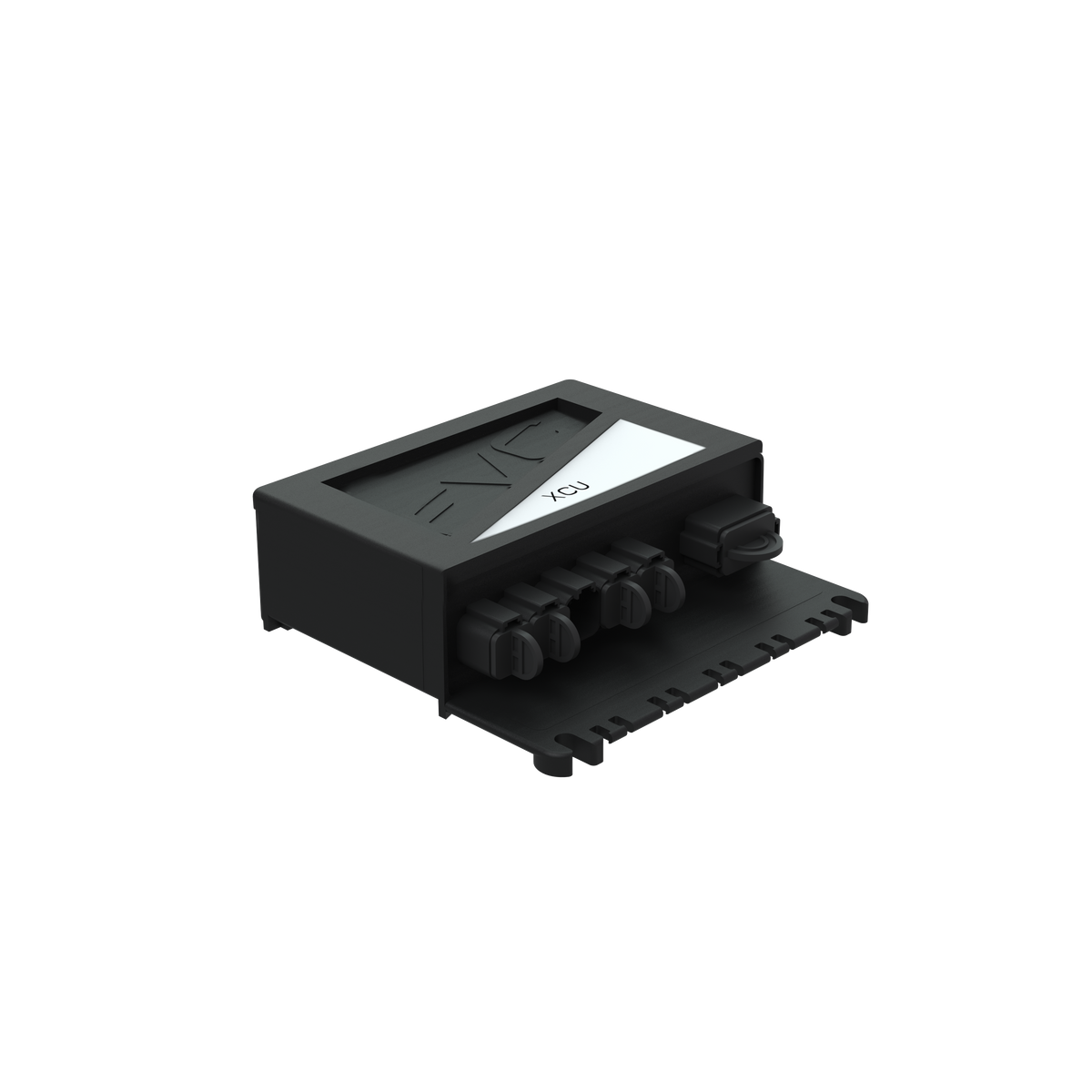

21172467 Control Unit | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta XCU control unit for EVC-C2/C3 installations. The module manages vessel-side functions and exchanges commands/status with the engine and helm nodes over the EVC data network. Correct software and configuration are required before service.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Original EVC XCU vessel control module
• CAN-based communication with engine and helm nodes
• Supports installation-specific auxiliary and propulsion functions
• Requires Volvo Penta programming/configuration
• Control unit only; harnesses and software service are separate
• Engine type: Volvo Penta electronically controlled marine diesel

🔌 Function

Processes vessel-control inputs and distributes configured commands and status messages across the EVC network.

⚠️ Common Signs of Failure

• No communication with the XCU
• EVC warning and loss of configured auxiliary functions
• Intermittent helm or vessel-interface operation
• Internal power-supply or CAN-bus fault
• Water-damaged or corroded module connector

🛠️ Service Notes

• A replacement control unit normally has to be loaded with the software and parameter set for your engine and installation before it will run — that is authorised-dealer work with Volvo Penta's own diagnostic tool, so plan the job around it rather than around the fitting time
• Isolate the batteries at the main switches and leave the system dead before disconnecting or connecting anything; back-feeding a live bus through a half-mated connector is a common way to destroy a new unit
• Treat the unit as static-sensitive and mechanically delicate: handle it by its housing, leave it in its packaging until it is going on, and never weld on the boat with control units connected
• Mate connectors clean and dry and push them fully home until the lock engages, then refit the harness clips and any shielding so the loom is not left hanging on the plugs
• Mount it in its own bracket and original orientation so the cable entries face as designed and water runs away from the connectors rather than into them

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• VOE21172467

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP
• Volvo Penta D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-C (IPS), D11B1-A MP
• Volvo Penta D9A2J, D9A2G, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2A, D9A2C, D9A2E
• Volvo Penta D16C-A MH, D16C-B MH, D16C-C MH, D16C-D MH
