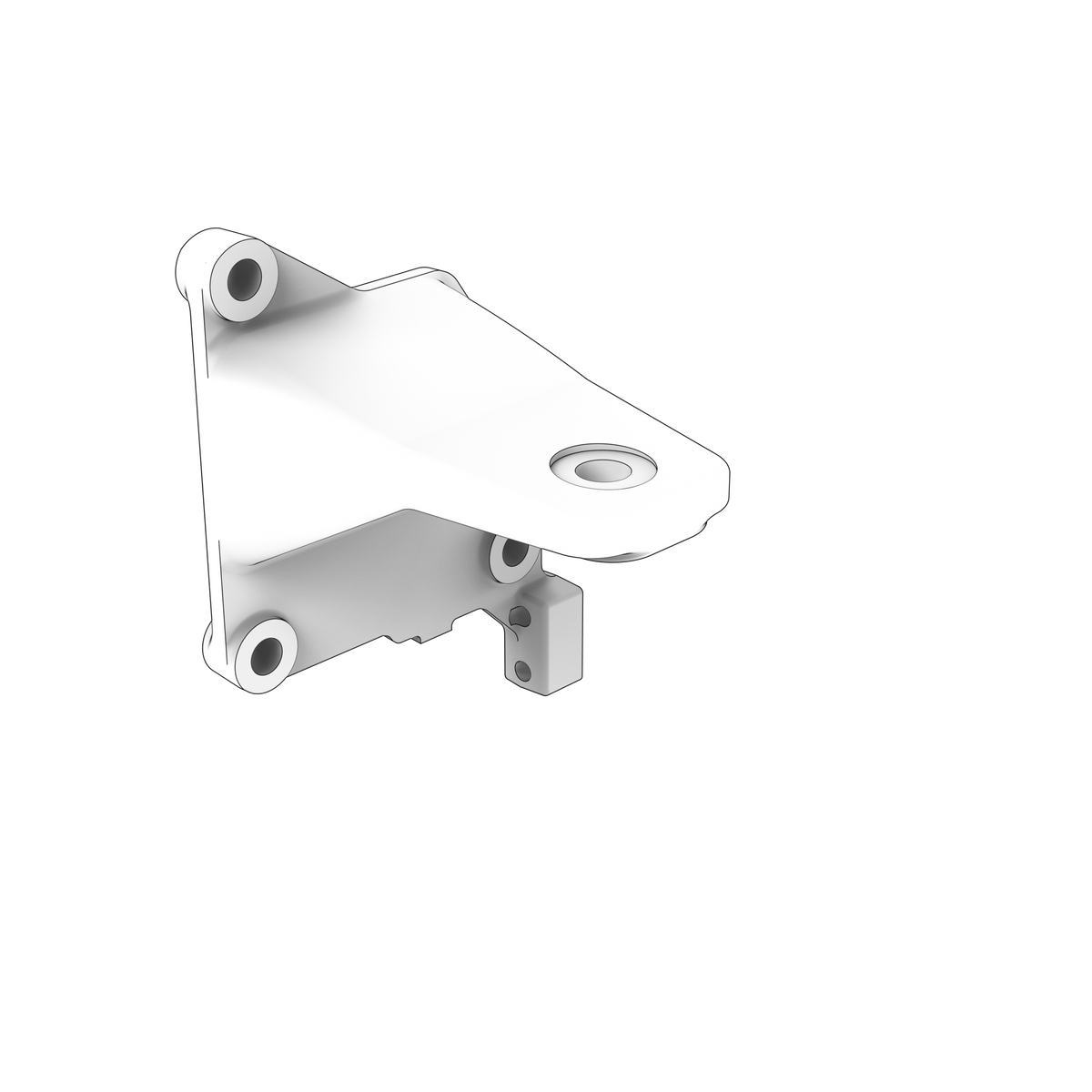

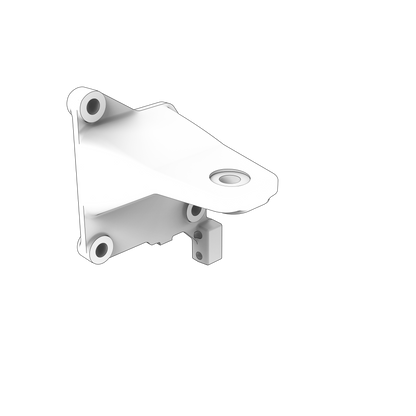

21173934 Engine Bracket | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta front engine bracket for the D11C4-A MP. It replaces earlier bracket 21132285 and transfers engine weight and propulsion reaction into the specified flexible mount while preserving shaft or transmission alignment.

🚤 Compatibility

Typically suits:

• Volvo Penta D11C1-A MP
• Volvo Penta D11C3-A MP
• Volvo Penta D11C2-A MP
• Volvo Penta D11C4-A MP
• Volvo Penta D11B3-A MP
• Volvo Penta D11B4-A MP
• Volvo Penta D11B2-A MP
• Volvo Penta D11B1-A MP
• Volvo Penta D9A2L MH
• Volvo Penta D9A2M MP

• Engine Family: D

⚙️ Key Features

• Front mounting position for D11C4-A MP
• Replaces earlier bracket 21132285
• Machined mounting faces and factory engine-bed offset
• Heavy cast construction for propulsion loads
• Bracket only; flexible mount and fasteners are separate
• Engine type: Volvo Penta D11 inline six-cylinder marine diesel

🔌 Function

Supports the front of the engine and provides the rigid alignment interface between the engine block and flexible mounting element.

⚠️ Common Signs of Failure

• Persistent shaft or gearbox misalignment
• Uneven engine height
• Excess vibration under load
• Fretting or loose mounting bolts

🛠️ Service Notes

• Start all the fasteners by hand and get the bracket sitting flat on clean mating faces before tightening anything, so nothing is pulled into strain
• Renew self-locking nuts, lock washers and thread-locking compound where the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Inspect the bracket for cracks around the holes and weld lines before fitting, and do not attempt to straighten or weld a distorted engine bracket back into service
• Where the bracket forms part of the engine mounting, recheck engine alignment and shaft or drive coupling alignment after the work, following the procedure for your installation
• Renew any flexible mount, bush or shim pack that is disturbed and found perished, corroded or crushed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21173934 → Supersedes 3838920

OEM / Related Numbers

• 3838920 earlier number superseded by this part
• Earlier bracket 21132285
• Engine mounting 23763691

Other-Brand OEM Numbers

• VOE21173934

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
