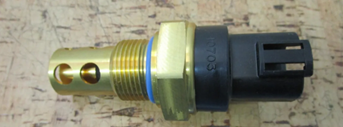

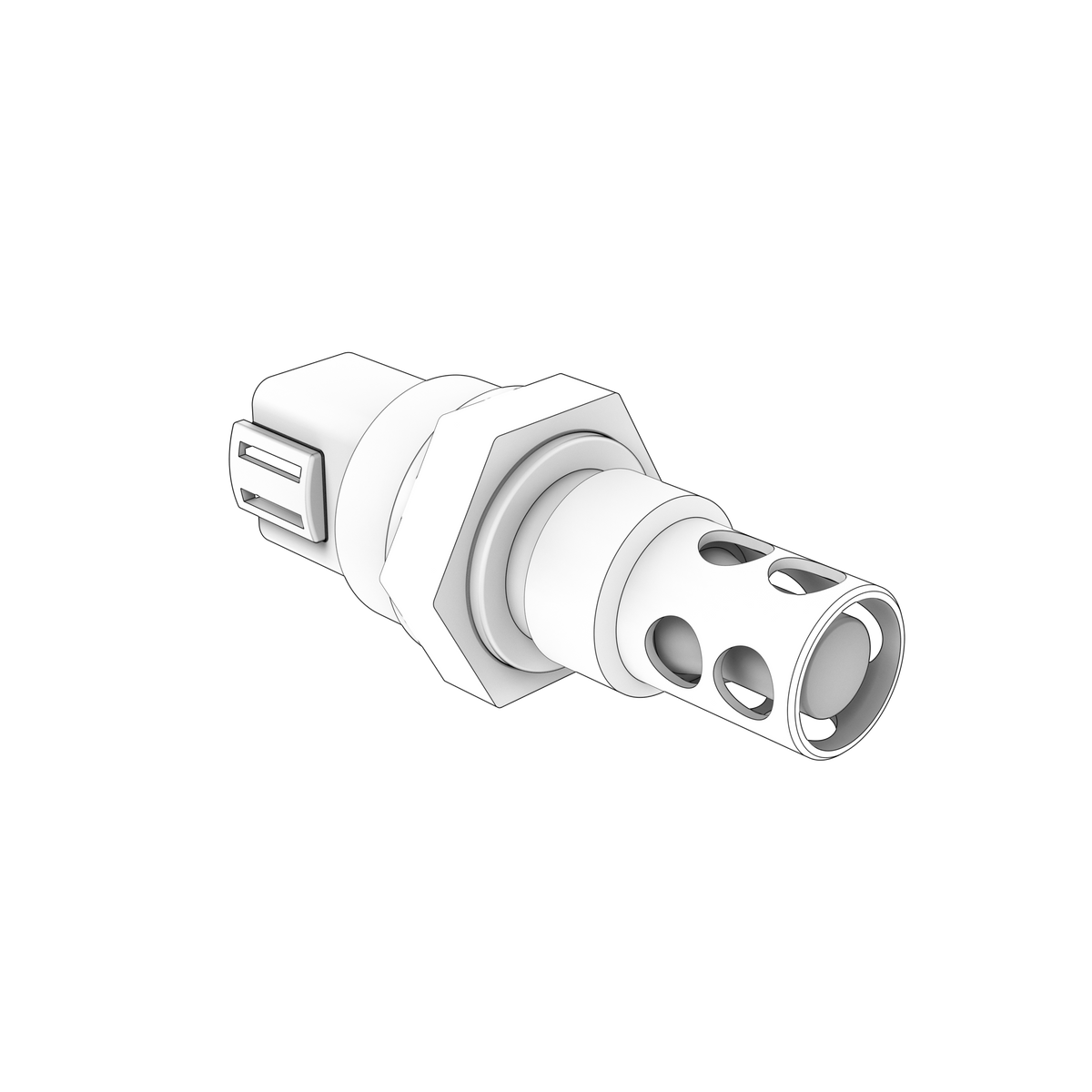

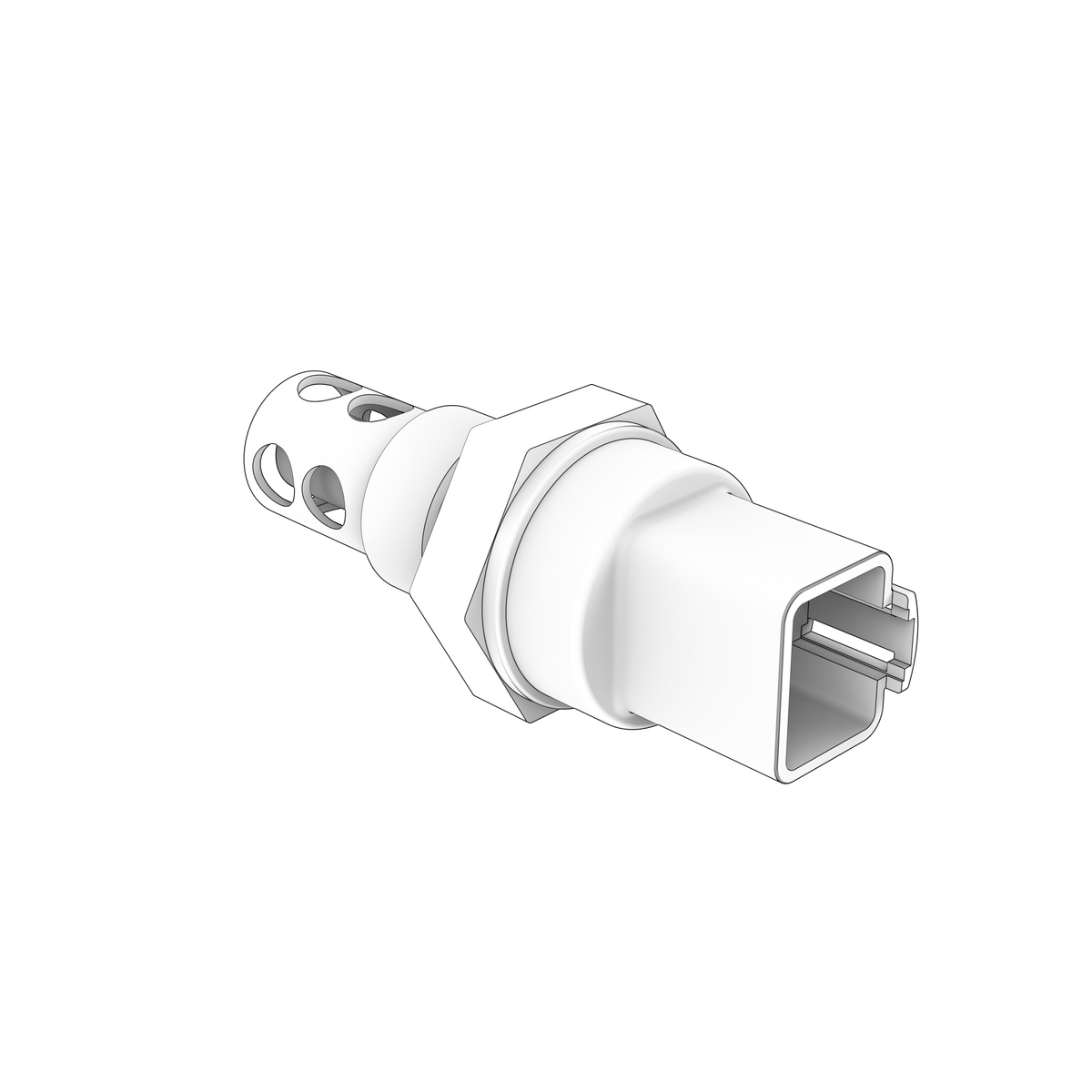

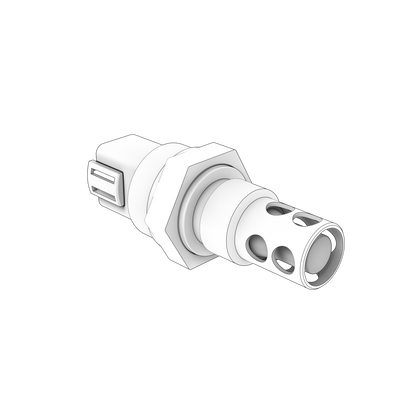

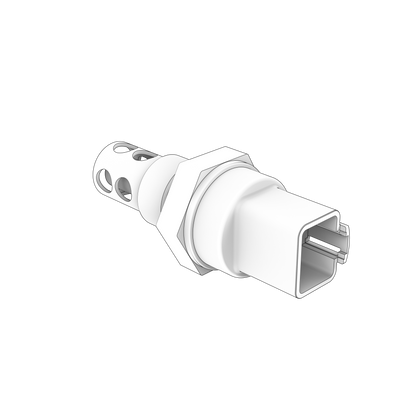

21174634 Sensor | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta water-in-drive-oil sensor used in the sterndrive lubrication monitoring system. The sensor detects water contamination in the drive oil and sends a warning signal through the compatible vessel/engine electrical system.

🚤 Compatibility

• Engine Family: D, V, IPS, DPI
• HP Range: 150-440 HP

Full model list at the end of this description.

⚙️ Key Features

• Dedicated WID drive-oil contamination sensor
• Installed in the OceanX/DPI drive oil circuit
• Sealed marine electrical connector
• Supports early warning before bearing and gear damage
• Sensor assembly only; drive harness and sealing parts are separate unless supplied
• Engine type: Volvo Penta sterndrive propulsion system

🔌 Function

Detects a change in drive-oil electrical properties caused by water ingress and alerts the operator through the monitoring system.

⚠️ Common Signs of Failure

• Persistent water-in-oil warning with clean oil
• No warning during a confirmed contamination test
• Corroded connector or damaged wiring
• Oil leakage around the sensor installation
• Intermittent warning caused by moisture in the connector

🛠️ Service Notes

• Note how the sensor sits and how its lead is routed before removing it, and support the harness so refitting does not leave the cable strained or rubbing
• Turn the sensor with a spanner on its hex only — never lever or twist it by the connector body or the wiring, which breaks the internal joint even when the sensor looks undamaged
• Renew the O-ring or sealing washer where one is fitted, and do not add thread sealant unless the manual for your engine specifies it; sealant on the threads can break the earth path of a sensor that earths through its body
• Tighten to the figure in the workshop manual for your engine — overtightening distorts the housing and shifts or destroys the sensing element
• Make sure the connector is clean, dry and fully latched home and check the pins for corrosion and spread — a poor connector accounts for a great many faults blamed on the sensor — then run the engine and confirm the reading or warning lamp behaves sensibly before returning the boat to service

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• VOE21174634

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-380-CE-A, V8-380-C-B, V8-380-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-C-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J
• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B2-A MP, D11A-D MP, D11A-E MP
• Volvo Penta D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-440A-G
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS30-E, IPS30-D
• Volvo Penta D8A4-A MP
• Volvo Penta DPI-A
• Volvo Penta IPS2-B
• Volvo Penta IPS20-E
