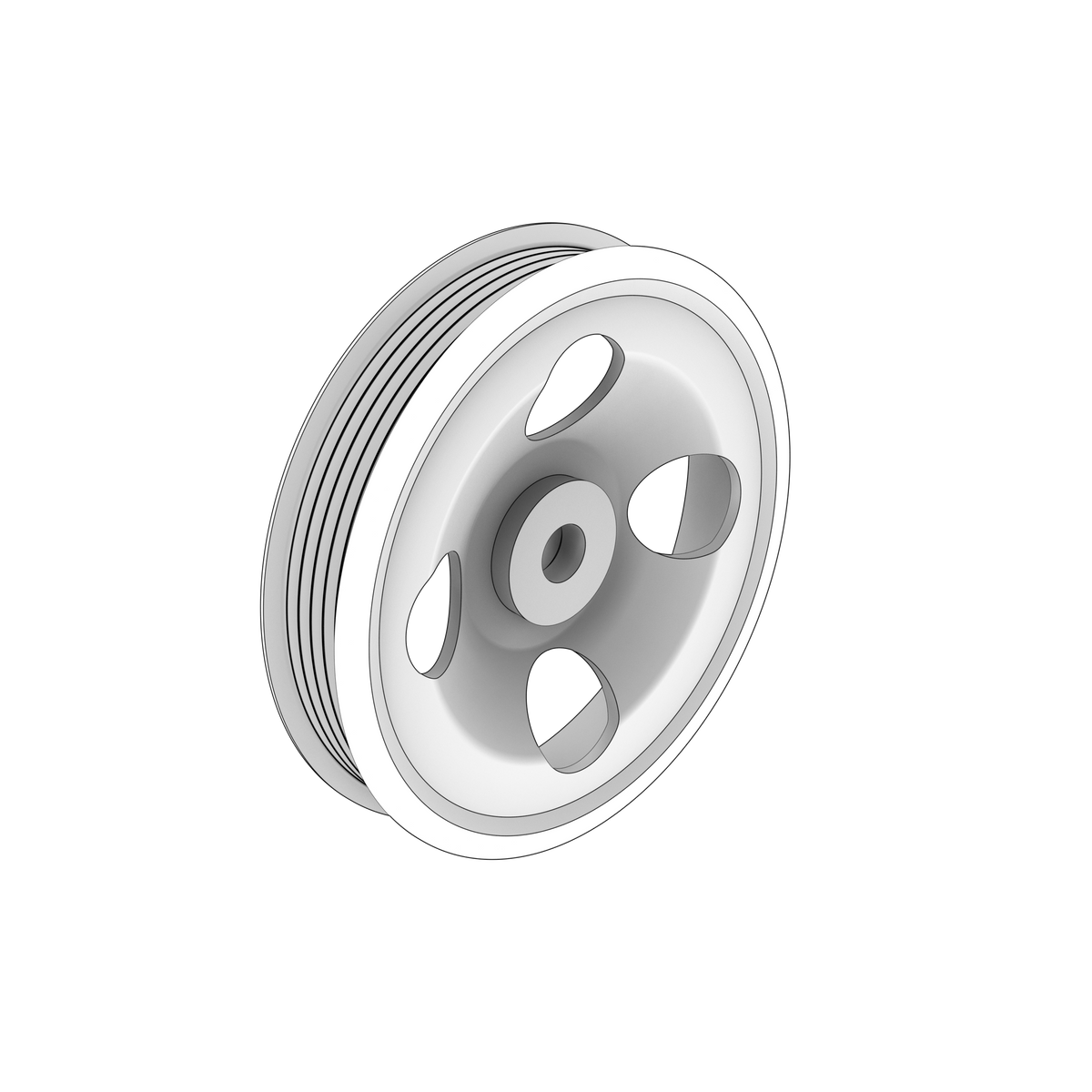

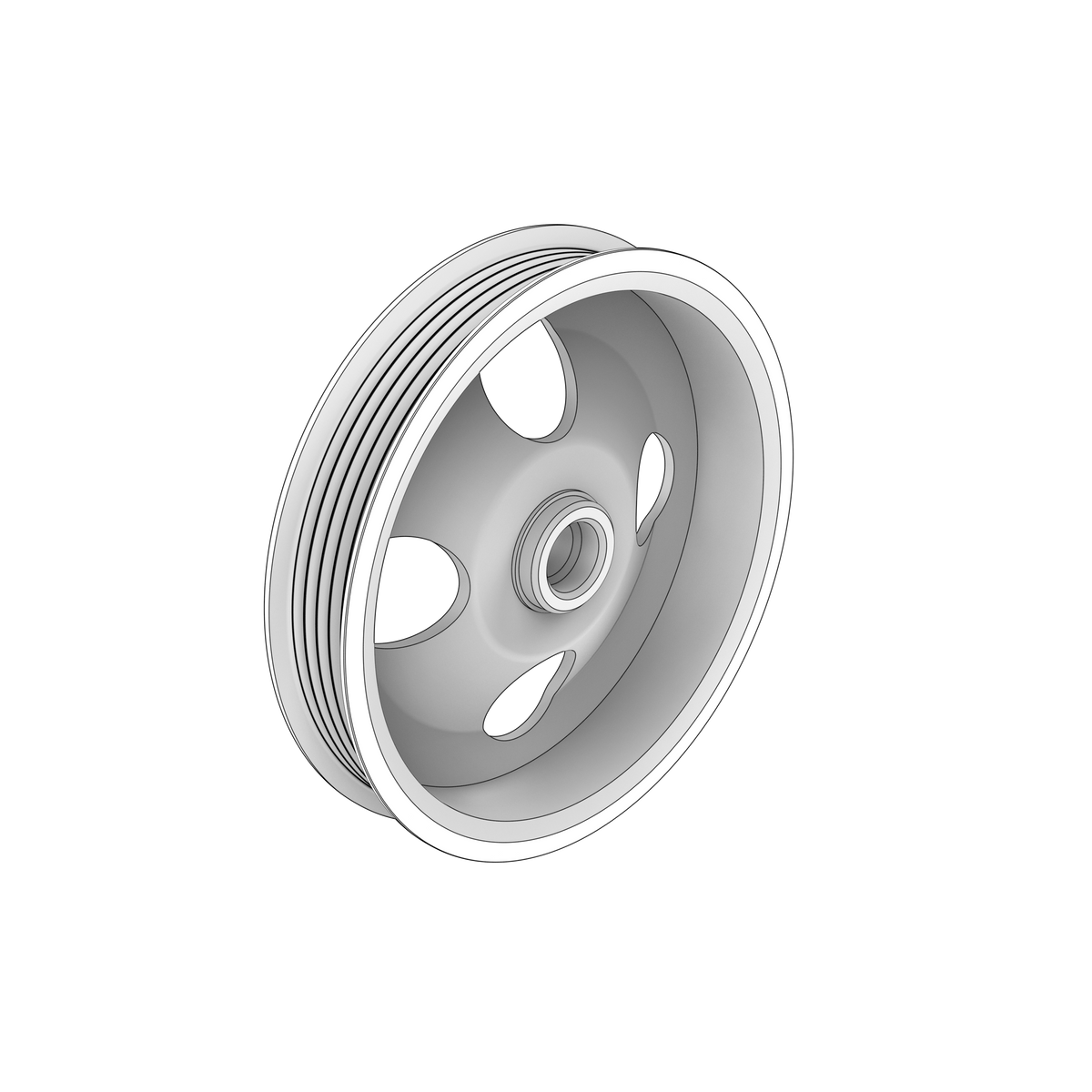

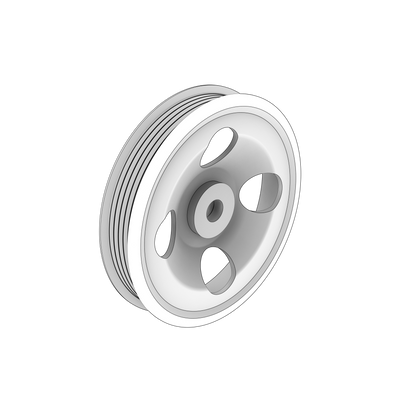

21180447 Pulley | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta pulley for the engine-driven hydraulic steering pump. It mounts to steering pump 21317314 and aligns the pump with the D3 accessory belt drive.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Dedicated D3 steering-pump pulley
• Matched to pump 21317314
• Secured with washer 3889615 and nut 3889613
• Factory groove offset and drive ratio
• Pulley only; pump, belt and hardware are separate
• Engine type: Volvo Penta D3 five-cylinder marine diesel

🔌 Function

Transfers belt drive to the hydraulic steering pump at the correct speed and alignment.

⚠️ Common Signs of Failure

• Steering assist loss from belt slip
• Belt dust or squeal
• Worn groove or damaged bore
• Loose retaining nut

🛠️ Service Notes

• Inspect the belt running surfaces before fitting — a pulley with glazed, scored, pitted or rust-roughened grooves will chew through a new belt in very little running time
• Check that the pulley runs true and that its bearing or bush turns smoothly with no roughness or side play; fit a new belt whenever a pulley is changed
• Confirm that every pulley in the drive lies in the same plane and that the belt profile matches each groove — misalignment shows up as belt dust, squeal or a worn belt edge and will destroy a new belt quickly
• Fit onto a clean, dry, burr-free shaft or hub face and tighten the retaining fasteners in the sequence and to the figures given in the workshop manual for your engine
• Turn the engine over by hand before starting to confirm the belt is fully seated in every groove and that nothing fouls, then recheck belt tension after the first running period

🔄 Supersession & Cross Reference

OEM / Related Numbers

• Steering pump 21317314
• Washer 3889615
• Nut 3889613

Other-Brand OEM Numbers

• VOE21180447

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
