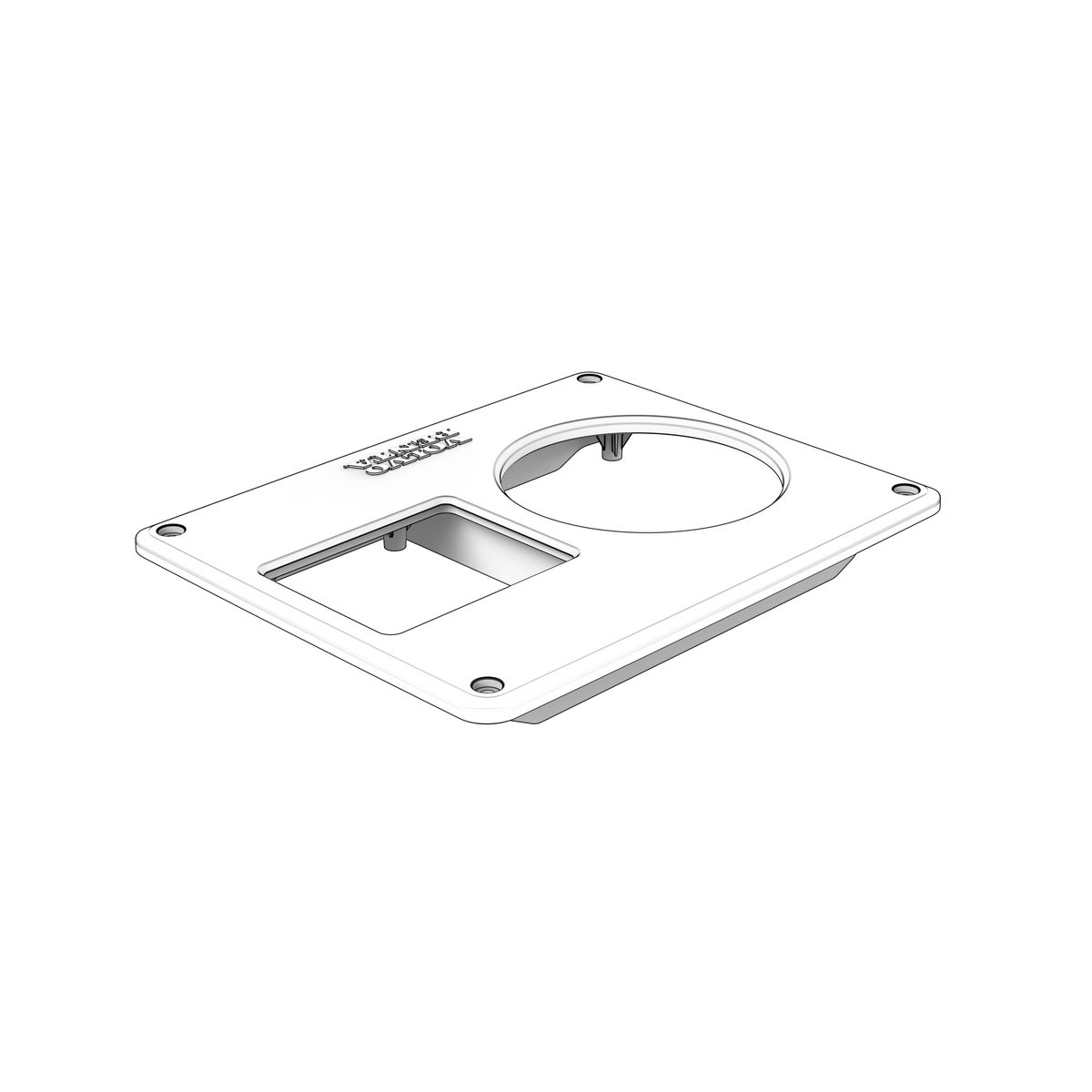

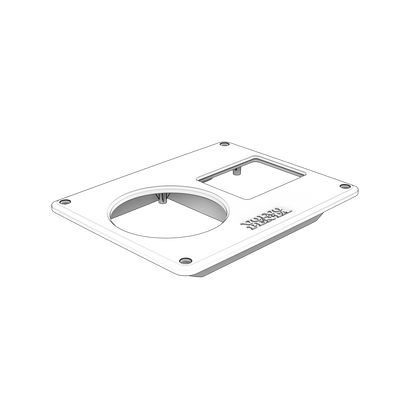

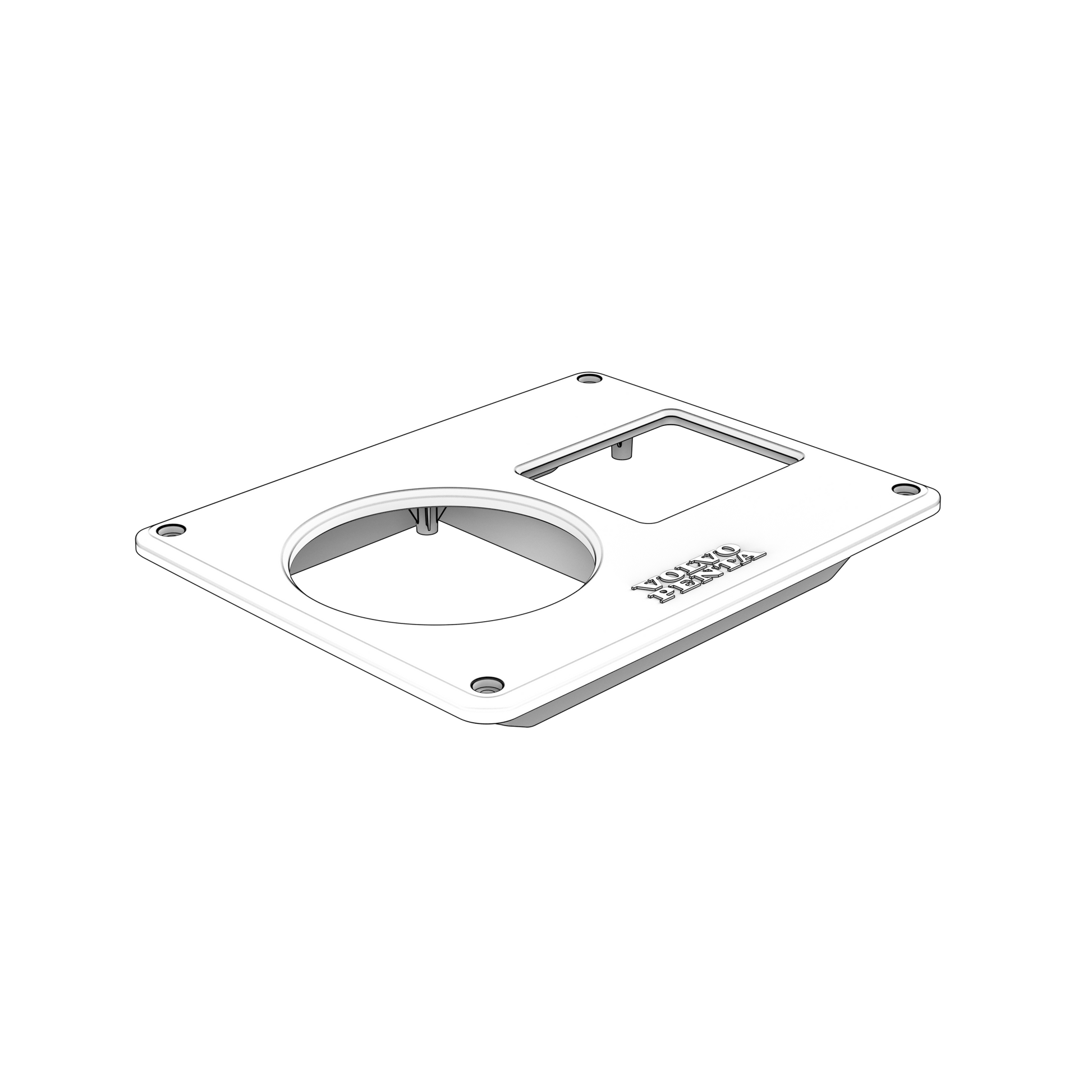

21180574 Instrument Panel | Genuine Volvo Penta Part

🔧 Product Description

Brand-new genuine Volvo Penta MDI instrument panel providing engine start/stop, warning indication and operating information for compatible D1 and D2 marine diesels.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-40B
• Volvo Penta D2-40F
• Volvo Penta D2-55D
• Volvo Penta D2-55E
• Volvo Penta D2-55F
• Volvo Penta D2-50F
• Volvo Penta D2-75B
• Volvo Penta D2-75C
• Volvo Penta D2-75F
• Volvo Penta D2-60F
• Volvo Penta D1-30B
• Volvo Penta D1-30F
• Volvo Penta D1-13B
• Volvo Penta D1-13F
• Volvo Penta D1-20B
• Volvo Penta D1-20F

• Engine Family: D
• HP Range: 13-75 HP

⚙️ Key Features

• Original MDI panel interface
• Start/stop and engine-warning functions
• Compatible with the D1/D2 MDI control box and harness
• Marine-sealed front panel and connector
• Panel only; MDI box and extension harness are separate
• Engine type: Volvo Penta D1/D2 marine diesel with MDI

🔌 Function

Provides the operator interface for starting, stopping and monitoring the MDI-equipped engine.

⚠️ Common Signs of Failure

• Panel will not power up
• Start or stop button inoperative
• False warning indication
• Intermittent MDI communication
• Water-damaged connector or keypad

🛠️ Service Notes

• Covers both the D1 (1.1-litre) and D2 (2.2-litre) engine ranges with a single panel design - confirm the engine actually uses the MDI system before ordering, since Volvo Penta also fits the separate EVC panel to some of the same base engines
• Supplied as the panel only - the MDI control box and extension harness are separate lines, so check what is already on the boat before assuming the panel alone completes the job

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• VOE21180574

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
