21186669 Heat Insulation | Genuine Volvo Penta Part

🔧 Product Description

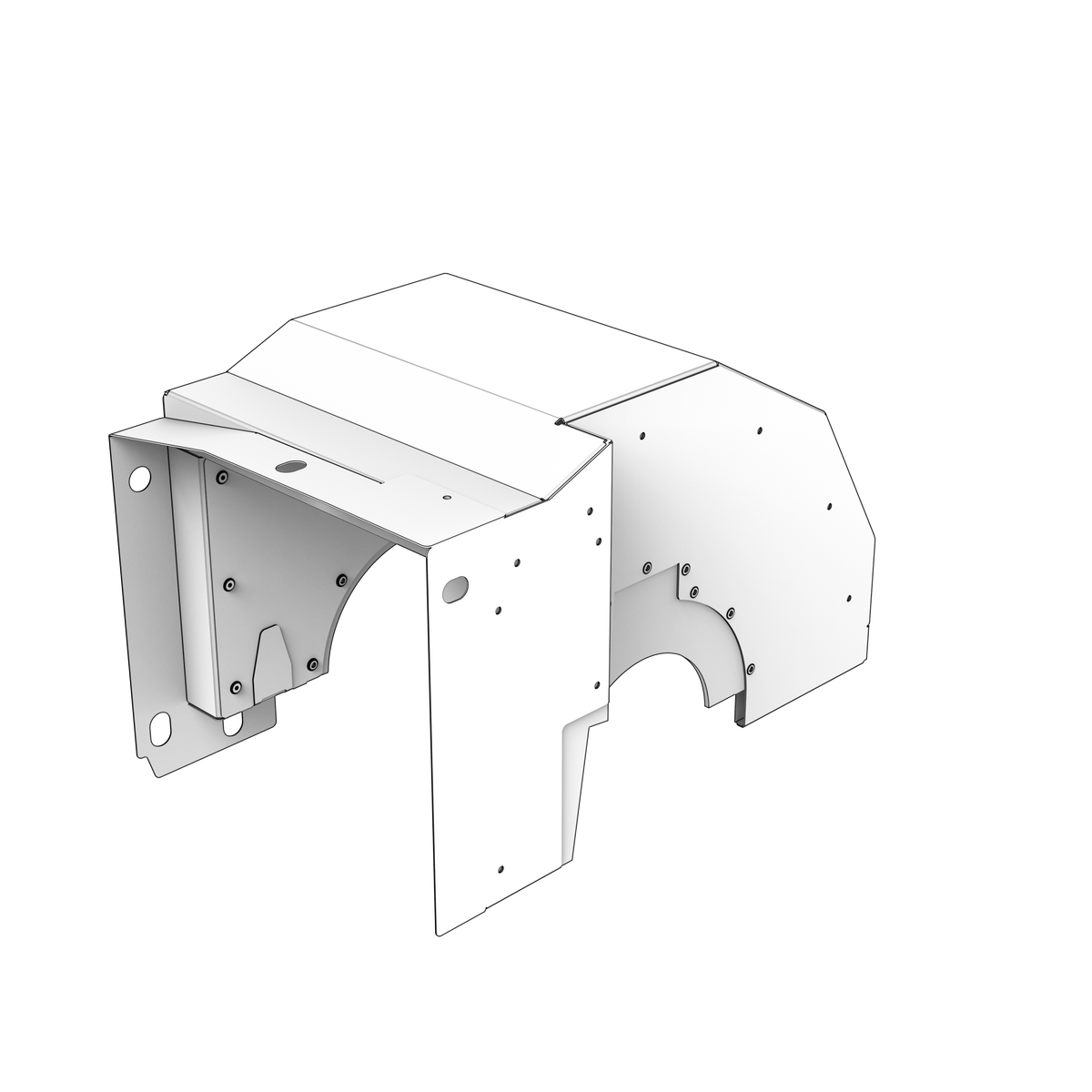

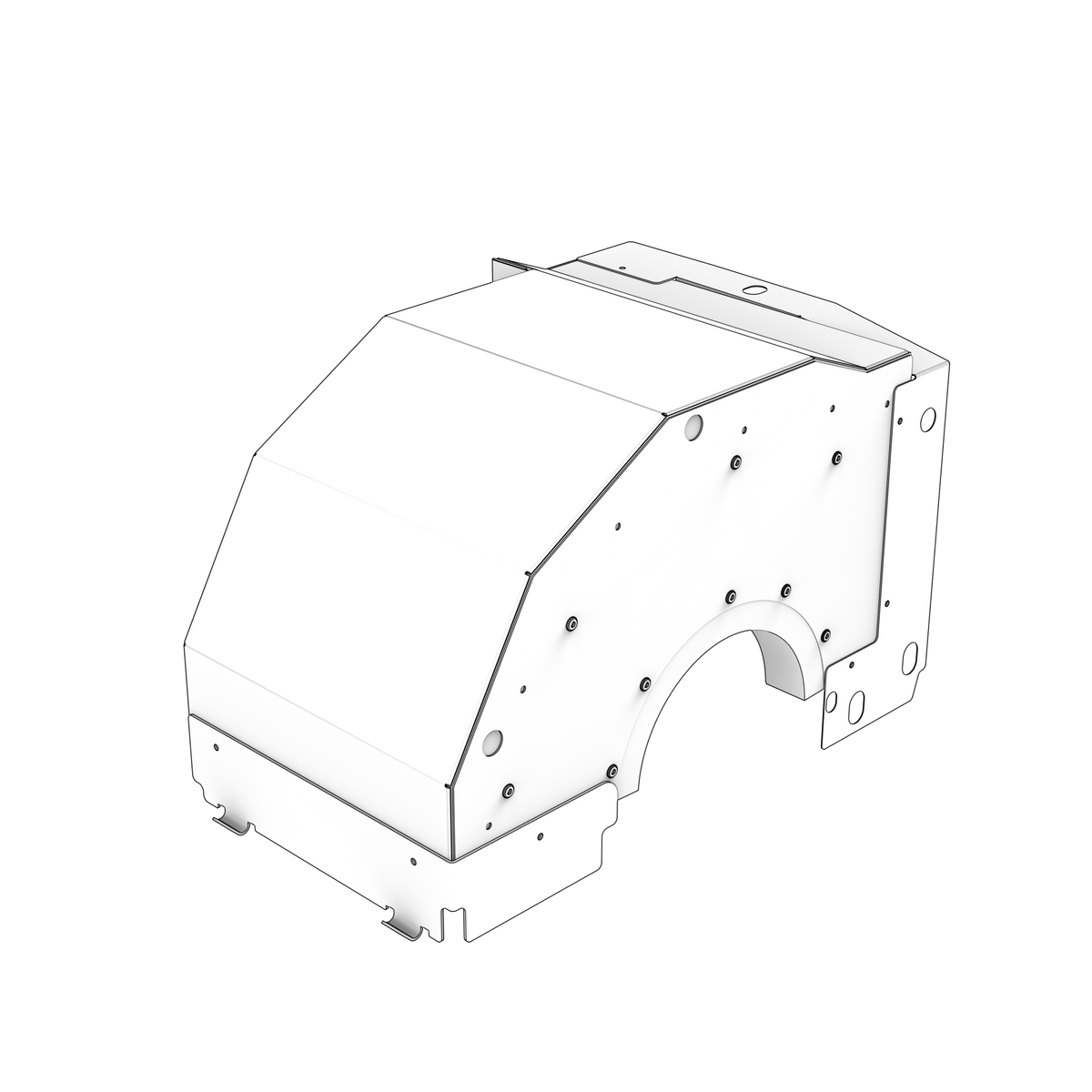

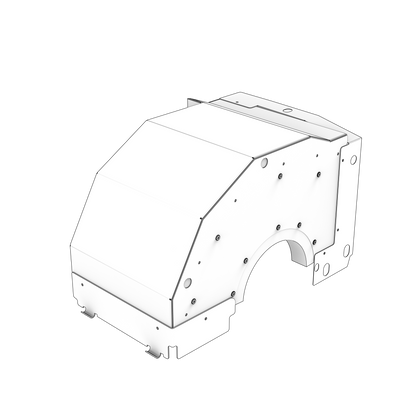

Genuine formed heat-insulation section used around a Volvo Penta turbocharger and exhaust assembly. It weighs approximately 2.943 kg and is supplied separately from the remaining shield sections.

🚤 Compatibility

Typically suits:

• Volvo Penta D13B-A MP
• Volvo Penta D13B-H MP

• Engine Family: D

⚙️ Key Features

• Approximate weight: 2.943 kg
• Heavy formed exhaust heat shield
• Application-specific shape and mounting points
• Protects nearby components from radiant heat
• Supplied as an individual shield section

🔌 Function

The panel reduces heat transfer from the turbocharger and exhaust system.

⚠️ Common Signs of Failure

• Cracking or delamination
• Loose or broken mounting tabs
• Rattling against exhaust components
• Heat damage outside the insulated area

🛠️ Service Notes

• Refit every shield and insulation panel before the engine is run — they are there to keep exhaust and manifold surface temperatures down in an enclosed engine space, and leaving one off is a genuine fire risk as well as making the space unbearable
• Check that the standoffs, spacers, clips and fasteners go back with the panel; the air gap they hold is what does the insulating, so a panel clamped flat to the manifold is not doing its job
• Renew insulation that is charred, crushed, torn, delaminated or has been soaked with oil or fuel — once contaminated it cannot be cleaned and it becomes the ignition source it was fitted to prevent
• Find and fix the leak first if the old insulation was oil-soaked or fuel-soaked; a new panel fitted over a live leak will be ruined again
• Check clearance to hoses, cables and the wiring loom once refitted, and make sure nothing can chafe against the shield edge with engine movement

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
