🔧 Product Description

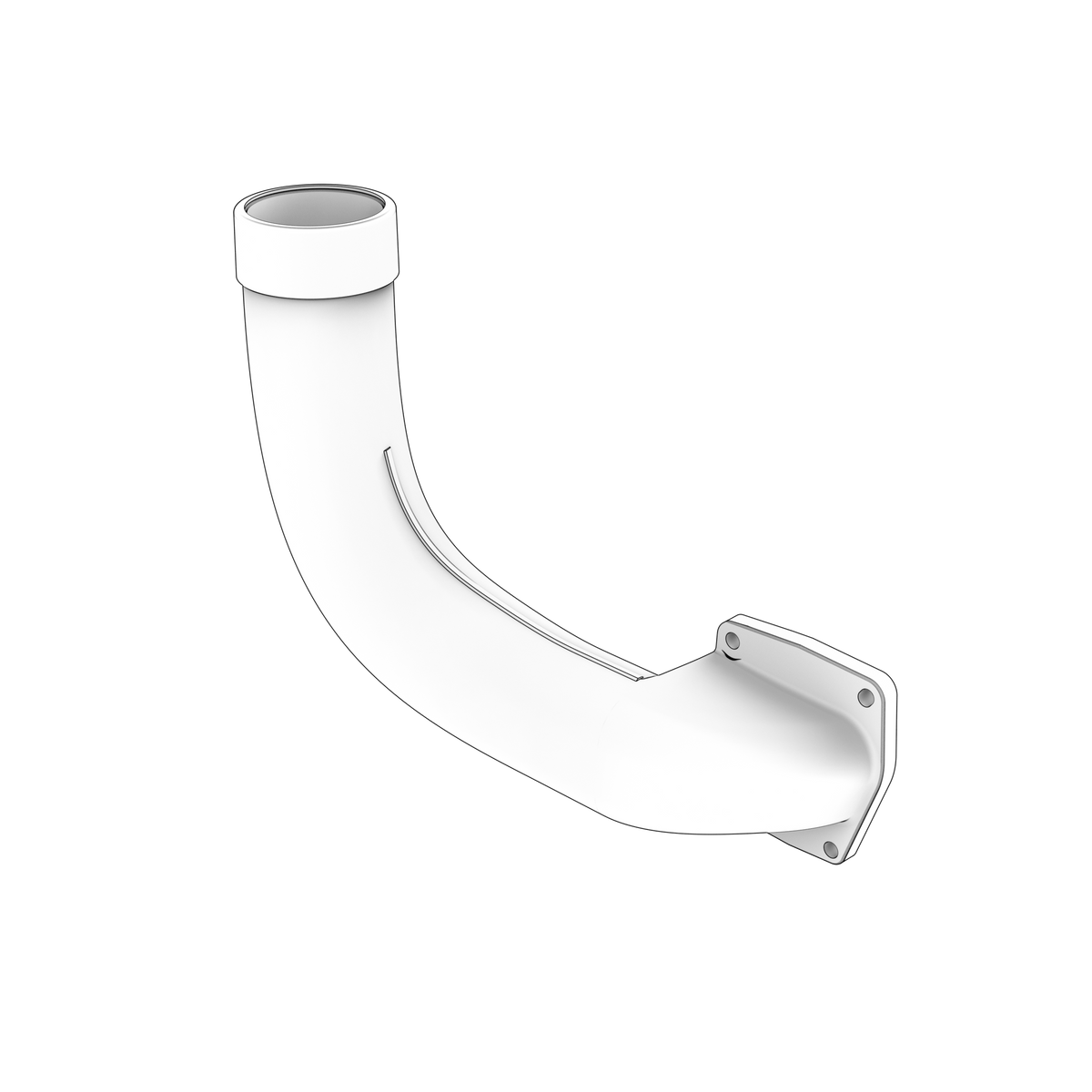

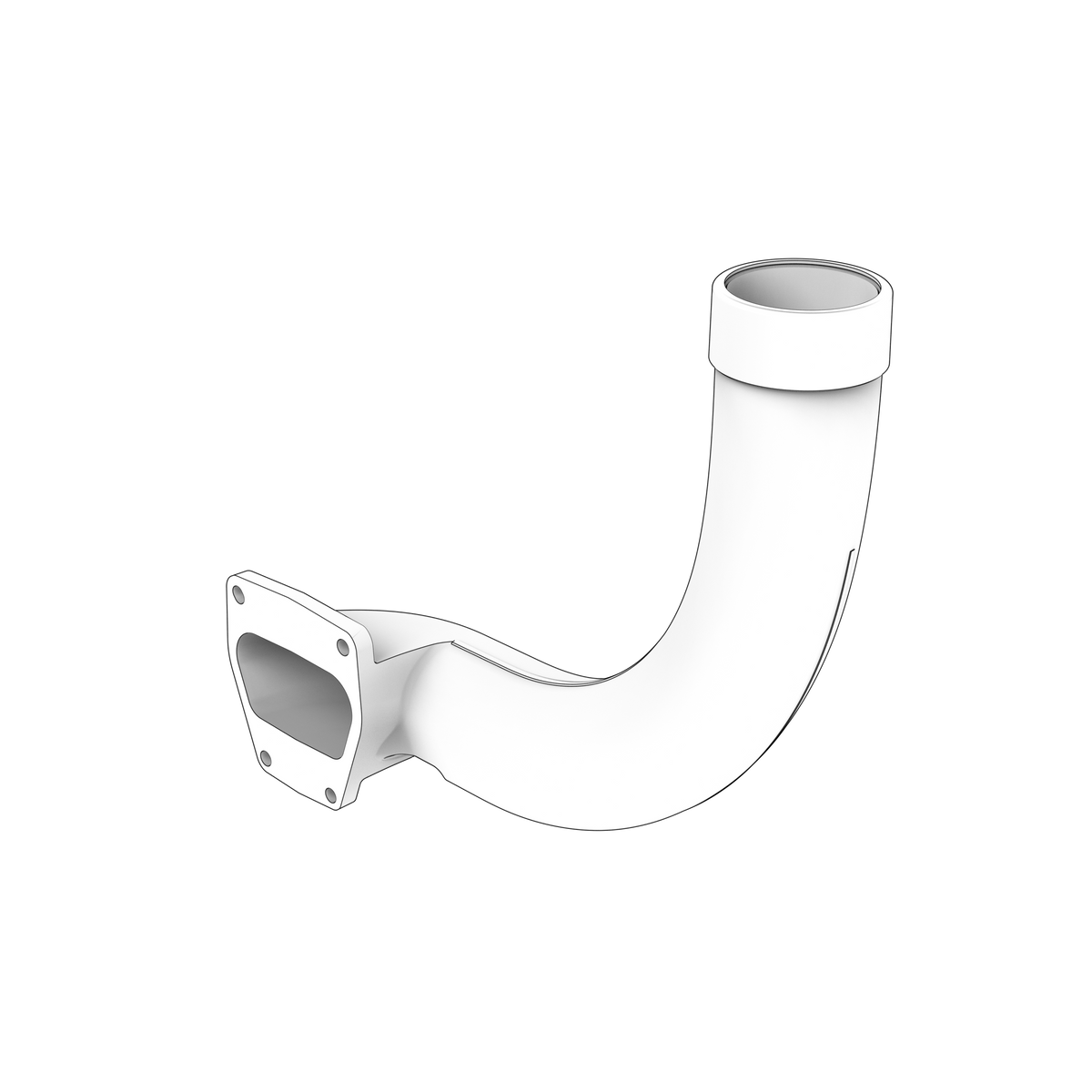

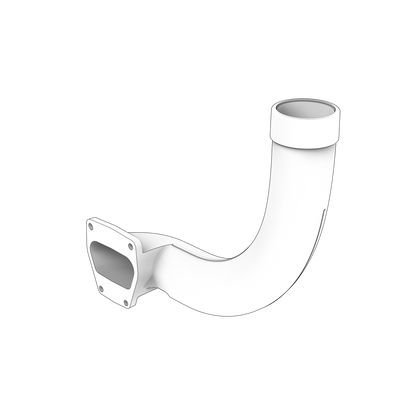

Genuine exhaust pipe used between the Volvo Penta D3 marine diesel engine and selected DPS sterndrive or transom-shield exhaust systems. The pipe follows the factory route and connects to the exhaust bellows.
🚤 Compatibility
Typically suits:
- Volvo Penta D3-140A-D
- Volvo Penta D3-170A-D
- Volvo Penta D3-200A-D
- Volvo Penta D3-220A-D
- Volvo Penta D3-140A-E
- Volvo Penta D3-170A-E
- Volvo Penta D3-200A-E
- Volvo Penta D3-220A-E
- Volvo Penta D3-140A-F
- Volvo Penta D3-170A-F
- Volvo Penta D3-200A-F
- Volvo Penta D3-220A-F
- Volvo Penta D3-140A-G
- Volvo Penta D3-170A-G
- Volvo Penta D3-200A-G
- Volvo Penta D3-220A-G
- Volvo Penta D3-140A-H
- Volvo Penta D3-170A-H
- Volvo Penta D3-200A-H
- Volvo Penta D3-220A-H
- Engine Family: D
- HP Range: 140-220 HP
⚙️ Key Features
- Confirmed D3-140A-D application
- Documented D3 110HP-220HP family use
- Engine-to-sterndrive exhaust connection
- Compatible with the specified DPS-A/DPS-B installation
- Factory flange, bend and bellows connection geometry
🔌 Function
The pipe carries exhaust gas and cooling water from the engine exhaust outlet to the sterndrive or transom-shield exhaust passage.
⚠️ Common Signs of Failure
- Exhaust soot or water leakage
- Corrosion or perforation
- Cracking at a flange or bracket
- Exhaust fumes in the engine compartment
- Water entering the exhaust joint
- Misalignment or failed bellows connection
🛠️ Service Notes
- Fit new gaskets and seals at every joint you disturb; exhaust gaskets take a set once they have been heat-cycled and will not seal a second time
- Clean the flange faces back to bare, flat metal and check them for distortion and pitting — a warped face will blow out a new gasket however hard it is pulled up
- Renew corroded studs and nuts, use a high-temperature anti-seize on the threads, and tighten in the sequence and to the figures in the workshop manual for your engine; recheck once the engine has been run up to temperature and allowed to cool, because the joint relaxes over the first few heat cycles
- Support the pipe on its own mountings so nothing hangs on the flange and no hose pull is taken through the joint, and keep the specified clearance to hoses, wiring and glassfibre
- On water-cooled sections, check the cooling passages are clear and the water connections sound before running — a restricted jacket will cook the pipe and the hose behind it
🔄 Supersession & Cross Reference
OEM / Related Numbers
- 3863450 - Related exhaust bellows; ordered separately
- 21190799 - Related support bracket; ordered separately
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
