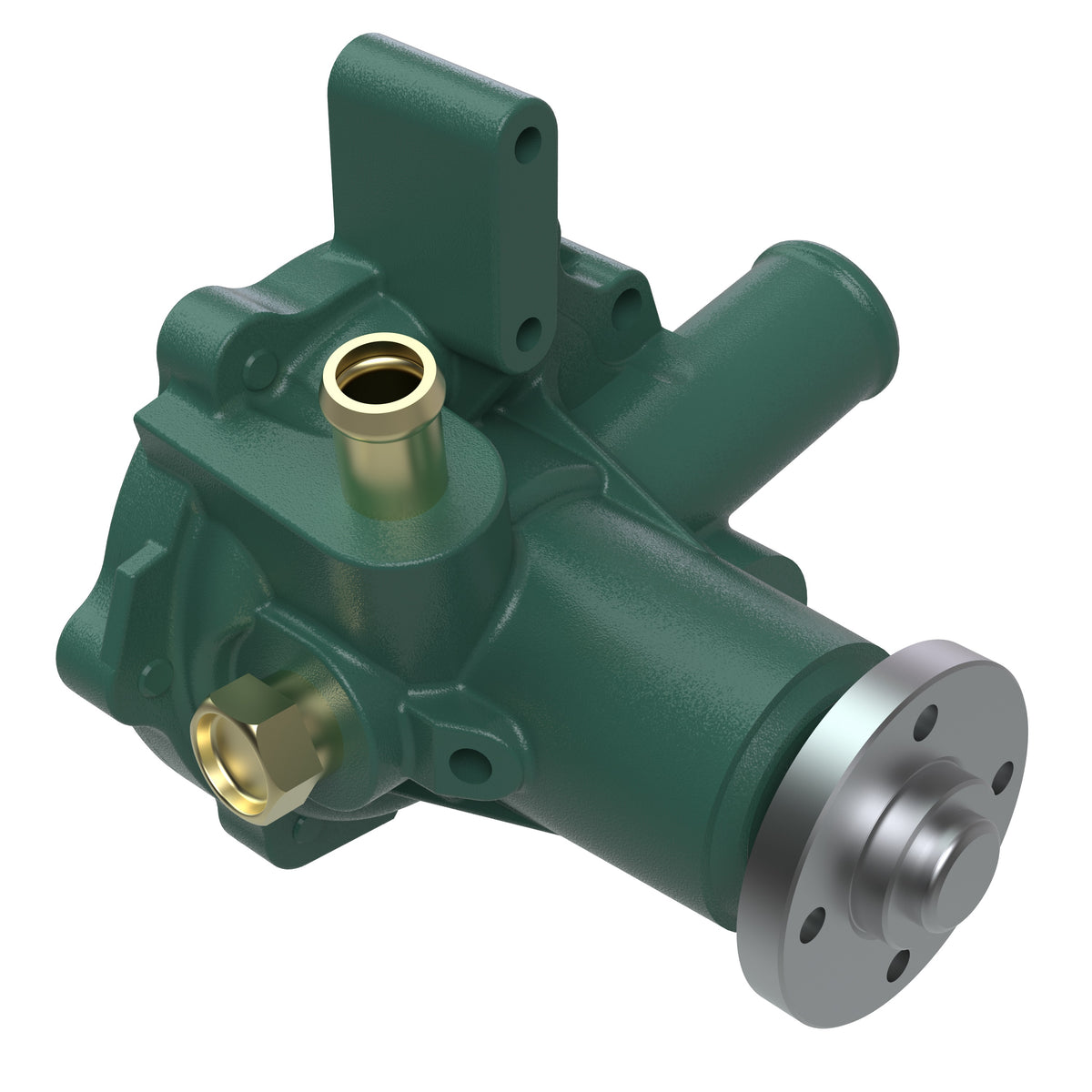

21192325 Water Pump | Genuine Volvo Penta Part

🔧 Product Description

Genuine engine coolant circulation pump for Volvo Penta D1 and D2 marine diesel engines from D1-13 through D2-40. It circulates freshwater coolant through the block, cylinder head and heat exchanger.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-40
• Volvo Penta D2-40B
• Volvo Penta D2-40F
• Volvo Penta D1-30
• Volvo Penta D1-30B
• Volvo Penta D1-30F

• Engine Family: D
• HP Range: 30-40 HP

⚙️ Key Features

• Full D1-13, D1-20, D1-30 and D2-40 application coverage
• Engine-mounted freshwater circulation pump
• OEM related references 3803972 and 3801343
• Factory impeller, bearing and seal arrangement
• Not the raw-water seawater pump

🔌 Function

The pump circulates engine coolant through the block, cylinder head and heat exchanger to control operating temperature.

⚠️ Common Signs of Failure

• Coolant leakage from the pump
• Bearing noise
• Reduced coolant circulation
• Shaft seizure
• Corroded or damaged impeller

🛠️ Service Notes

• Drain coolant to below the pump, and note the belt routing and hose positions before the old pump comes off
• Clean the mounting face back to bare metal without scoring it, and fit new gaskets or O-rings — a pump will not seal onto old gasket remains
• Turn the new pump by hand before fitting to confirm it runs smooth and free, and handle it by the housing rather than by the impeller or shaft
• Tighten the mounting bolts evenly to the figure in the workshop manual, then set belt tension by the procedure for your engine; an overtensioned belt is the usual reason a pump has a short life
• Refill and vent the cooling system, run the engine to temperature, and check for coolant at the weep hole and around the mounting face

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21192325 → Supersedes 3803972

OEM / Related Numbers

• 3803972 earlier number superseded by this part
• 3801343 related reference

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
