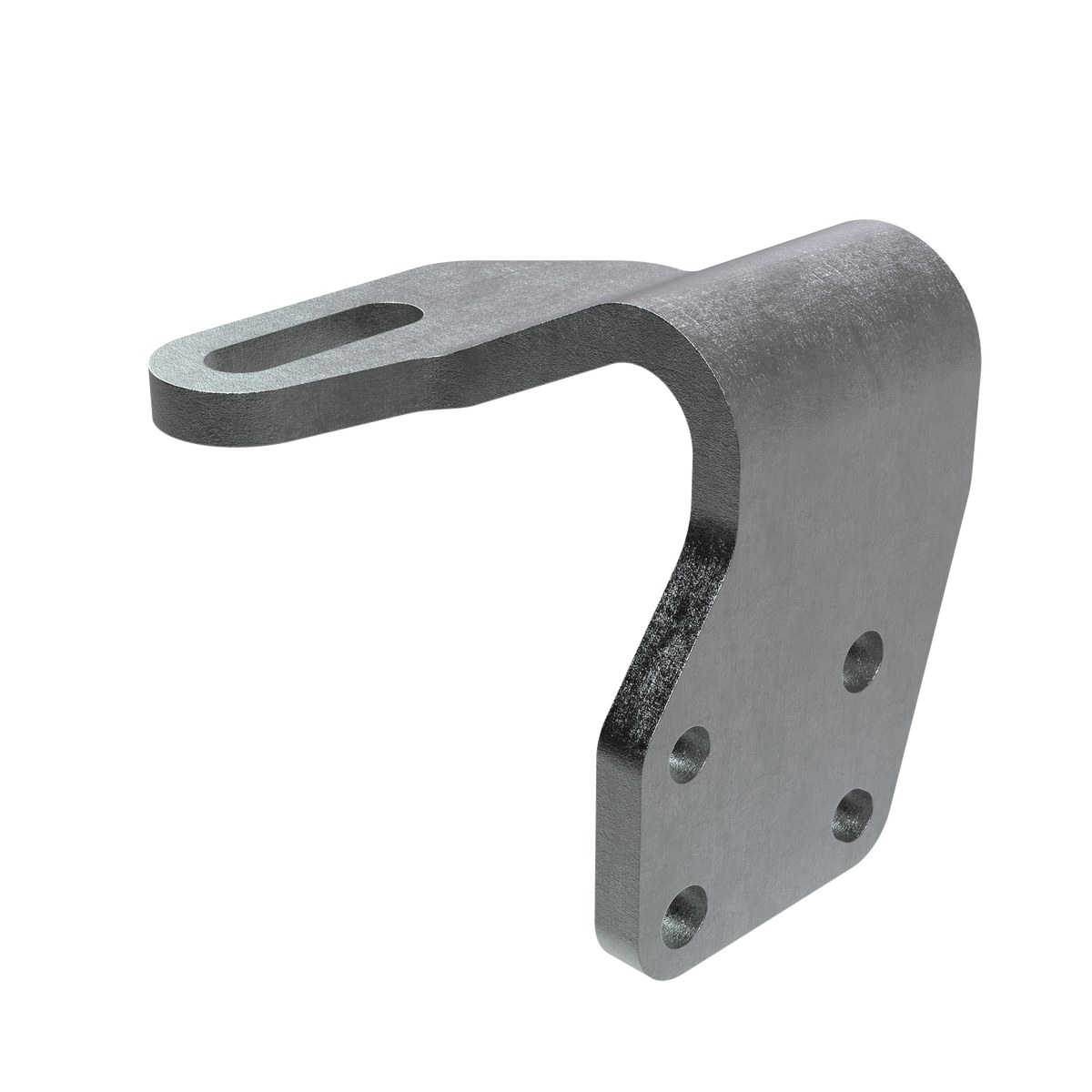

21192336 Engine Bracket | Genuine Volvo Penta Part
21192336 Engine Bracket | Genuine Volvo Penta Part
Couldn't load pickup availability
Available from Volvo Penta international
Typically reaches our store in 10–14 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description
Genuine front engine-mounting bracket for selected Volvo Penta D1 and D2 marine diesel installations. Part number 21192336 replaces earlier bracket 3812734.
🚤 Compatibility
Typically suits:
- Volvo Penta D1-30
- Volvo Penta D1-30B
- Volvo Penta D1-30F
- Engine Family: D
- HP Range: 30 HP
⚙️ Key Features
- Current replacement for bracket 3812734
- Front engine-mounting position
- D1/D2 marine diesel application
- Works with the specified rubber mounting element
🔌 Function
The bracket transfers engine weight and propulsion loads into the flexible engine mount while maintaining alignment.
⚠️ Common Signs of Failure
- Cracking around bolt holes
- Loose mounting fasteners
- Engine misalignment
- Excess vibration caused by bracket deformation
🛠️ Service Notes
- Start all the fasteners by hand and get the bracket sitting flat on clean mating faces before tightening anything, so nothing is pulled into strain
- Renew self-locking nuts, lock washers and thread-locking compound where the original assembly used them, and tighten to the figure given in the workshop manual for your engine
- Inspect the bracket for cracks around the holes and weld lines before fitting, and do not attempt to straighten or weld a distorted engine bracket back into service
- Where the bracket forms part of the engine mounting, recheck engine alignment and shaft or drive coupling alignment after the work, following the procedure for your installation
- Renew any flexible mount, bush or shim pack that is disturbed and found perished, corroded or crushed
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 21192336 → Supersedes 3812400
OEM / Related Numbers
- 3812734 earlier number superseded by this part
- 3812400 earlier number superseded by this part
- 846765 - Related rubber mounting element; ordered separately
- 3842284 - Related engine-bed reference; ordered separately
- 3812731 - Other position-specific bracket references; verify application
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
