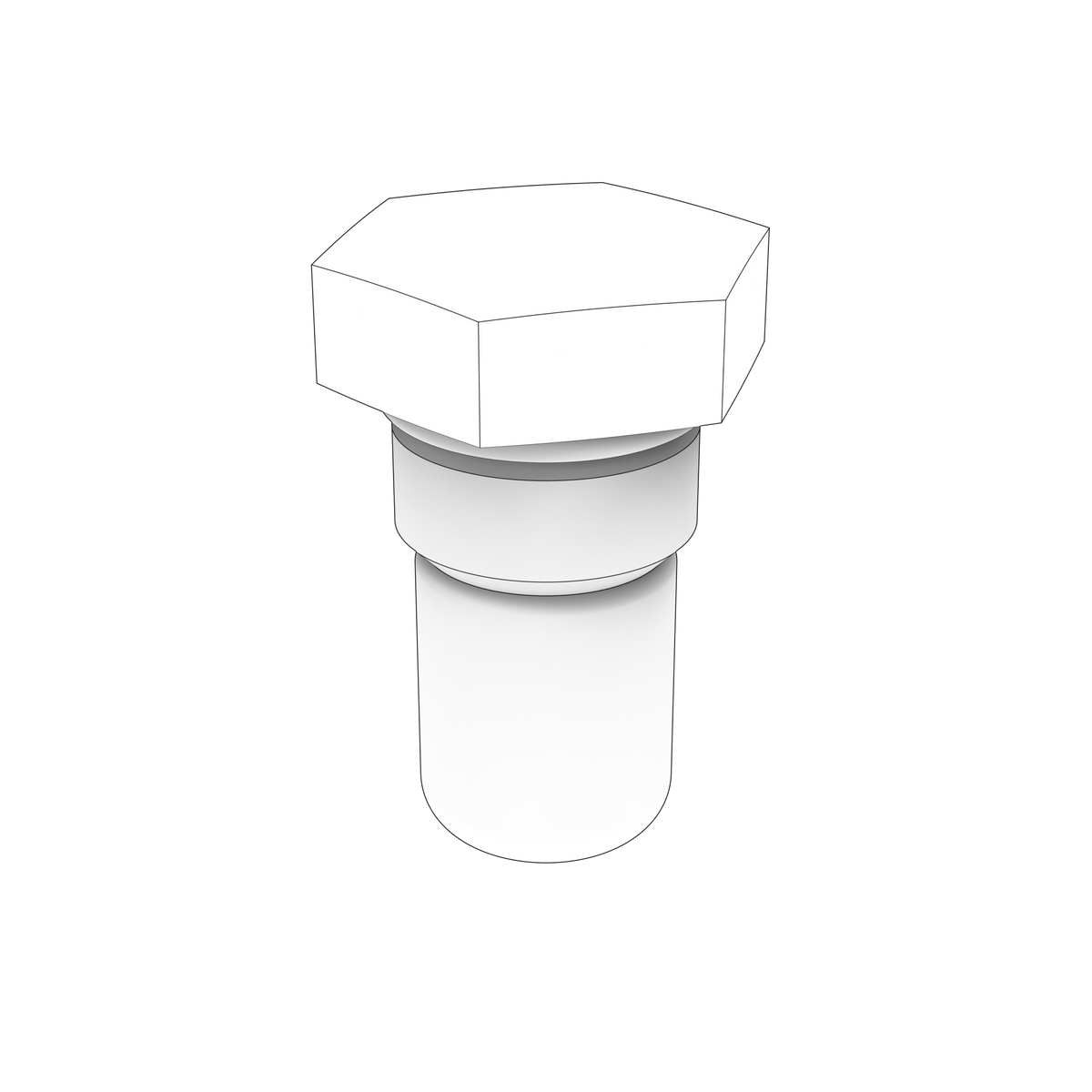

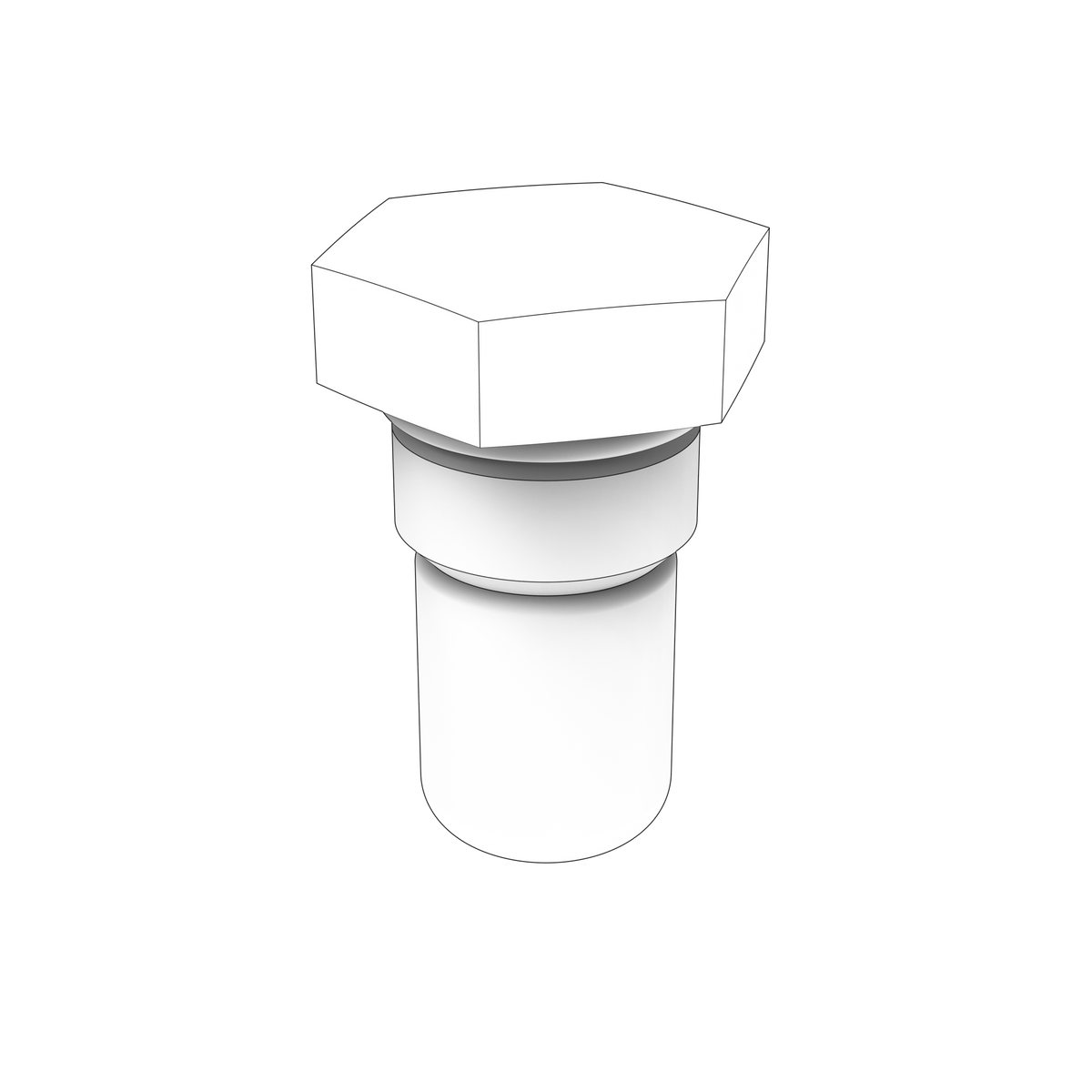

21194290 Anode | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta sacrificial anode used in the tall exhaust and exhaust-elbow service-kit assemblies. The anode protects the water-jacketed exhaust elbow from galvanic corrosion and must be matched to the exact elbow because visually similar Volvo Penta anodes use different threads and dimensions.

🚤 Compatibility

• Engine Family: V
• HP Range: 225-320 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta exhaust-elbow anode
• Used in tall exhaust and exhaust-elbow service-kit sections
• Protects water-jacketed exhaust castings
• Services through plug 21194285 where specified
• Replace before the anode core is substantially consumed
• Engine type: Volvo Penta marine engine with the specified water-cooled exhaust elbow
• Quantity varies by assembly, most commonly two

🔌 Function

Provides sacrificial galvanic protection to the exhaust elbow and its internal seawater passages.

⚠️ Common Signs of Failure

• Anode material consumed beyond the service limit
• Uneven wastage, deep pitting or complete loss of the element
• Corrosion appearing on the protected exhaust component
• Loose plug, damaged threads or leakage at the seal
• Little or no anode consumption caused by poor electrical contact

🛠️ Service Notes

• Clean the anode's seat back to bare, sound metal — no paint, antifouling, oil, sealant or corrosion product — because the anode only works if it is in good electrical contact with what it is protecting
• Never paint or antifoul the anode itself, or the area it sits on; do make good the surrounding factory coating so the anode is not being asked to protect bare metal it was never sized for
• Fit with clean fasteners and check the fasteners themselves make good contact; fit the anode dry against its seat rather than bedding it on sealant
• Inspect anodes at every lift or service and renew them once roughly half the anode has wasted away — a heavily consumed anode has too little metal left to give useful protection
• If anodes are disappearing much faster than usual, or barely wasting at all, investigate the installation's bonding and shore power earthing rather than just fitting more anodes

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21194285 - associated retaining plug

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1IPSCE-JF, 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GiCE-300-M, 5.7GiCE-300-MF, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 3.0GXiC-J, 3.0GXi-J
• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-C-A, V8-320-CE-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-C-A, V8-270-CE-A
