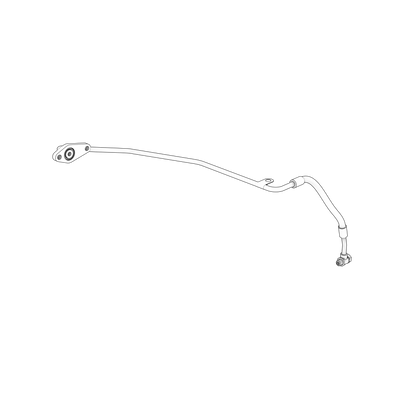

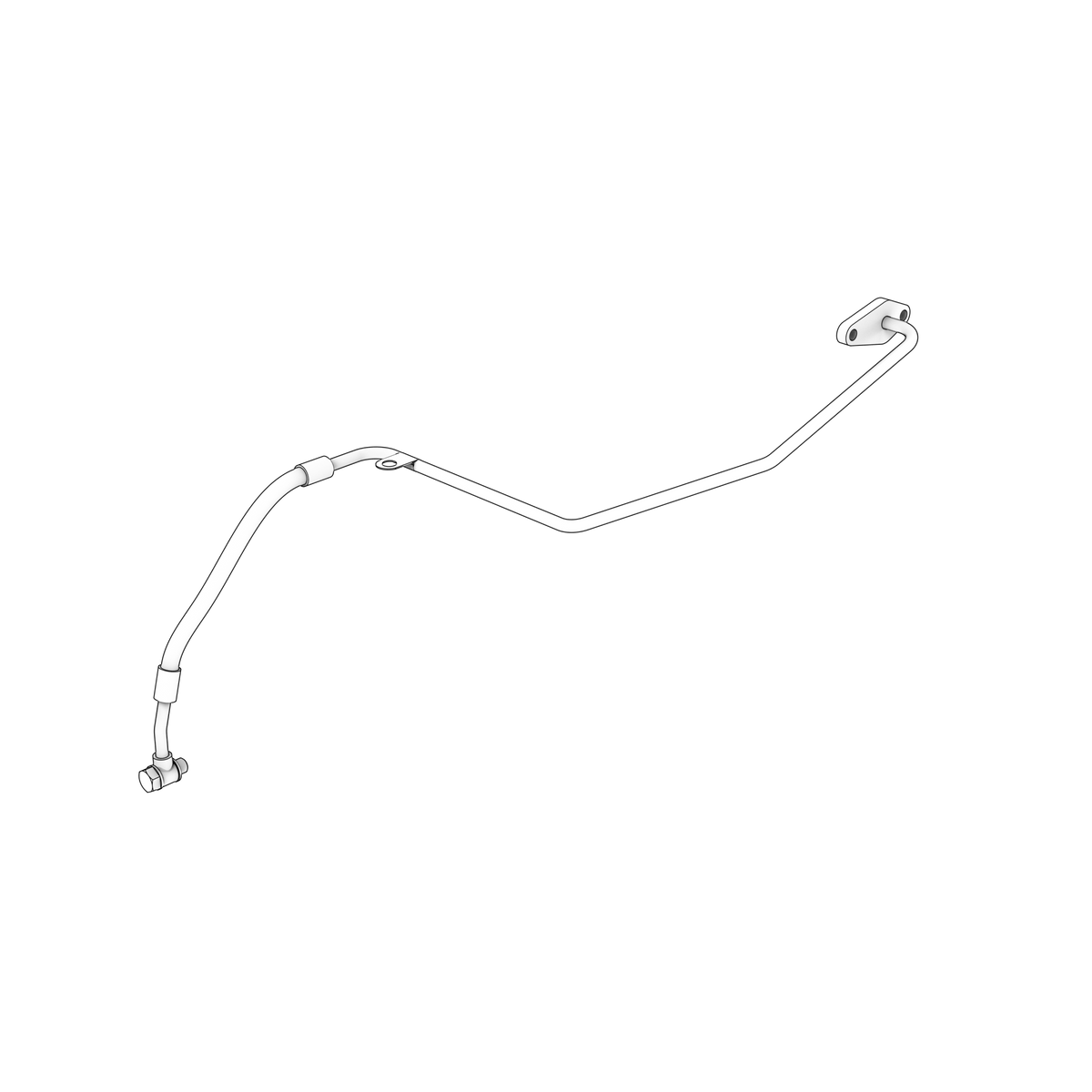

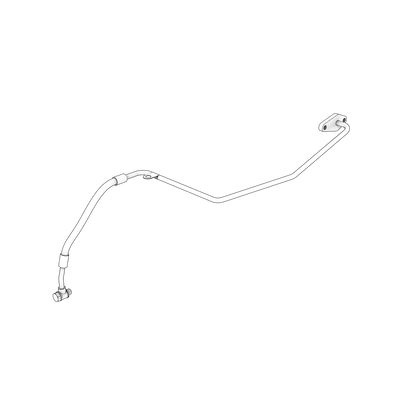

21195197 Pipe | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta rigid pressure-oil pipe supplying lubricating oil to the turbocharger on D2-60F and D2-75 engine variants. It supersedes pipe 3584106 and uses dedicated sealing washers and banjo hardware to prevent oil loss at the turbocharger bearings.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-75F
• Volvo Penta D2-60F

• Engine Family: D
• HP Range: 60-75 HP

⚙️ Key Features

• Genuine Volvo Penta turbocharger oil-feed pipe
• Supersedes earlier pipe 3584106
• Confirmed D2-60F and D2-75-family fitment
• Precision formed for correct turbo and block alignment
• Renew sealing gaskets whenever disconnected
• Engine type: Volvo Penta D2 four-cylinder turbocharged marine diesel

🔌 Function

Delivers pressurised engine oil to the turbocharger bearing housing for lubrication and cooling.

⚠️ Common Signs of Failure

• Oil seepage at banjo unions or pipe flare
• Low turbocharger oil supply
• Kinked, cracked or vibration-fatigued pipe
• Blue smoke or turbo bearing damage caused by oil starvation
• Oil spray or burning-oil smell near the exhaust

🛠️ Service Notes

• Offer the pipe up and check it reaches both connections freely before you tighten anything — a rigid pipe pulled into place is a pipe left under permanent strain, and strained pipes crack at the fittings in service
• Renew the sealing washers, O-rings or union seals that go with the pipe rather than reusing the old ones, and make sure the seats, faces and threads are clean
• Keep the ends capped while you work and blow or flush a pipe through before fitting; anything left inside goes straight into the oil, fuel or coolant system
• Tighten unions and banjo bolts evenly to the figures in the workshop manual for your engine — overtightening distorts the seat and starts the leak you were trying to cure
• Refit every clip and support bracket in its original place and keep the pipe clear of hot or moving parts so it cannot chafe or be shaken to failure

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21195197 → Supersedes 3584106

OEM / Related Numbers

• 3584106 earlier number superseded by this part
• 21260601 - hollow screw
• 21260612 - sealing gasket
• 21260619 - retaining clamp

OEM Reman Alternatives

• 3801341 - remanufactured turbocharger

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
