21196916 Air Filter | Genuine Volvo Penta Part

🔧 Product Description

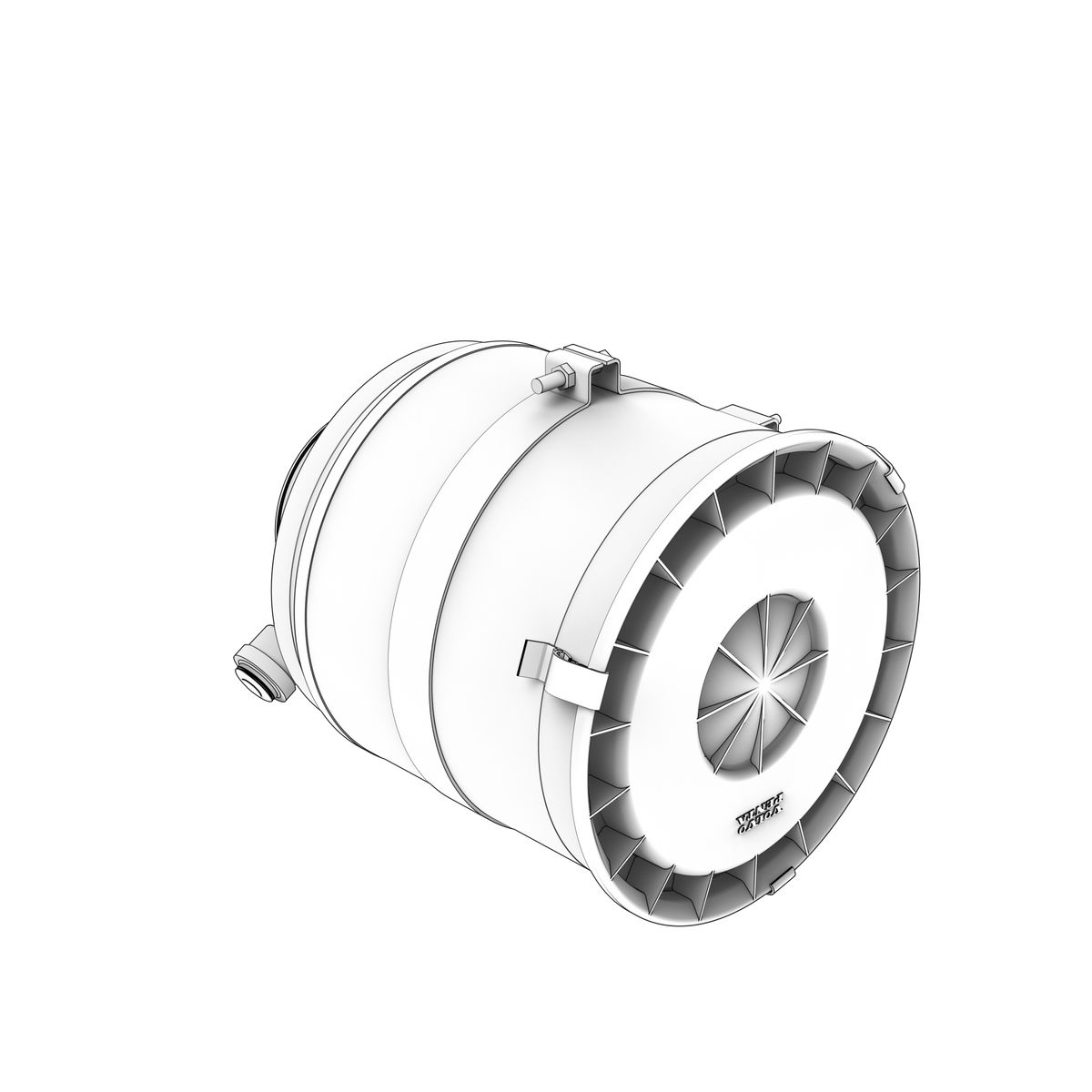

Genuine Volvo Penta complete air-cleaner assembly used on selected D12, D13 and D16 marine engines. The housing accepts the specified replaceable filter insert and pressure-drop indicator, seals the intake stream and provides the correct outlet connection for the turbocharger inlet.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta air-cleaner housing assembly
• Confirmed D12C-A MP application with broader D12/D13/D16 usage
• Accepts filter inserts 3885441 / 21196919 as specified
• Connection for pressure-drop indicator 3828765
• Housing and filter insert are separate service parts
• Engine type: Volvo Penta D12, D13 and D16 turbocharged marine diesel

🔌 Function

Houses and seals the replaceable intake filter while routing clean air to the turbocharger.

⚠️ Common Signs of Failure

• Restriction or high intake / pressure-drop indication
• Reduced engine performance under load
• Contaminated, collapsed or water-damaged media
• Dust or debris found downstream of the filter
• Damaged housing seals or bypass leakage

🛠️ Service Notes

• Fit a dry element straight from its packaging and check it seats squarely so the seal contacts all the way round — the commonest cause of dirt reaching the engine is air bypassing a filter that is not sealed, not a filter that is full
• Do not wash a paper element or blow it through with compressed air to extend its life; the medium is damaged by both and it will pass dirt afterwards
• Wipe out the housing and inlet duct with a damp cloth before fitting, taking care not to knock loose dirt down towards the inlet
• Check the ducting, joints and clamps between the filter and the inlet for splits and looseness, and make sure any restriction indicator or gauge is reset and working
• Never run the engine without the element in place, and change it at the interval given in the workshop manual for your engine or sooner if the engine space is dusty

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21196916 → Supersedes 3883947 → Supersedes 3828568

OEM / Related Numbers

• 3883947 earlier number superseded by this part
• 3828568 earlier number superseded by this part
• 3885441 - air-filter insert references
• 21196919 - air-filter insert references
• 3828765 - pressure-drop indicator
• 961907 - retaining clamp
• 3588023 - rubber collar

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C-D MH
