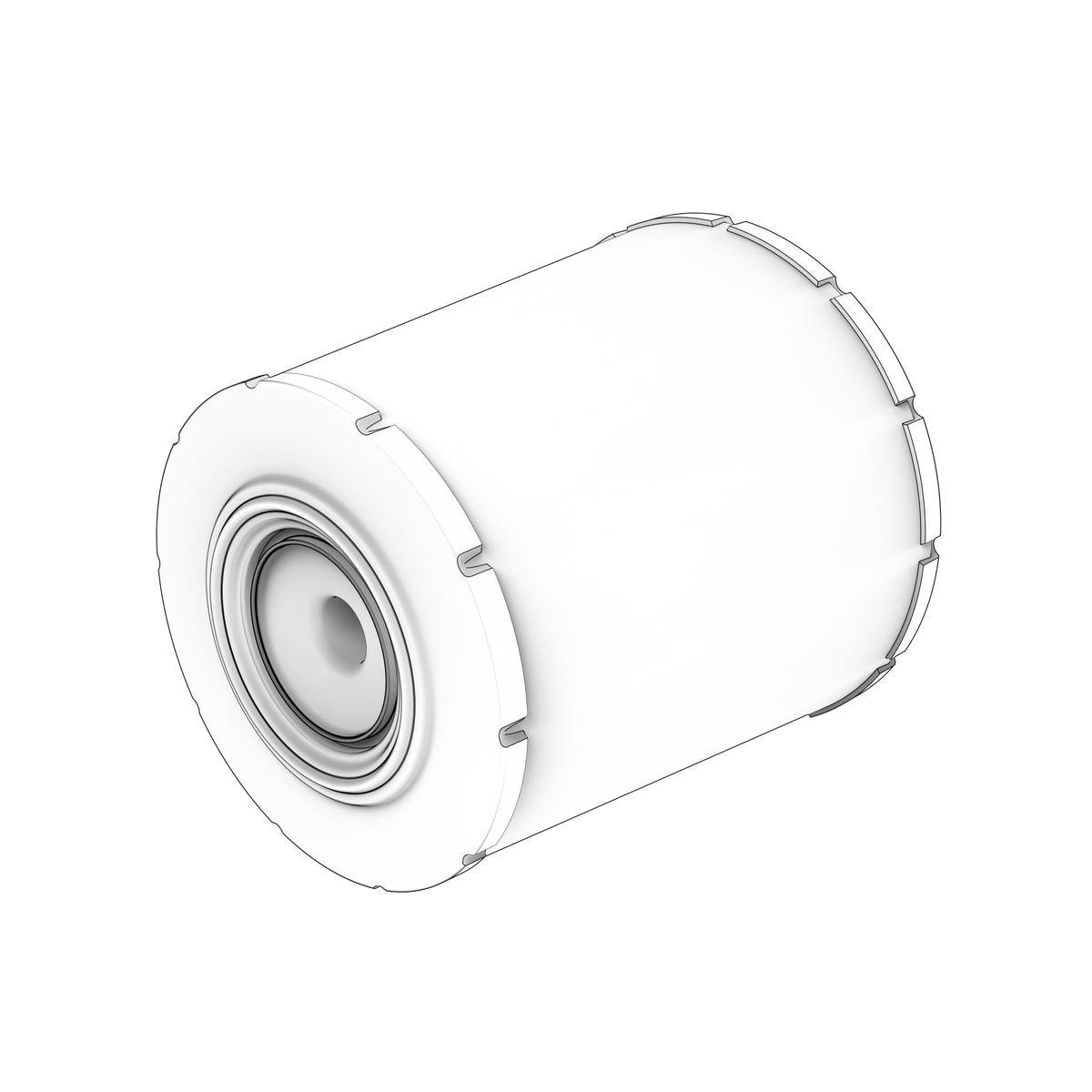

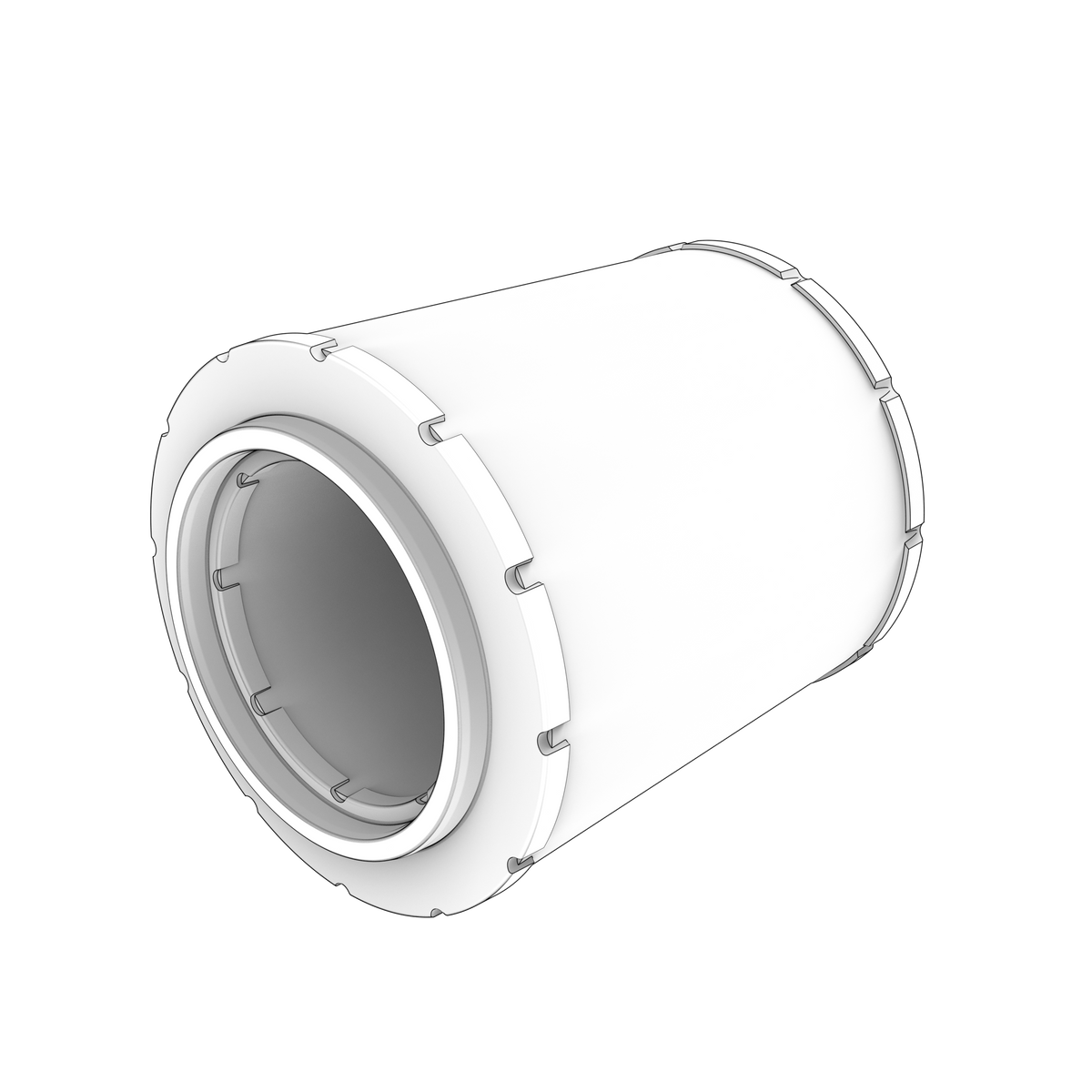

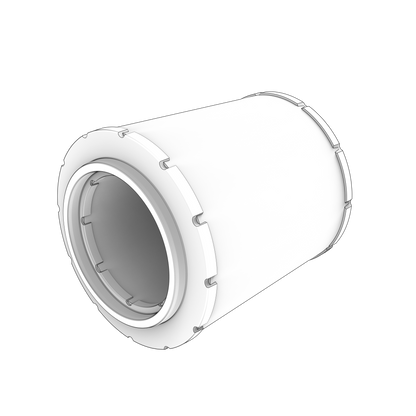

21196919 Air Filter Insert | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta primary air-filter insert for selected D12, D13 and D16 marine diesel air-cleaner assemblies. The large cylindrical element provides high dust-holding capacity while maintaining the intake airflow required by high-output turbocharged engines.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta replaceable air-filter element
• Cross-referenced to Volvo Penta 3828811 and 3885441
• Approximate dimensions: 315-316.5 mm high, 281 mm outside diameter and 186.5-187 mm inside diameter
• Used with air-cleaner housing 21196916 where specified
• Replace when restricted, contaminated or damaged
• Engine type: Volvo Penta D12, D13 and D16 turbocharged marine diesel

🔌 Function

Removes airborne dust and debris before intake air reaches the turbocharger and engine cylinders.

⚠️ Common Signs of Failure

• Restriction or high intake / pressure-drop indication
• Reduced engine performance under load
• Contaminated, collapsed or water-damaged media
• Dust or debris found downstream of the filter
• Damaged housing seals or bypass leakage

🛠️ Service Notes

• Renew rather than clean — the element is not serviceable, and washing or blowing it through damages the media and lets dirt straight into the engine
• Wipe the housing out with a damp cloth before the new element goes in so nothing loose is left sitting downstream of the filter
• Check the element seals all the way round its seat and that the housing and cover are undamaged; air that gets past the seal has not been filtered at all
• Never run the engine with the element out, and fit a clean element before laying up rather than leaving a dirty one in place
• Change at the interval in the maintenance schedule for your engine, and more often in dusty or dirty engine-room conditions

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21196919 → Supersedes 3885441 → Supersedes 3828811

OEM / Related Numbers

• 3885441 earlier number superseded by this part
• 3828811 earlier number superseded by this part
• 21196916 - air-cleaner assembly
• 3828765 - pressure-drop indicator
• 961907 - retaining clamp
• 3588023 - rubber collar

Other-Brand OEM Numbers

• Baldwin: RS5693

Aftermarket / Verified Equivalents

• Sakura: A-71320
• HIFI Filter: SA 16730 / SA16730
• SF-Filter: SL 81488 / SL81488
• Wismet: WAI104065
• Exco: AX36919
• Carquest: 93619
• Hifi Filter: SA16730

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C9-A MP
• Volvo Penta D12C-A MP, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-D MH
