21199274 Nipple | Genuine Volvo Penta Part

🔧 Product Description

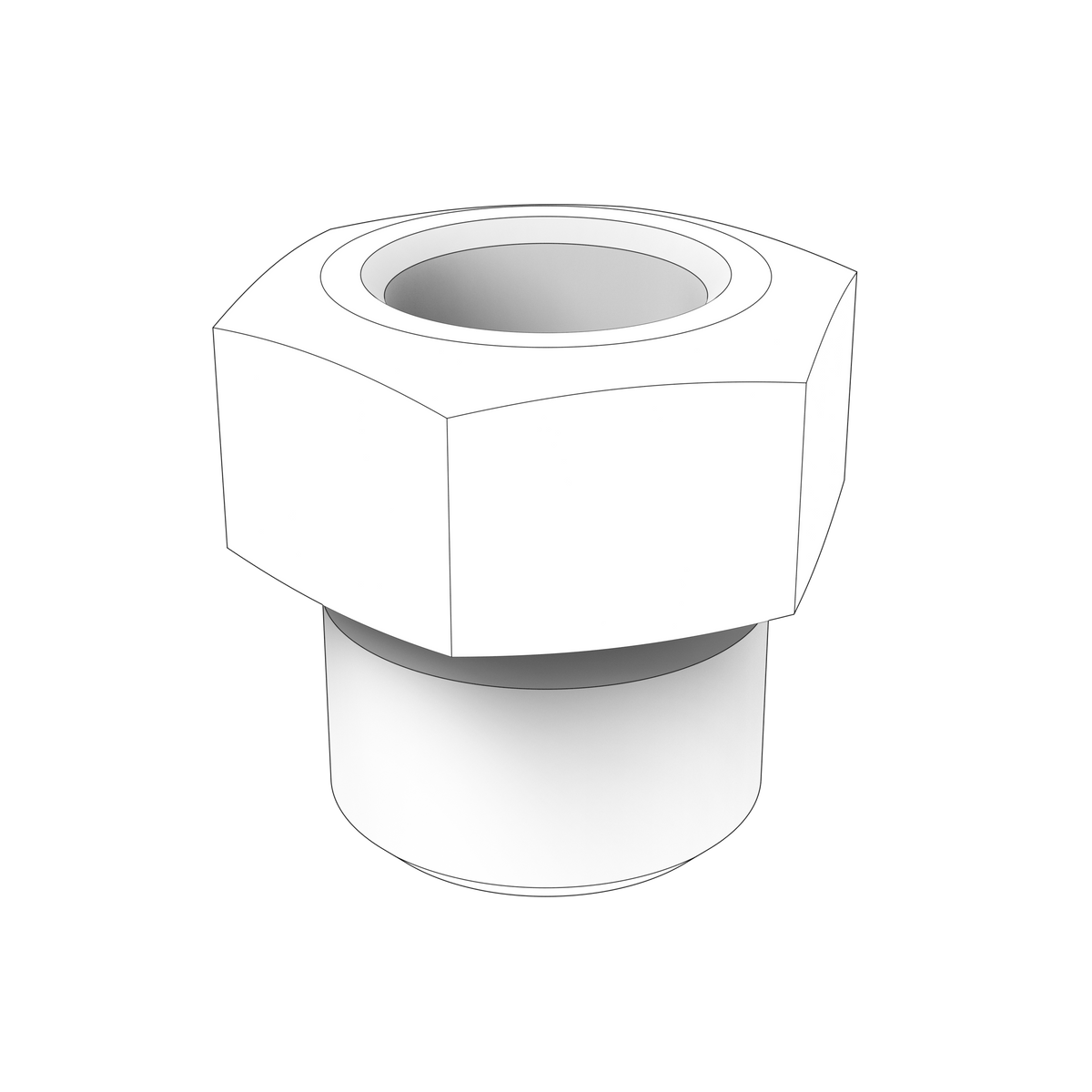

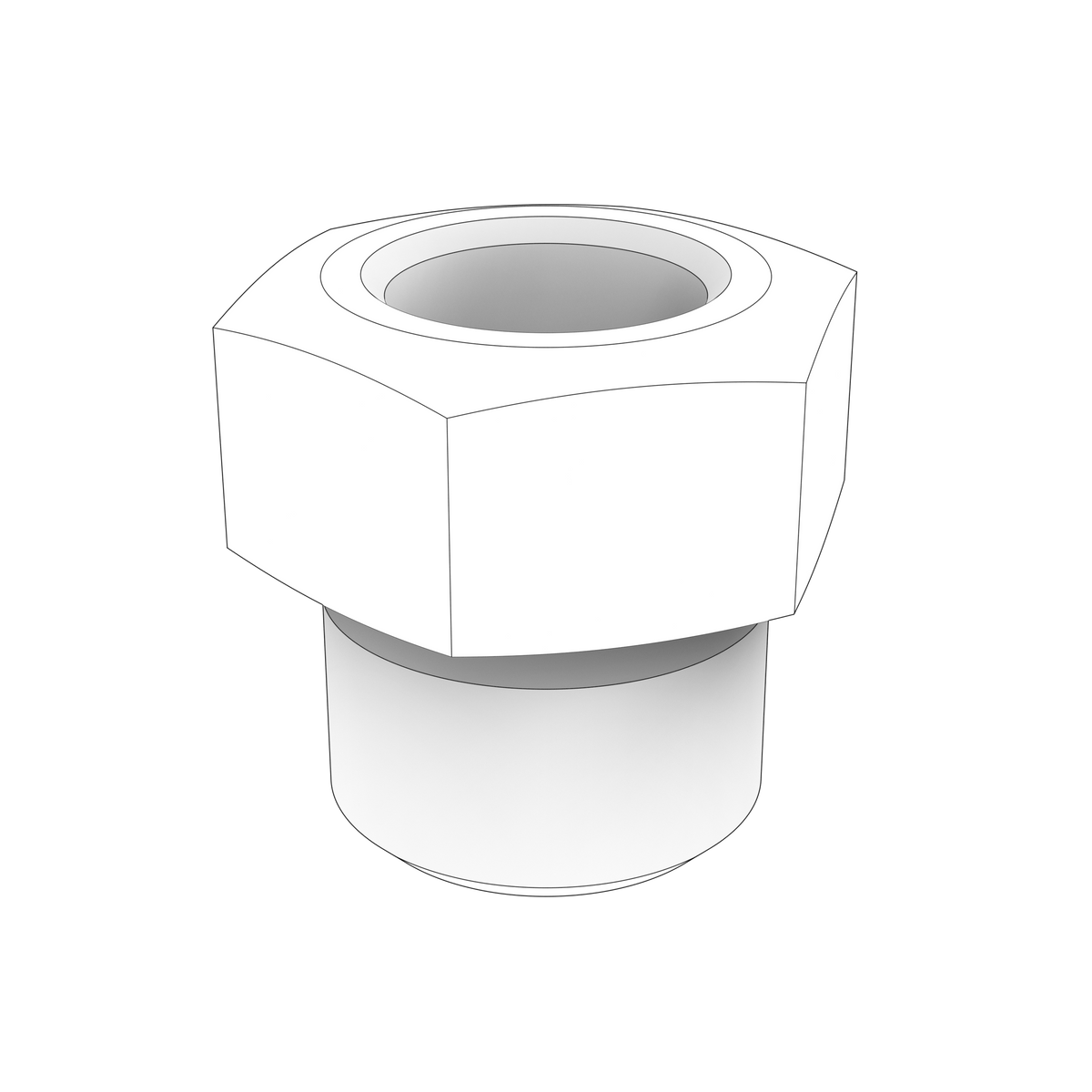

Genuine Volvo Penta hydraulic nipple used at positions 2 and 11 in the DPH-C electronic steering system. It forms the pressure-tight connection between the steering valve assembly and hydraulic hoses; its internal sealing arrangement is not serviced as a separate substitute.

🚤 Compatibility

• Engine Family: D, V, TSK, DPH, SX
• HP Range: 130-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta steering hydraulic nipple
• Confirmed DPH-C application
• Used at two positions in the steering assembly
• Precision hydraulic threads and sealing surfaces
• Internal O-ring is not listed as a separate service substitute
• Engine type: Marine diesel sterndrive installation with DPH-C electronic steering
• 2 used per assembly

🔌 Function

Provides a pressure-tight hydraulic connection at the electronic steering valve assembly.

⚠️ Common Signs of Failure

• Hydraulic oil leakage at the nipple
• Damaged threads or sealing cone
• Air entering the steering circuit
• Loose hose connection or repeated pressure loss
• Corrosion or pitting on the sealing surface

🛠️ Service Notes

• Check the bore is clear before fitting — a nipple is often the feed point or restriction for a circuit, and debris left in it will starve whatever it supplies
• On tapered threads use the paste or liquid sealant specified for the fluid concerned, applied a few threads back from the open end; avoid thread tape on fuel and oil lines, where a shed shred travels downstream into filters, pumps and injectors
• Where the nipple seals on a face or against a washer rather than on its thread, fit a new sealing washer instead of curing a weep by overtightening
• Tighten to the figure in the workshop manual for your engine — these are small fittings in castings and are easily stripped, or the surrounding boss cracked
• Support the pipe or hose so it meets the nipple square and without side load, then check the joint at working pressure and temperature

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 3859043 - associated fitting
• 3859042 - fitting O-ring
• 21199262 - steering valve references
• 21445595 - steering valve references
• 21914259 - steering valve references
• 21199304 - steering hoses
• 21199310 - steering hoses
• 21199314 - steering hoses
• 21199318 - steering hoses

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-JF, 8.1GiE-J, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-MF, 8.1GiE-P, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-JF, 8.1GXiE-J, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 8.1GXi-JF, 8.1IPSCE-MF, 8.1OSi-J, 8.1OSi-JF, 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-JF, 5.7GXiE-J, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-MF, 5.7GXiE-P, 5.7GXi-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiE-300-JF, 5.7GiE-300-J, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiCE-300-MF, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 4.3OSi-J, 4.3OSi-JF, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-MF, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GI-Q, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 3.0GLP-J, 3.0GLP-N, 3.0GXiC-J, 3.0GXi-J, 4.3Gi-200-S, 4.3GXi-225-S, 4.3GXiE-225-S
• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-A, V8-380-C-B, V8-380-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-C-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta TSK-C-42, TSK-A-AC-52-NPT, TSK-B-AC-42-NPT, TSK-B-AC-52-NPT, TSK B-42, TSK B-42-NPT, TSK B-52, TSK B-52-NPT, TSK B-AC-32, TSK B-AC-42, TSK B-AC-52, TSK B-OX-32, TSK B-OX-42, TSK B-OX-52, TSK SX-A, TSK SX-AACLT32, TSK SX-AACLT42, TSK SX-ALT32, TSK A-32, TSK A-32-NPT, TSK A-42, TSK A-52-NPT, TSK A-AC-32, TSK A-AC-42, TSK A-AC-52, TSK A-OX-32, TSK A-OX-42, TSK A-OX-52, TSK B-32, TSK-C-AC-42, TSK-C-OX-42, TSK-C-AC-42-NPT, TSK-C-42-NPT, TSK-C-AC-32, TSK-C-OX-32, TSK-C-32, TSK-C-AC-32-NPT, TSK-C-32-NPT, TSK-C-52-NPT, TSK-C-AC-52-NPT, TSK-C-AC-52, TSK-C-52, TSK-C-OX-52, TSK-A-42-NPT, TSK-A-AC-32-NPT, TSK-A-AC-42-NPT
• Volvo Penta D3-130I-C, D3-220I-G, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-170I-G, D3-200I-G, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D6-330A-F, D6-370A-F, D6-300A-F, D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-400A-F
• Volvo Penta D4-260A-F, D4-300A-F, D4-225A-F, D4-150A-G, D4-230A-G, D4-270A-G, D4-300A-G
• Volvo Penta DPH-D1
• Volvo Penta SX-A
