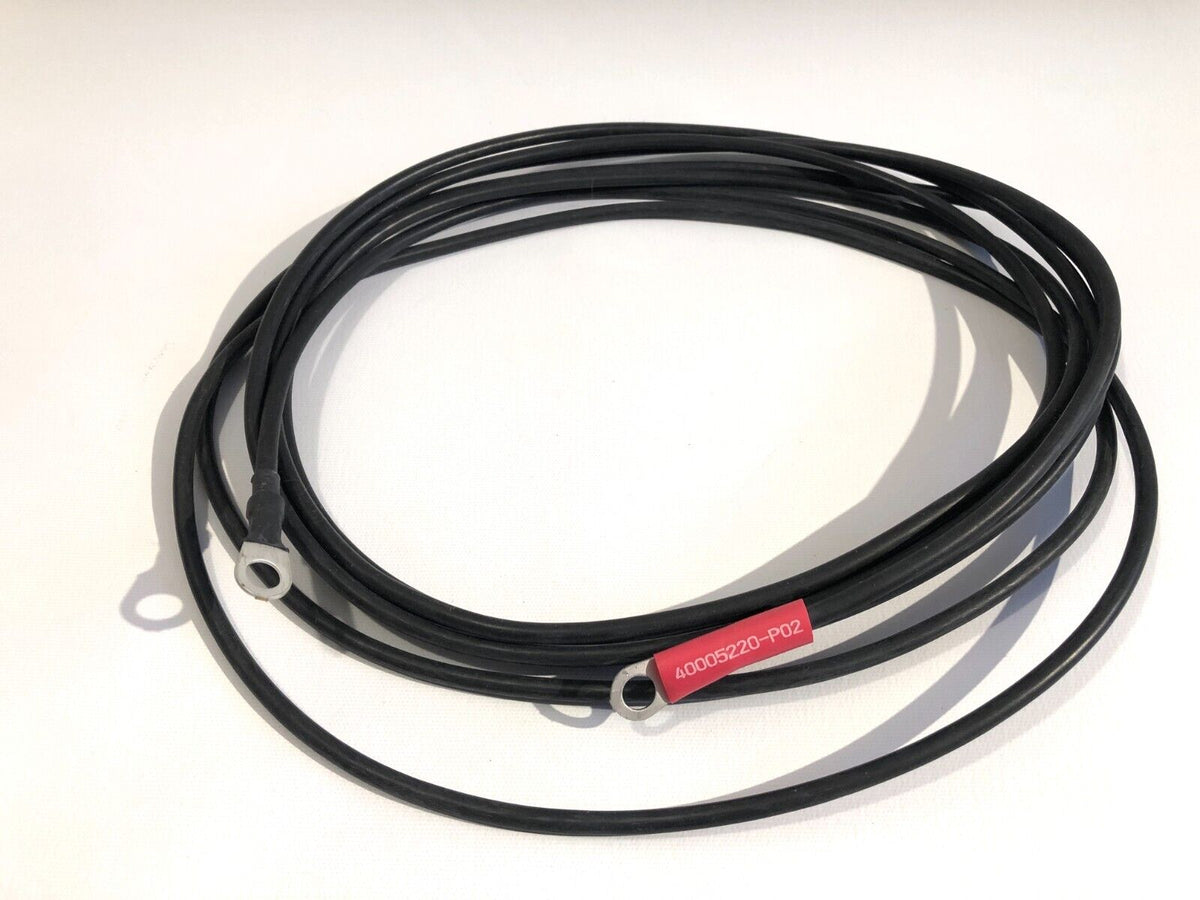

21200402 Cable Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta bonding cable listed in the Active Corrosion Protection chapter, for the extra bonding needed between Volvo Penta IPS units on triple and quad installations. It weighs 0.547 kg and is listed for 70 applications across the D series engines and IPS pod drives. Order one for a triple installation and two for a quad installation.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 260-480 HP
• Year Range: Approximately 2010s

Full model list at the end of this description.

⚙️ Key Features

• Bonding cable for Volvo Penta IPS Active Corrosion Protection
• For the extra bonding needed on triple and quad IPS installations
• One required for a triple installation, two for a quad
• 0.547 kg
• 70 applications across D series engines and IPS pod drives
• Bonding cable for Active Corrosion Protection on Volvo Penta IPS
• Required between IPS units on triple and quad installations
• Fits: Volvo Penta IPS triple and quad installations with Active Corrosion Protection

📋 Kit Contents

• 40005220 control / installation cable - 1
• 993419 retaining washer - 1

🔌 Function

Bonds the IPS units to one another so the Active Corrosion Protection system can hold every drive in the installation at the same protected potential.

⚠️ Common Signs of Failure

• Corrosion protection warning at the helm on a triple or quad installation
• One pod showing corrosion or faster anode wastage than the others
• Cable ends green, furred or broken at the crimp
• Poor or open-circuit continuity between pods
• Cable chafed or its insulation split where it passes the hull structure

🛠️ Service Notes

• This is the additional cable for triple and quad installations only - twin installations are covered by the kit's own wiring
• Check continuity pod to pod before condemning the corrosion protection unit, since a broken bond makes a healthy system read as faulty
• Make the terminations onto clean bare metal and protect them once tightened
• Order one cable for a triple installation and two for a quad installation

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21200402 → Supersedes 24050632 → Supersedes 22037078 → Supersedes 21205514

OEM / Related Numbers

• 24050632 earlier number superseded by this part
• 22037078 earlier number superseded by this part
• 21205514 earlier number superseded by this part
• 40005220 included cable
• 993419 included washer

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C5-B MP, D13C6-A MP, D13C4-B MP, D13C5-A MP, D13C8-B MP
• Volvo Penta D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B4-A MP, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP
• Volvo Penta IPS-A, IPS-B, IPS-F, IPS-C, IPS-D, IPS-E
• Volvo Penta D8A2-A MP, D8A4-A MP, D8A8-A MP
• Volvo Penta IPS2-C, IPS2-A, IPS2-B
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
• Volvo Penta IPS15-B, IPS15-A
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS10-A
• Volvo Penta IPS20-D
• Volvo Penta IPS30-D
