21210-88L00 Suzuki Clutch Shaft | Genuine Used Part

21210-88L00 Suzuki Clutch Shaft | Genuine Used Part

$10.00 AUD
$10.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

🔧 Product Description

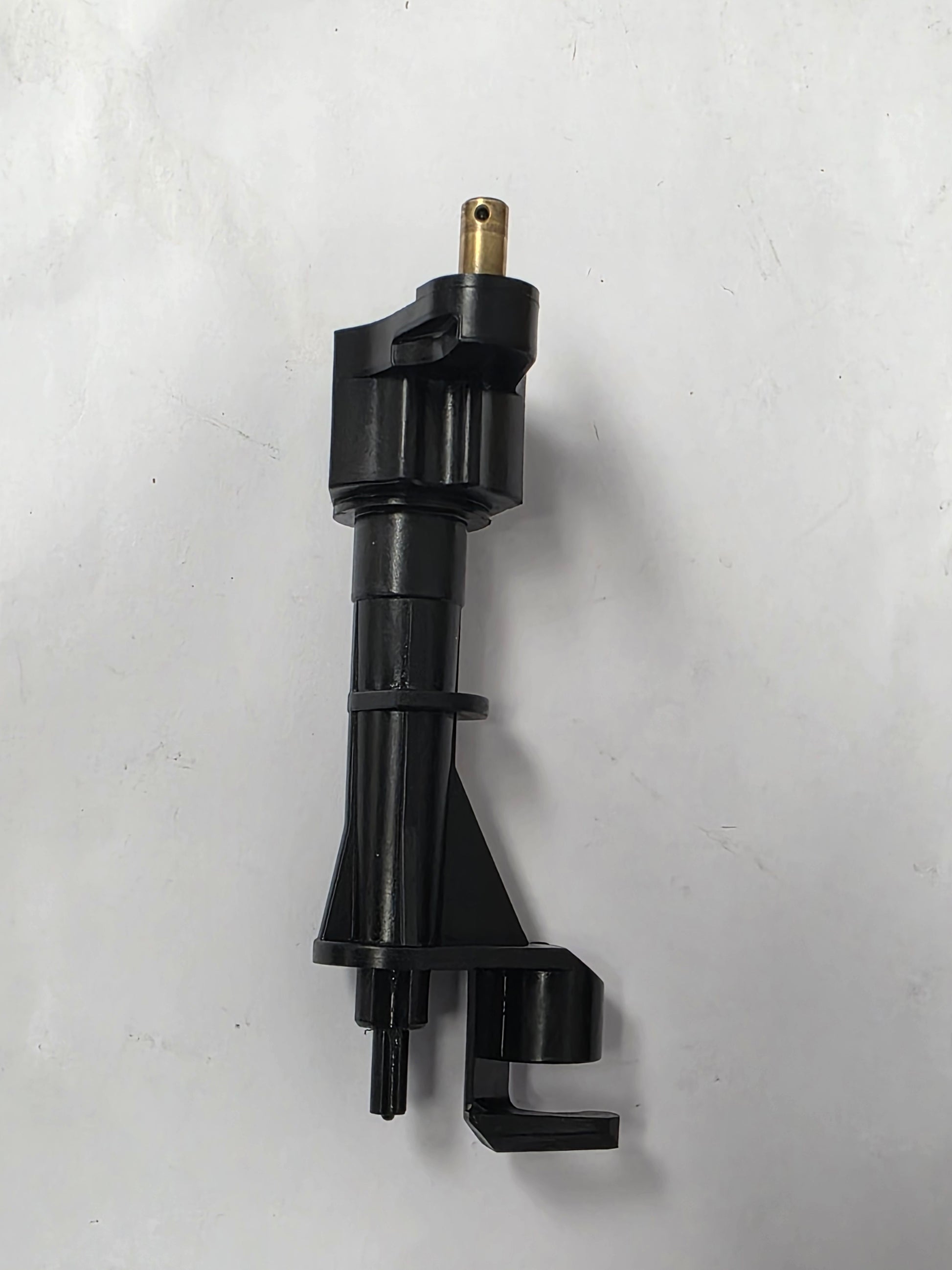

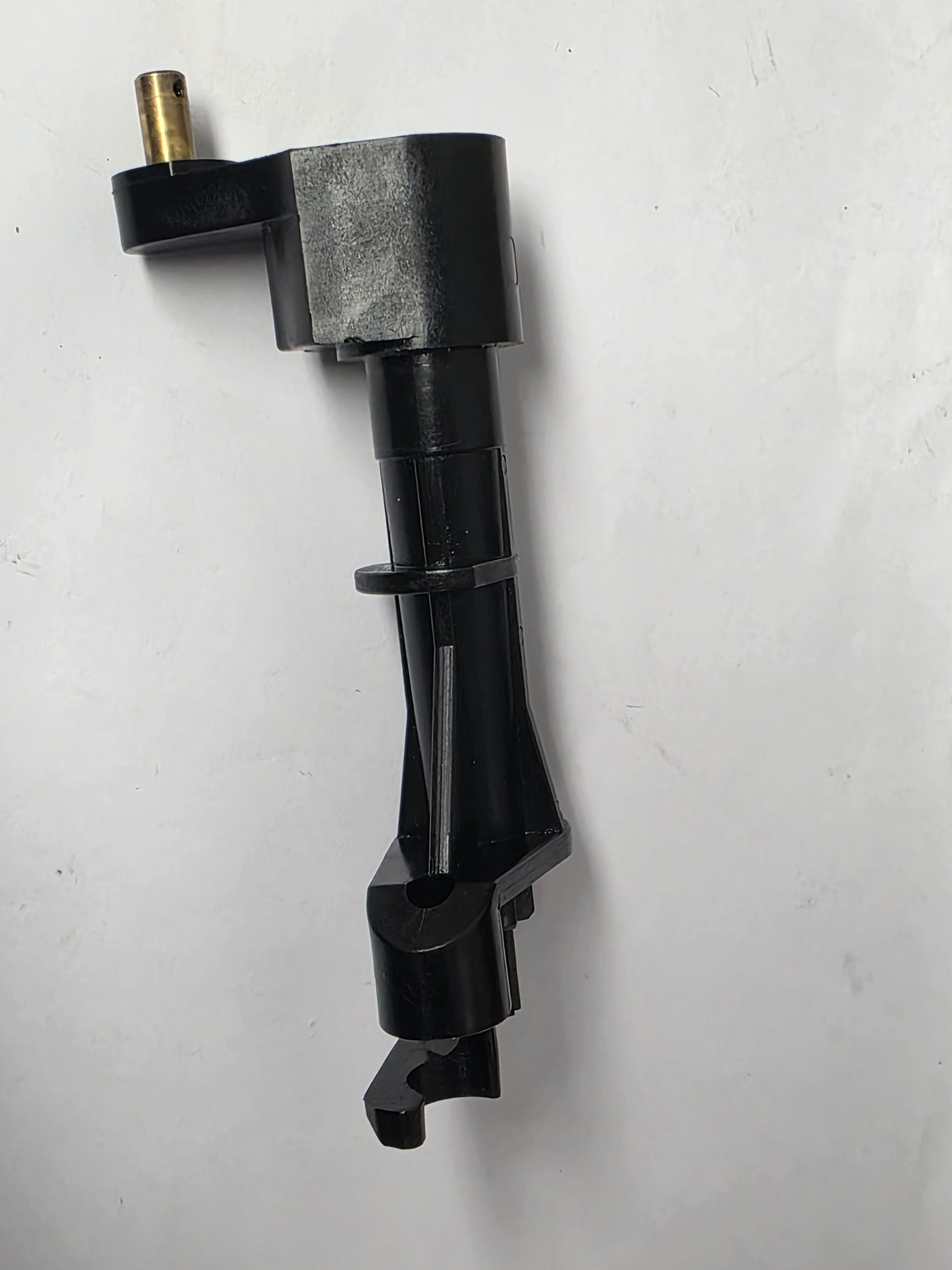

Genuine Suzuki Clutch Shaft - Part Number: 21210-88L00

A genuine used Suzuki clutch shaft for selected DF40A, DF50A and DF60A four-stroke outboards.

The shaft forms the main rotating member of the engine-side shift mechanism. It transfers movement from the clutch-control lever into the lower shift linkage while supporting the associated notch springs and cable-control components.

⚙️ Key Features

  • Genuine Suzuki OEM clutch shaft
  • Correct original Suzuki part number 21210-88L00
  • Superseded by updated shaft 21210-88L01
  • Used on standard, tiller and high-thrust DF40A to DF60A variants
  • Direct-fit internal shift-linkage component

🚤 Compatibility

Commonly used on

  • Suzuki DF40A, DF50A and DF60A clutch-shaft assemblies
  • Remote-control, tiller-control and high-thrust shift systems using the 88L shaft family

Typically suits

  • Engine models:
  • Suzuki DF40A
  • Suzuki DF40AQH
  • Suzuki DF40ATH
  • Suzuki DF50A
  • Suzuki DF50ATH
  • Suzuki DF50AVT
  • Suzuki DF60A
  • Suzuki DF60AQH
  • Suzuki DF60ATH
  • Suzuki DF60AVT
  • HP Range: 40HP - 60HP
  • Engine Type: Suzuki inline three-cylinder four-stroke outboard
  • Year Range: Approximately 2010 onward

🔌 Function

The clutch shaft rotates with movement from the control lever and transfers that motion to the remaining shift linkage. It also provides the mounting axis for the lever and detent components that define forward, neutral and reverse positions.

⚠️ Common Signs of Failure

  • Shaft is bent, scored or heavily corroded
  • Shift mechanism binds as the shaft rotates
  • Worn shaft or bushes create excess free play
  • Gear engagement is incomplete or inconsistent
  • Detent components do not align correctly on the shaft

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 21210-88L01 → Supersedes 21210-88L00
  • 21210-88L00 earlier OEM clutch-shaft reference

OEM / Related Numbers

  • 21210-88L00
  • 2121088L00
  • 21210-88L01
  • 23210-88L00 related clutch-control lever
  • 23213-89J01 related notch-plate No. 1 spring

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
